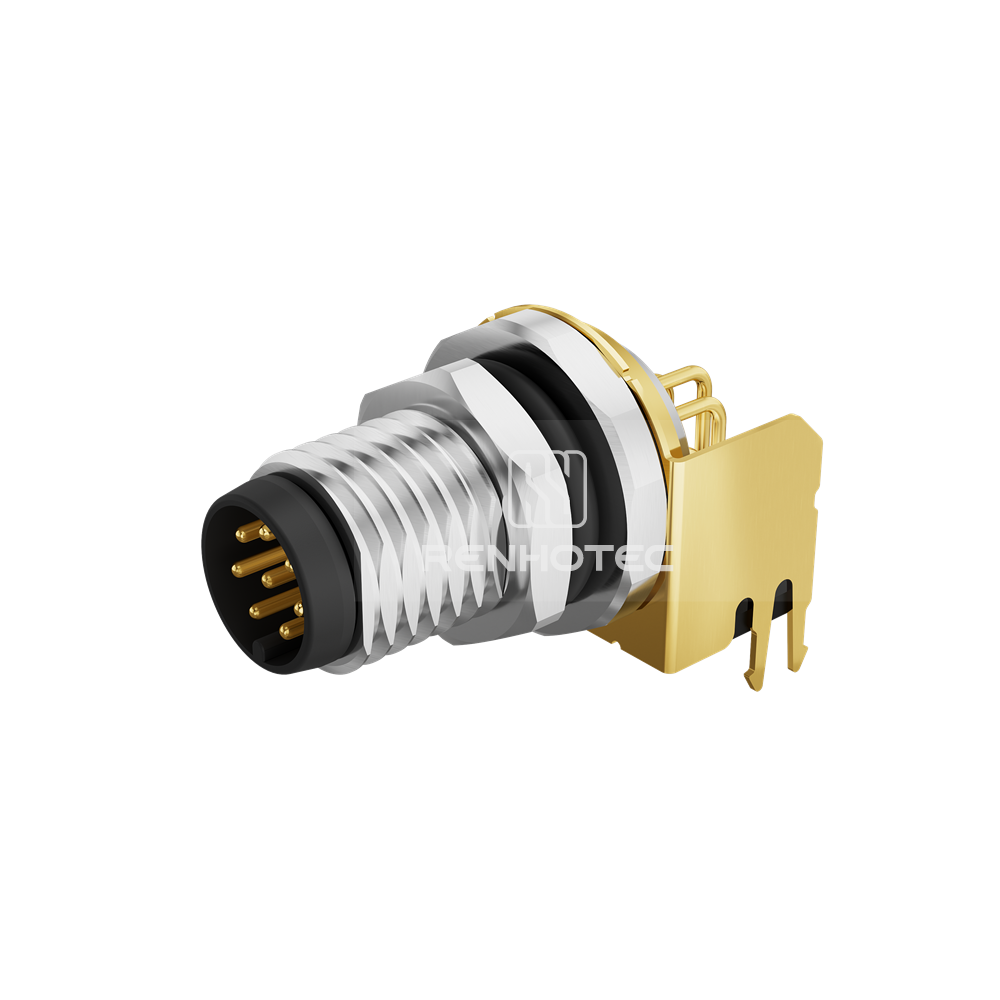

Products > Circular Connector > M8 Male Panel Mount Receptacle 8 Pin A Code Shielded Right Angle PCB
![](/wp-content/themes/flatsome-child/assets/imgs/no_image_2.png)
![](/wp-content/themes/flatsome-child/assets/imgs/no_image_2.png)
- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
Get reliable connectivity with this M8 male panel mount receptacle featuring 8 pin A code shielding, perfect for secure PCB mounting in a right angle configuration.
GeneralShellMechanicalMaterialEnvironmentalElectrical
General | |
---|---|
Connector Type | Receptacle |
Orientation | Right Angle |
Contact Type | Male Pin |
Number of Positions | 8 |
Key | A |
Contact Termination | Through Hole |
Shell | |
---|---|
Shell Size | M8 |
Mechanical | |
---|---|
Fastening Type | Threaded |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Material | |
---|---|
Shell Material | Copper Alloy |
Shell Finish | Zinc Plated |
Contact Finish | Gold |
Contact Material | Copper Alloy |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -25°C ~ + 85°C |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 3A |
Rated Voltage | 60V |
Certification
M8 M12 M16 Connector AGC07686211202-002 REACH | Download |
