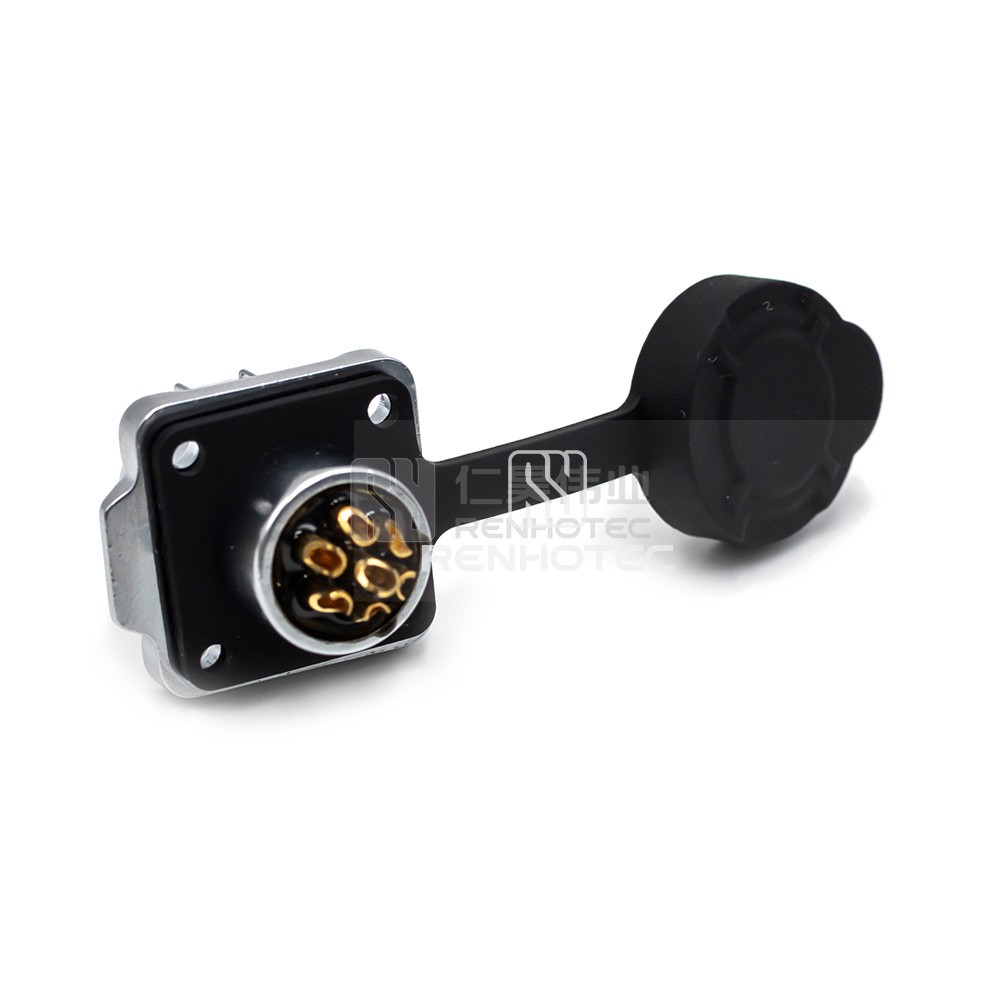

product image

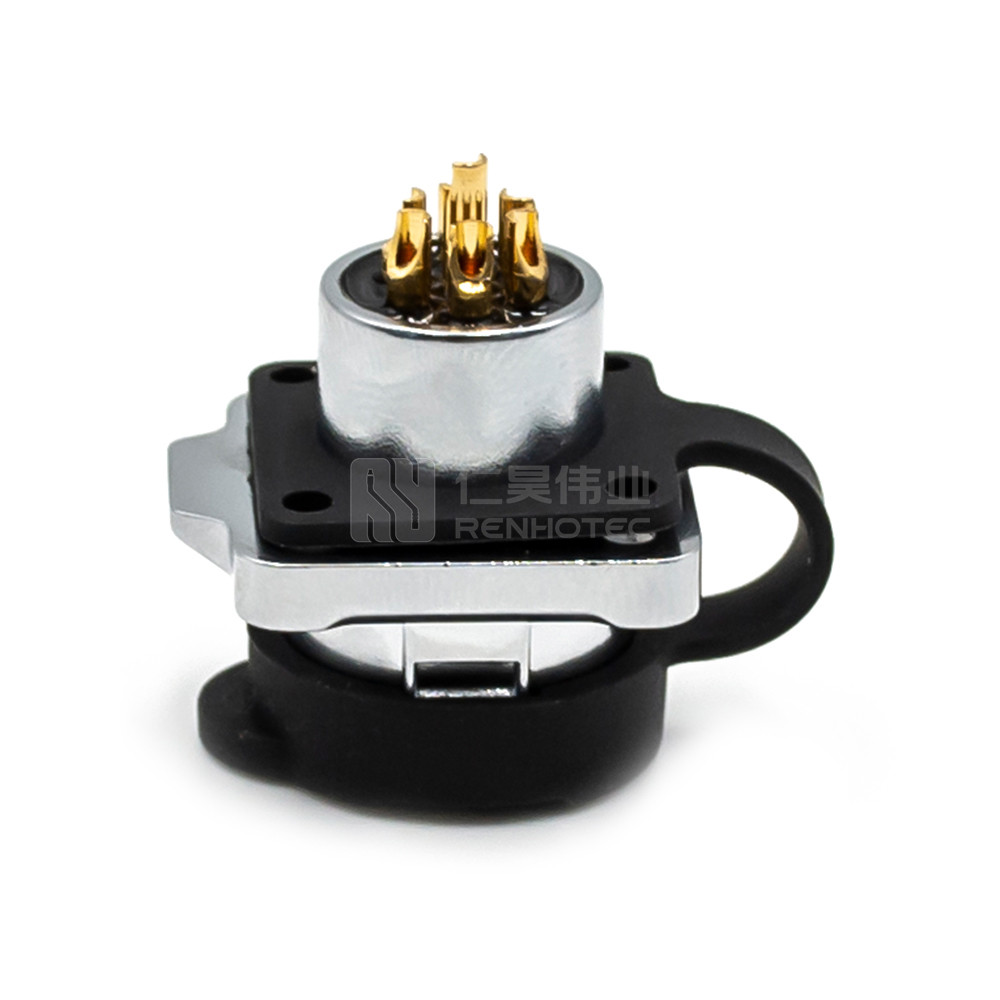

product image

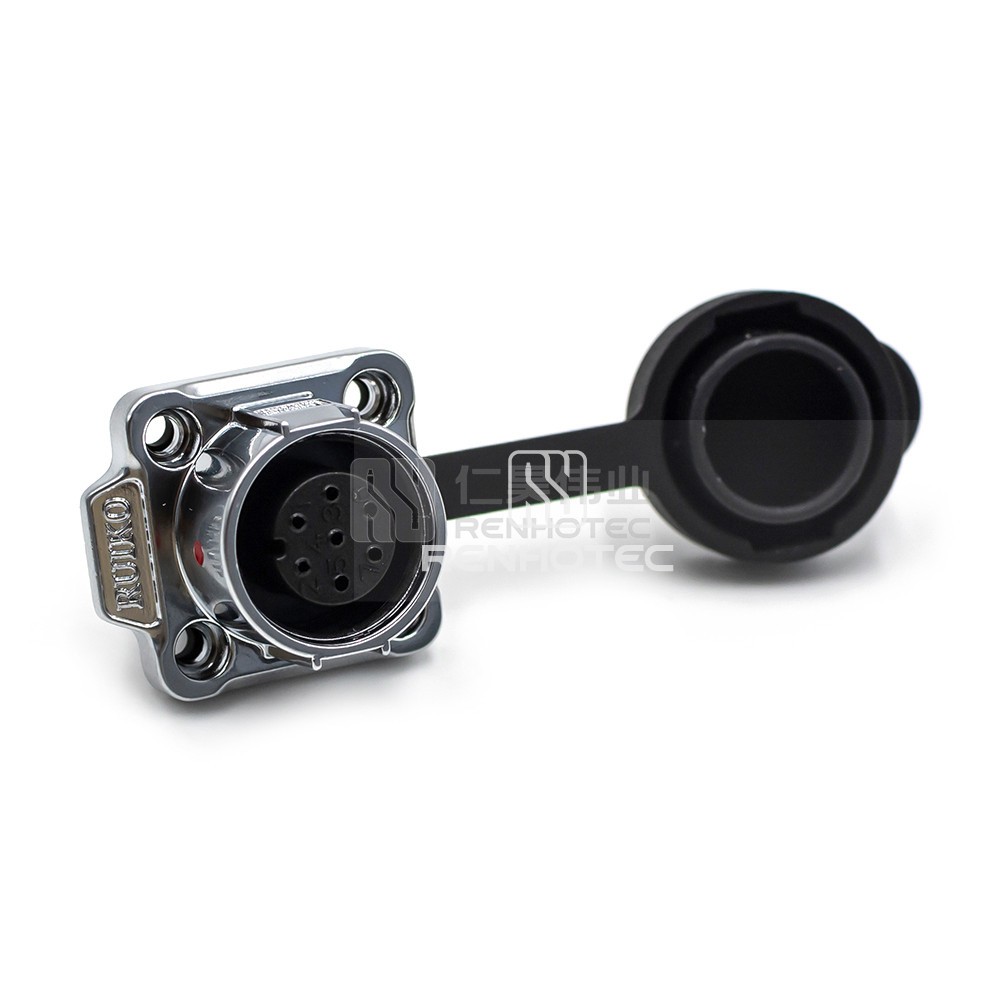

product image

RK-12-S-07-R-0

12 Series Power Waterproof Connector Formal 7 Pin Receptacle

Color:

Silver

Number of Positions:

2345678
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Find the reliable 12 Series Power Waterproof Connector Formal 7 Pin Receptacle for your electrical needs. This waterproof connector offers high-quality performance and durability.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions7
Contact TerminationSolder
Material
Shell MaterialZinc Alloy
Shell FinishChrome Plated
Contact MaterialPhosphor Bronze
Contact FinishGold
Insulating MaterialPA66
Mechanical
Fastening TypePush-Pull
Mounting TypePanel Mount
Wire Gauge or Range24-22AWG/0.2mm²-0.3mm²
Environmental
Operating Temperature-40°C ~ + 80°C
Electrical
Rated Voltage200V
Rated Current3A
