Products > Waterproof Connector > 12 Series Power Waterproof Connector Formal 5 Pin Receptacle
product image
product image
product image

RK-12-S-05-R-0

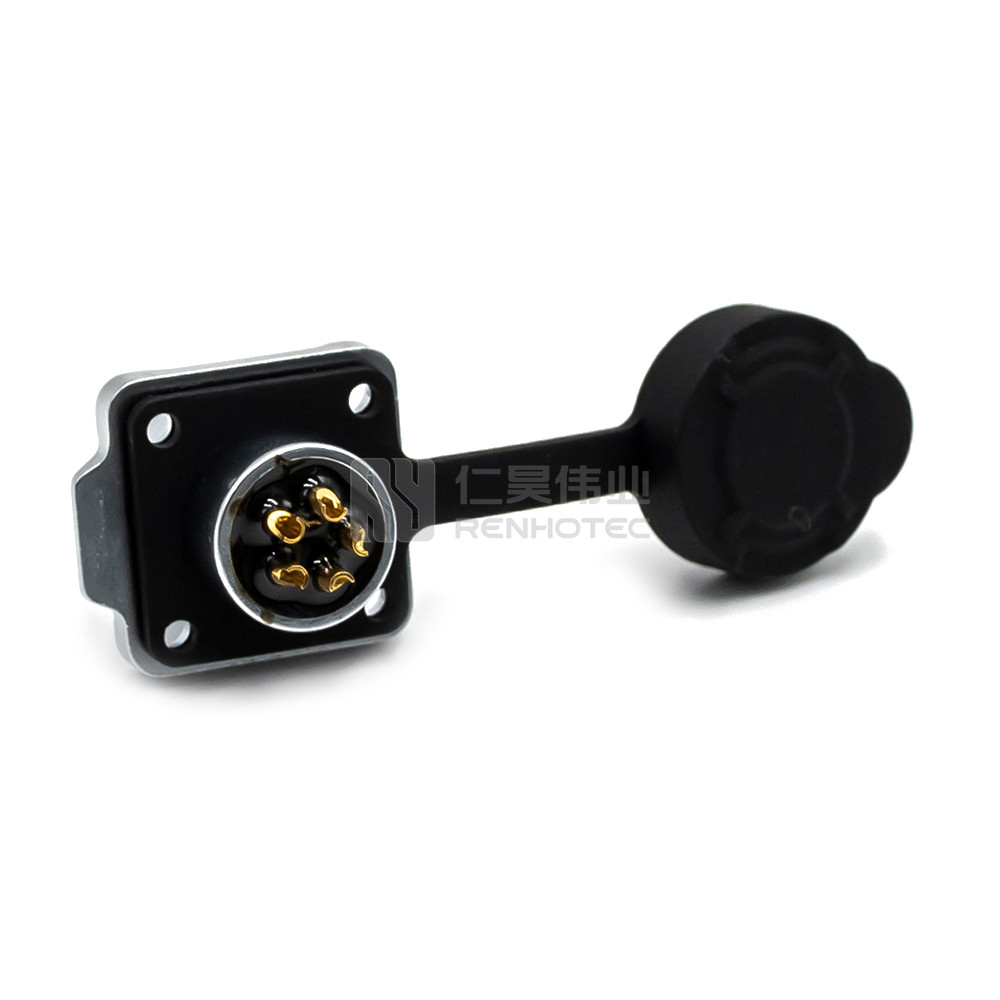

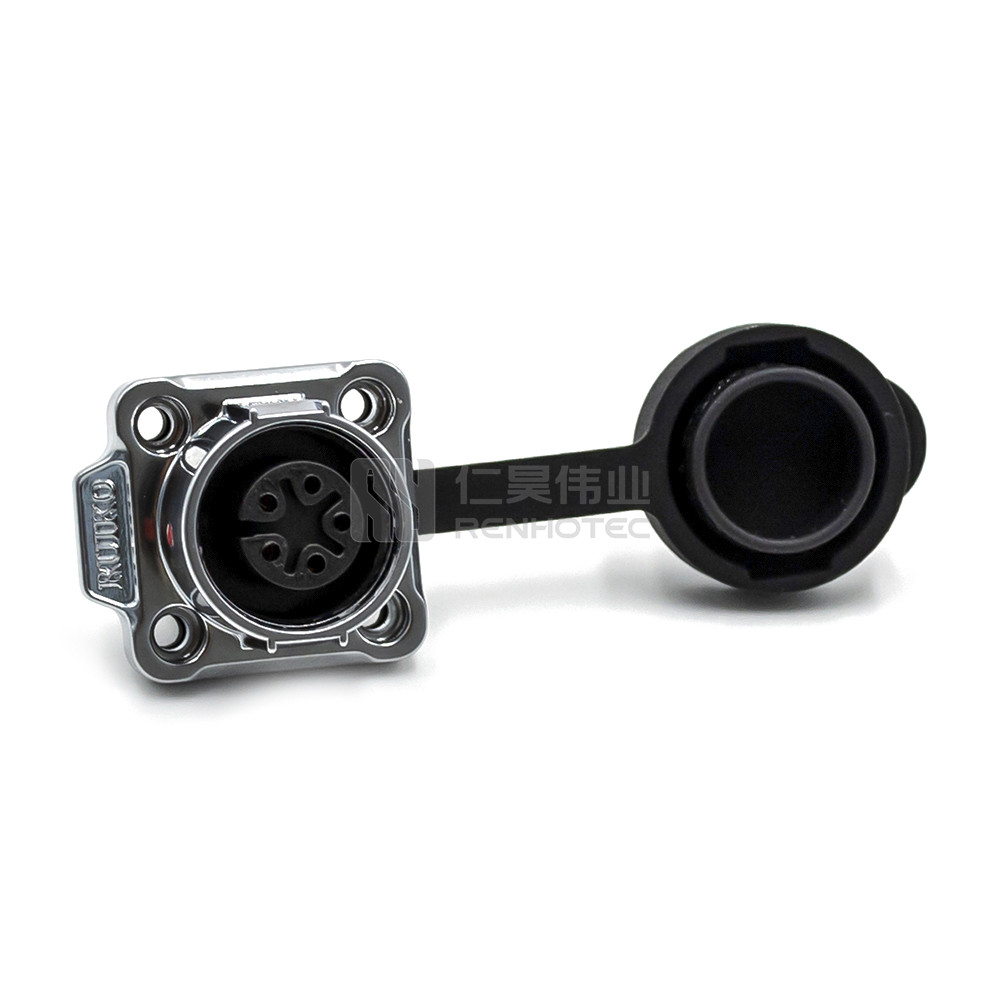

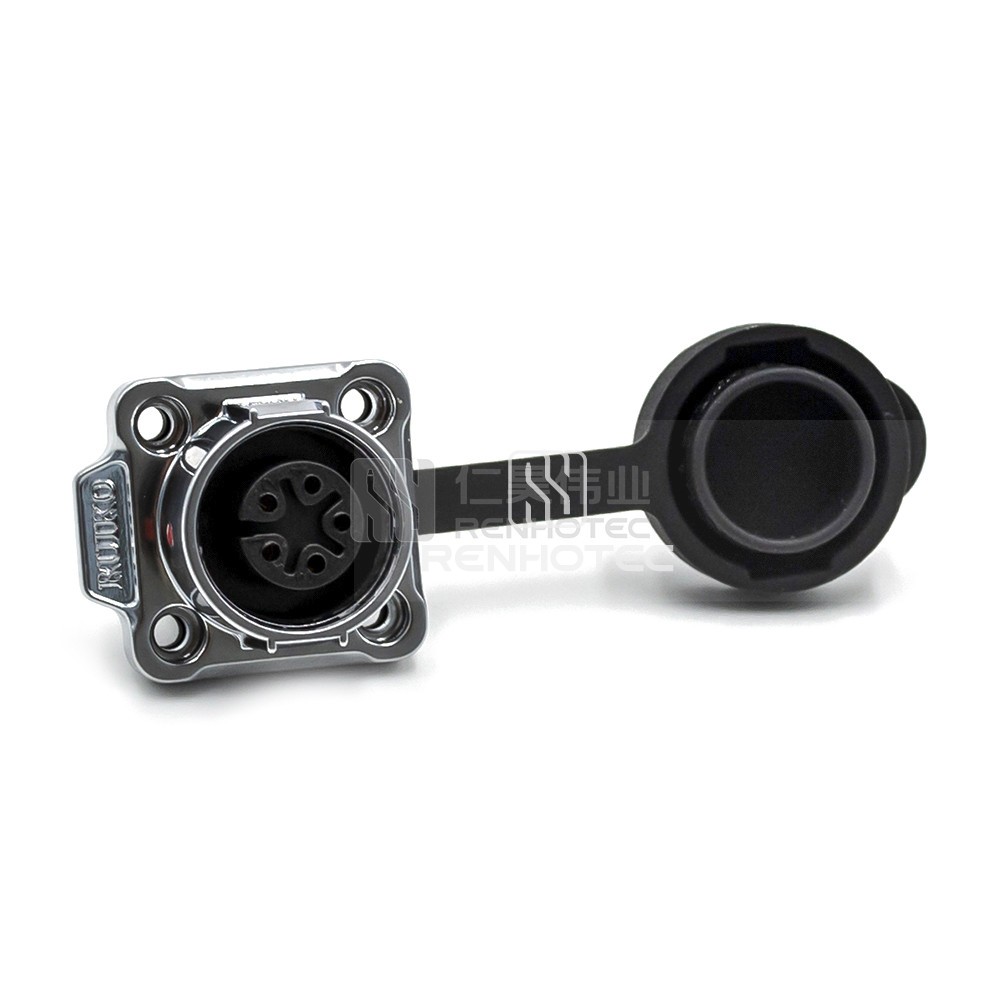

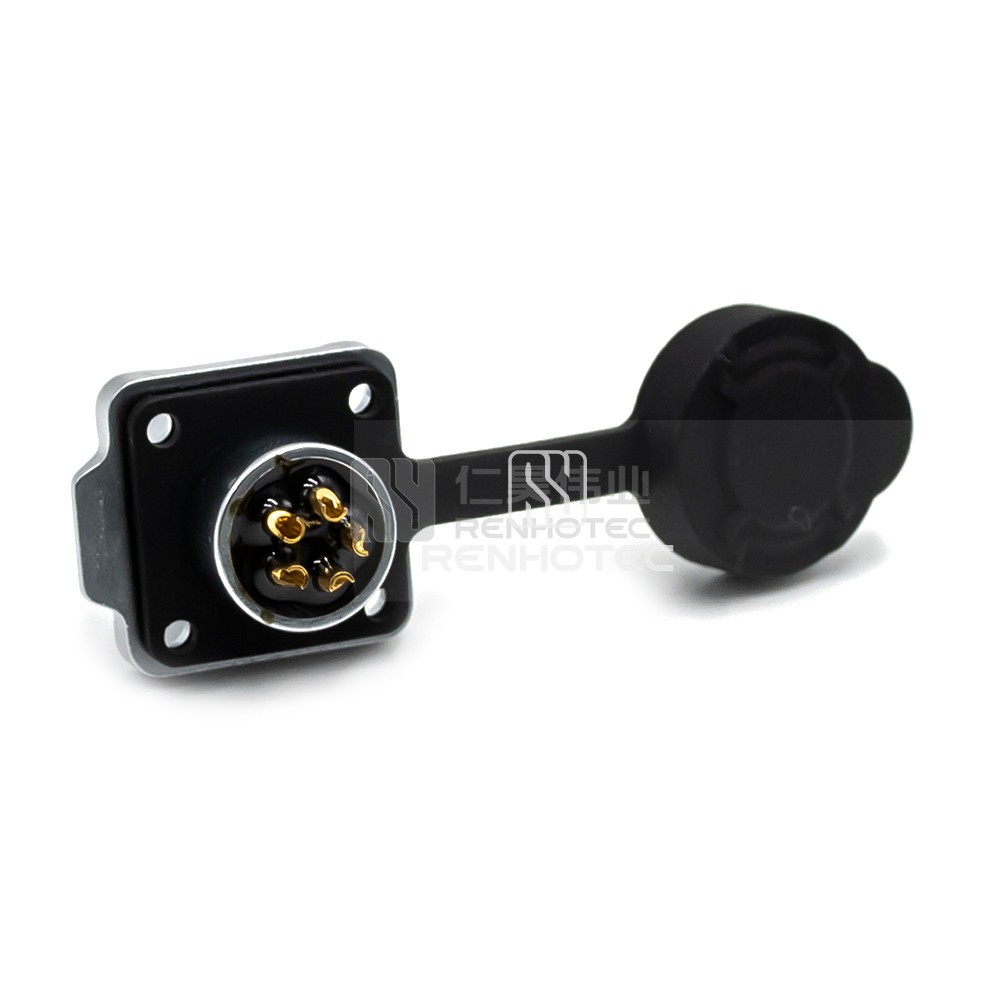

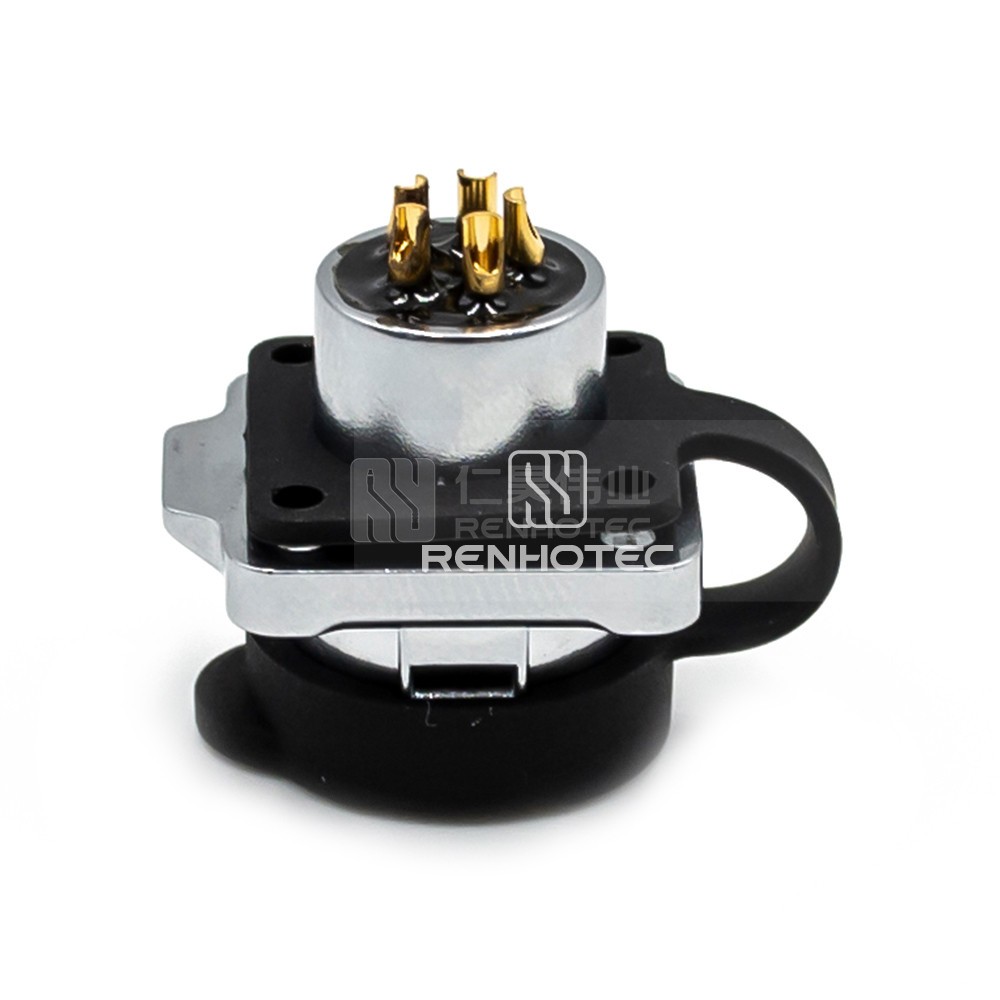

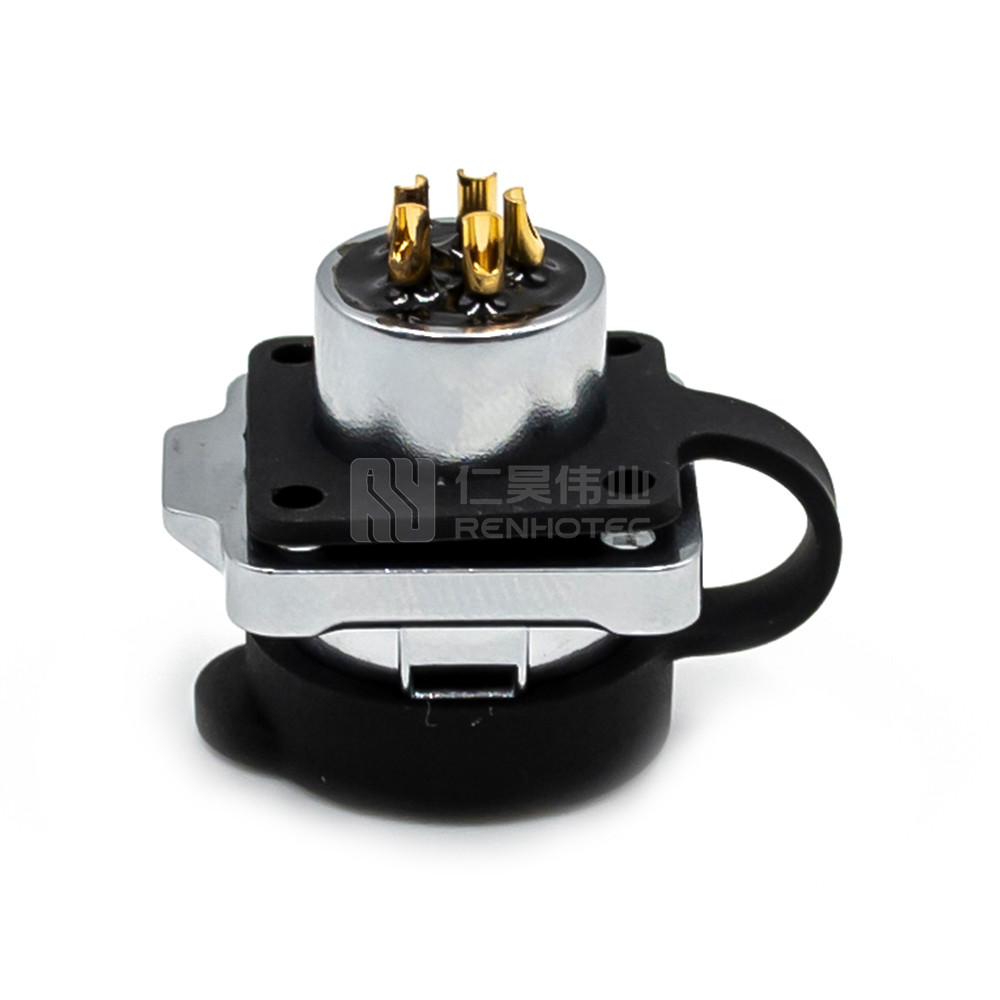

12 Series Power Waterproof Connector Formal 5 Pin Receptacle

Color:

Silver

Number of Positions:

2345678
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Ensure reliable and secure electrical connections with this 12 Series Power Waterproof Connector Formal 5 Pin Receptacle. Designed to withstand harsh environments, this connector offers waterproof protection for peace of mind.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions5
Contact TerminationSolder
Material
Shell MaterialZinc Alloy
Shell FinishChrome Plated
Contact MaterialPhosphor Bronze
Contact FinishGold
Insulating MaterialPA66
Mechanical
Fastening TypePush-Pull
Mounting TypePanel Mount
Wire Gauge or Range22-20AWG/0.3mm²-0.5mm²
Environmental
Operating Temperature-40°C ~ + 80°C
Electrical
Rated Voltage250V
Rated Current5A
