78010-3P

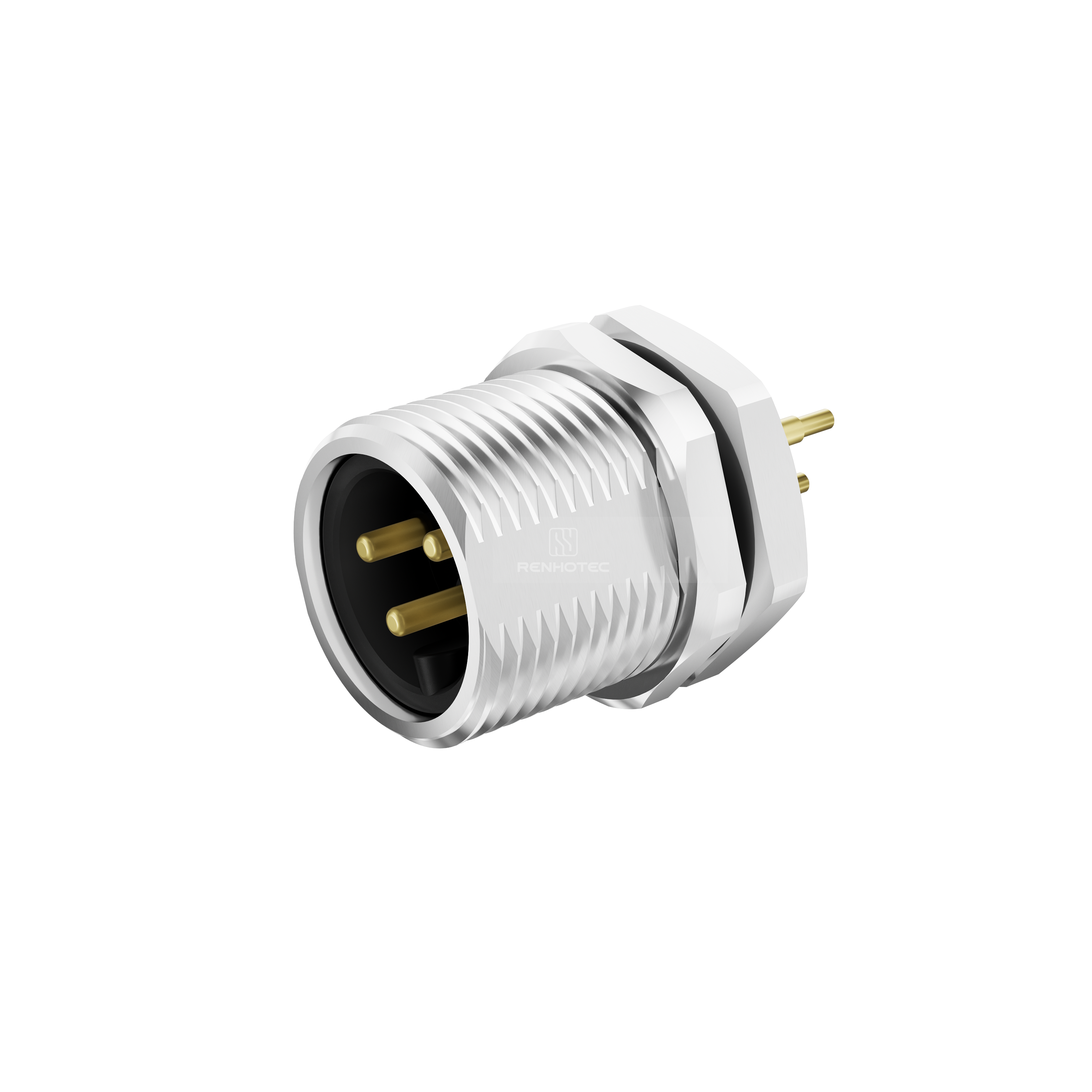

Mini Change 7/8" Male Panel Mount Receptacle Front Fastened Through Hole Straight 3 Pin

Color:

Silver

Number of Positions:

Color:

Silver

Number of Positions:

Get a Quote
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

  1. 7/8" male panel mount receptacle, 3-pin, unshielded
  2. Front fastened for easy and secure installation
  3. Through-hole straight design ensures stable connections
  4. Ideal for industrial automation, sensors, and power distribution systems
  5. Built for reliable performance in demanding environments
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeMale Pin
Number of Positions3
ColorSilver
Contact TerminationThrough Hole
Material
Shell MaterialCopper Alloy
Shell FinishZinc Plated
Contact FinishGold
Contact MaterialCopper Alloy
Mechanical
Wire Gauge or Range6~8mm
Fastening TypeThreaded
Mounting TypePanel Mount
Mounting FeatureBulkhead - Front Fastened
Environmental
Ingress ProtectionIP67
Operating Temperature-25°C ~ + 80°C
Electrical
ShieldingUnshielded
Rated Current13A
Rated Voltage300V

Certification

Drawing for Mini Change 7/8″ Male Panel Mount Receptacle Front Fastened Through Hole Straight Download

Catelog

RENHOTEC M-Series Connector Catalog [EN][CN] Download
