Products > Sensor Connector > M8 Series > M8 5 Pin Female Straight Panel Mount Receptacle, B Code Front Fastened, PCB M12

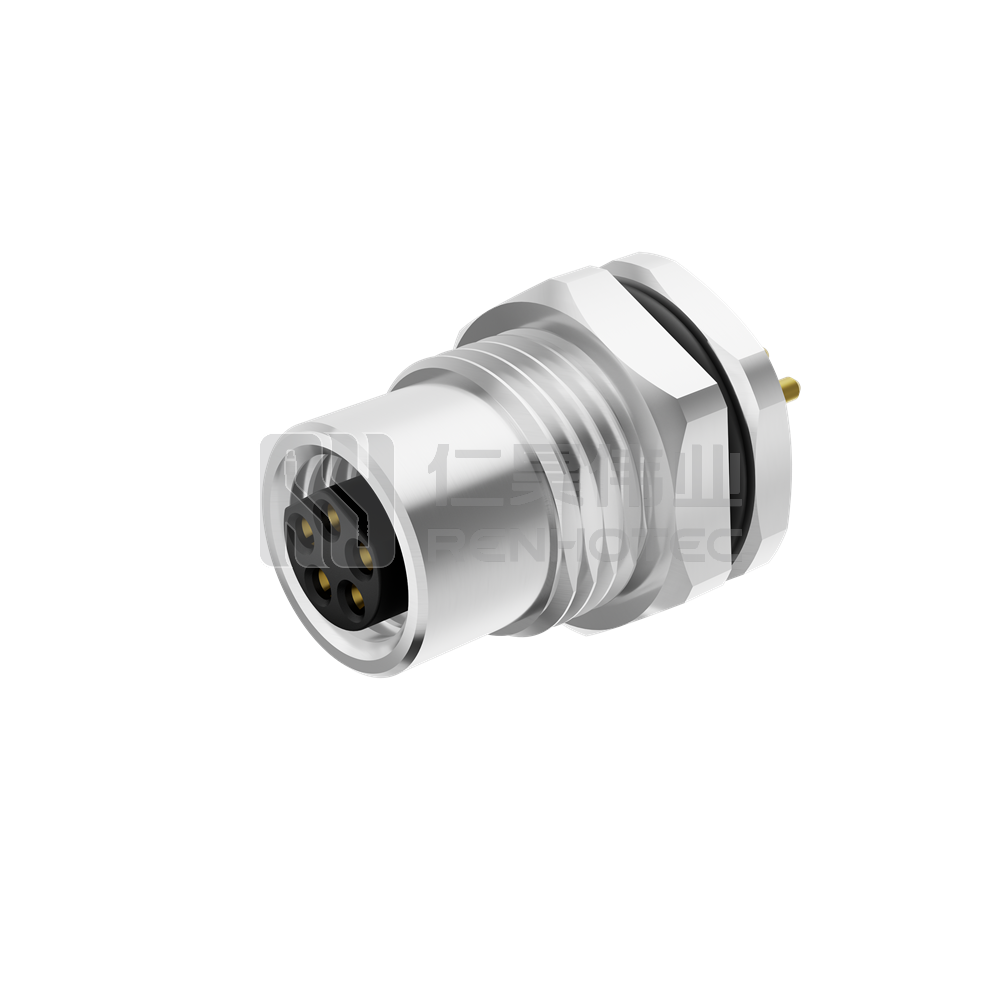

product image

RHT-634-1201-05

M8 5 Pin Female Straight Panel Mount Receptacle, B Code Front Fastened, PCB M12

Number of Positions:

34568

please fll in your details and requirements below,and our team will get in touch with you as soon as possible.

    Get a Quote
    Products >
    • Overview
    • Technical data
    • Certification
    • Download

    Product certification

    ×

    Product excerpt

    1. 5 Pins (B-Coded): Supports multiple connections with precise alignment.
    2. B-Coded: Guarantees correct orientation and compatibility.
    3. Front Fastened: Securely attaches to the panel from the front.
    4. Straight Orientation: Facilitates direct mounting on PCB (Printed Circuit Board).
    5. Panel Mount Design: Ensures stability and durability.
    EnvironmentalElectricalMaterialGeneralMechanicalShell
    Environmental
    Ingress ProtectionIP67
    Electrical
    Rated Current3A
    Material
    Shell MaterialCopper Alloy
    General
    Connector TypeReceptacle
    Mechanical
    Fastening TypeThreaded
    Shell
    Shell SizeM8

    Certification

    Renhotec REACH Test Report Download

    Catelog

    RENHOTEC M-Series Connector Catalog [EN][CN] Download
    Drawing for M8 Female Panel Mount Receptacle Front Fastened Straight PCB Download
