Product excerpt

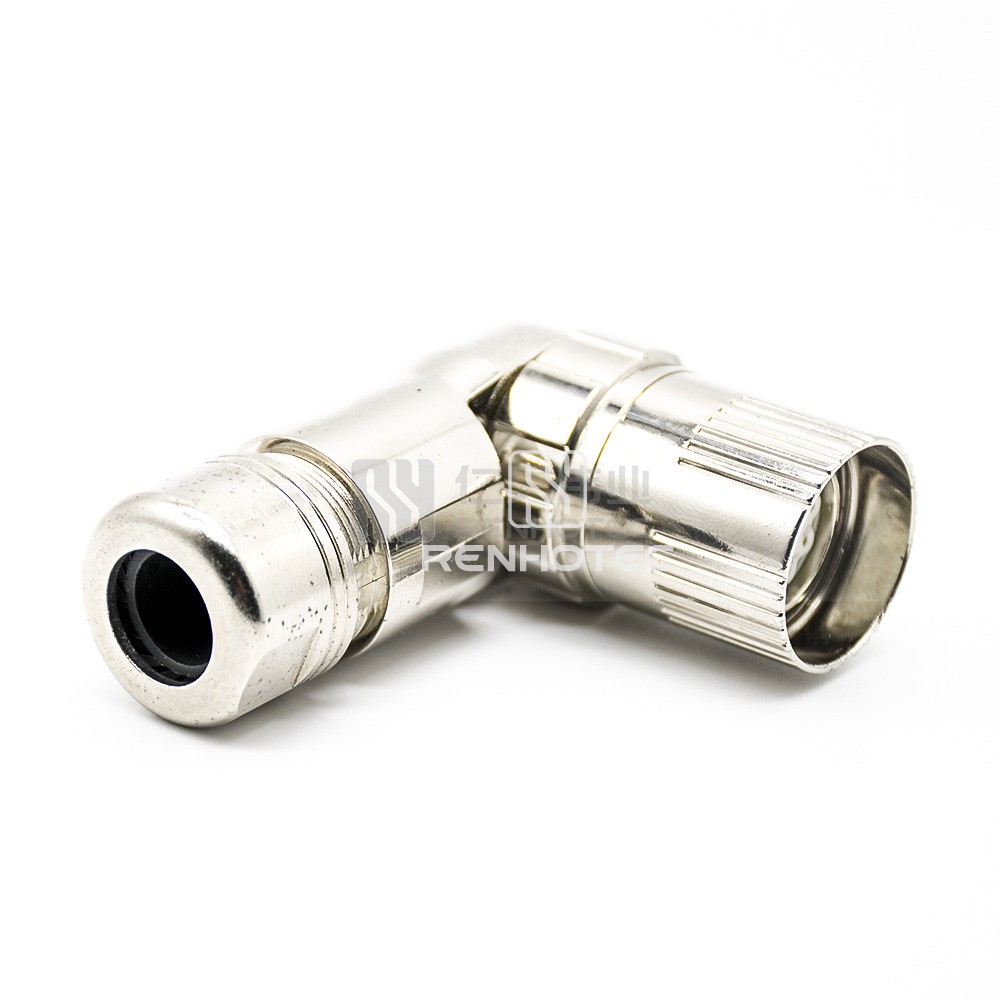

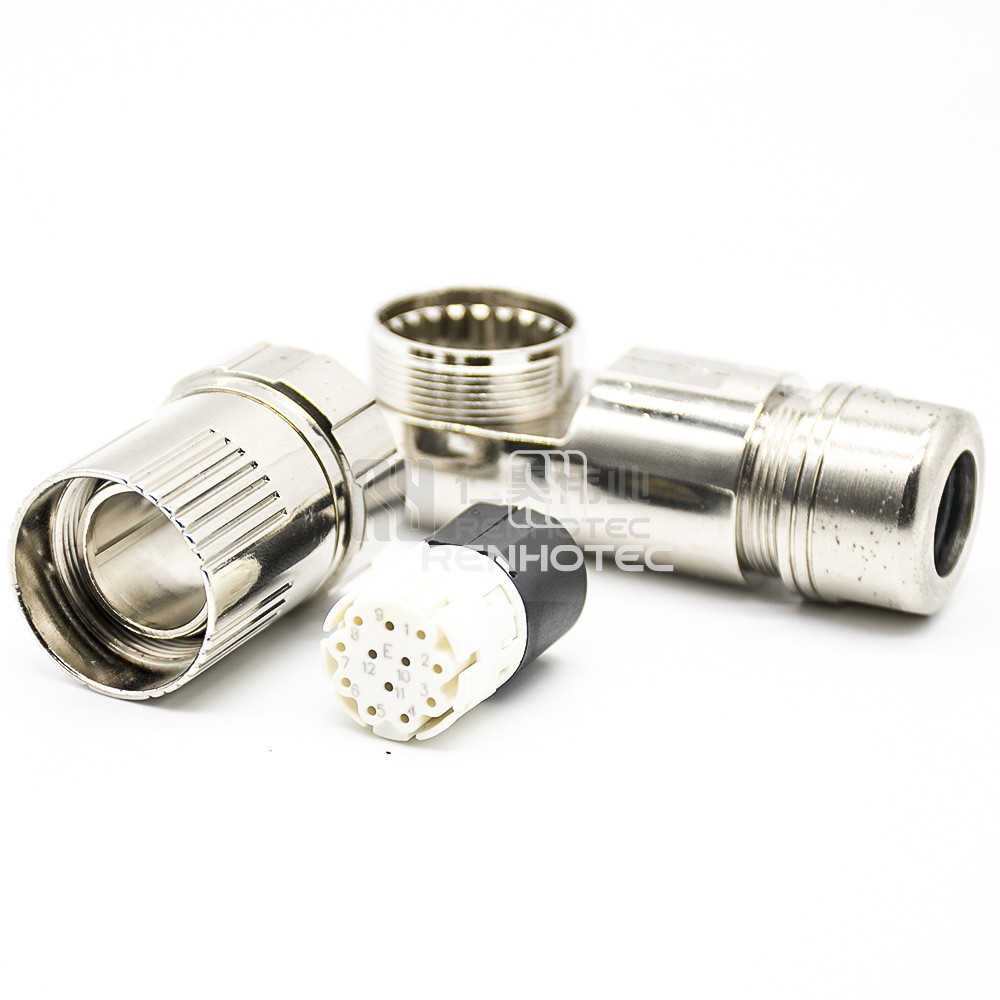

High-quality M23 female right angle plug with 12 female pin A code screw contacts for secure and reliable connections. Perfect for industrial applications requiring a strong and durable circular connector.
GeneralShellMechanicalMaterialEnvironmentalElectrical
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Contact Type | Female Pin |
| Number of Positions | 12 |
| Key | A |
| Contact Termination | Inner Screw |
| Shell | |
|---|---|
| Shell Size | M23 |
| Mechanical | |
|---|---|
| Fastening Type | Threaded |
| Mounting Type | Cable Type |
| Material | |
|---|---|
| Shell Material | Copper Alloy |
| Shell Finish | Zinc Plated |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -25°C ~ + 85°C |
| Electrical | |
|---|---|
| Shielding | Shielded |
| Rated Current | 8A |
| Rated Voltage | 260V |
