Products > Energy Storage Connector > 8.0mm Power Entry Connector 200A Receptacle Busbar Teminal(M8 screw) Black
RHT-S008-T01-BK
8.0mm Power Entry Connector 200A Receptacle Busbar Teminal(M8 screw) Black- Overview
- Technical data
- Certification
- Download
Product excerpt

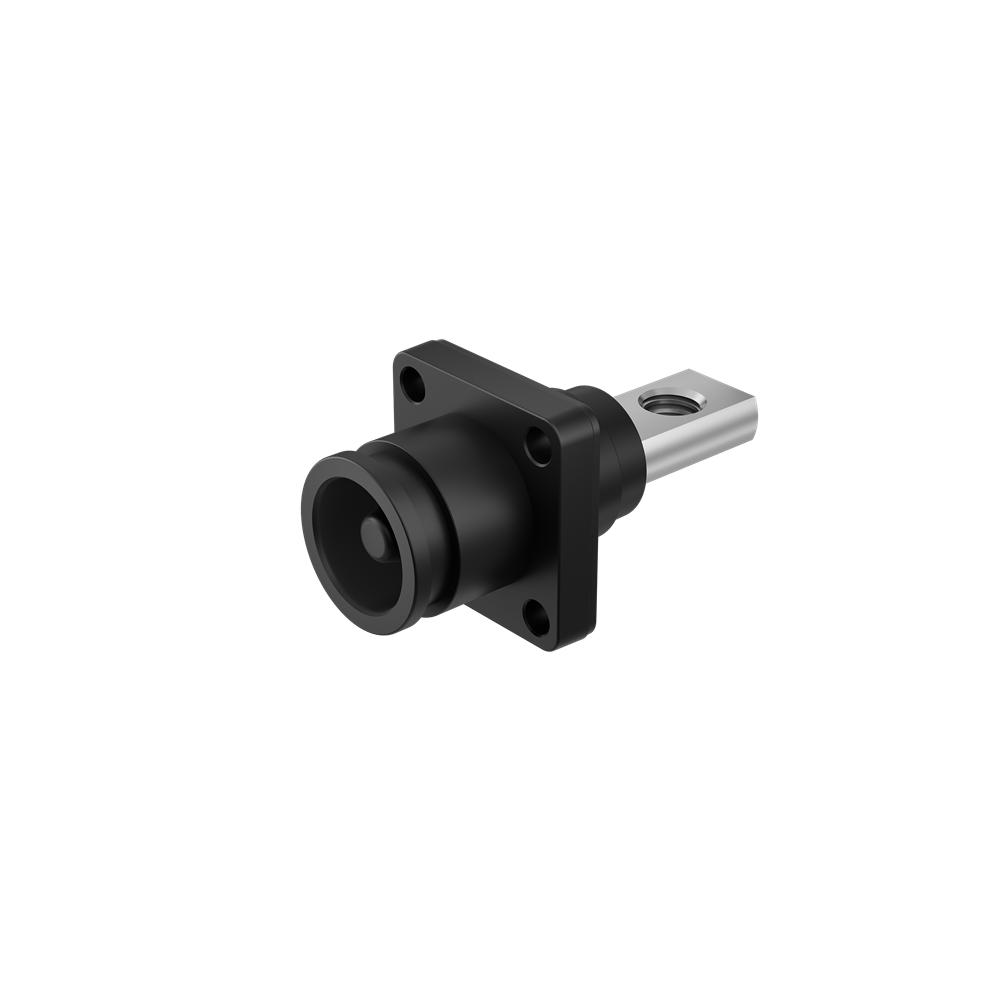

This 8.0mm Power Entry Connector features a 200A rating, receptacle busbar terminal with an M8 screw in a sleek black color. A reliable solution for high-power applications.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Busbar |
| Color | Black |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 200A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
