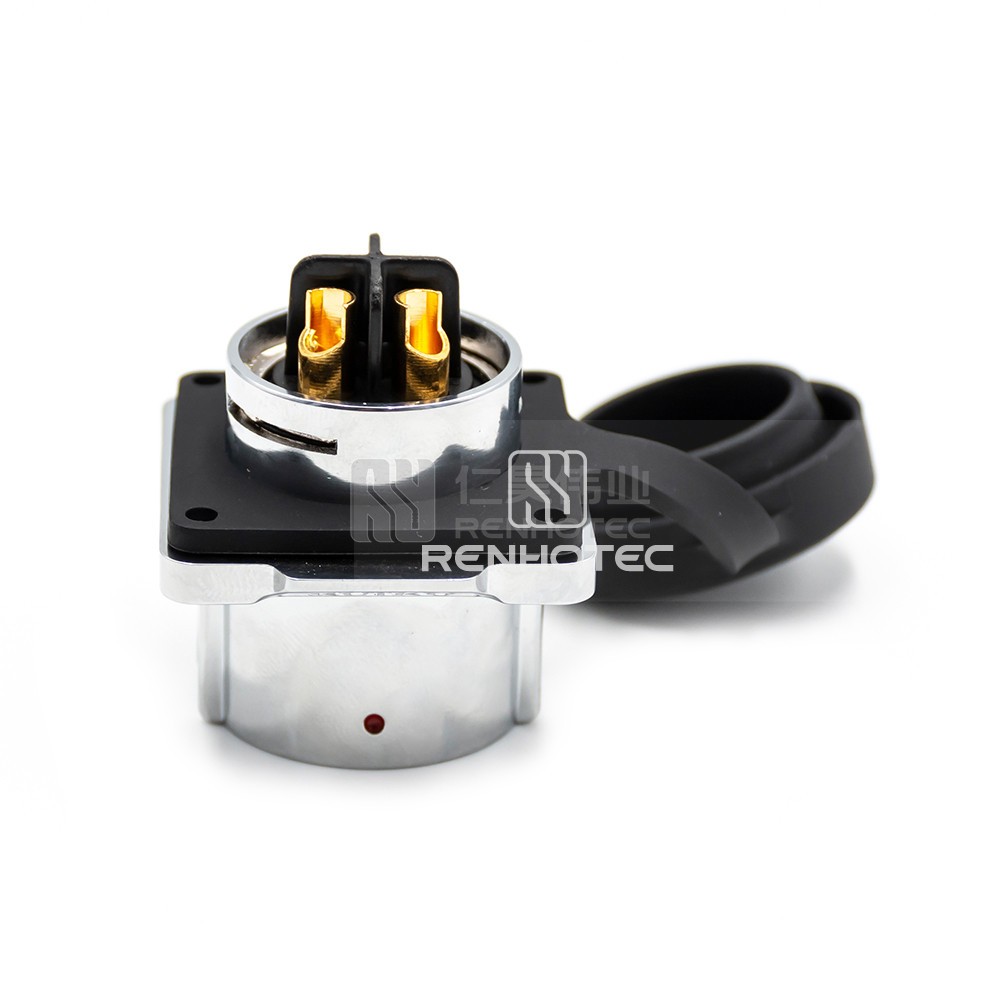

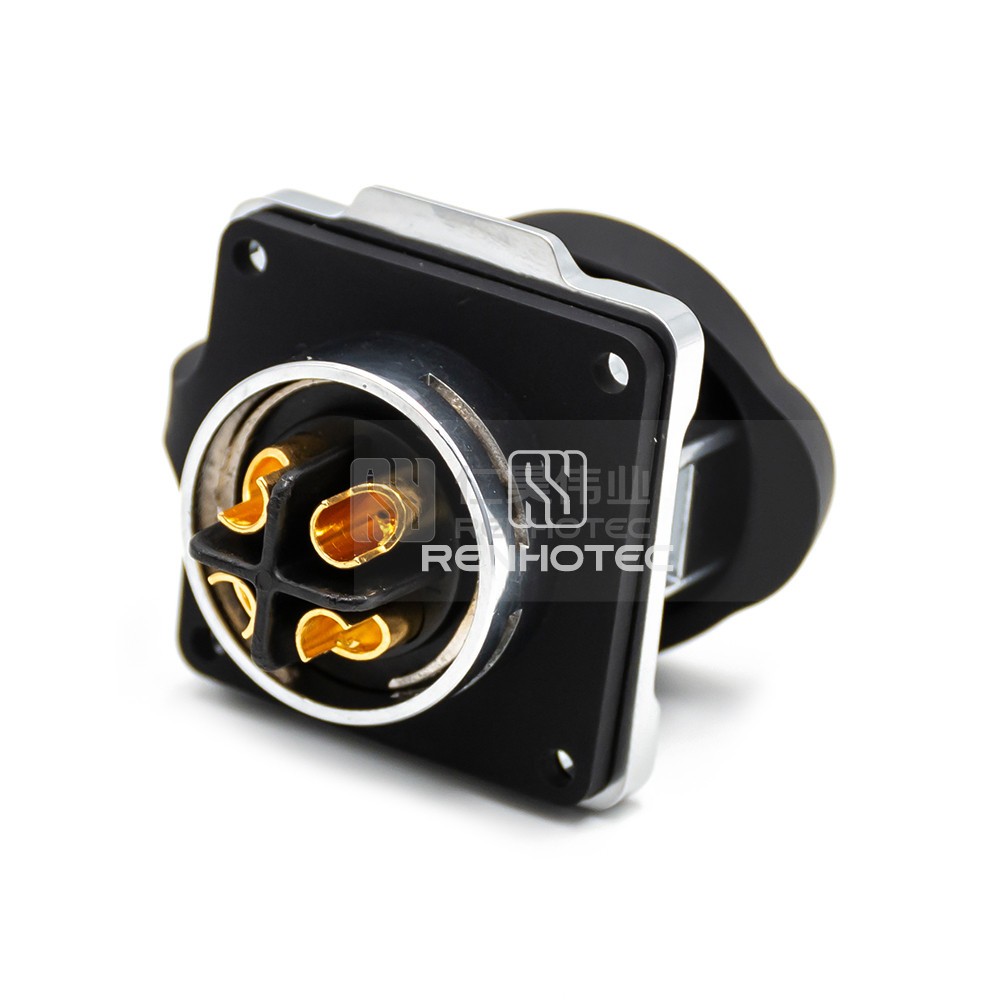

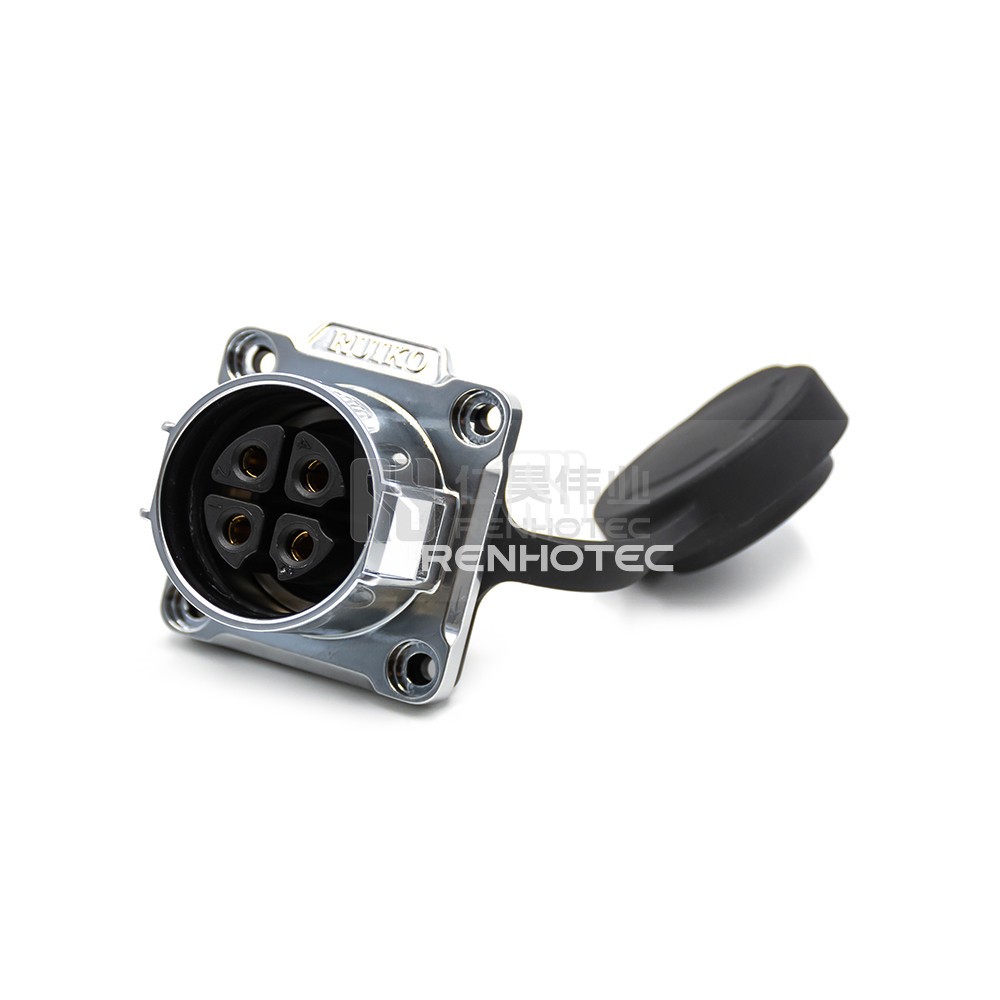

Products > Waterproof Connector > 24 Series 4-core Panel Waterproof Connector Receptacle Formal Installation
![](https://staging.renhotec.com/wp-content/uploads/2024/04/RK-24-S-04-R-0_661cc0afae5fe.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/04/RK-24-S-04-R-0_661cc0afae5fe.jpg)
- Overview
- Technical data
- Certification
- Download
Product excerpt
This waterproof connector receptacle is designed for formal installations, offering reliable connectivity for up to 4 cores. Perfect for applications requiring a durable and secure panel connection.
GeneralMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 4 |
Contact Termination | Solder |
Mechanical | |
---|---|
Fastening Type | Push-Pull |
Mounting Type | Panel Mount |
Wire Gauge or Range | 14-12AWG/2.5mm²-4.0mm² |
Material | |
---|---|
Shell Material | Zinc Alloy |
Shell Finish | Chrome Plated |
Contact Material | Phosphor Bronze |
Contact Finish | Gold |
Insulating Material | PA66 |
Electrical | |
---|---|
Rated Voltage | 500V |
Rated Current | 25A |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 80°C |
