Product excerpt

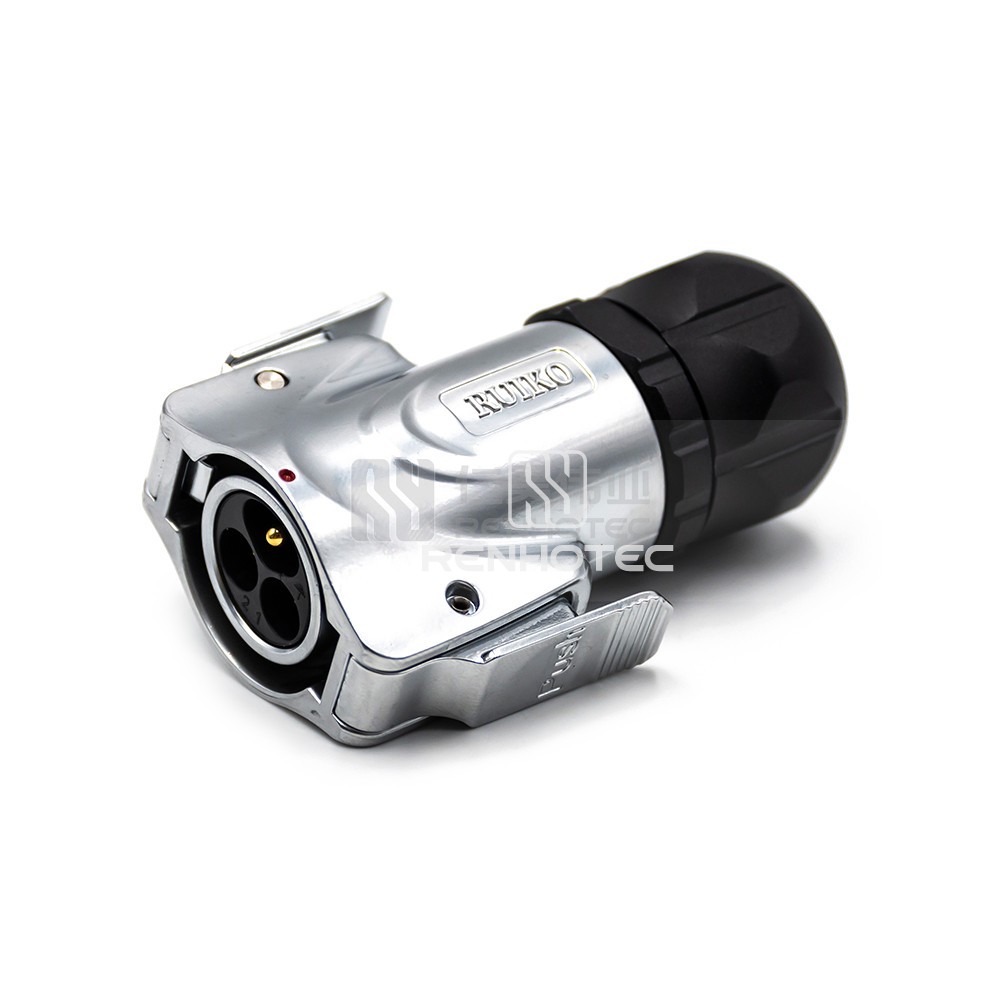

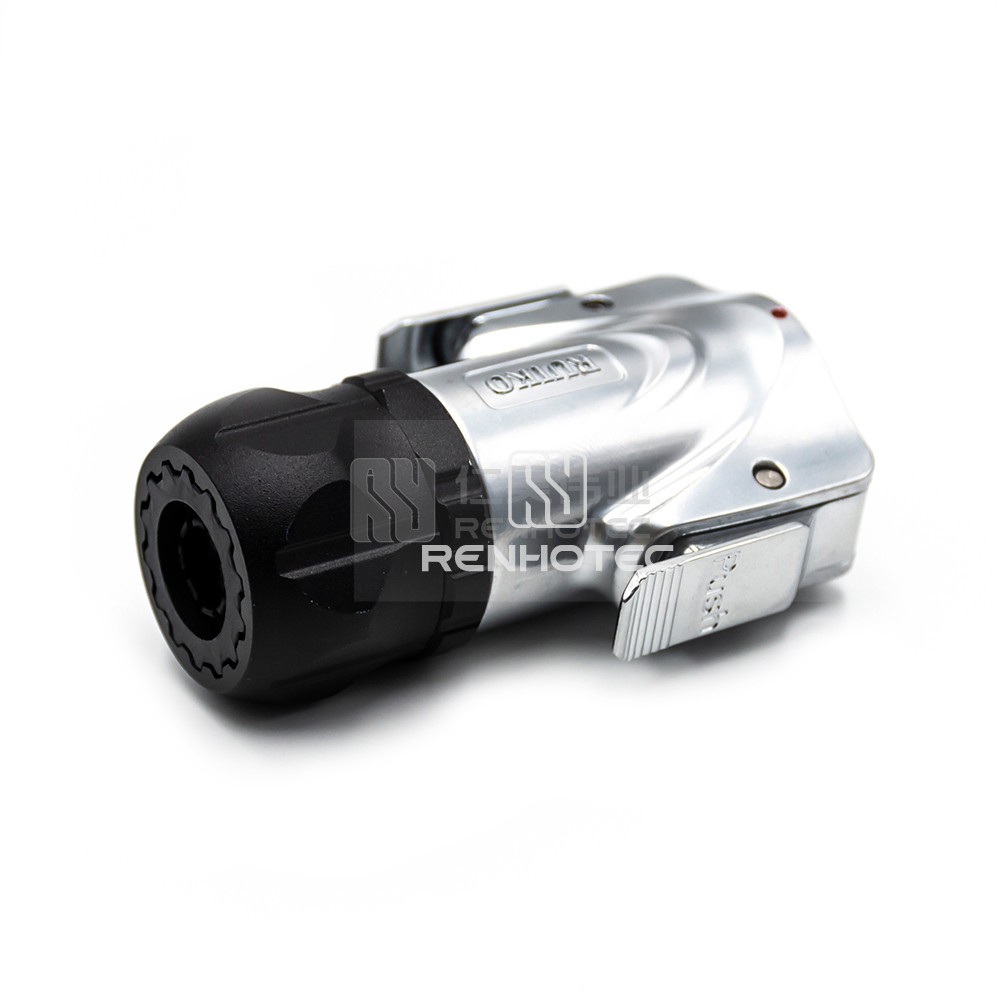

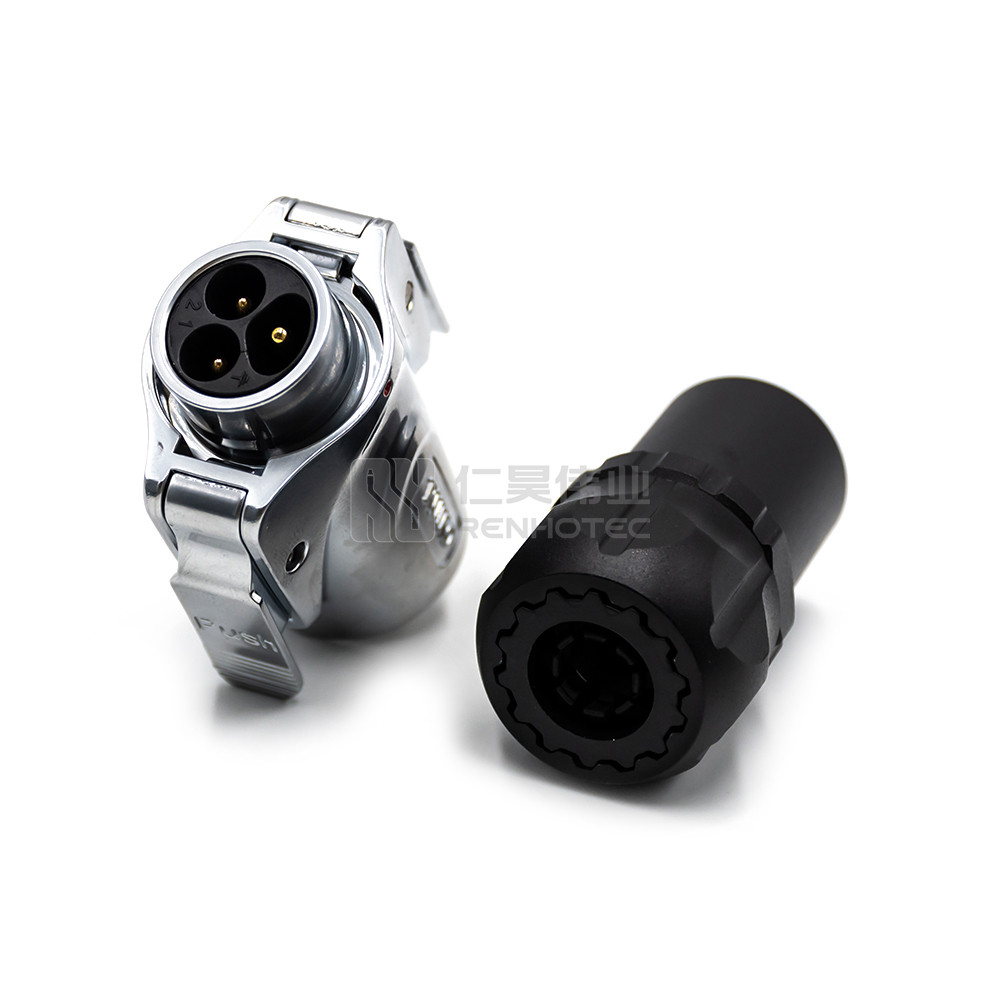

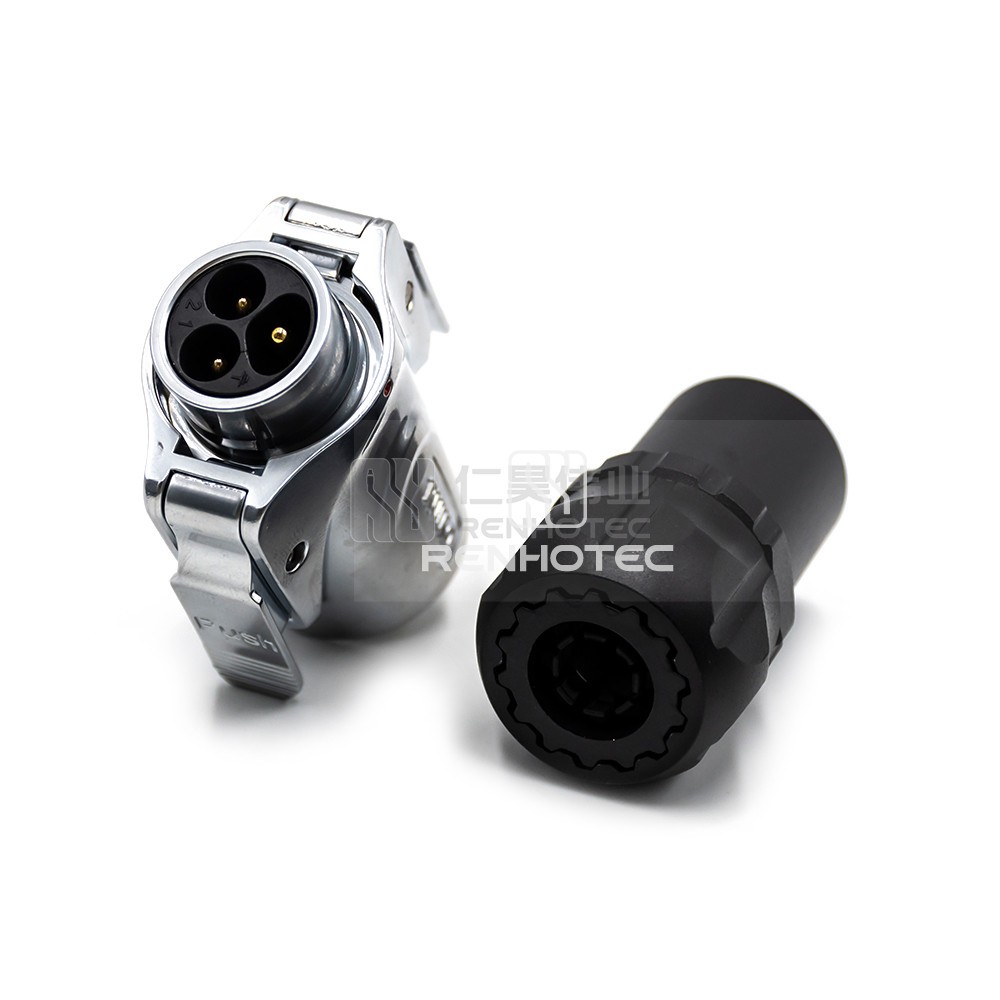

High-quality 20 series full metal power waterproof connector with 3 pin plug for secure and reliable electrical connections. Ideal for industrial applications requiring water resistance.
GeneralMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Positions | 3 |
| Contact Termination | Solder |
| Mechanical | |
|---|---|
| Fastening Type | Push-Pull |
| Mounting Type | Cable Type |
| Wire Gauge or Range | 14-12AWG/2.5mm²-4.0mm² |
| Material | |
|---|---|
| Shell Material | Zinc Alloy |
| Shell Finish | Chrome Plated |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Insulating Material | PA66 |
| Electrical | |
|---|---|
| Rated Voltage | 500V |
| Rated Current | 20A |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 80°C |
