Product excerpt

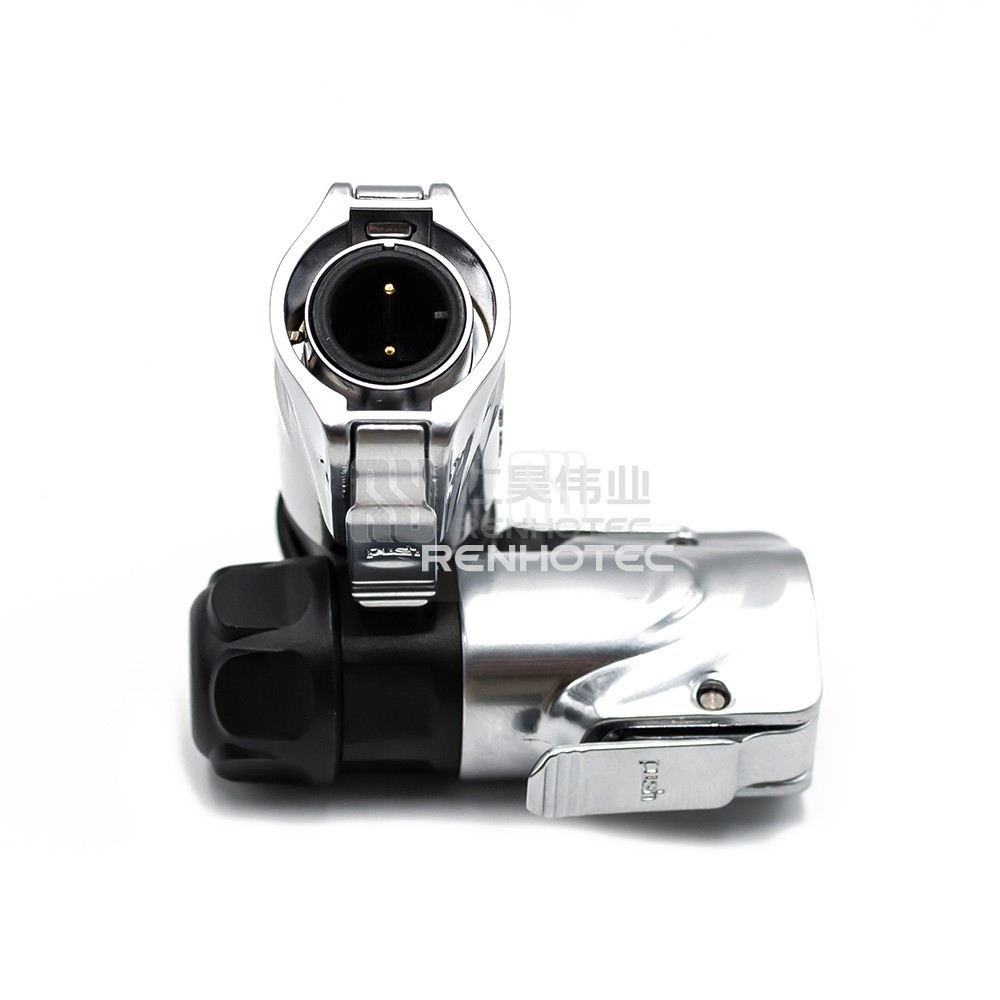

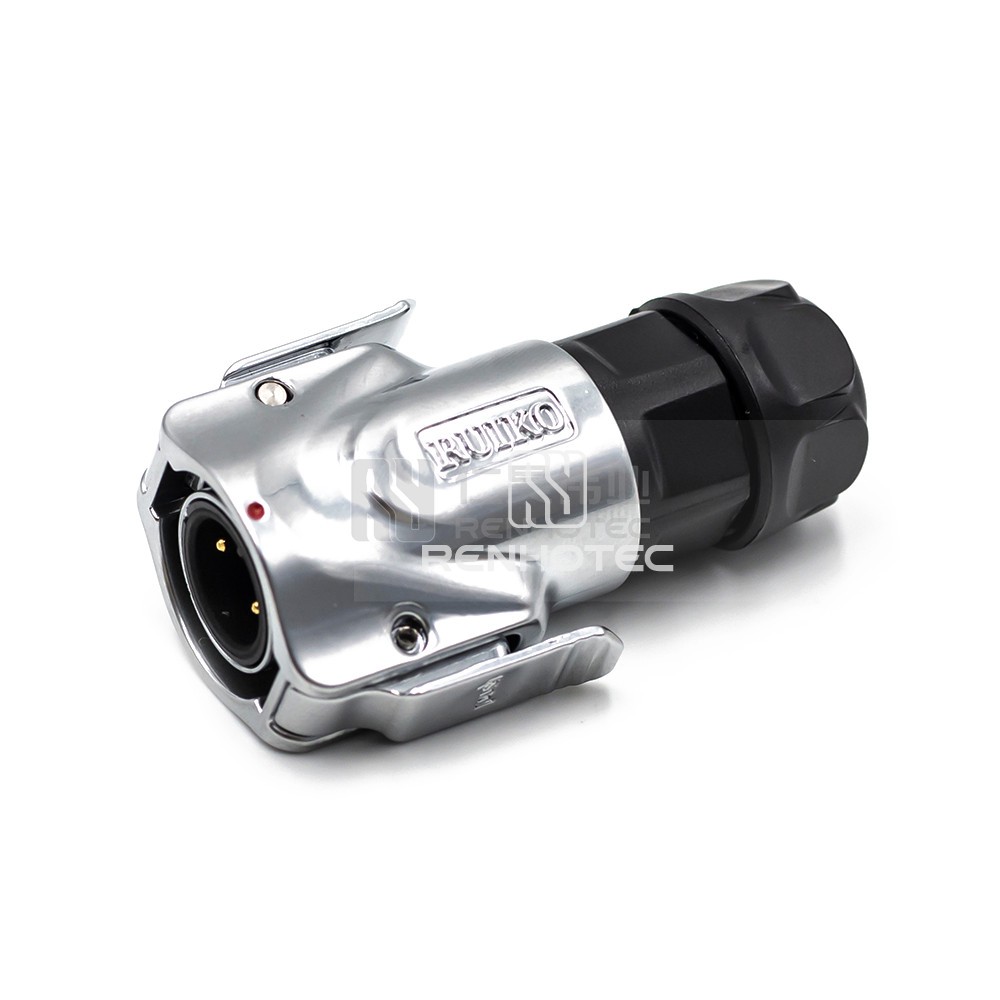

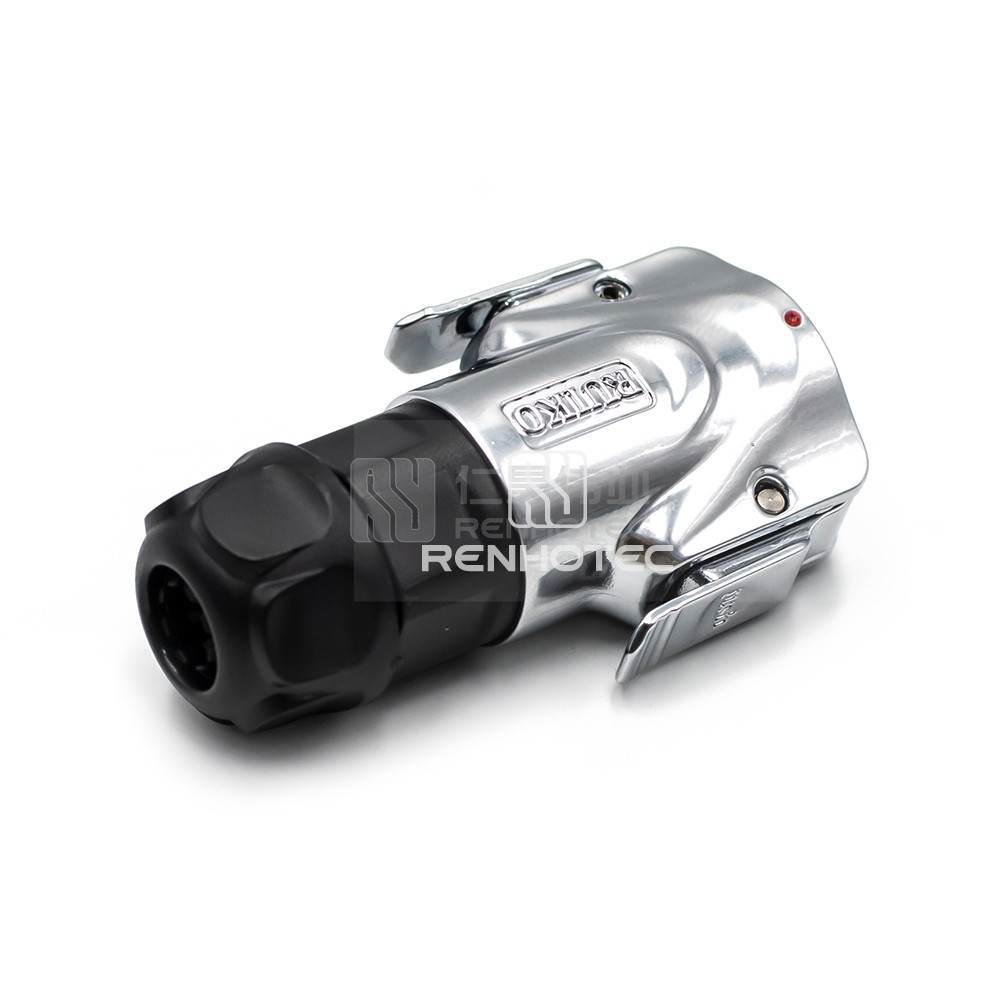

Waterproof 2-pin plug ideal for power applications. Designed for formal use, this connector ensures reliable and secure electrical connections in various settings.
GeneralMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Positions | 2 |
| Contact Termination | Solder |
| Mechanical | |
|---|---|
| Fastening Type | Push-Pull |
| Mounting Type | Cable Type |
| Wire Gauge or Range | 22-20AWG/0.3mm²-0.5mm² |
| Material | |
|---|---|
| Shell Material | Zinc Alloy |
| Shell Finish | Chrome Plated |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Insulating Material | PA66 |
| Electrical | |
|---|---|
| Rated Voltage | 250V |
| Rated Current | 5A |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 80°C |
