FSP600180CW-70U0B2RH

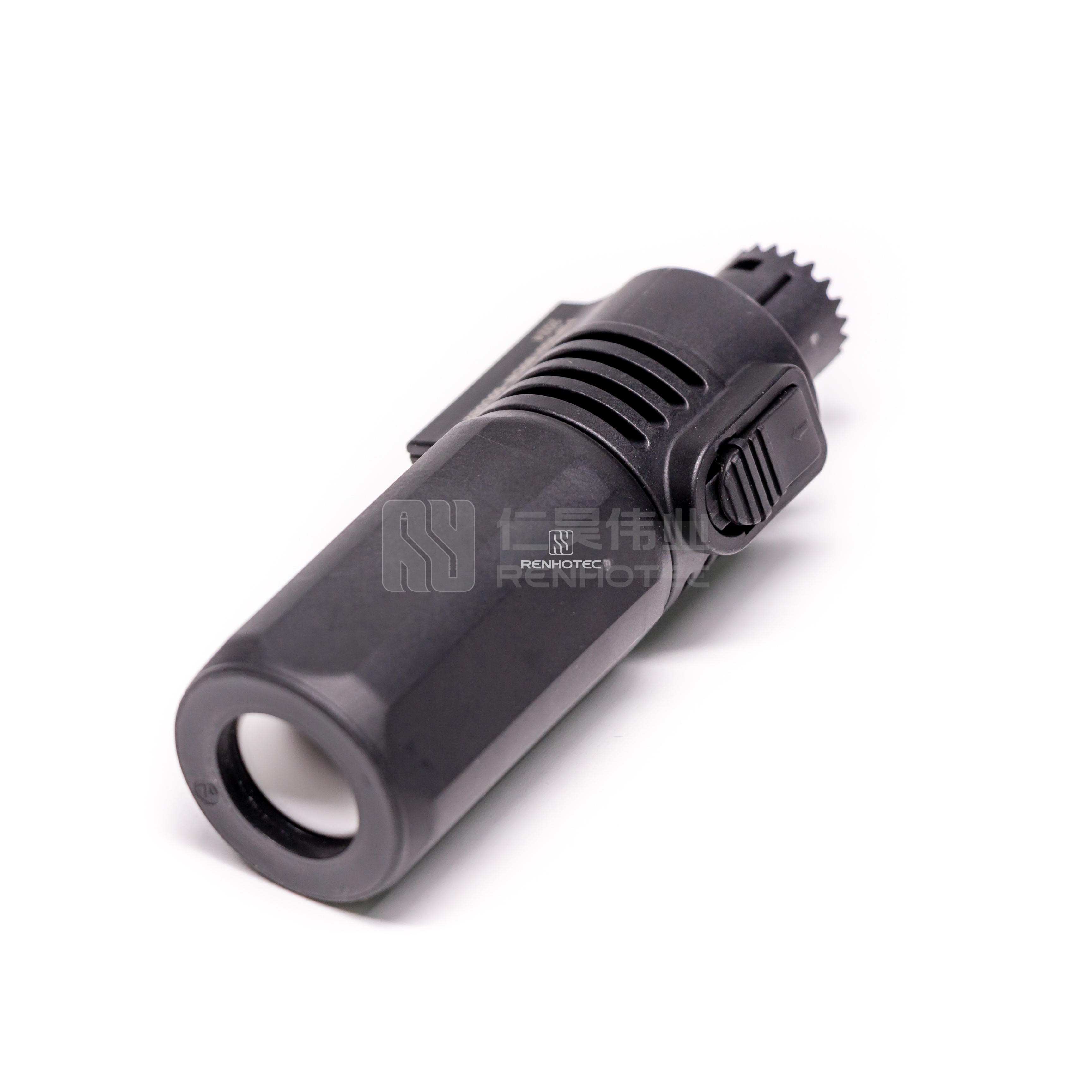

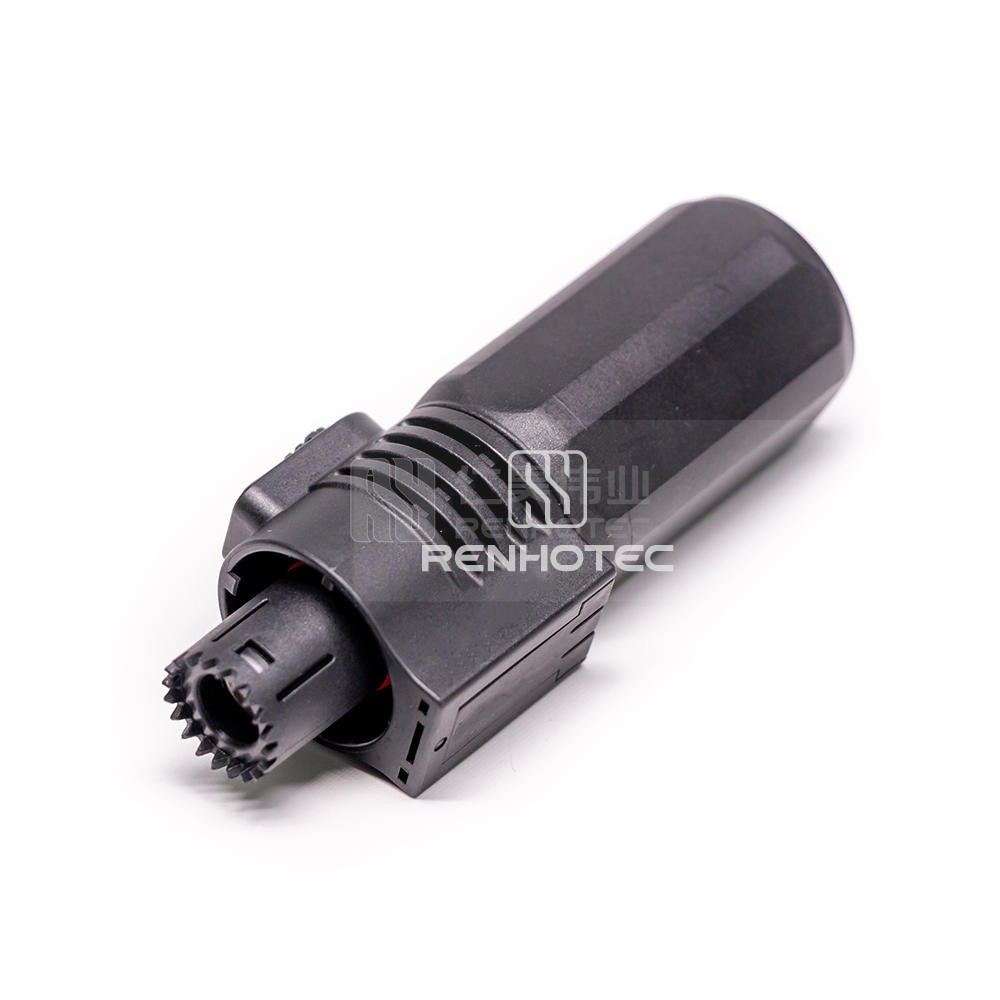

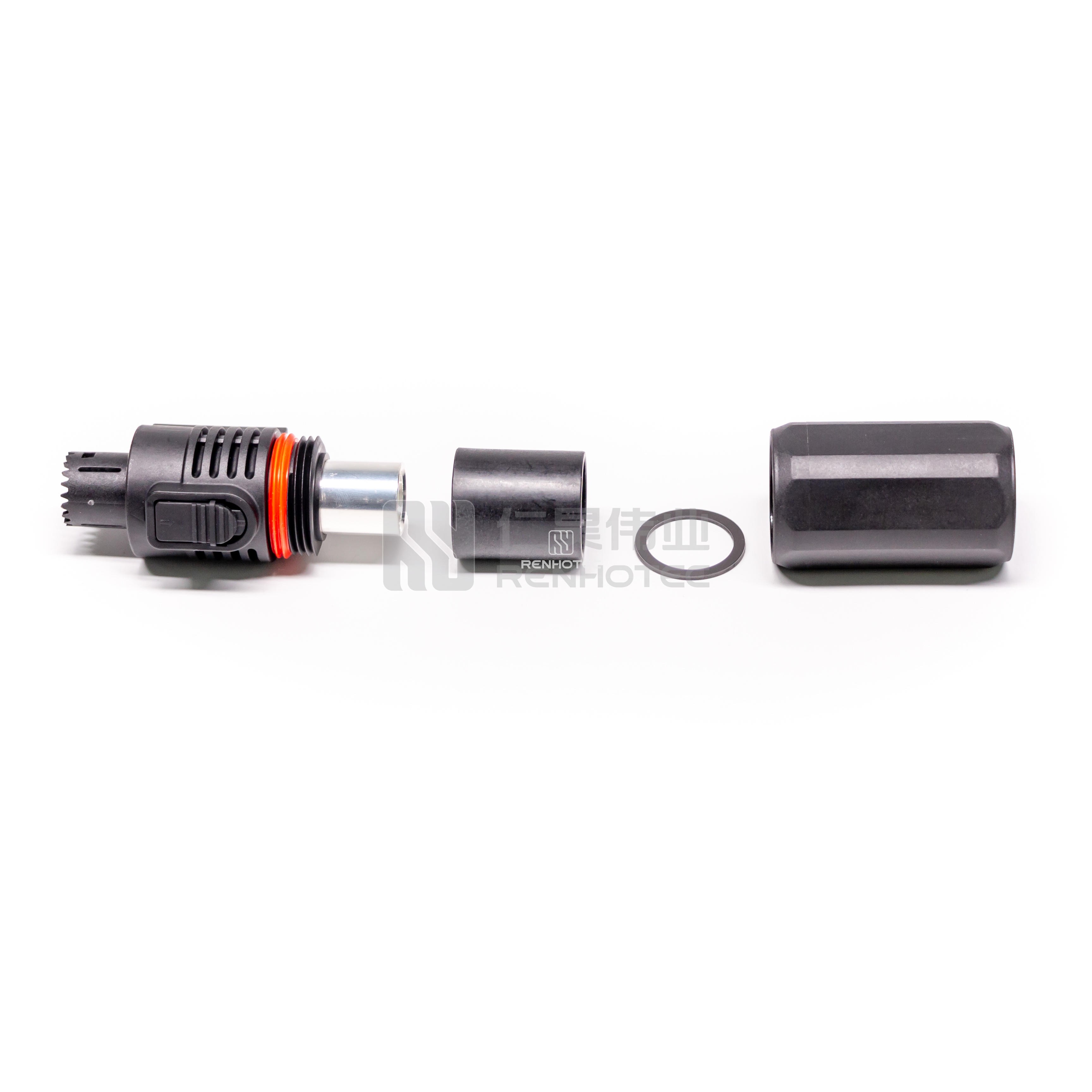

Waterproof Battery Storage Connector Straight 250A Black 70mm2 Unshielded Cable W Key- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure secure and reliable electrical connections with this waterproof battery storage connector. Featuring a straight design, 250A capacity, and 70mm2 unshielded cable with key for added security.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 1 |
Contact Termination | Crimp |
Key | W |
Color | Black |
Electrical | |
---|---|
Rated Voltage | 1000V |
Rated Current | 250A |
Shielding | Unshielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Material | |
---|---|
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
