Products > Energy Storage Connector > Waterproof Battery Storage Connector Straight 150A Orange 35mm² Unshielded Cable Z Key
FSP600180CZ-35U0A2RH

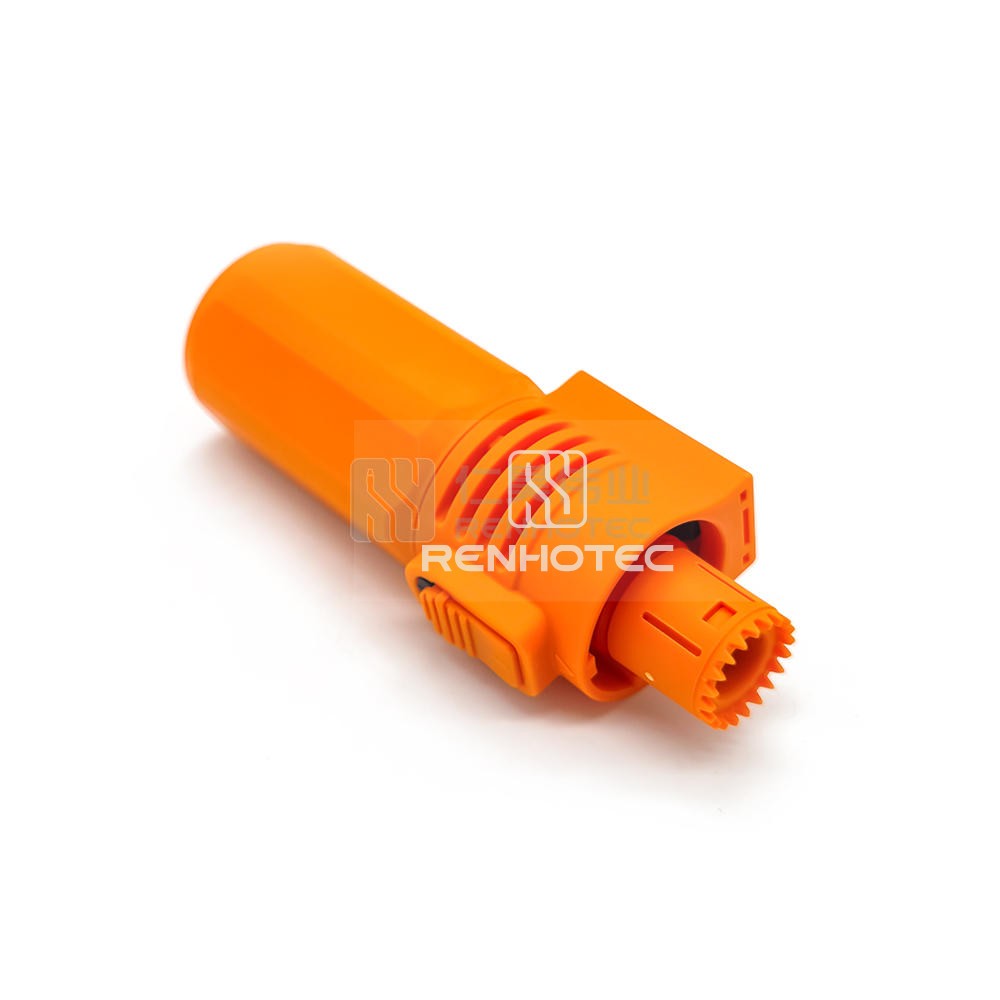

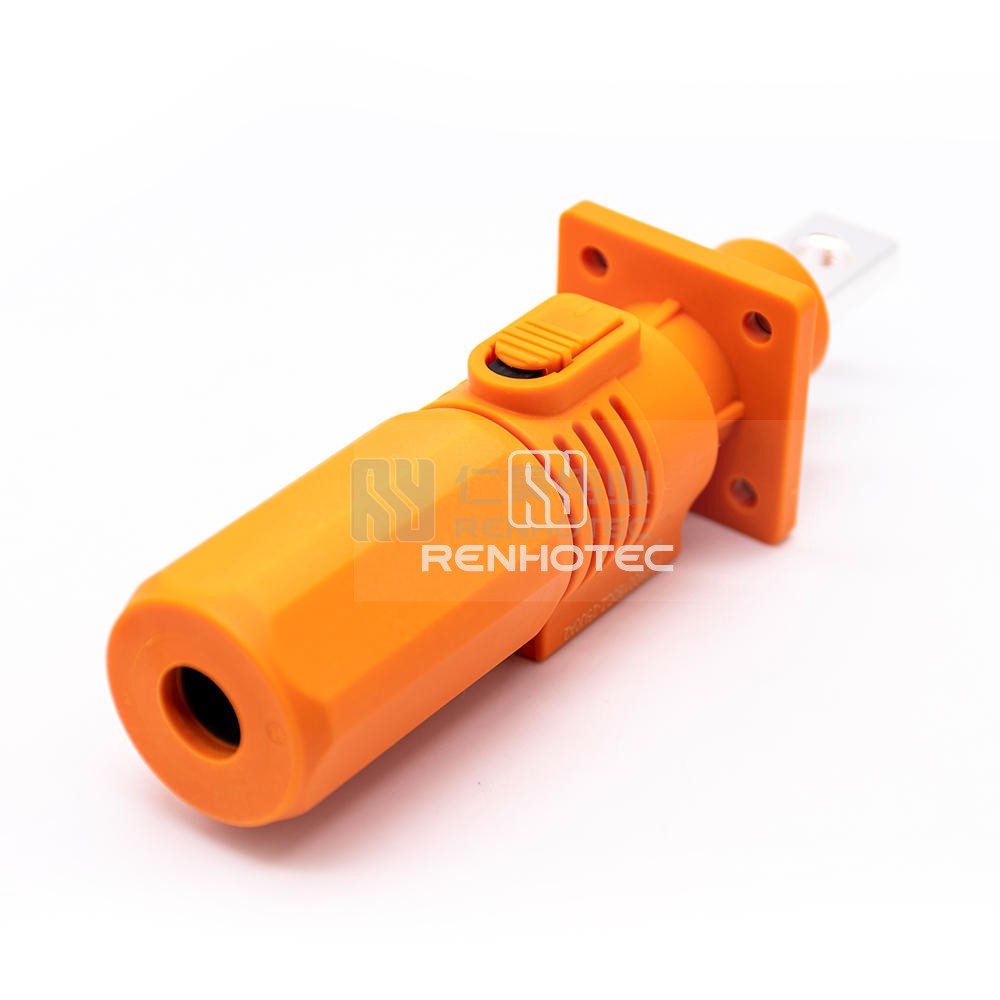

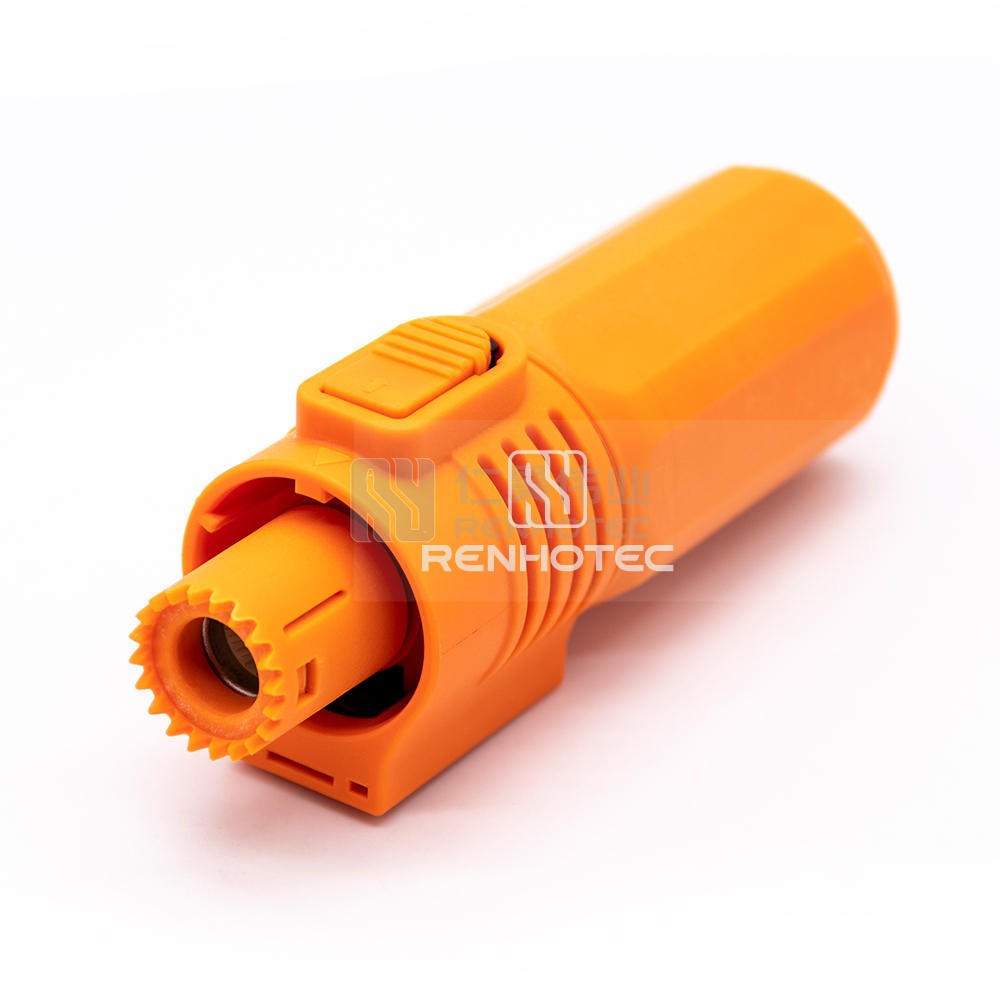

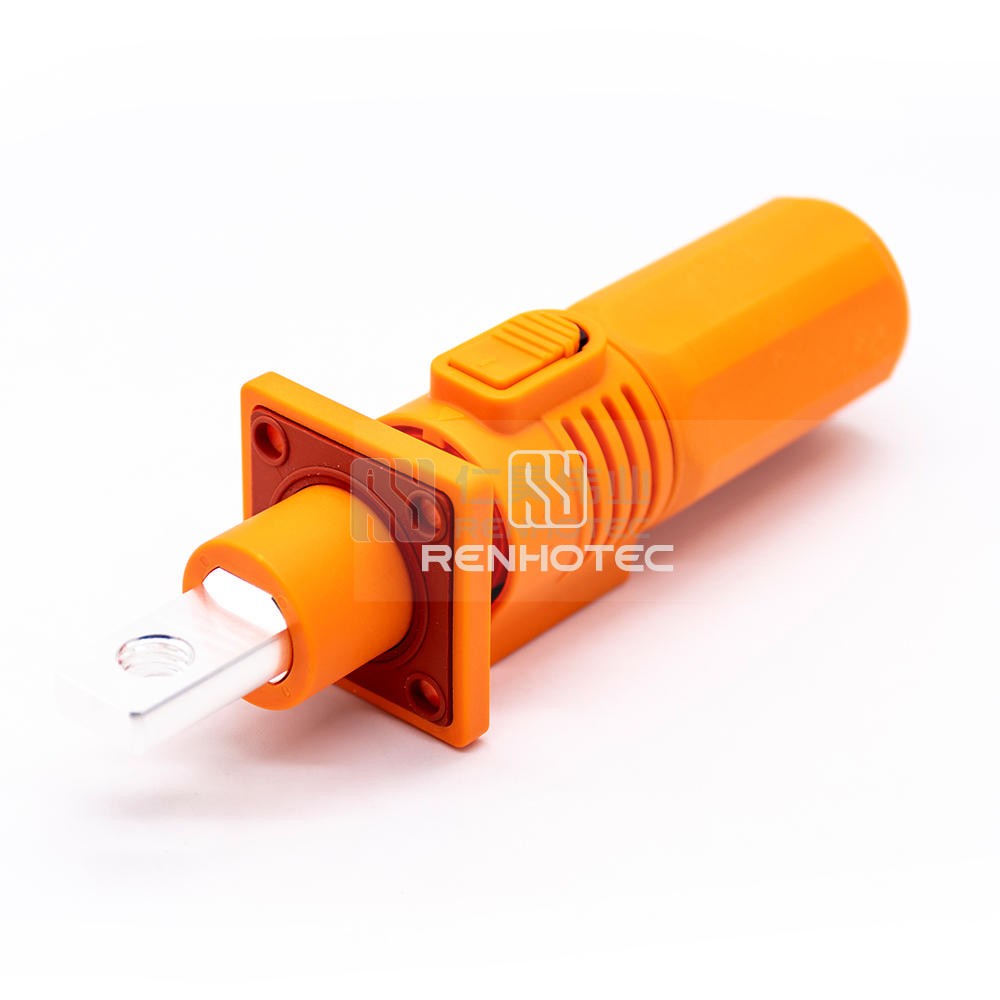

Waterproof Battery Storage Connector Straight 150A Orange 35mm² Unshielded Cable Z Key- Overview
- Technical data
- Certification
- Download
Product excerpt
Keep your battery storage connections secure with this waterproof connector featuring a straight design and 150A capacity. The 35mm² unshielded cable ensures reliable power transmission, while the Z key provides easy assembly. Ideal for various applications in industrial and automotive settings.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Key | Z |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 150A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 35mm² |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
