Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 70A Orange 10mm² Cable Z Key
![](https://staging.renhotec.com/wp-content/uploads/2024/03/FSP800160TZ-10U0A2RH_6605356758dd8.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/FSP800160TZ-10U0A2RH_6605356758dd8.jpg)
FSP800160TZ-10U0A2RH

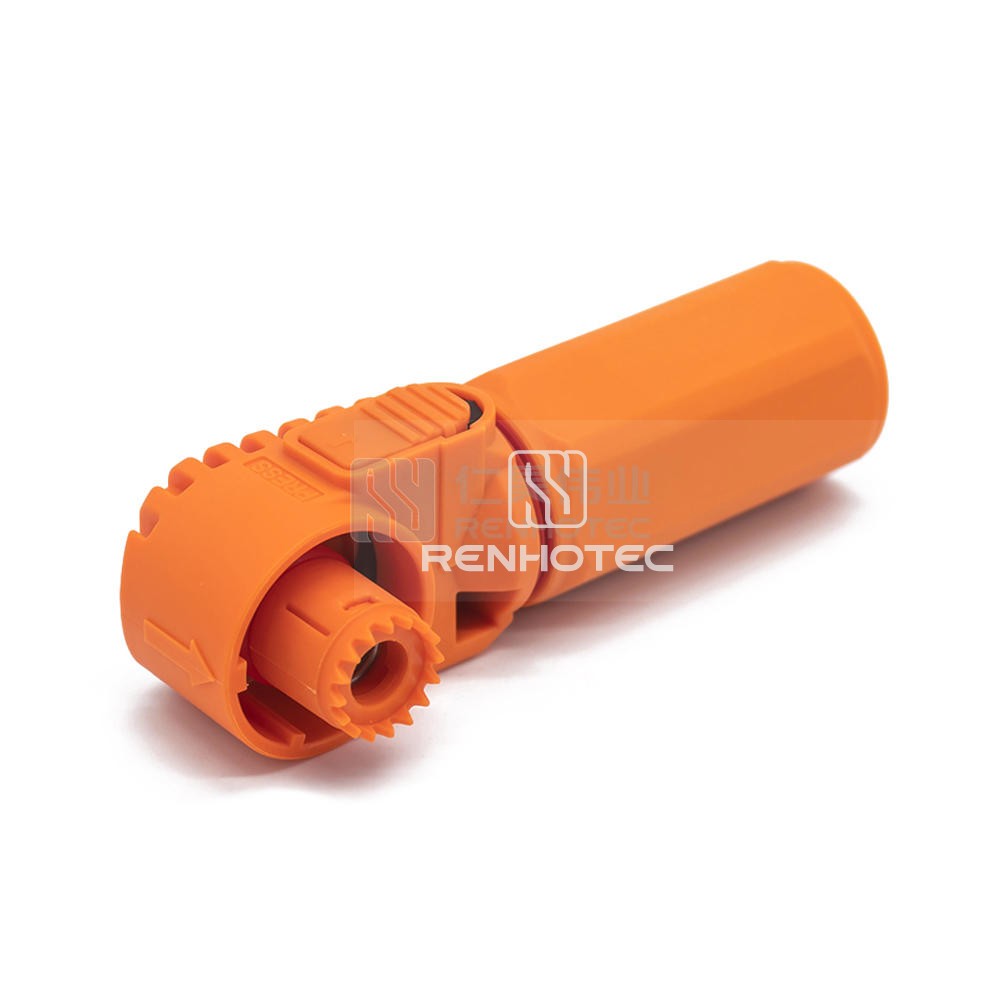

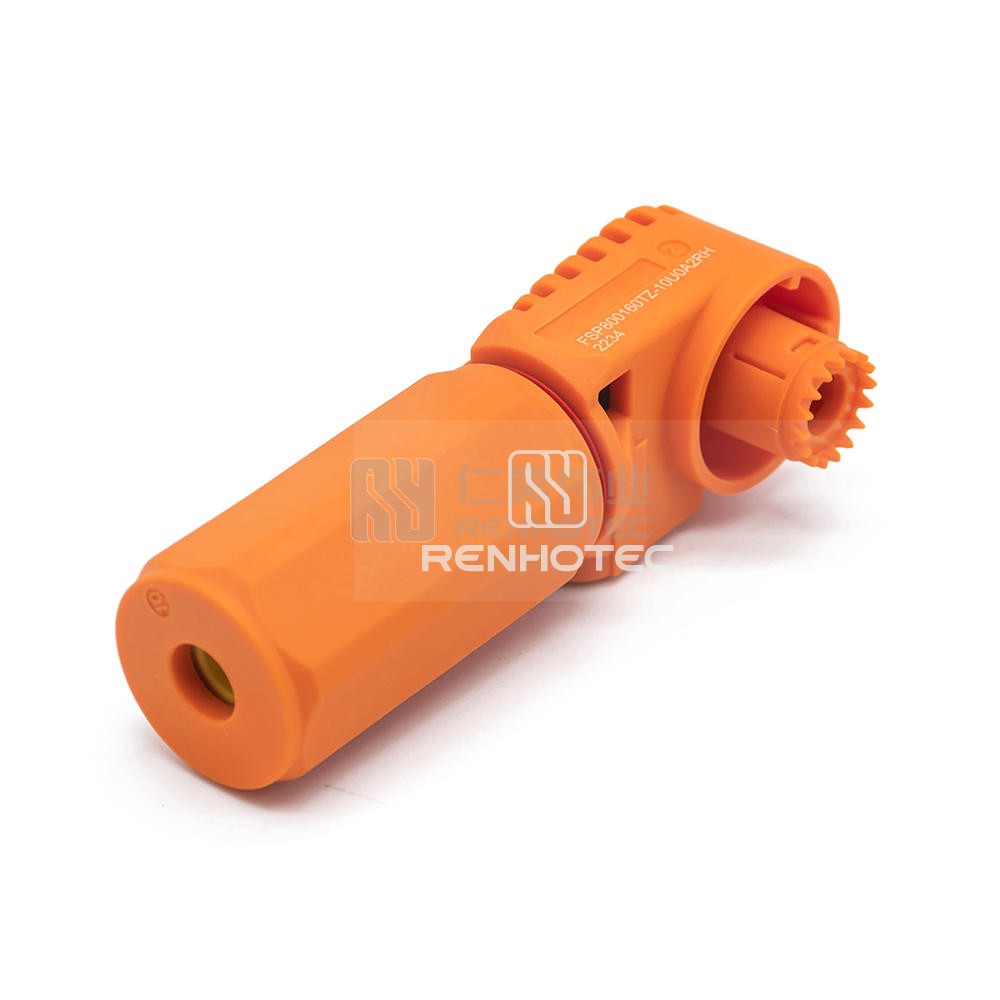

Waterproof Battery Storage Connector Right Angle 70A Orange 10mm² Cable Z Key- Overview
- Technical data
- Certification
- Download
Product excerpt
This high-quality waterproof battery storage connector features a right angle design, 70A capacity, orange color, and 10mm² cable with a Z key for easy connection. Ideal for secure and reliable battery connections in challenging environments.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Size | 6mm |
Contact Termination | Crimp |
Key | Z |
Color | Orange |
Electrical | |
---|---|
Rated Voltage | 1000V |
Rated Current | 70A |
Shielding | Unshielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 10mm² |
Material | |
---|---|
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
