Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 125A Orange 25mm² Unshielded Cable Z Key
FSP800180TZ-25U0A2RH
Waterproof Battery Storage Connector Right Angle 125A Orange 25mm² Unshielded Cable Z Key- Overview
- Technical data
- Certification
- Download
Product excerpt

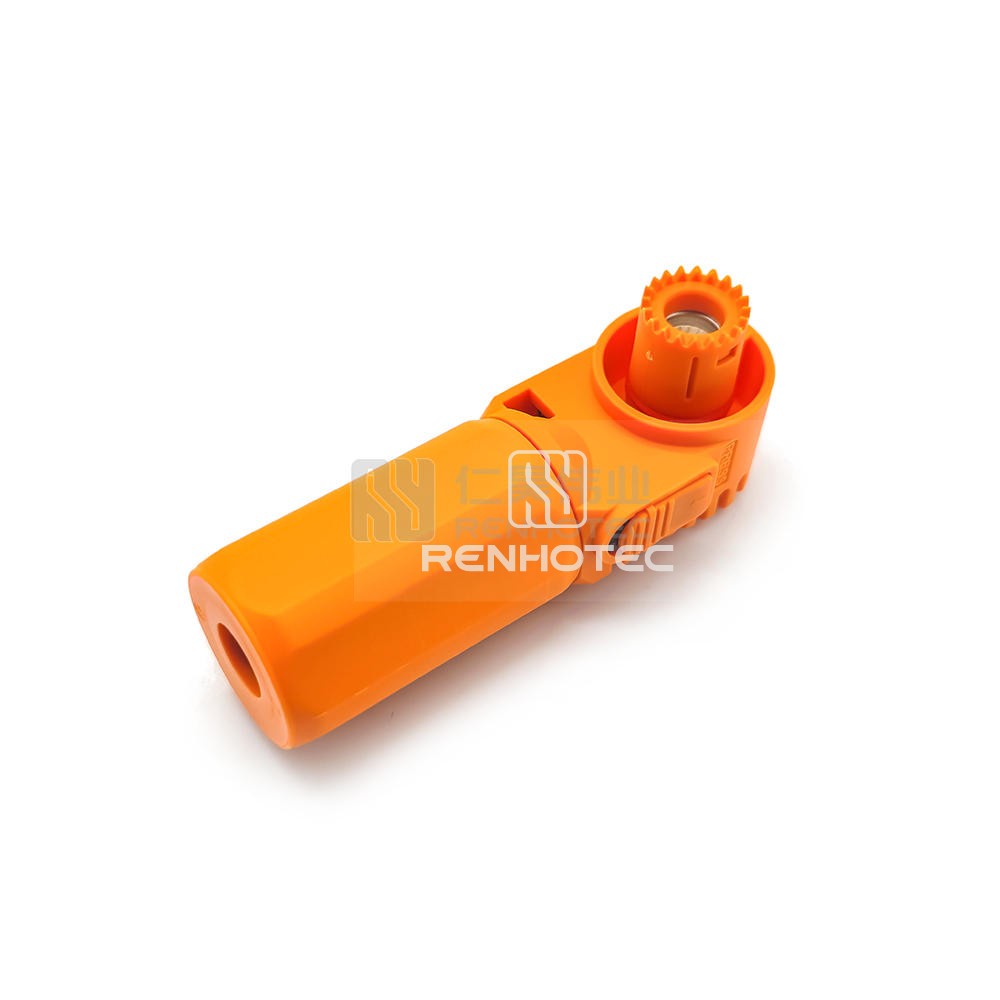

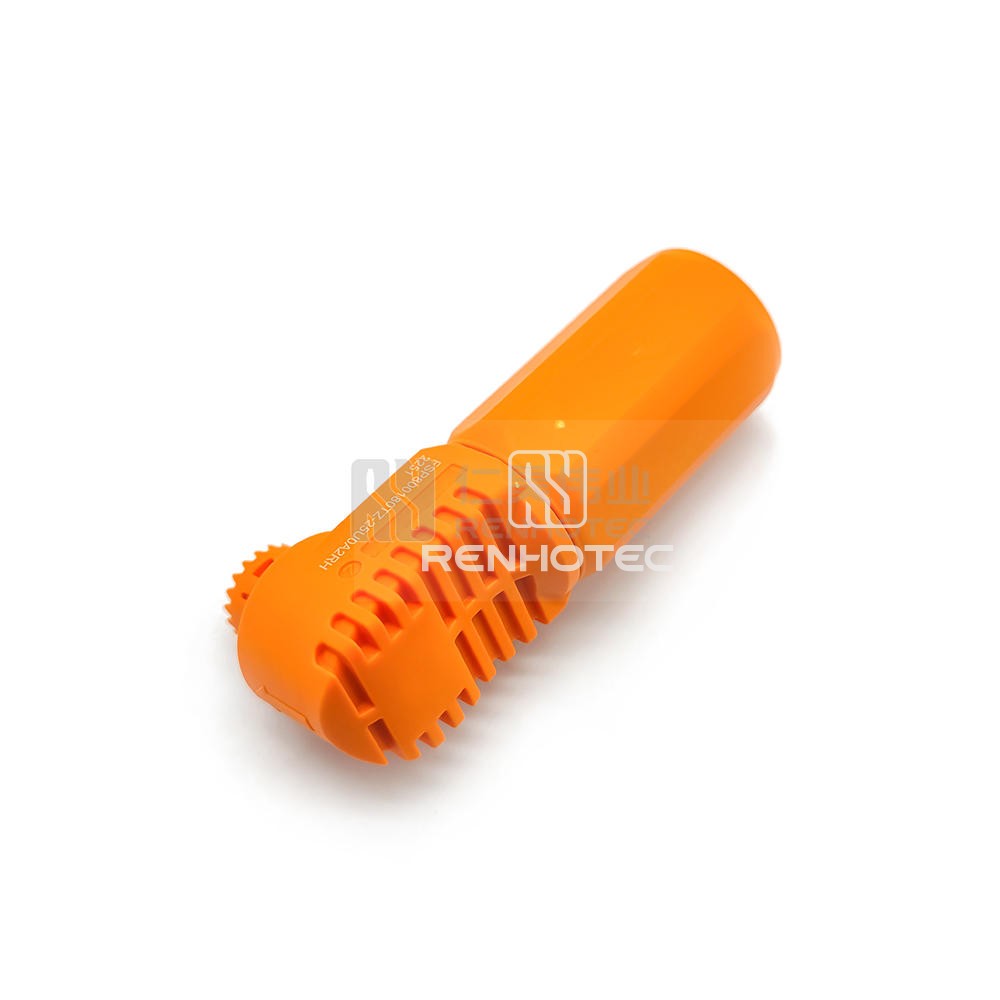

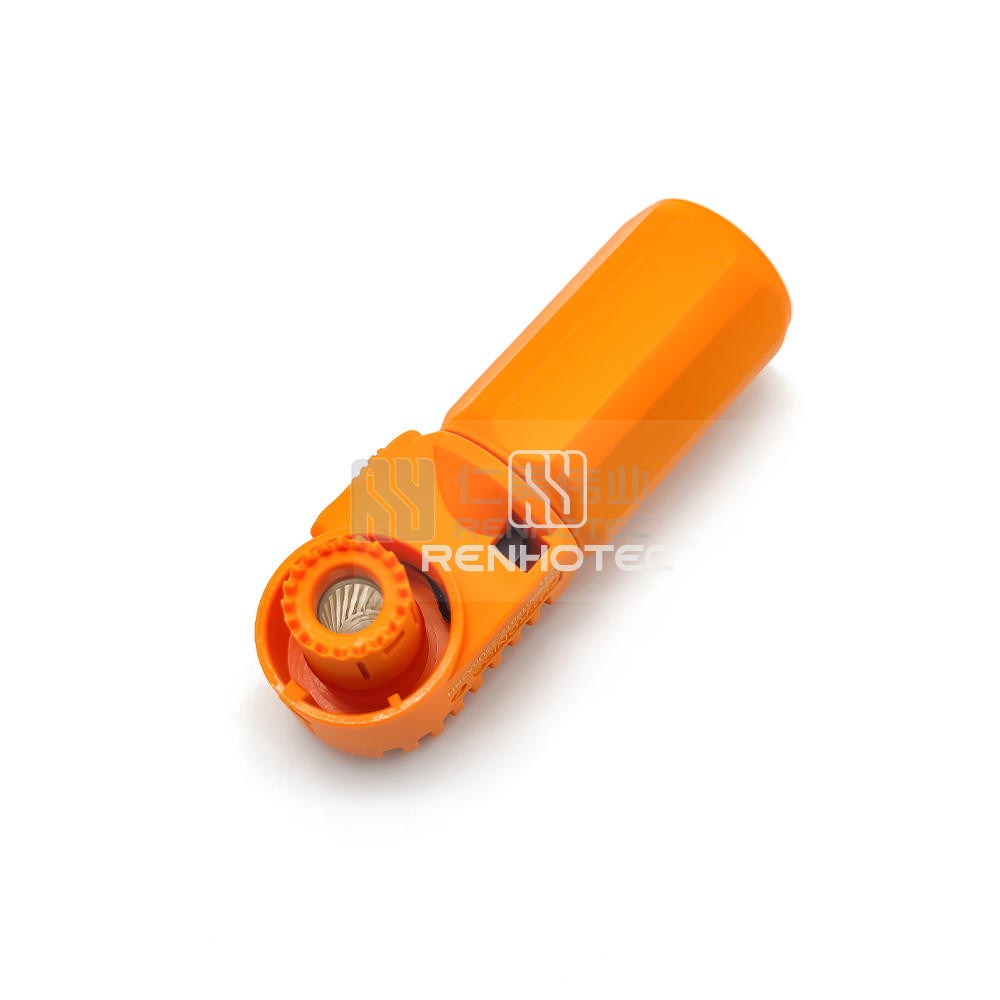

This waterproof battery storage connector features a right-angle design suitable for 125A, with an orange color and unshielded 25mm² cable. The Z Key ensures secure connectivity.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Key | Z |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 125A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 25mm² |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
