R02-T01-10018-10
TNC Male to TNC Female RF Cable Assembly with 50Ohm RG174 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt

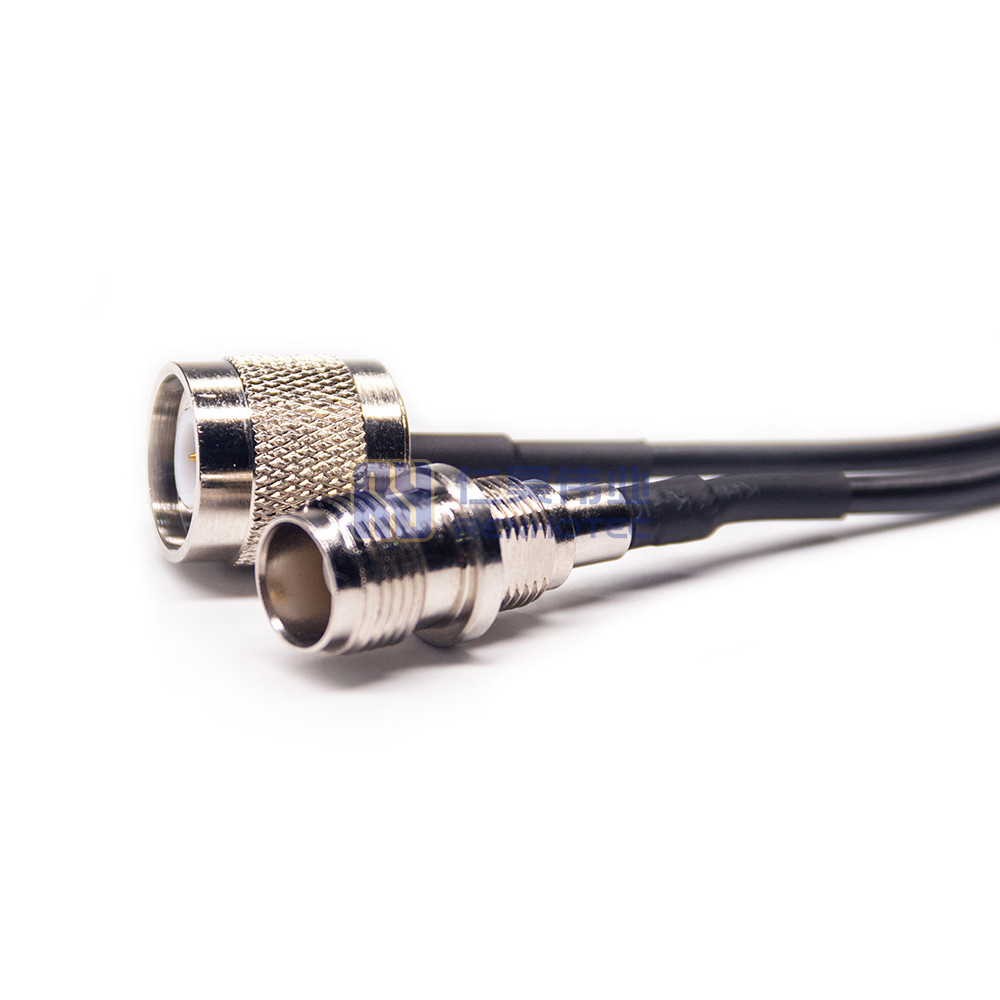

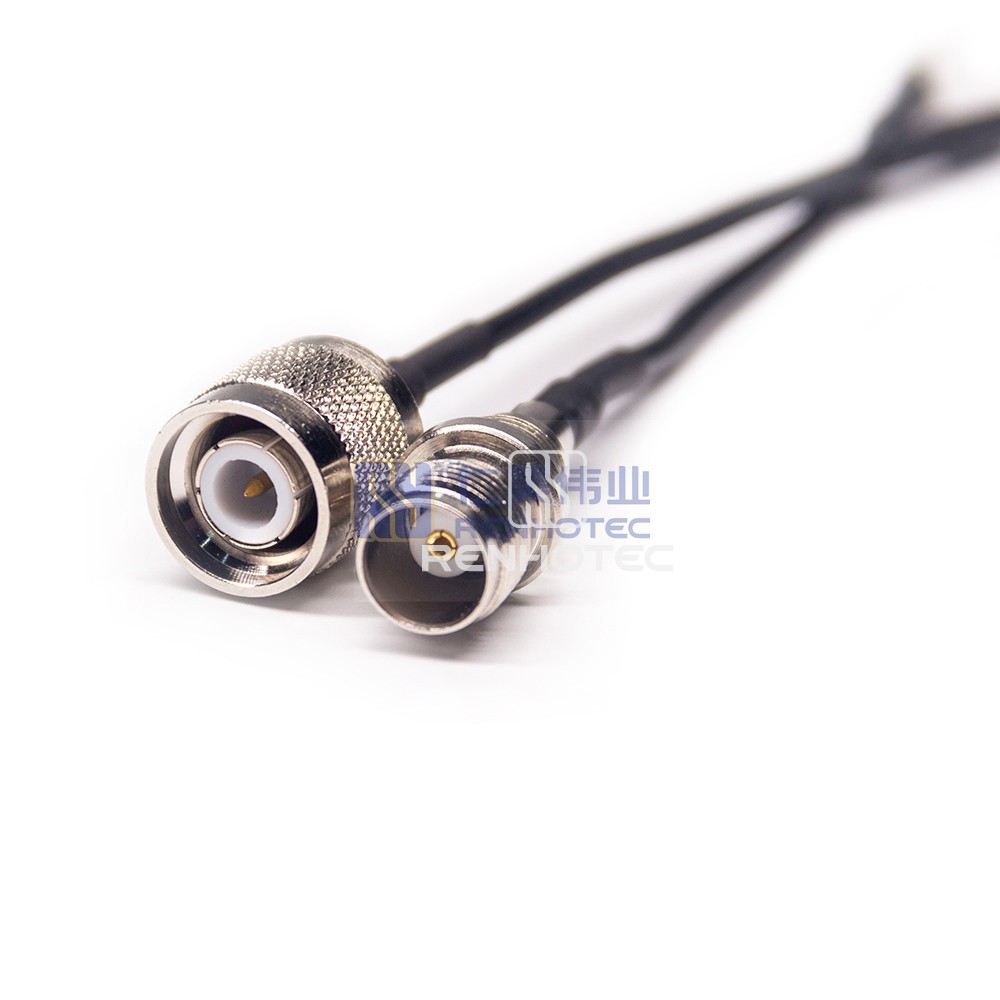

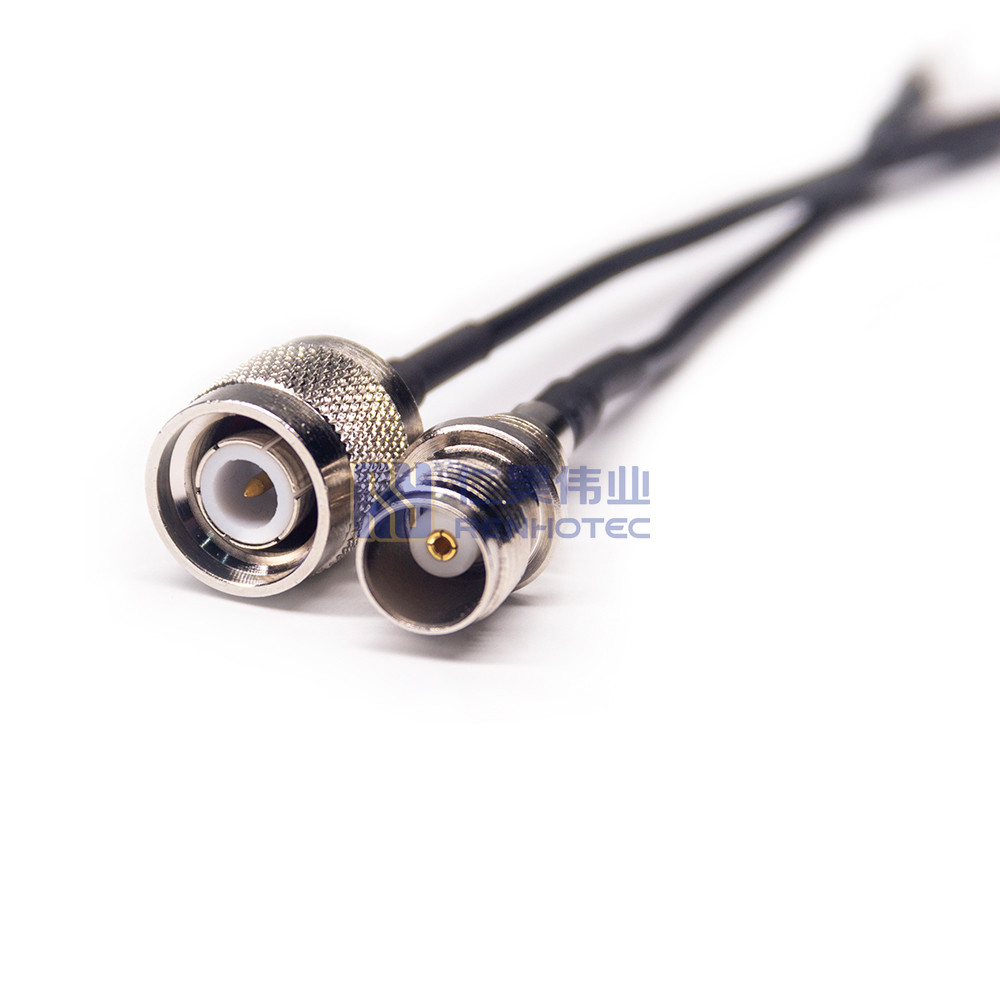

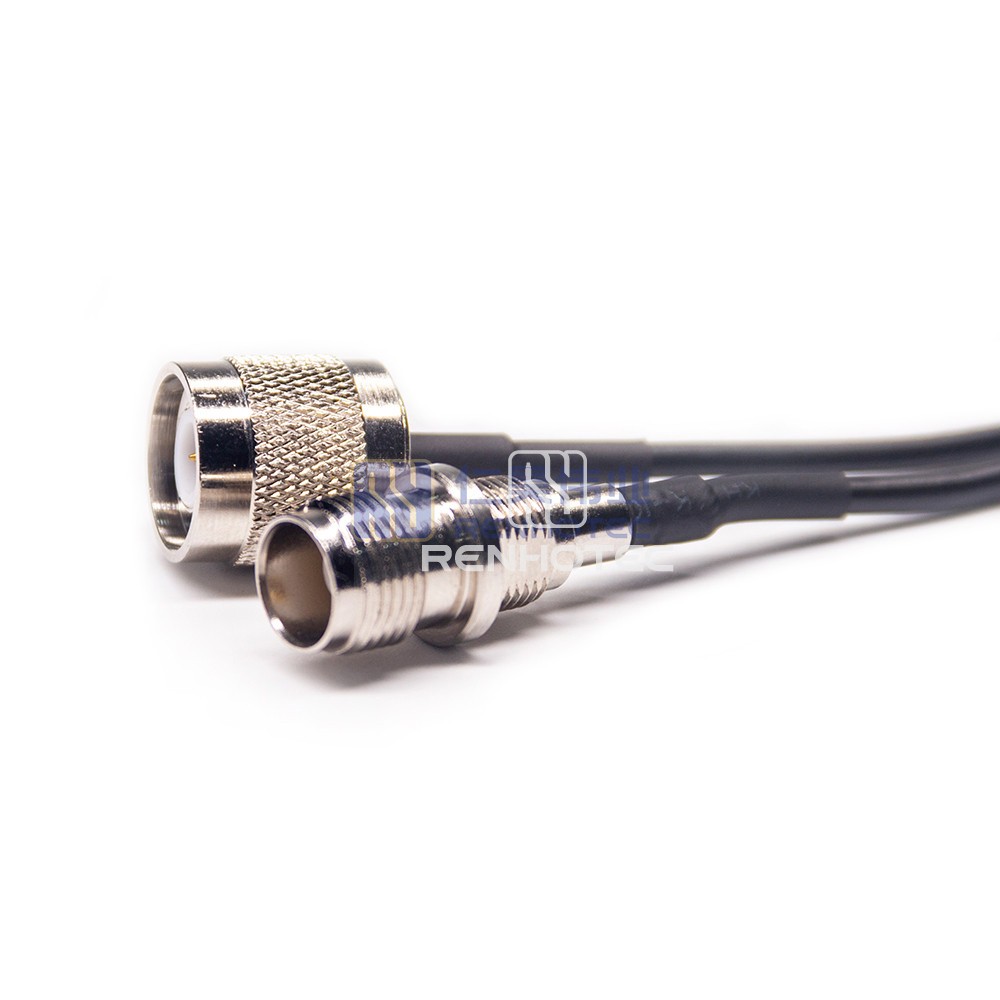

This TNC Male to TNC Female RF Cable Assembly is designed with 50Ohm RG174 coax to ensure reliable signal transmission. Ideal for use in various applications requiring TNC connectors and high-quality coaxial cable.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | TNC Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Straight |
2nd Connector Series | TNC Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Straight |
Mechanical | |
---|---|
Suitable Cable | RG174 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
