R02-S02-10019-20

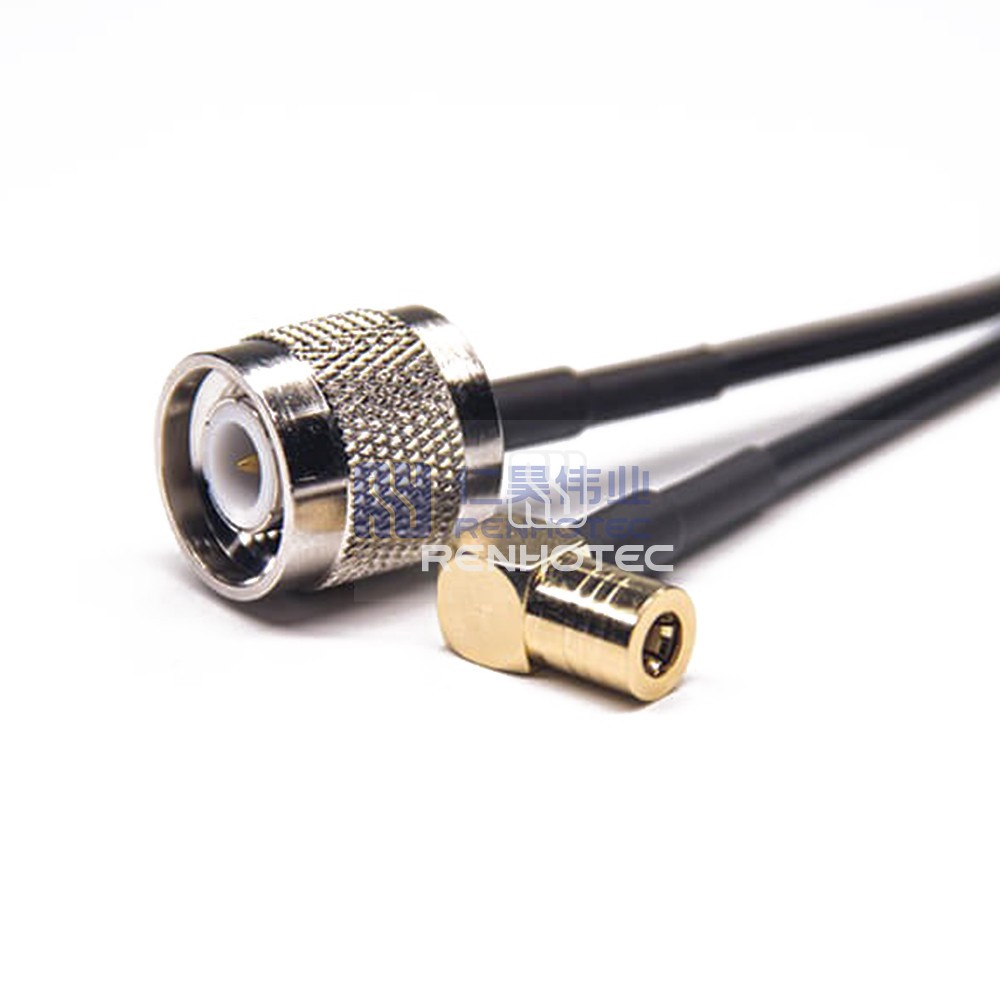

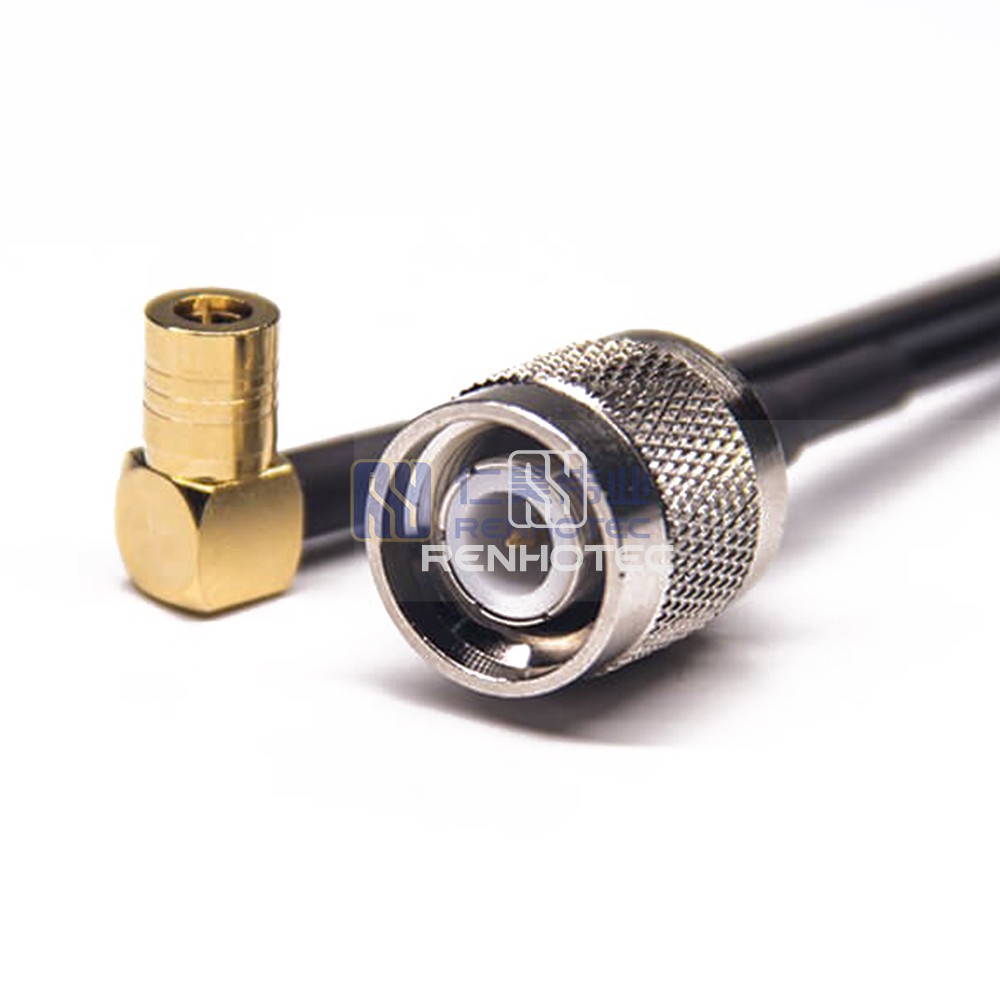

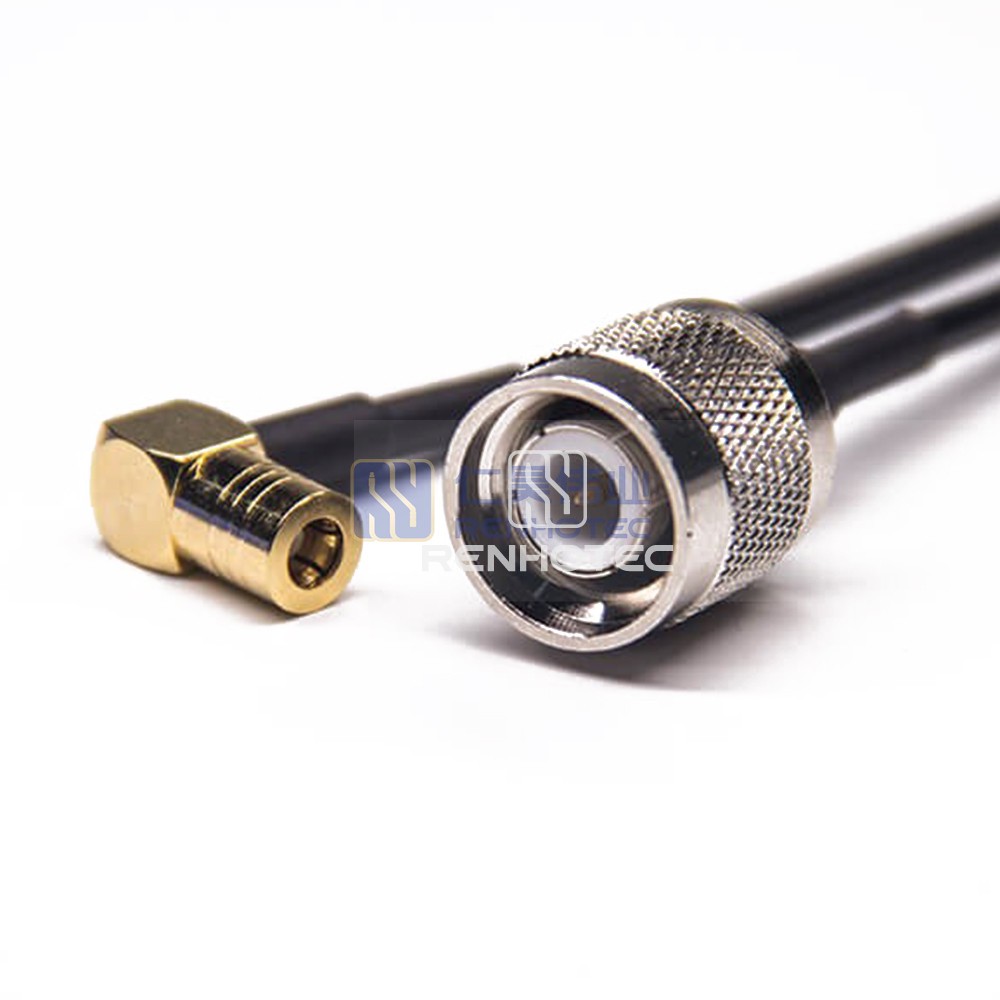

TNC Male to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Ensure secure RF connections with this TNC Male to SMB Male Right Angle RF Cable Assembly featuring RG174 Coaxial Cable. Ideal for reliable signal transmission in RF applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesTNC Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesSMB Plug
2nd Contact TypeFemale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
