Products > RF Cable Assembly > TNC Male Flange to MMCX Male Right Angle RF Cable Assembly with 50Ohm RG402 Coax
R02-M01-10026-20
TNC Male Flange to MMCX Male Right Angle RF Cable Assembly with 50Ohm RG402 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt

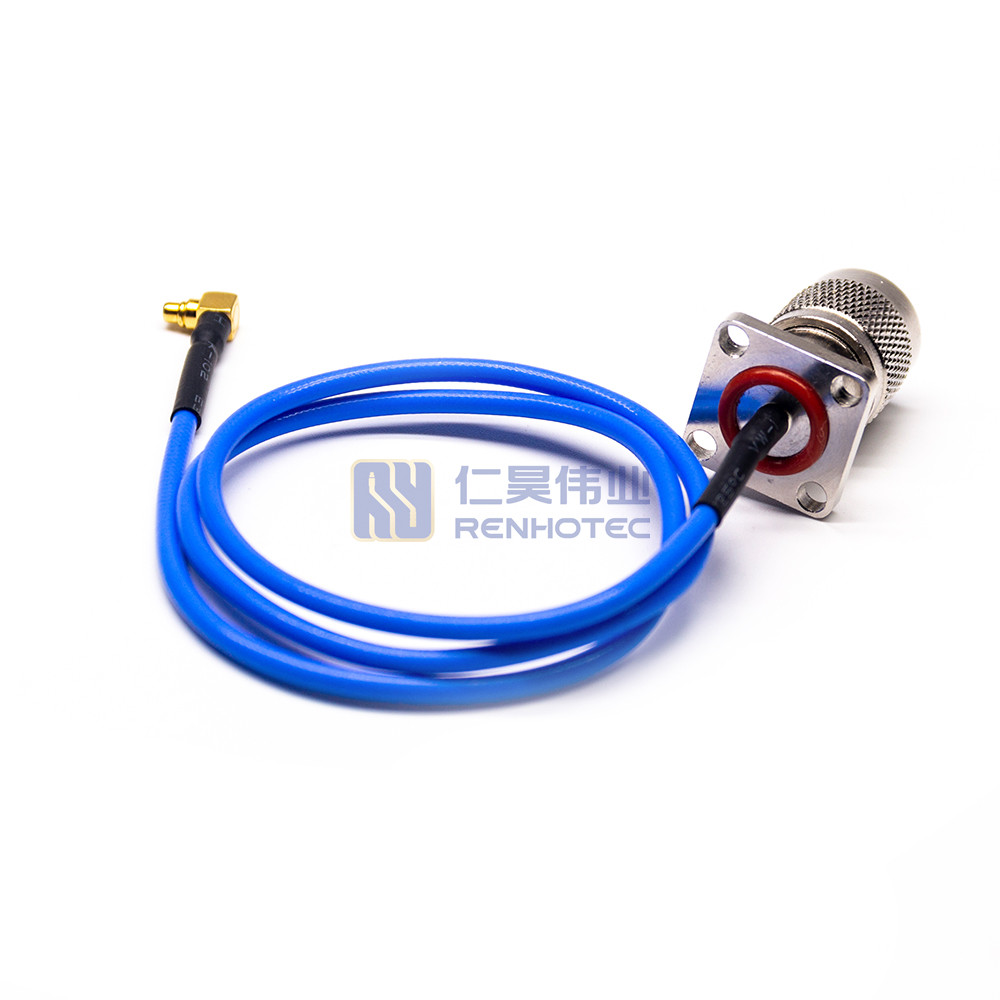

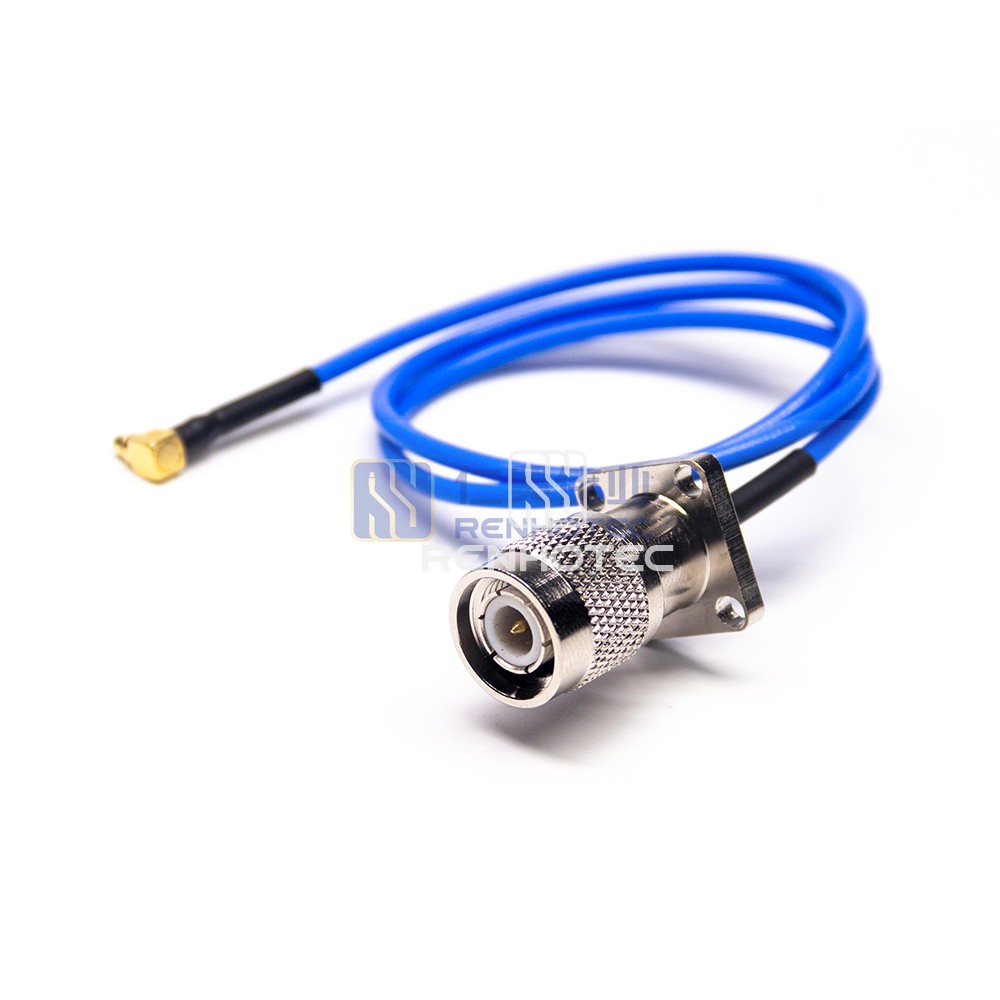

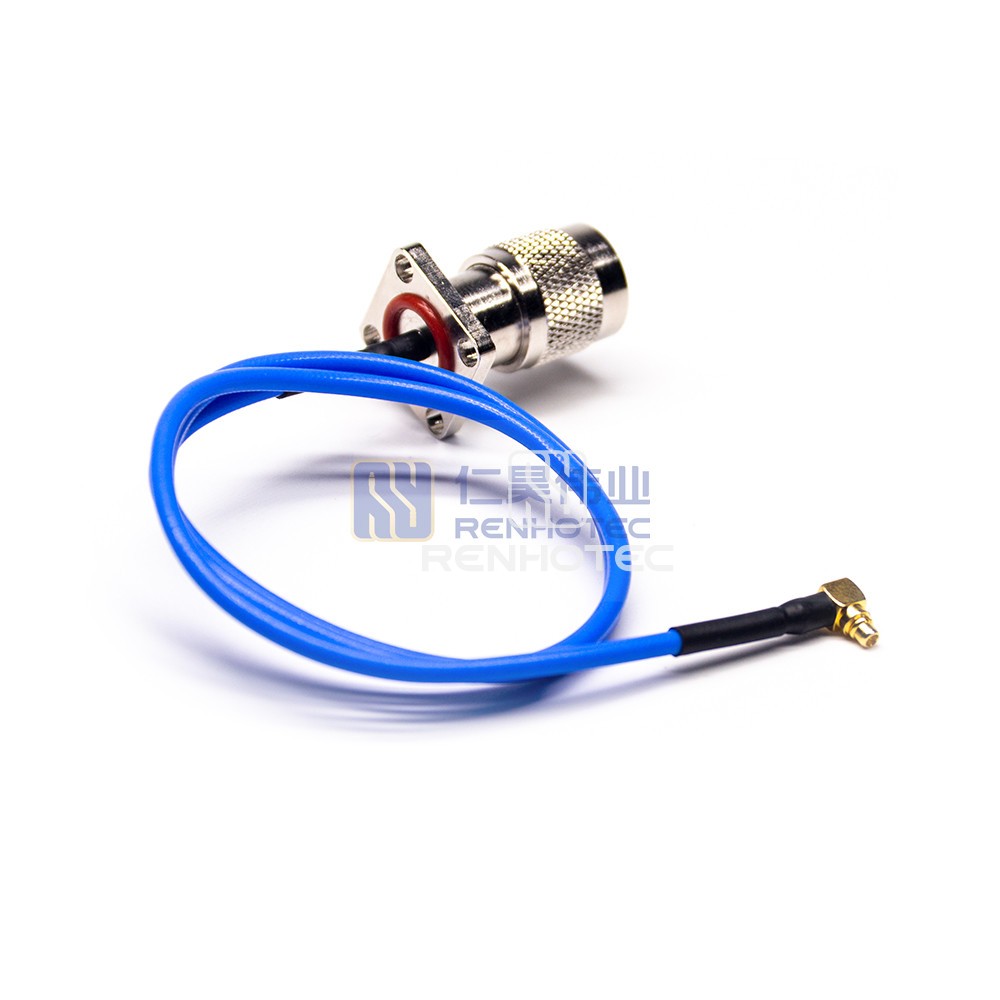

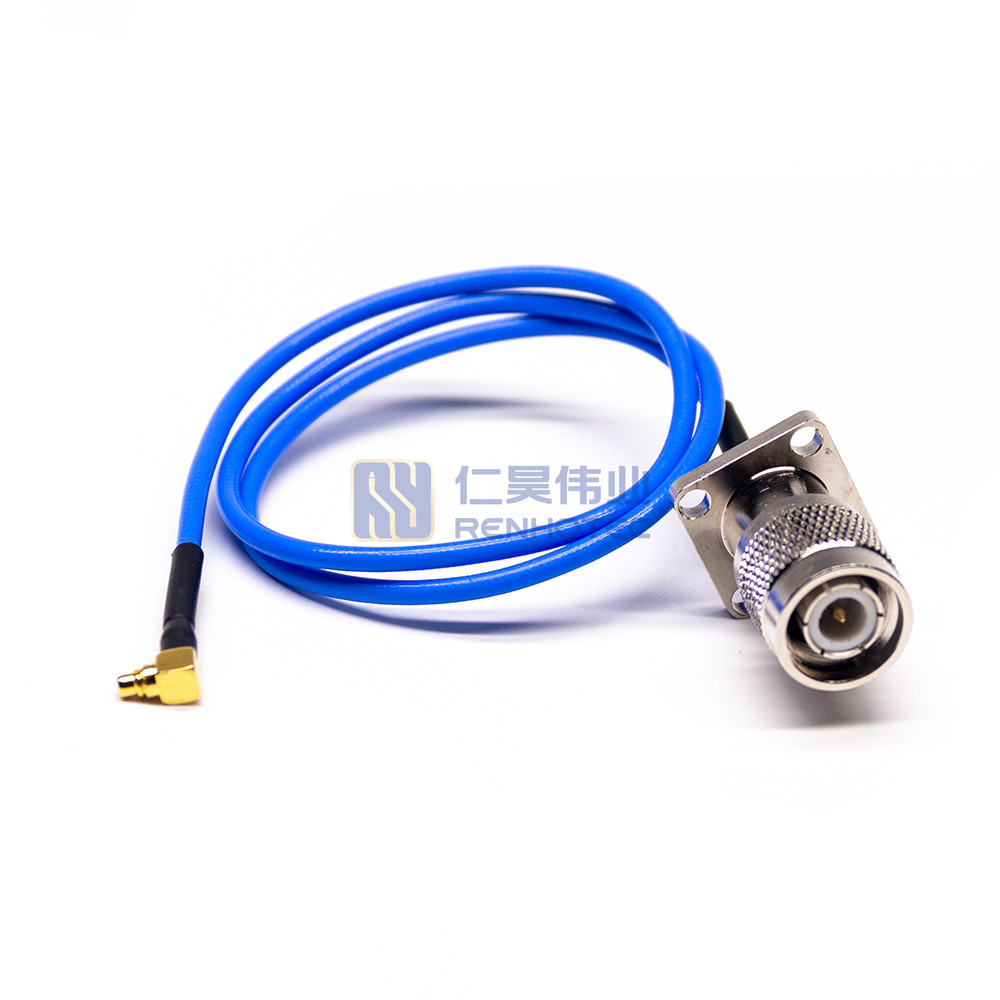

Connect your RF devices with ease using this TNC Male Flange to MMCX Male Right Angle RF Cable Assembly. The cable features 50Ohm RG402 Coax, ensuring reliable performance.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | TNC Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Straight |
2nd Connector Series | MMCX Plug |
2nd Contact Type | Male Pin |
2nd Connector Orientation | Right Angle |
Features | Flange |
Mechanical | |
---|---|
Suitable Cable | RG402 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
