R02-T01-10010-10

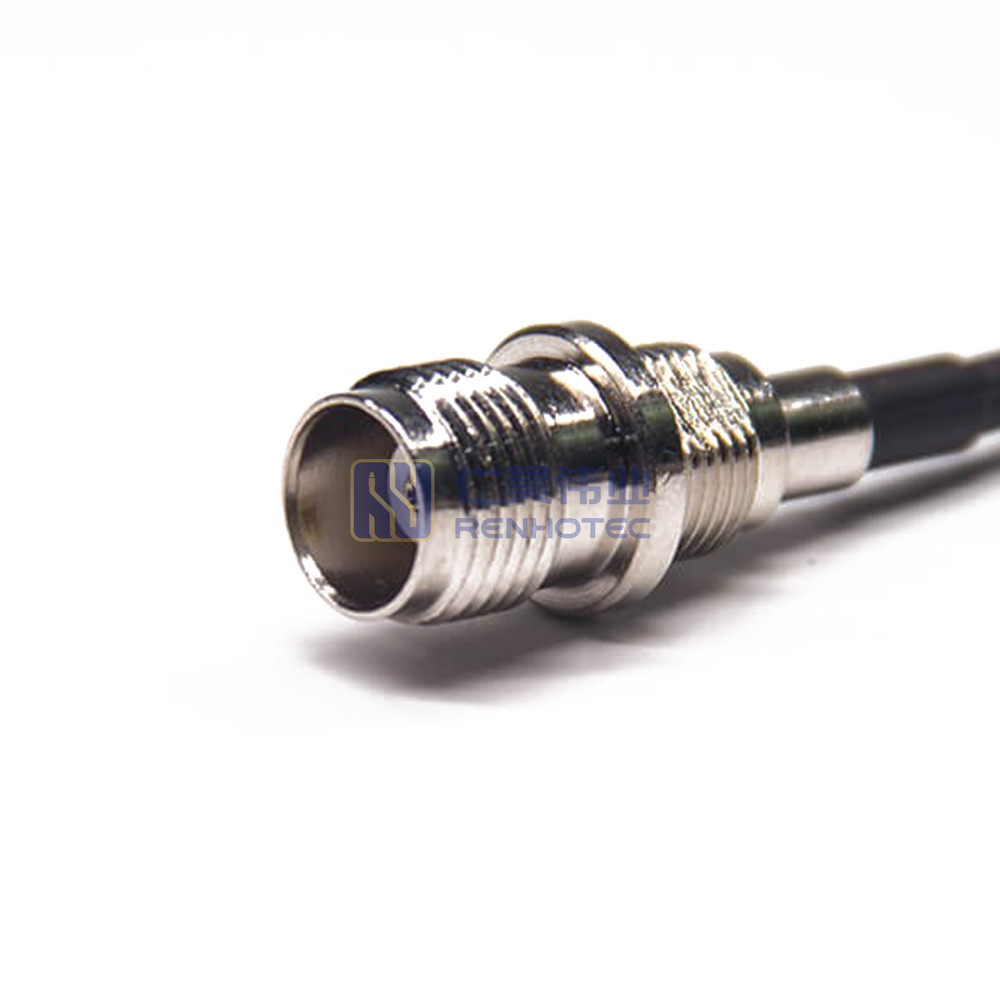

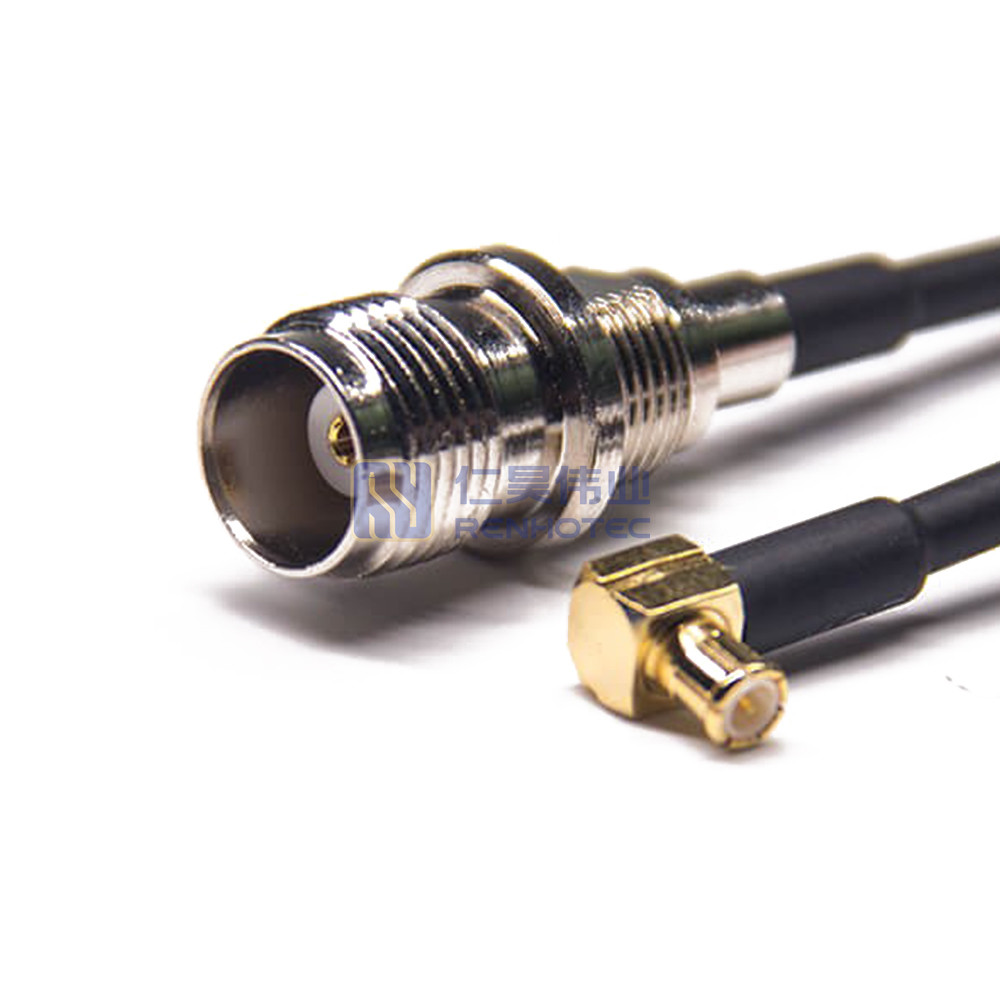

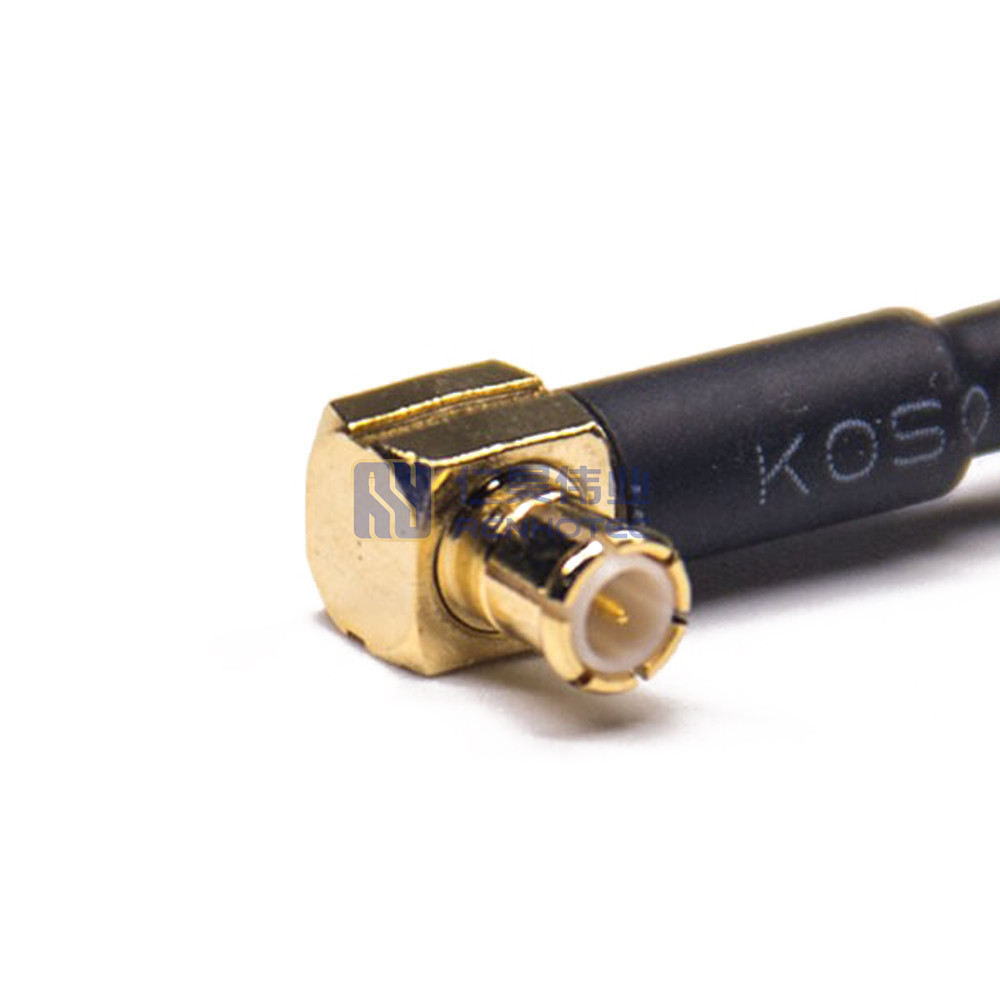

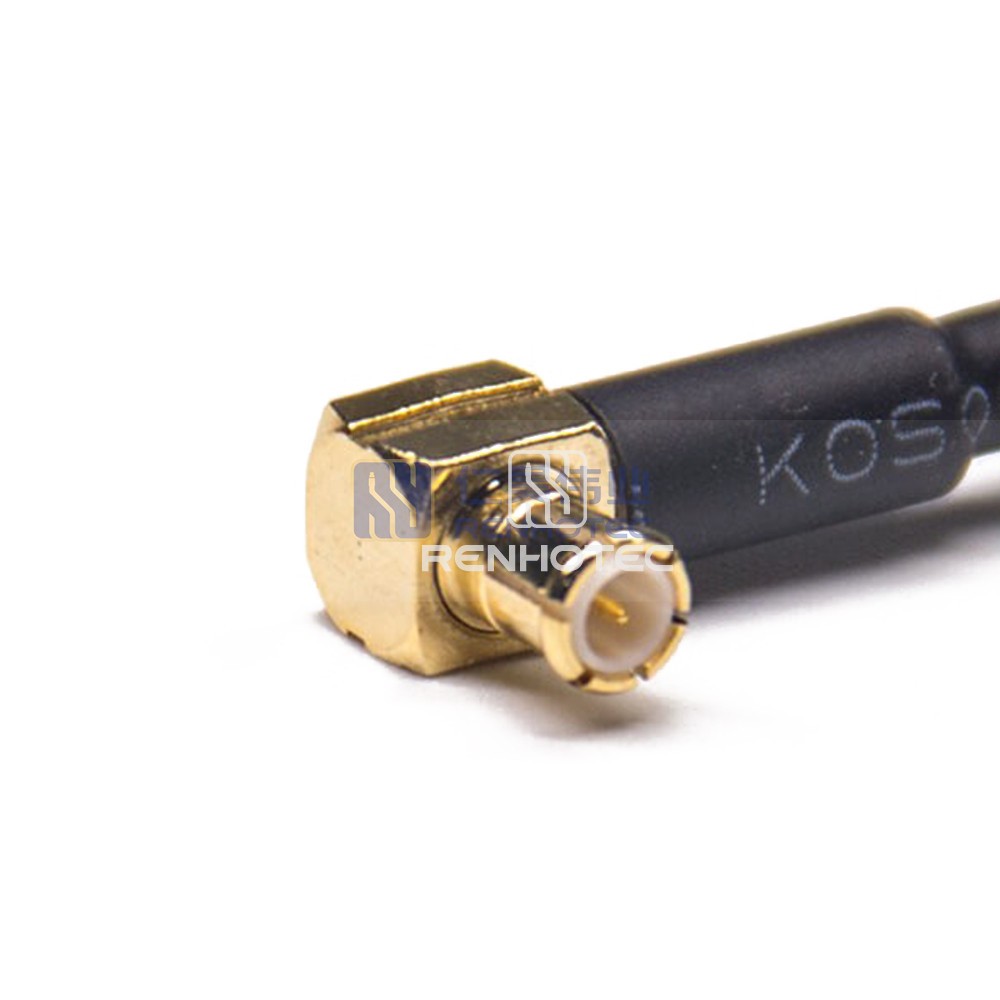

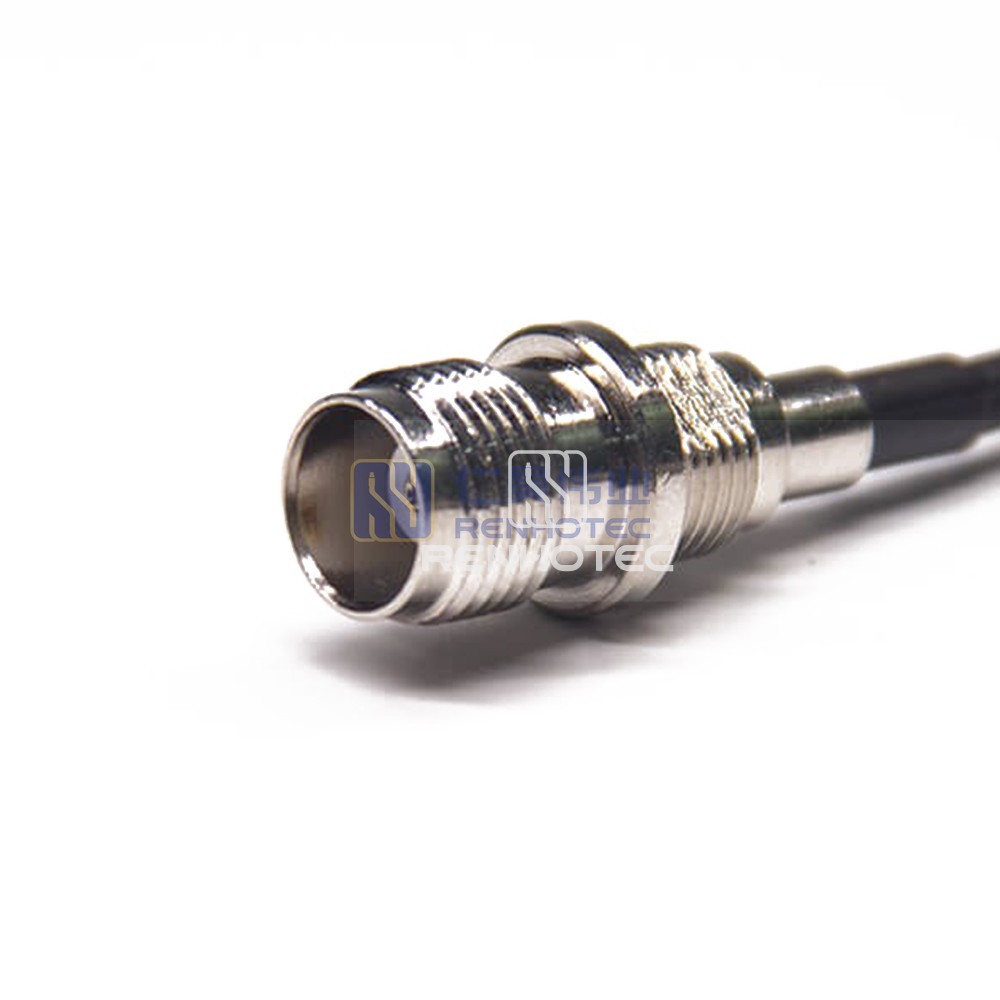

TNC Female Bulkhead to MCX Male Right Angle RF Cable Assembly with 50Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Ensure seamless RF signal transmission with this TNC Female Bulkhead to MCX Male Right Angle RF Cable Assembly featuring high-quality 50Ohm RG316 coaxial cable. Ideal for precision connections in RF applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesTNC Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
