MS3108A28-15S

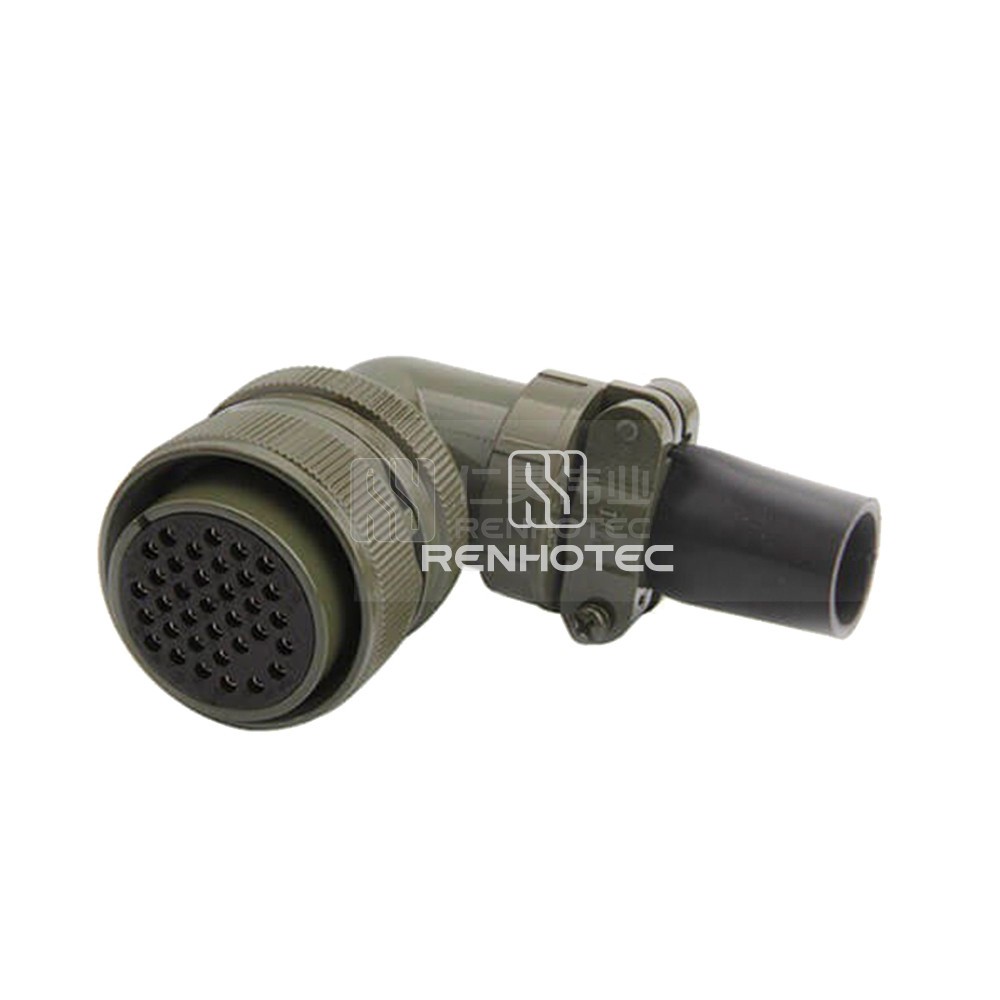

Threaded MS3108A28-15S 35Pin Female Right Angle Plug Solder Cup- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
High-quality threaded MS3108A28-15S 35Pin female right angle plug solder cup for secure connections in electrical applications. Get the perfect fit for your project with this reliable and durable plug.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Female Pin |
Number of Positions | 35 |
Contact Arrangements | 28-15 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 28 |
Mechanical | |
---|---|
Fastening Type | Threaded |
Mounting Type | Cable Type |
Wire Gauge or Range | 20-16AWG |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Silver |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 15A |
Rated Voltage | 500V |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
Certification
MS5015 Test Report | Download |
