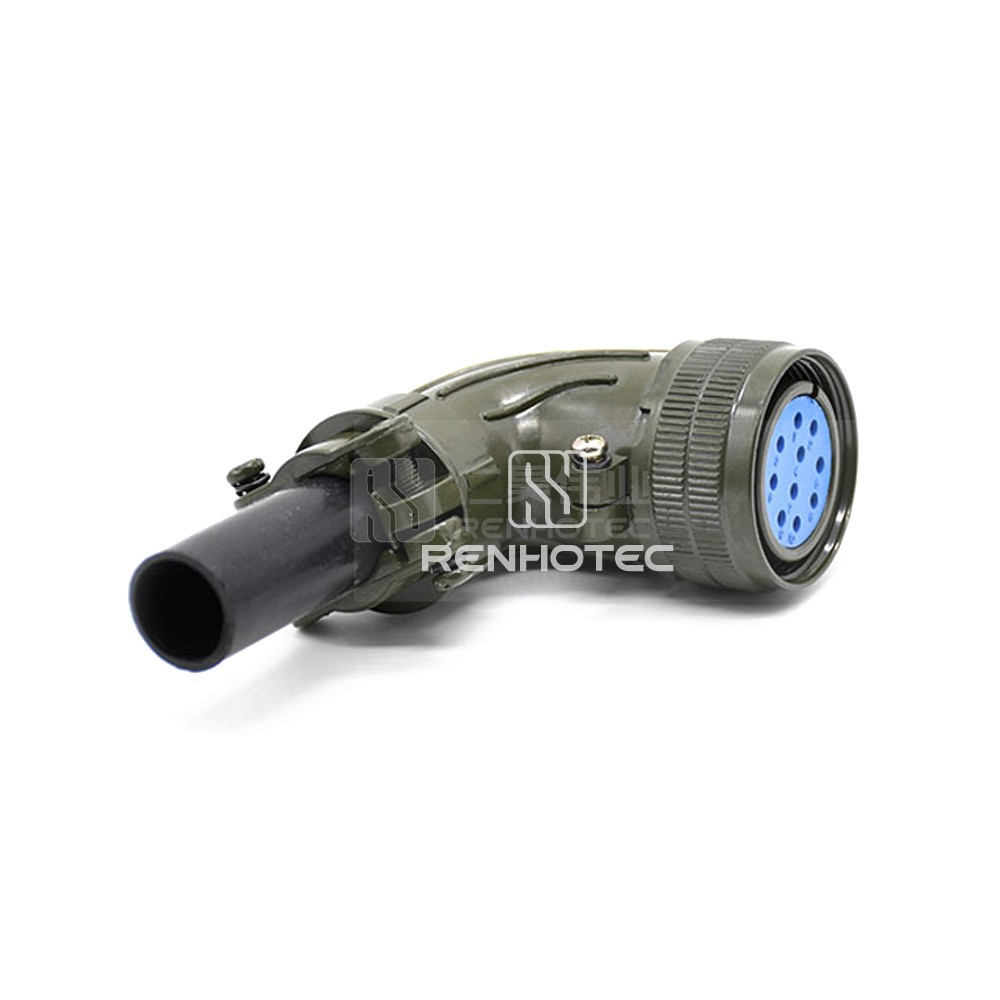

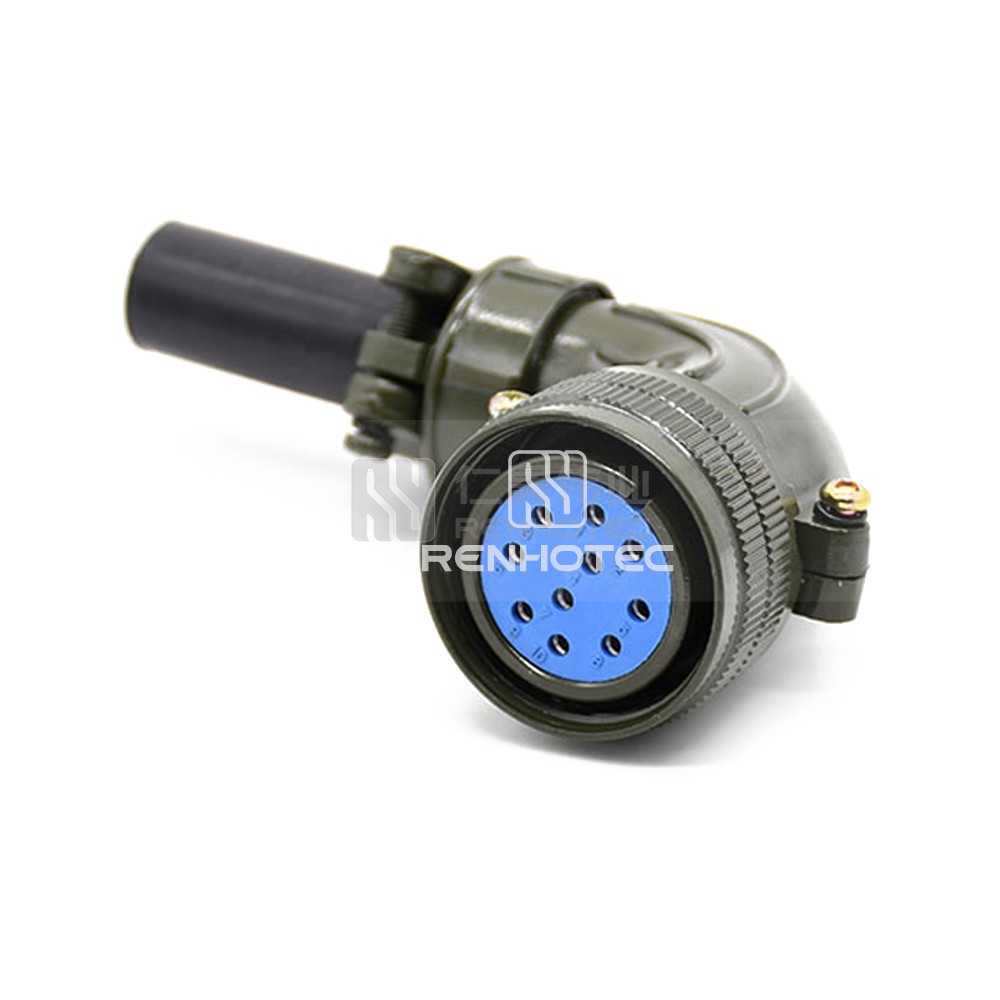

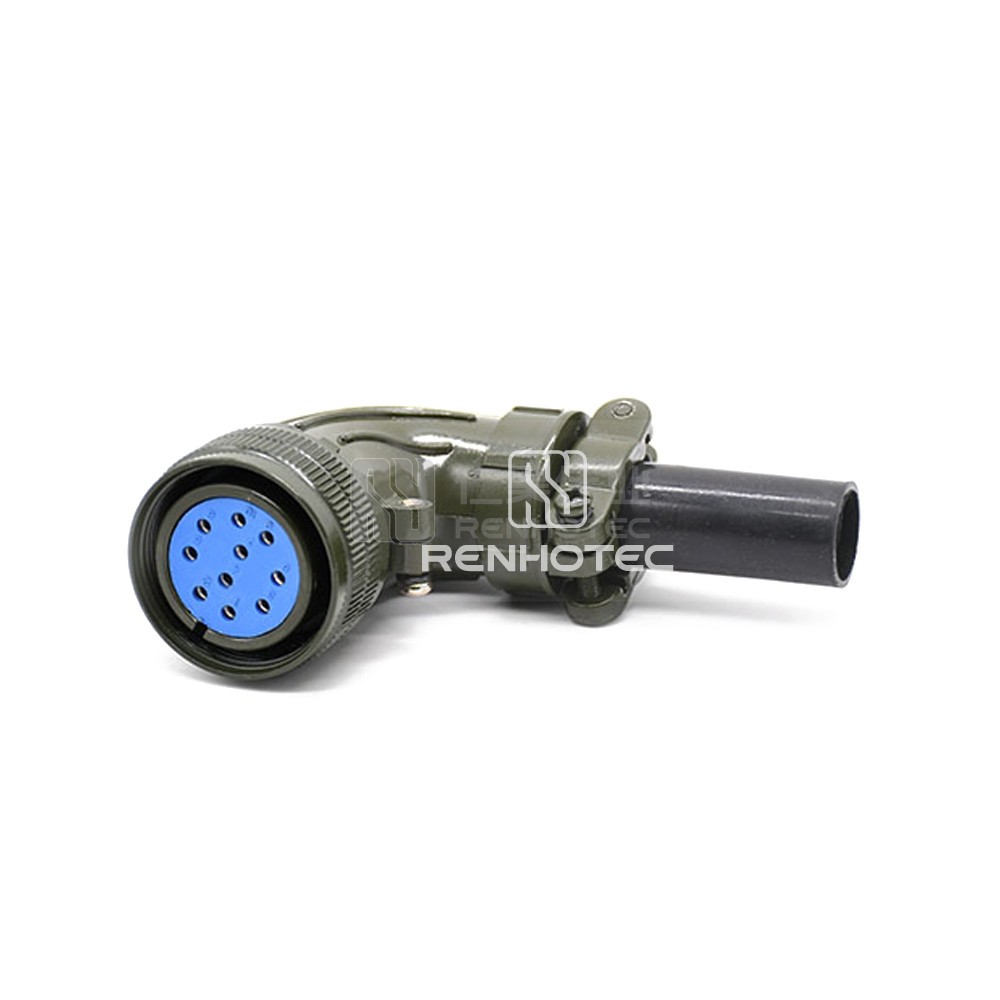

MS3108A18-1S
Threaded MS3108A18-1S 10Pin Female Right Angle Plug Solder Cup- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
Get the Threaded MS3108A18-1S 10Pin Female Right Angle Plug Solder Cup for your electrical connection needs. This high-quality plug features a threaded design, solder cups, and a right-angle female connector with 10 pins, ensuring a secure and efficient connection.
GeneralShellMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Contact Type | Female Pin |
| Number of Positions | 10 |
| Contact Arrangements | 18-1 |
| Contact Termination | Solder Cup |
| Key | N |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 18 |
| Mechanical | |
|---|---|
| Fastening Type | Threaded |
| Mounting Type | Cable Type |
| Wire Gauge or Range | 20-16AWG |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish | Silver |
| Electrical | |
|---|---|
| Shielding | Unshielded |
| Rated Current | 15A |
| Rated Voltage | 500V |
| Environmental | |
|---|---|
| Operating Temperature | -55°C ~ + 125°C |
Certification
| MS5015 Test Report | Download |
