MS3106A36-3S

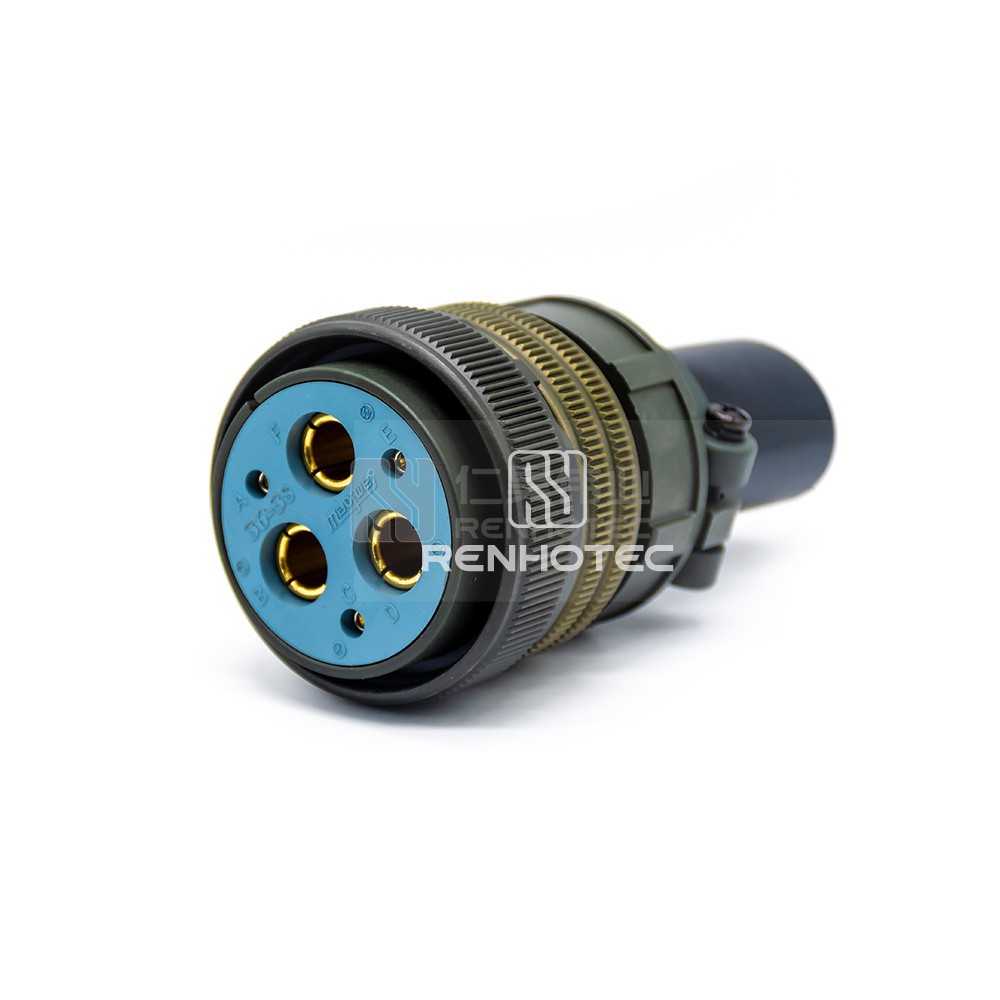

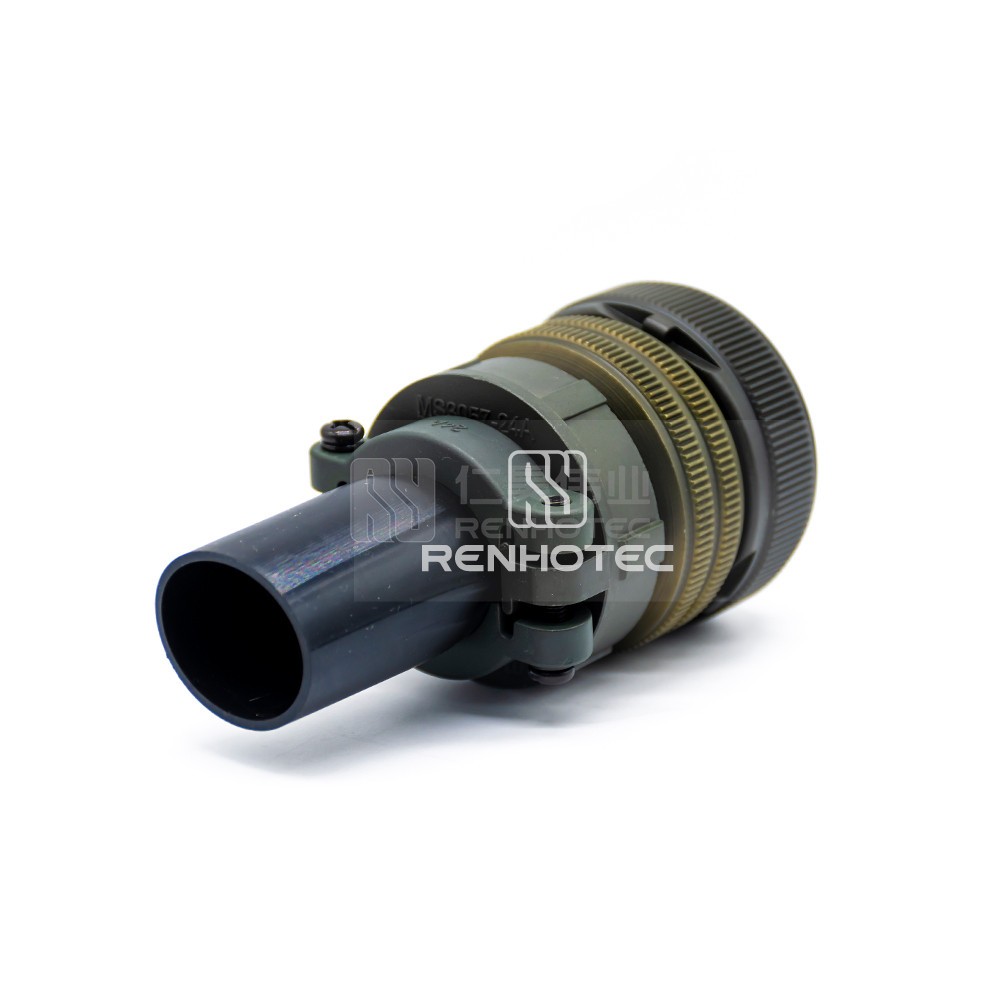

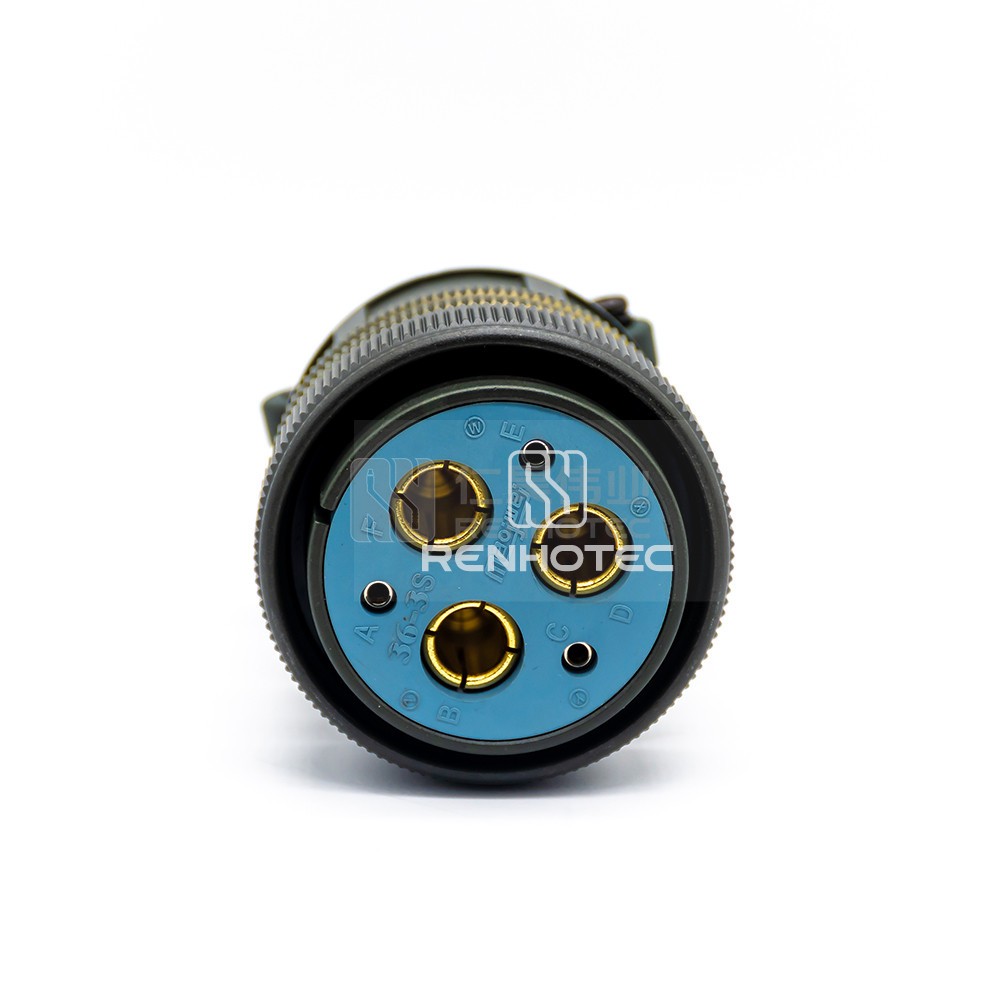

Threaded MS3106A36-3S 6Pin Female Straight Plug Solder Cup- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
High-quality 6-pin female straight plug with solder cup termination designed for efficient electrical connections. Features threaded design for secure installations. Compatible with a wide range of applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 6 |
Contact Arrangements | 36-3 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 36 |
Mechanical | |
---|---|
Fastening Type | Threaded |
Mounting Type | Cable Type |
Wire Gauge or Range | 14-12AWG/2-0AWG |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Silver |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 120A/30A |
Rated Voltage | 500V |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
Certification
MS5015 Test Report | Download |
