MS3102A18-11S

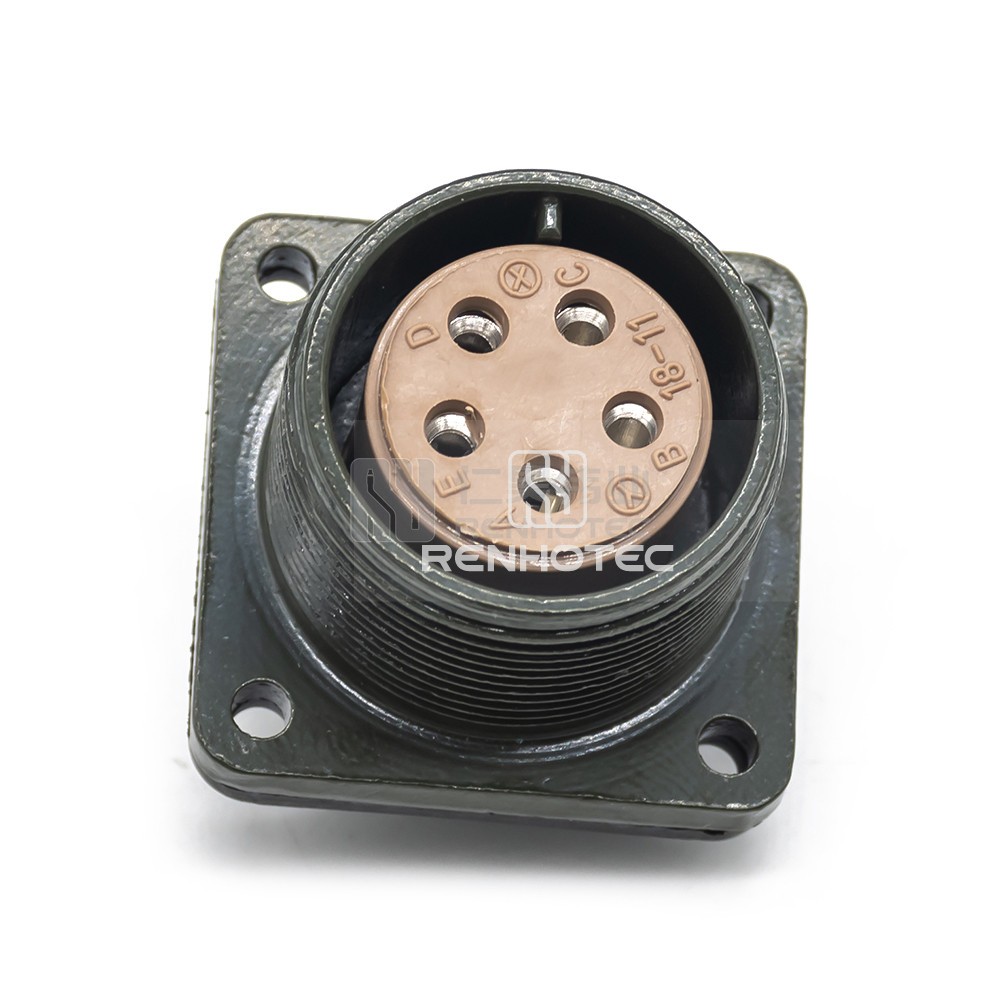

Threaded MS3102A18-11S 5Pin Female Box Mounting Receptacle Solder Cup- Overview
- Technical data
- Certification
- Download
GeneralShellMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Positions | 5 |
| Contact Arrangements | 18-11 |
| Contact Termination | Solder Cup |
| Key | N |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 18 |
| Mechanical | |
|---|---|
| Fastening Type | Threaded |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Wire Gauge or Range | 14-12AWG |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Electrical | |
|---|---|
| Shielding | Unshielded |
| Rated Current | 30A |
| Rated Voltage | 500V |
| Environmental | |
|---|---|
| Operating Temperature | -55°C ~ + 125°C |
Certification
| MS5015 Test Report | Download |
