Straight TNC Solder Panel Mount 50ohm - Renhotec

RF Coaxial Connector > Straight TNC Solder Panel Mount 50ohm

RHT-615-0412

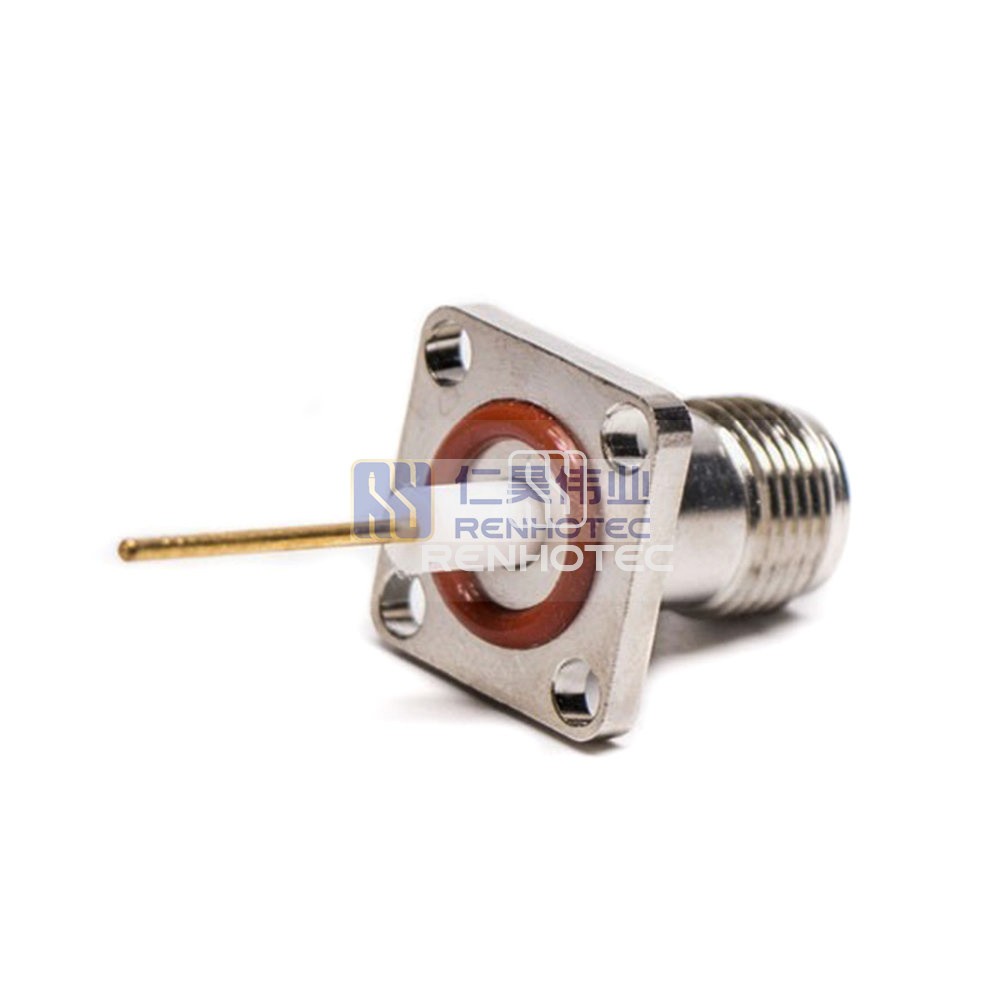

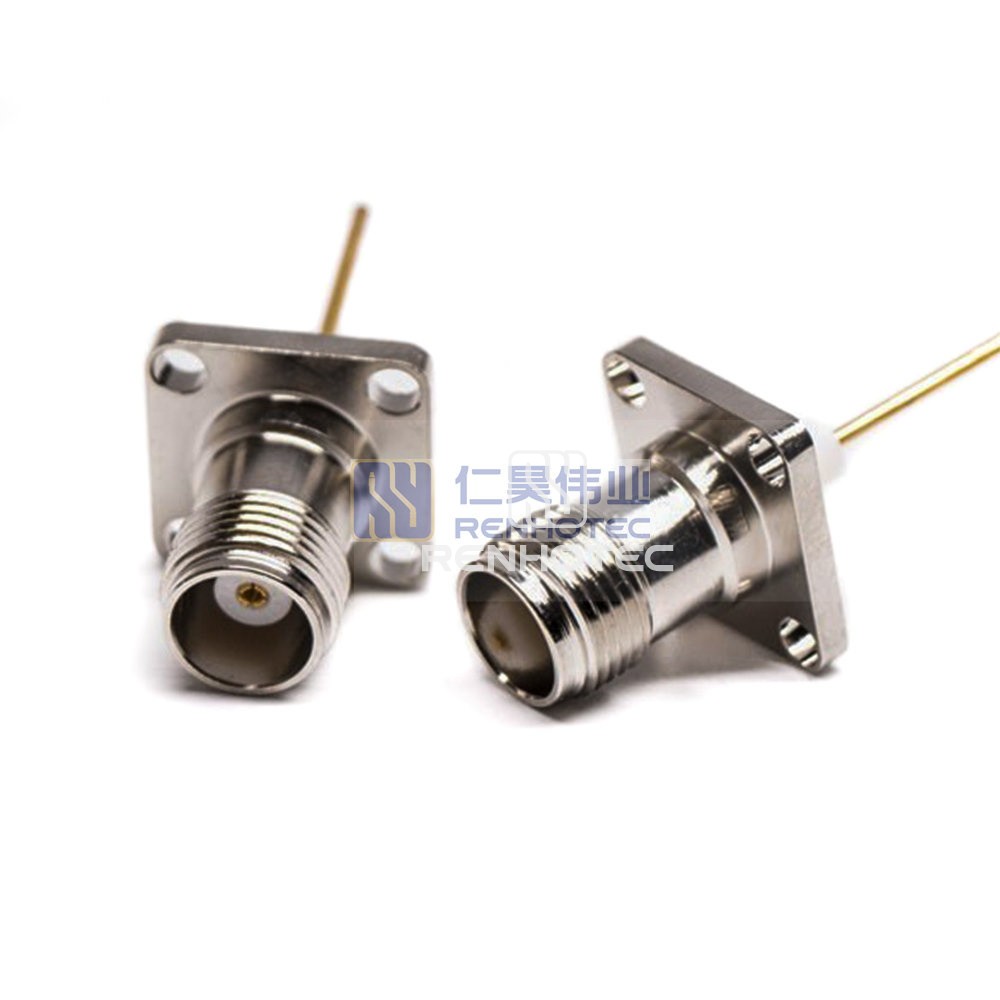

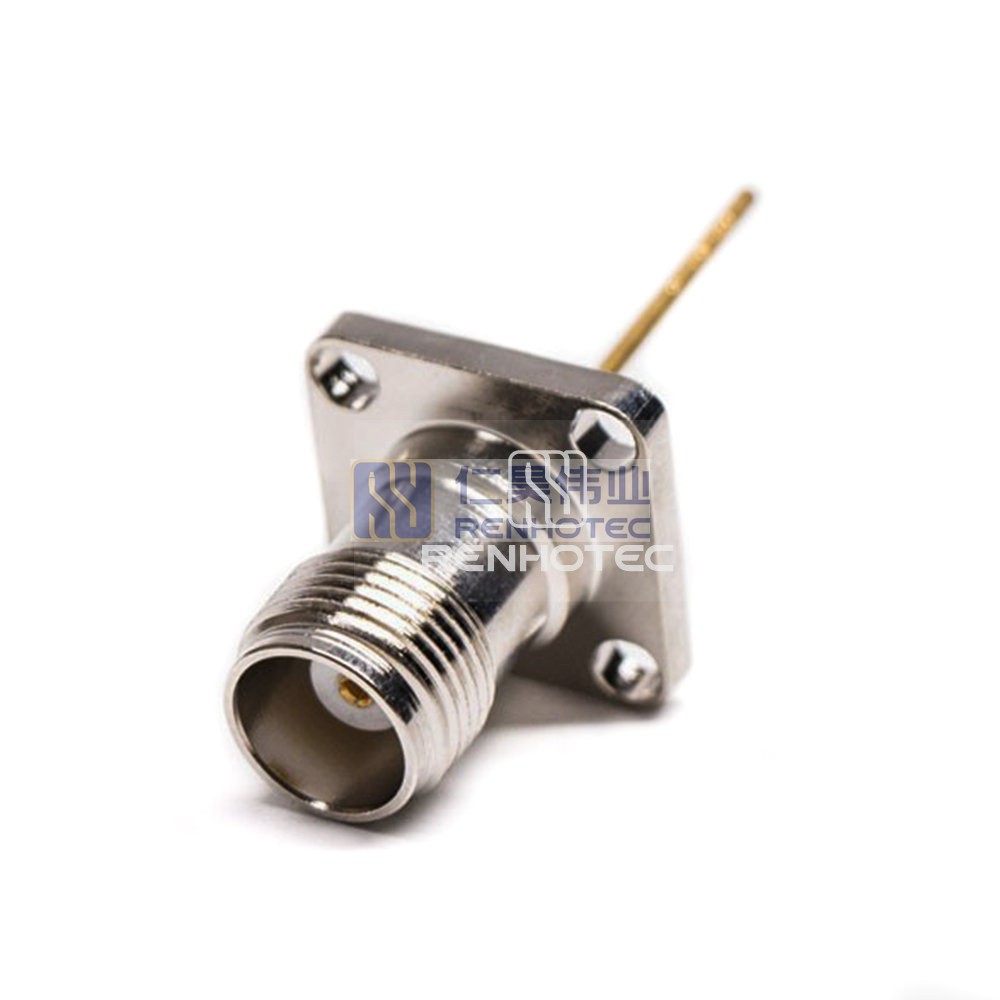

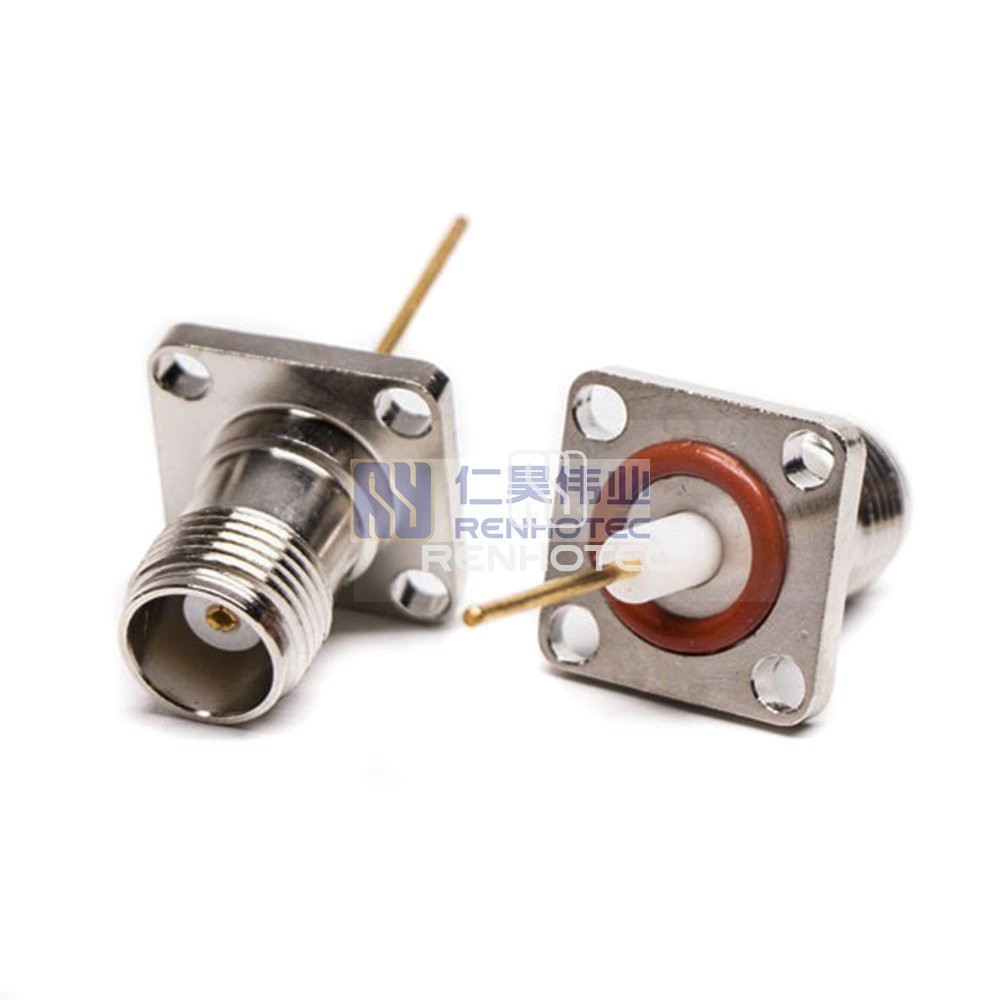

Straight TNC Solder Panel Mount 50ohm

Get a Quote

Overview
Technical data
Certification
Download

Product excerpt

High-performance Straight TNC Solder Panel Mount with 50ohm impedance. Contact us for a custom quote on RHT-615-0412 for your business needs.

GeneralMaterialMechanicalElectrical

General
Connector Type	Jack
Orientation	Straight
Contact Type	Female Pin
Number of Ports	1
Feature	-

Material
Body Material	Copper Alloy
Plating	Nickel Plated
Contact Material	Brass
Contact Plating	Gold

Mechanical
Fastening Type	Threaded
Termination	Solder
Mounting Type	Panel Mount
Mount Feature	Four Flange
Suitable Cable	-

Electrical
Impedance	50 Ohms
Frequency(max)	6GHz
