RHT-615-0474

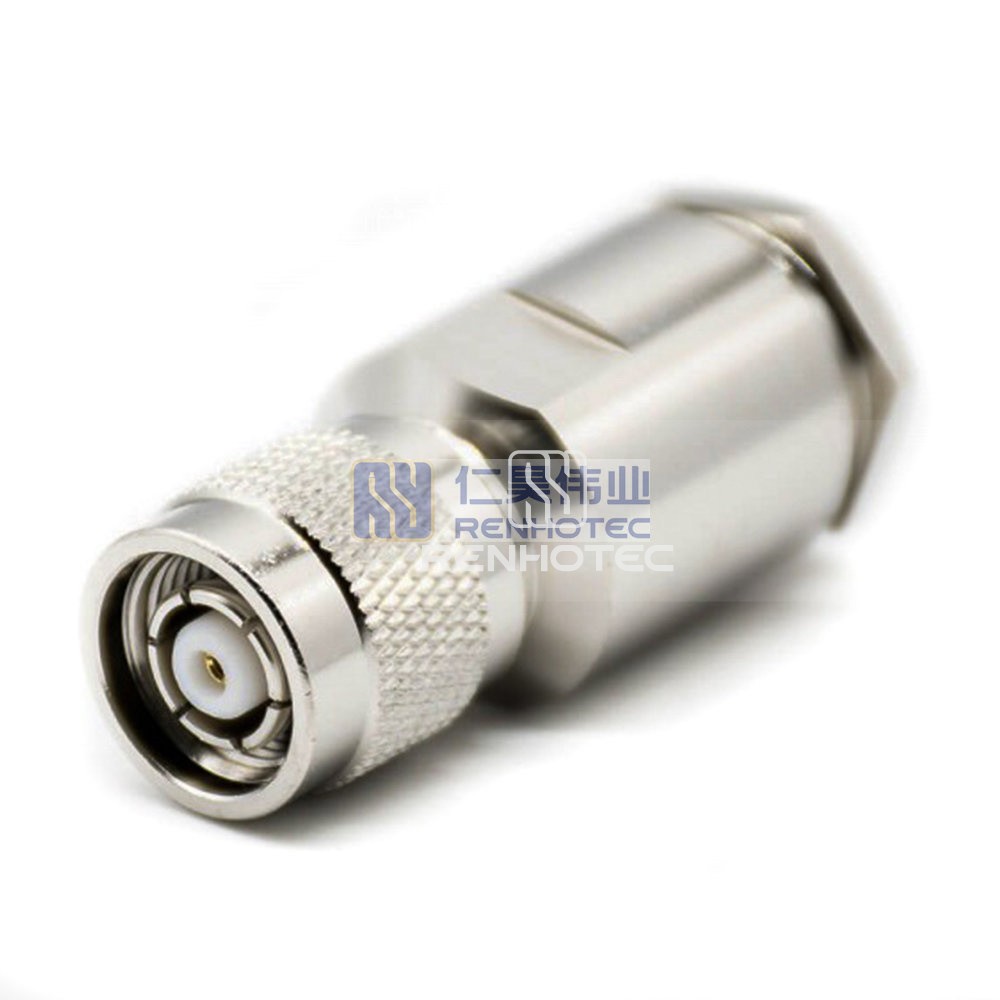

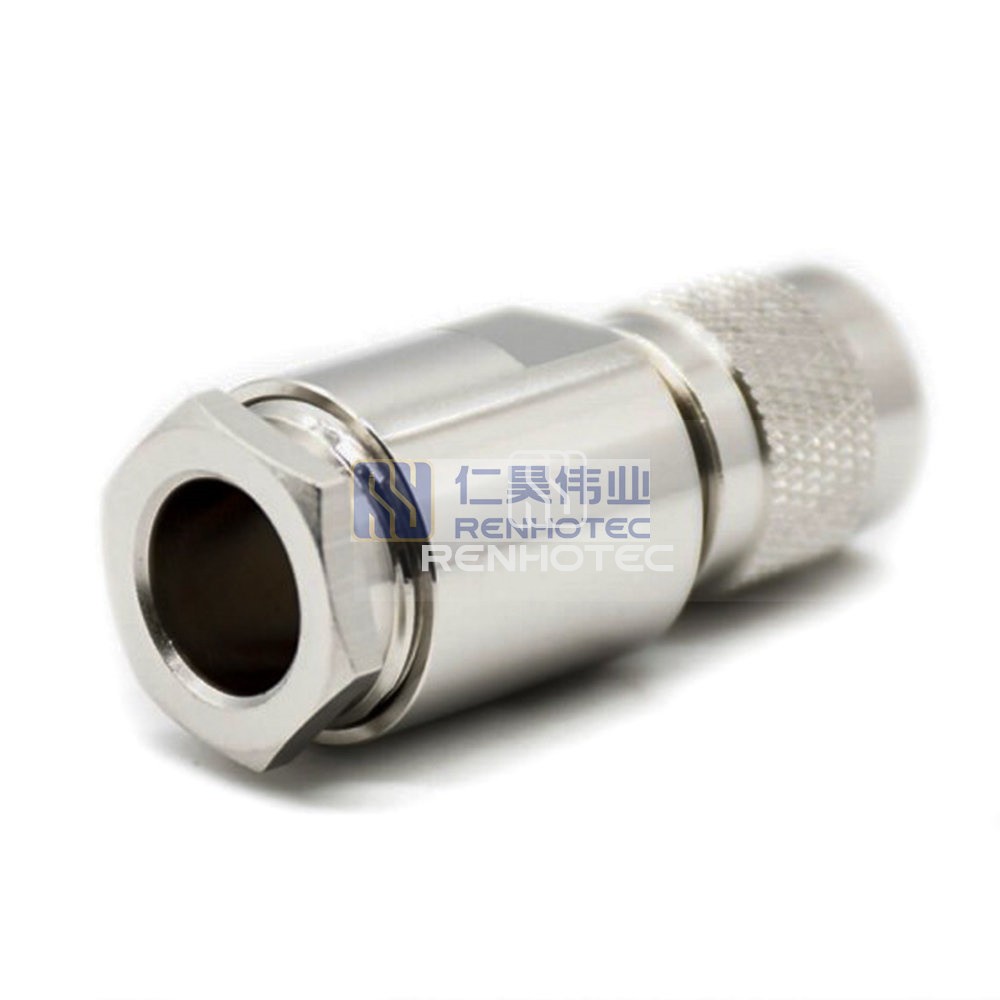

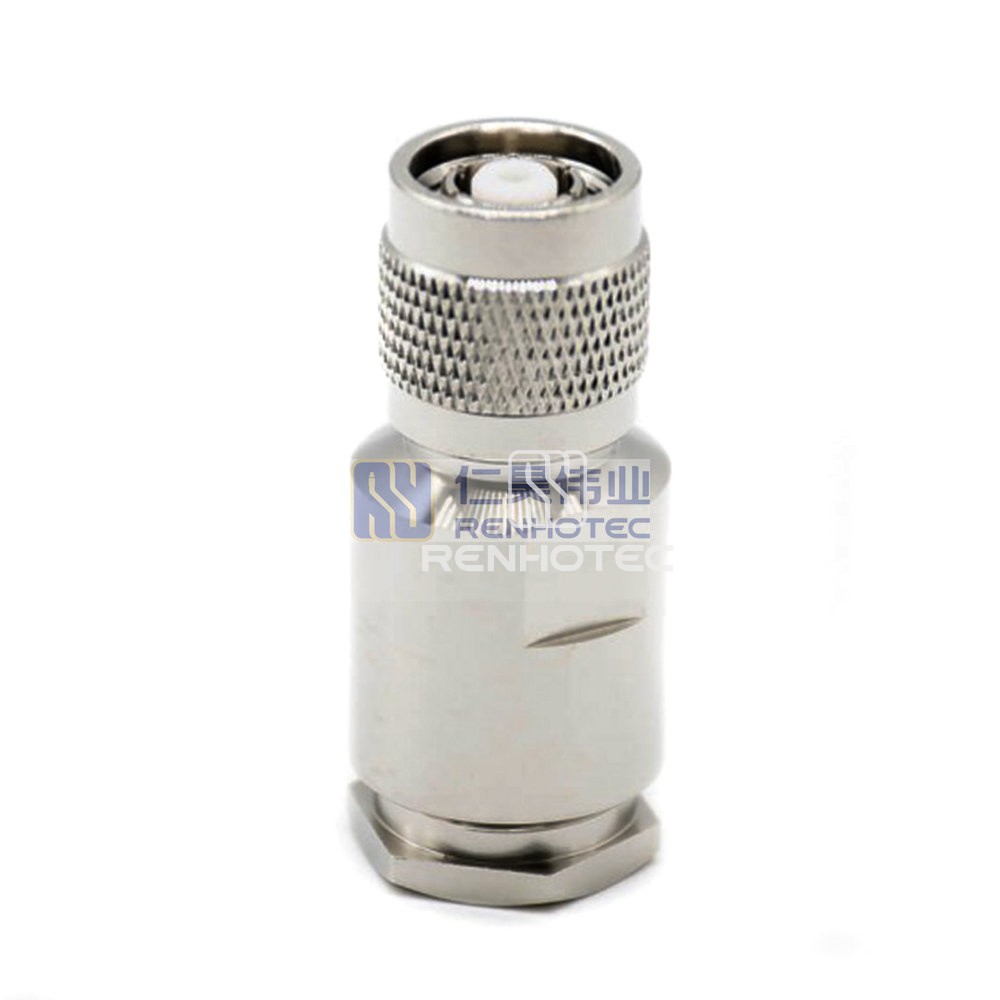

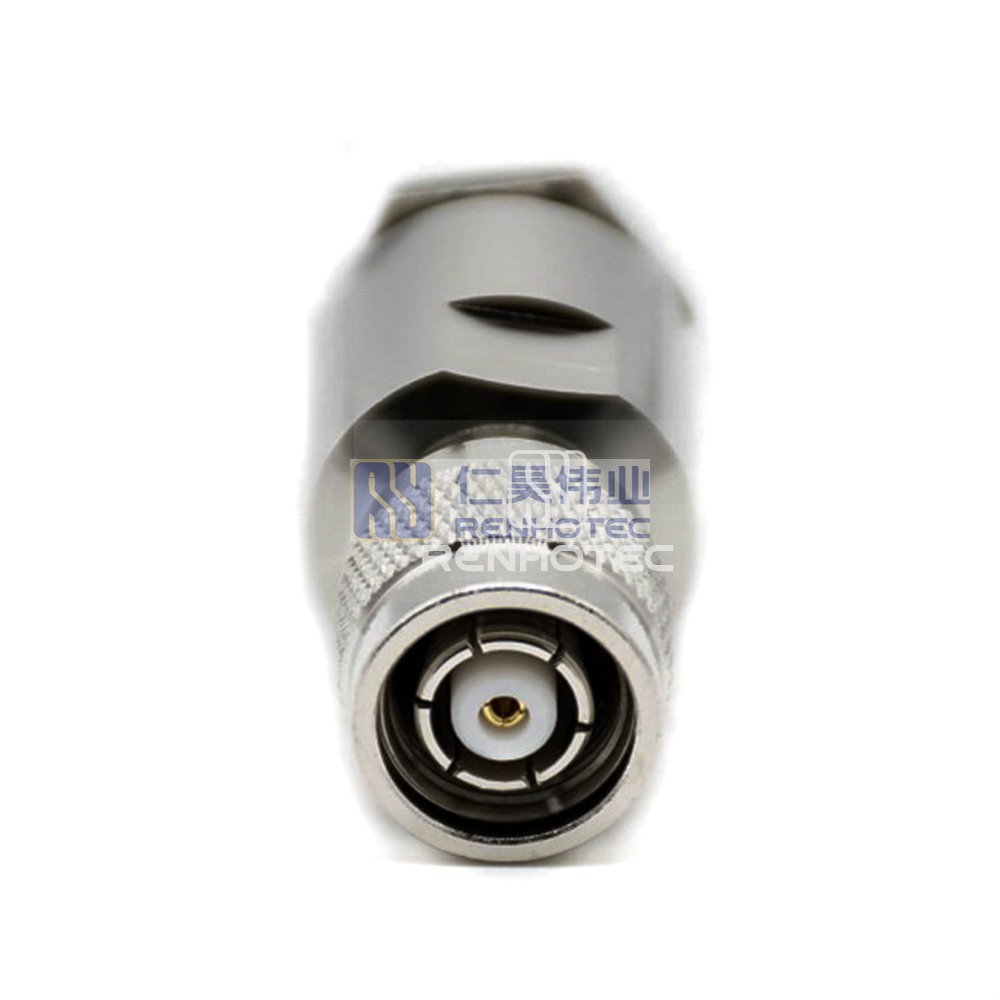

Straight TNC Male Female Pin Clamp Cable Type 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
Purchase high-quality Straight TNC Male Female Pin Clamp Cable Type 50ohm from our B2B store. Contact us for a quotation on SKU: RHT-615-0474. Reliable connectivity solutions for your business needs.
GeneralMaterialMechanicalElectrical
General | |
---|---|
Connector Type | Male |
Orientation | Straight |
Contact Type | Female Pin |
Number of Ports | 1 |
Feature | - |
Material | |
---|---|
Body Material | Copper Alloy |
Plating | Nickel Plated |
Contact Material | Brass |
Contact Plating | Gold |
Mechanical | |
---|---|
Fastening Type | Threaded |
Mounting Type | Cable Type |
Suitable Cable | - |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency(max) | 6GHz |
