Straight N Type Jack Solder Panel Mount 4 Hole Flange 50ohm - Renhotec

RF Coaxial Connector > Straight N Type Jack Solder Panel Mount 4 Hole Flange 50ohm

RHT-614-0208

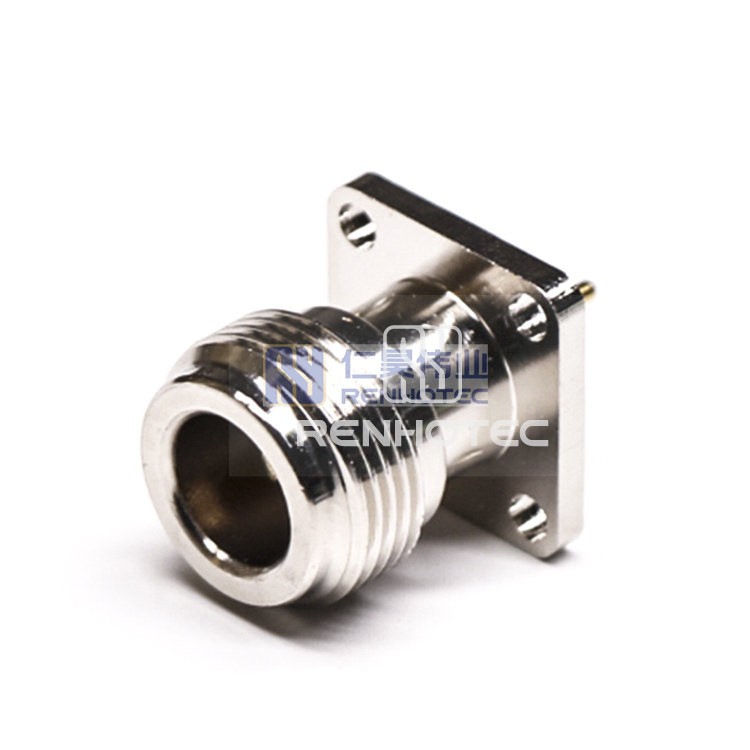

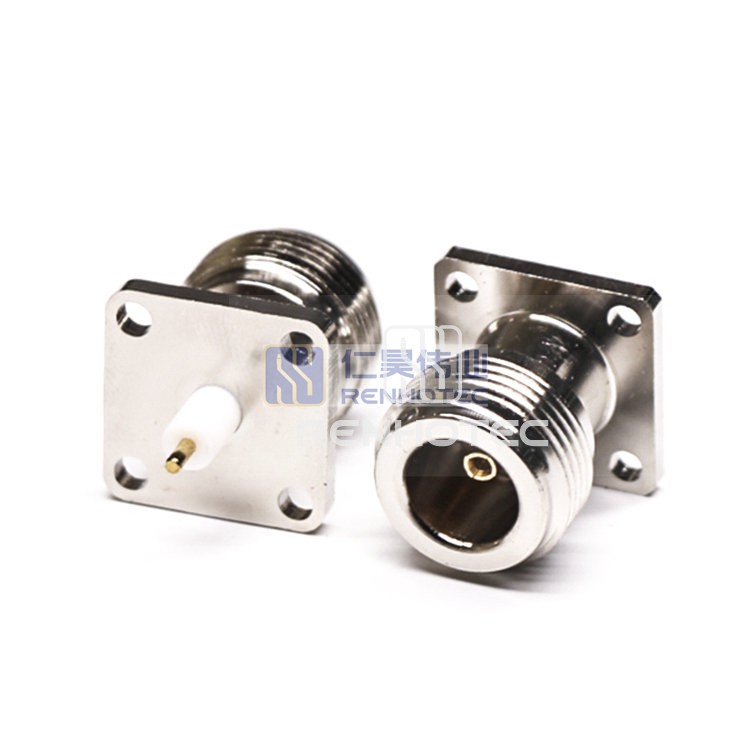

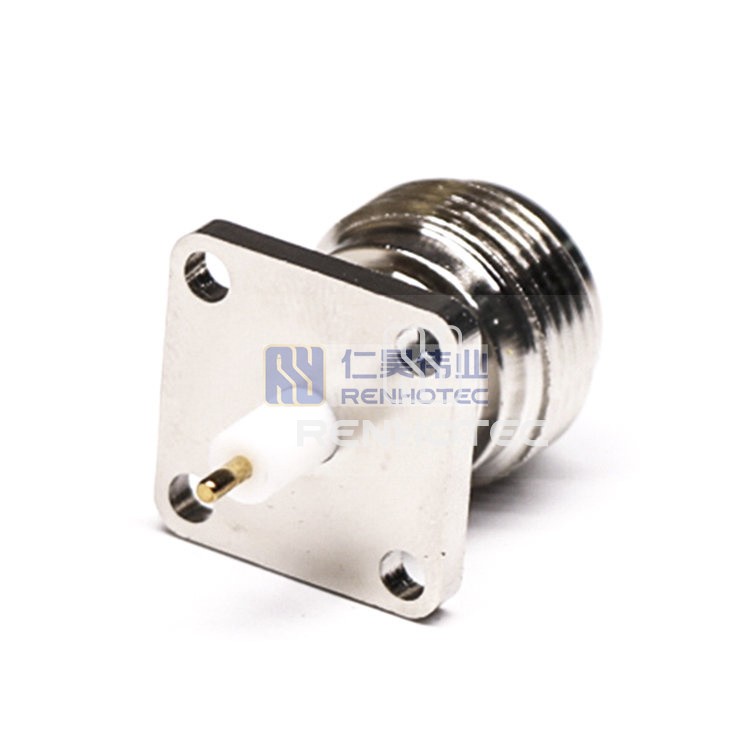

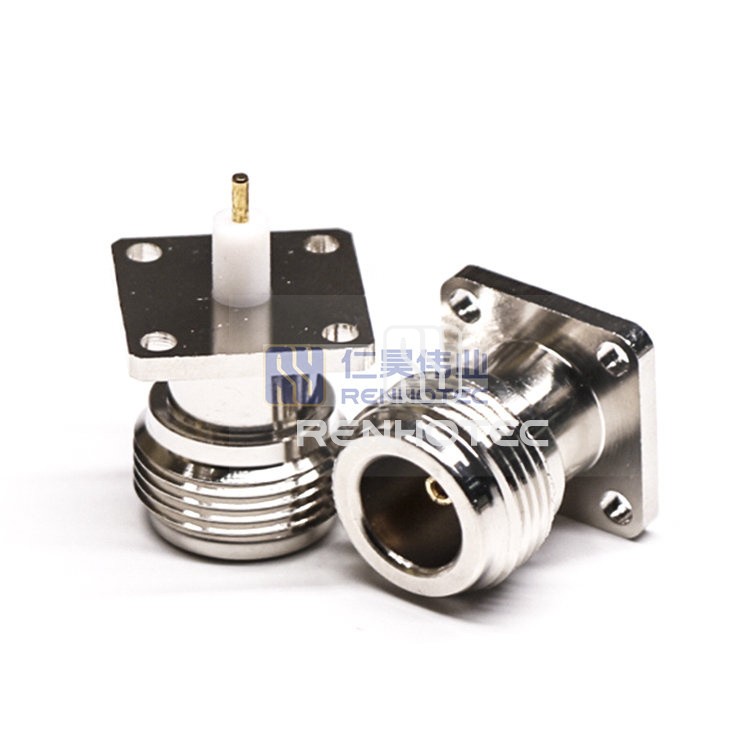

Straight N Type Jack Solder Panel Mount 4 Hole Flange 50ohm

Get a Quote

Overview
Technical data
Certification
Download

Product excerpt

GeneralMaterialMechanicalEnvironmentalElectrical

General
Connector Type	Jack
Orientation	Straight
Contact Type	Female Pin
Feature	-

Material
Body Material	Copper Alloy
Plating	Nickel Plated
Contact Plating	Gold

Mechanical
Fastening Type	Threaded
Termination	Solder
Mounting Type	Panel Mount
Mount Feature	Four Flange
Suitable Cable	-

Environmental
Ingress Protection	IP65

Electrical
Impedance	50 Ohms
