Products > RF Cable Assembly > Straight BNC Plug to Right Angle SMA Jack RF Pigtail Cable with RG316 Cable 50ohm
R02-B01-10111-100
Straight BNC Plug to Right Angle SMA Jack RF Pigtail Cable with RG316 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt

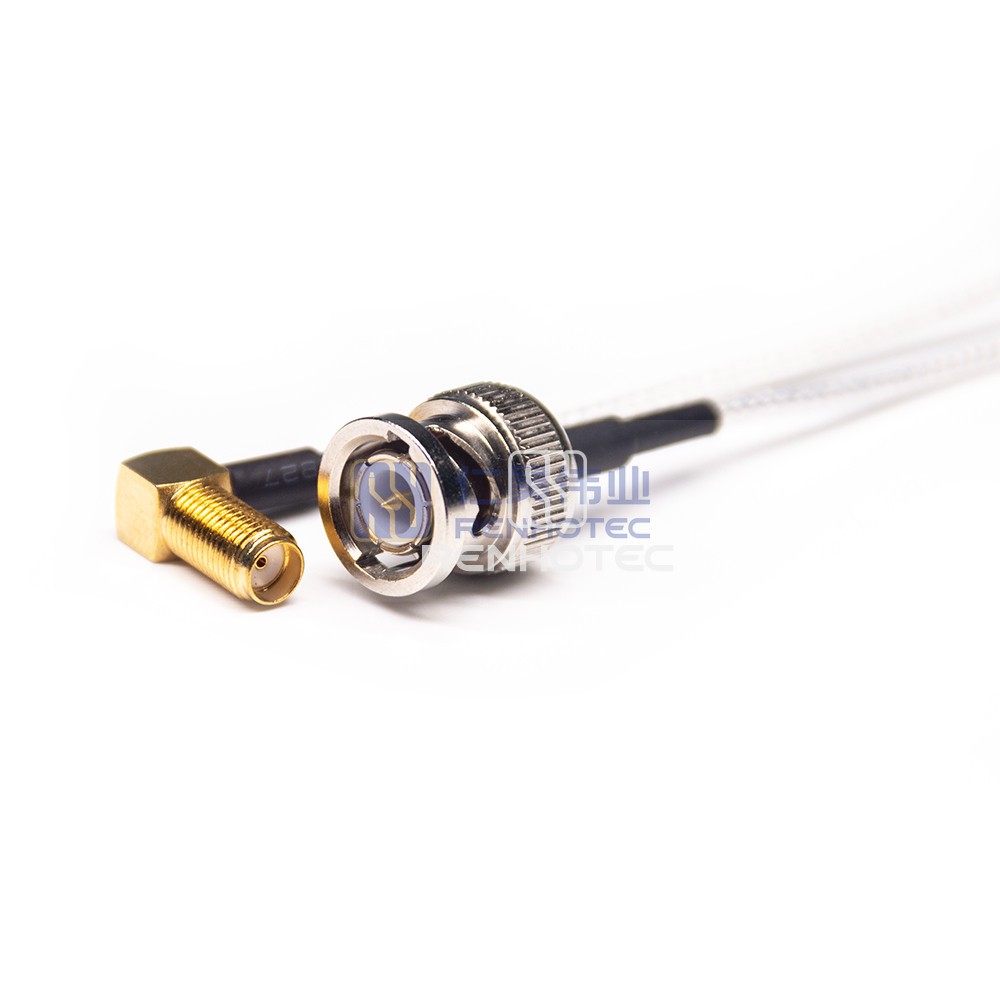

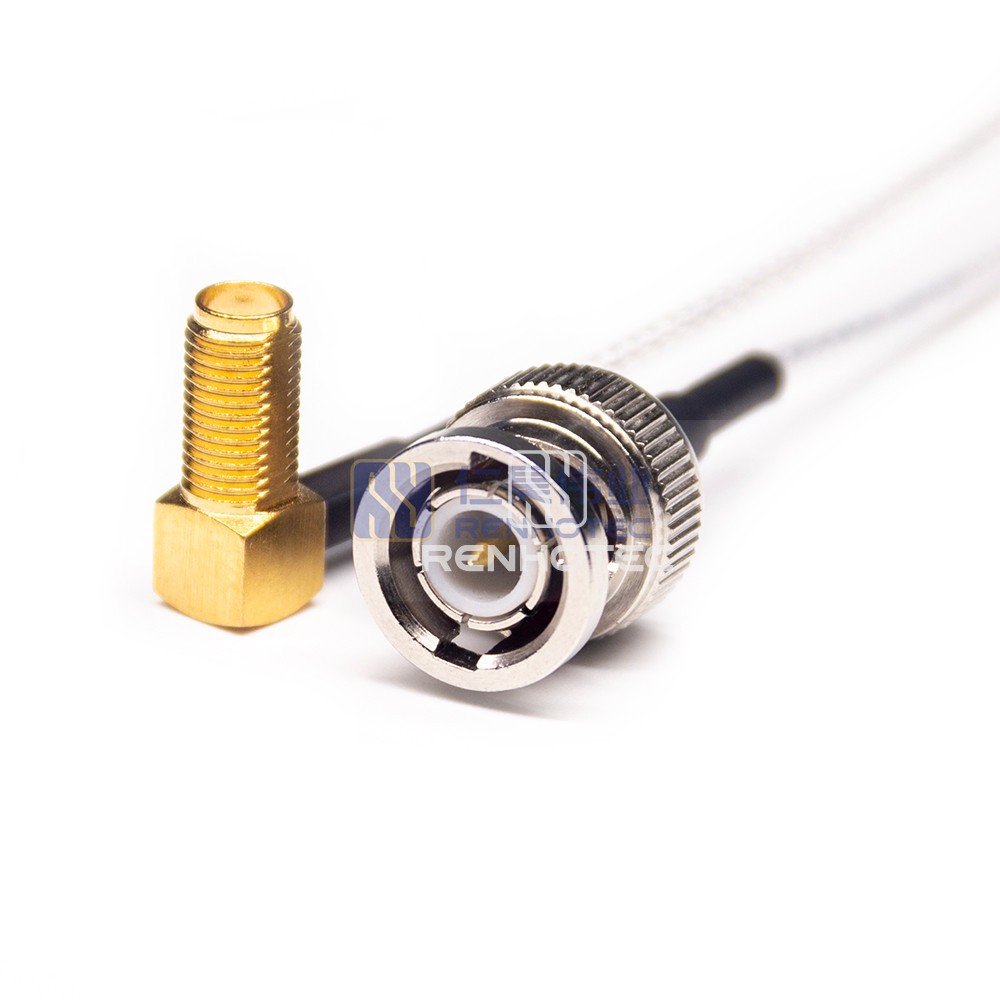

Connect a BNC port to an SMA port with this high-quality RF pigtail cable featuring a straight BNC plug and a right angle SMA jack. The cable is made with RG316 cable and has a 50ohm impedance.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | BNC Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Straight |
2nd Connector Series | SMA Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
