Products > RF Cable Assembly > SMA Plug to Right Angle MCX Jack RF Cable Assemblies RG174 Cable 50ohm
product image

R02-S01-10123-20

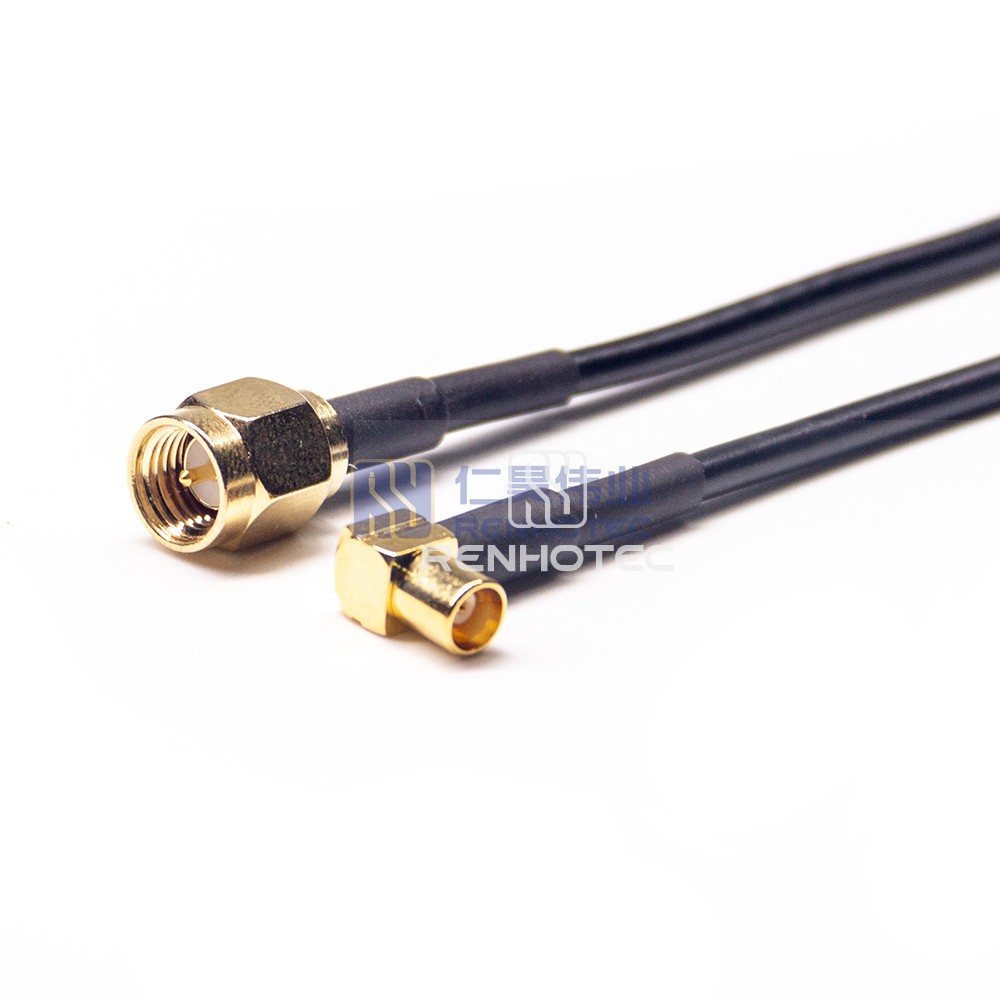

SMA Plug to Right Angle MCX Jack RF Cable Assemblies RG174 Cable 50ohm
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality SMA plug to right angle MCX jack RF cable assembly with RG174 cable. Impedance of 50 ohm. Perfect for your RF connection needs.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesSMA Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Plug
2nd Contact TypeFemale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-6Ghz
