Products > RF Cable Assembly > SMA Jack to Right Angle MMCX Plug RF Cable Assemblies RG174 Cable 50ohm
R02-S01-10013-30
SMA Jack to Right Angle MMCX Plug RF Cable Assemblies RG174 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt

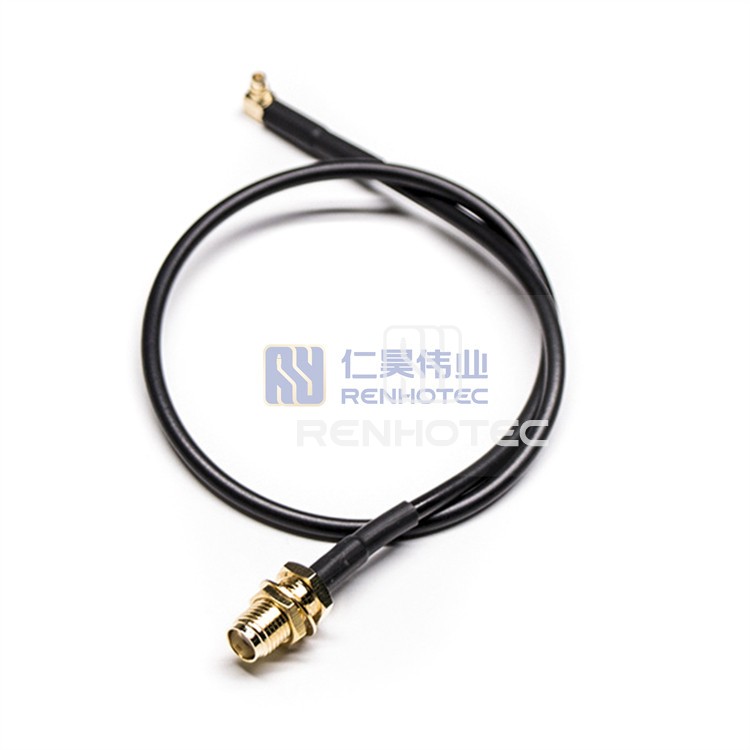

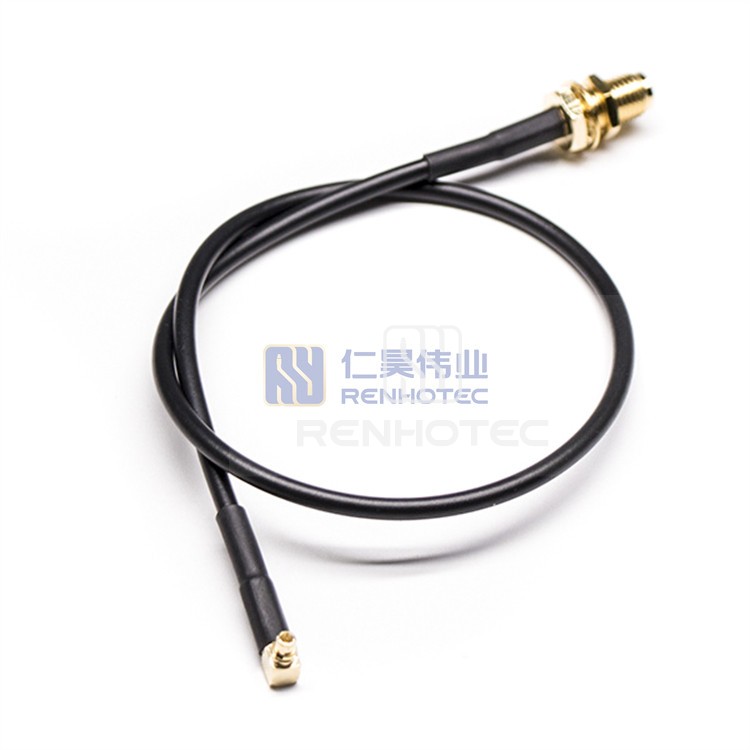

High-quality SMA jack to right angle MMCX plug RF cable assemblies made with RG174 cable at 50ohm impedance. Perfect for various RF applications.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |

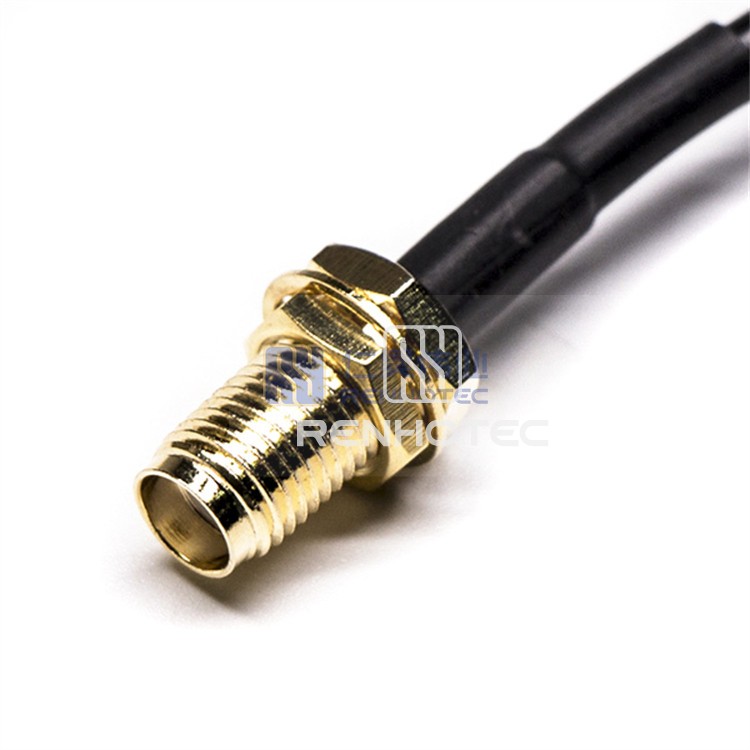

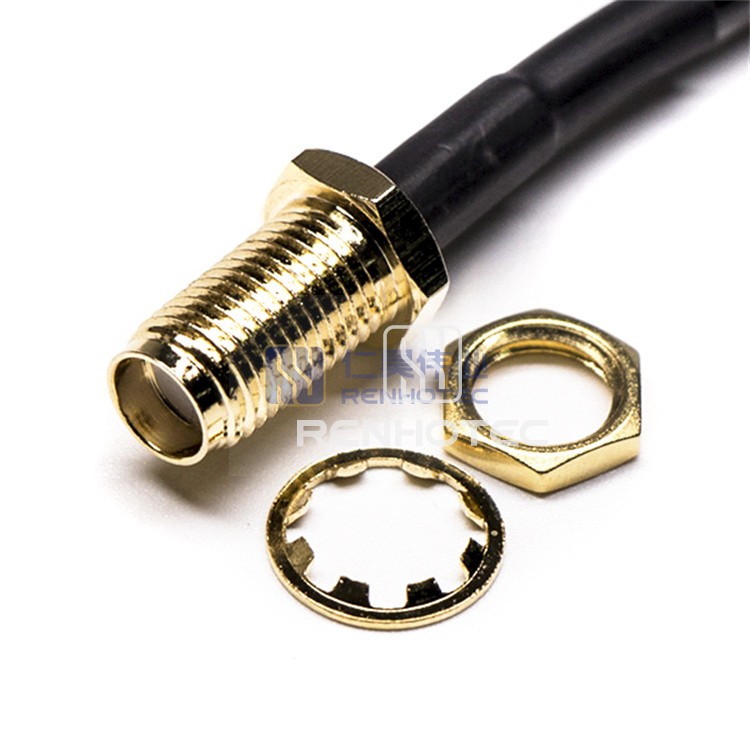

1st Connector Series | SMA Jack |
1st Contact Type | Female Pin |
1st Connector Orientation | Straight |

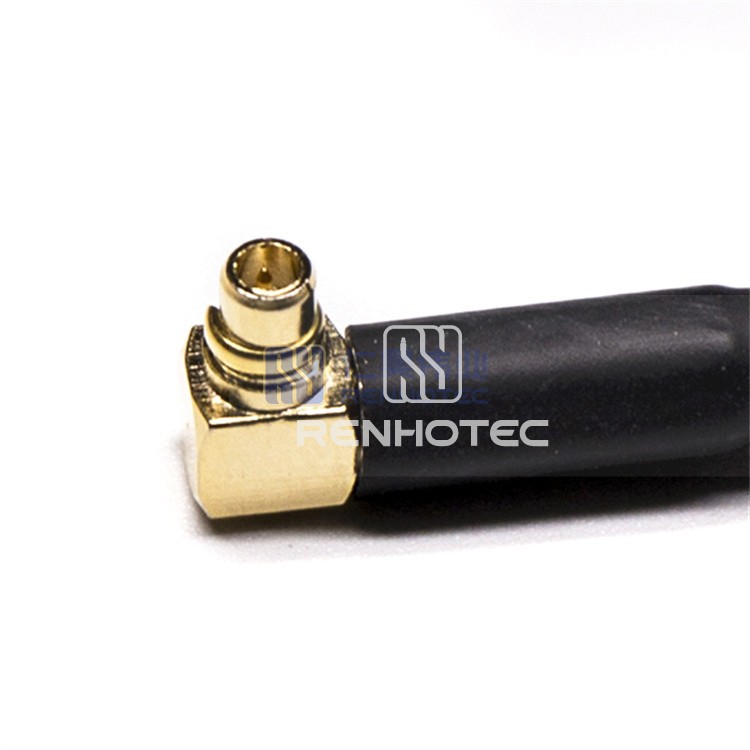

2nd Connector Series | MMCX Plug |
2nd Contact Type | Male Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | RG174 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
