Products > RF Cable Assembly > SMA Jack to MMCX Right Angle Plug RF Cable Assemblies RG316 Cable 50ohm

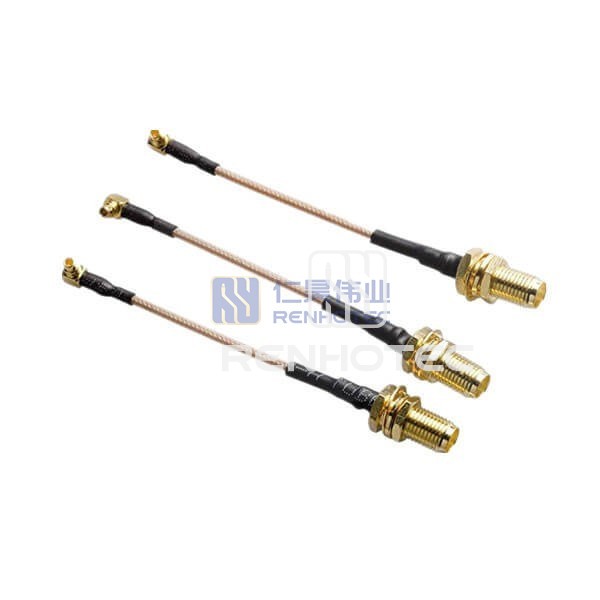

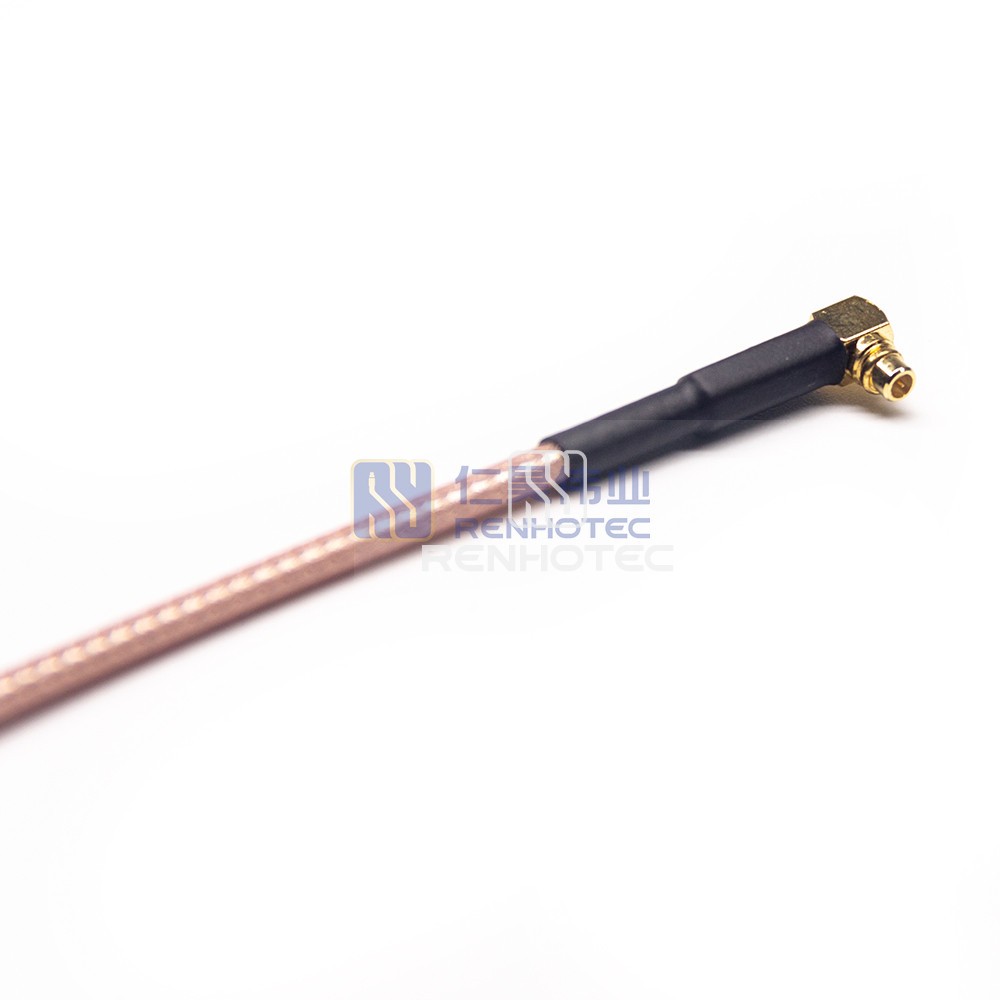

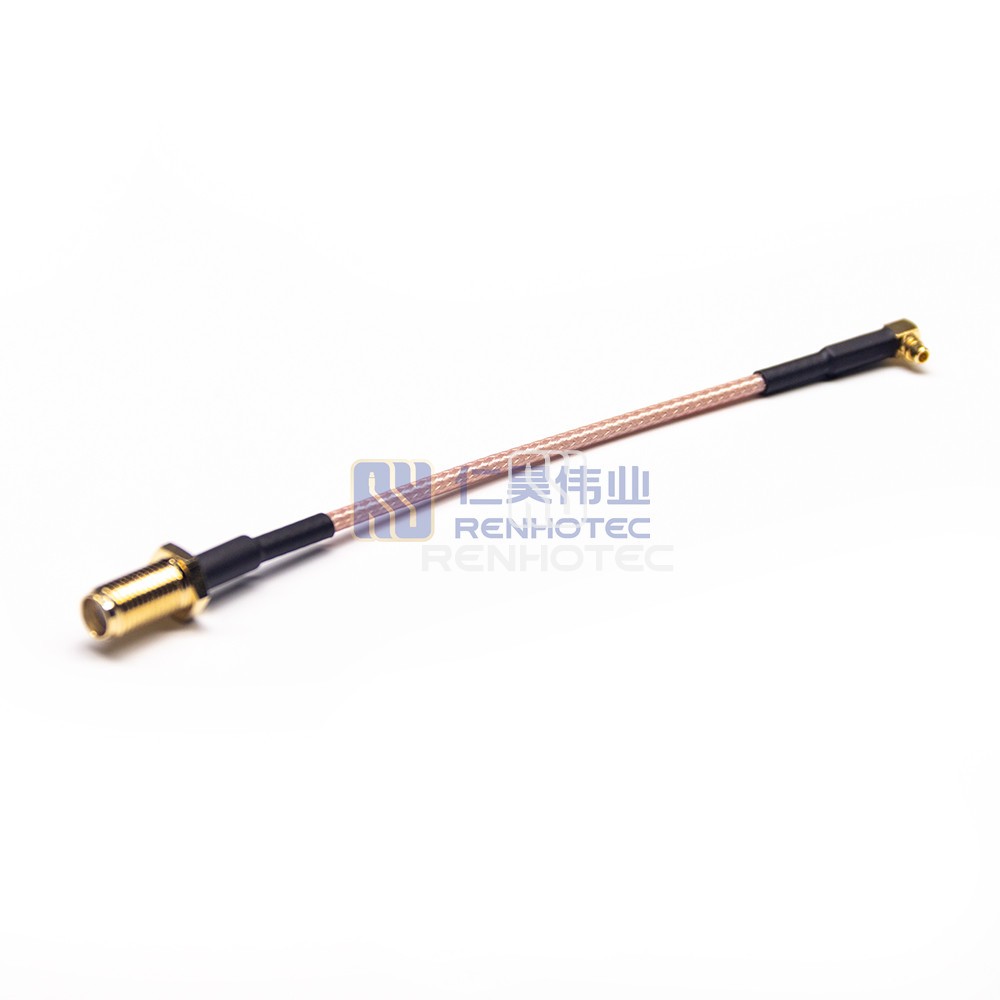

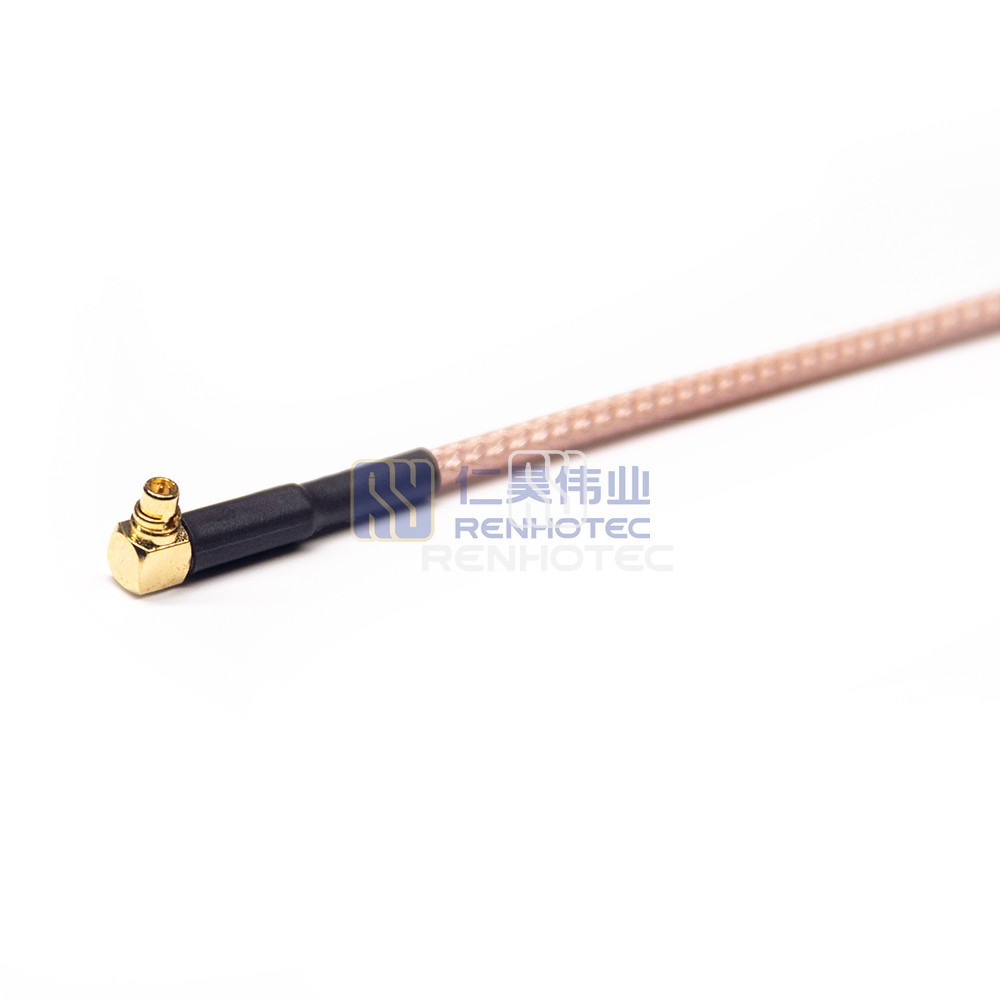

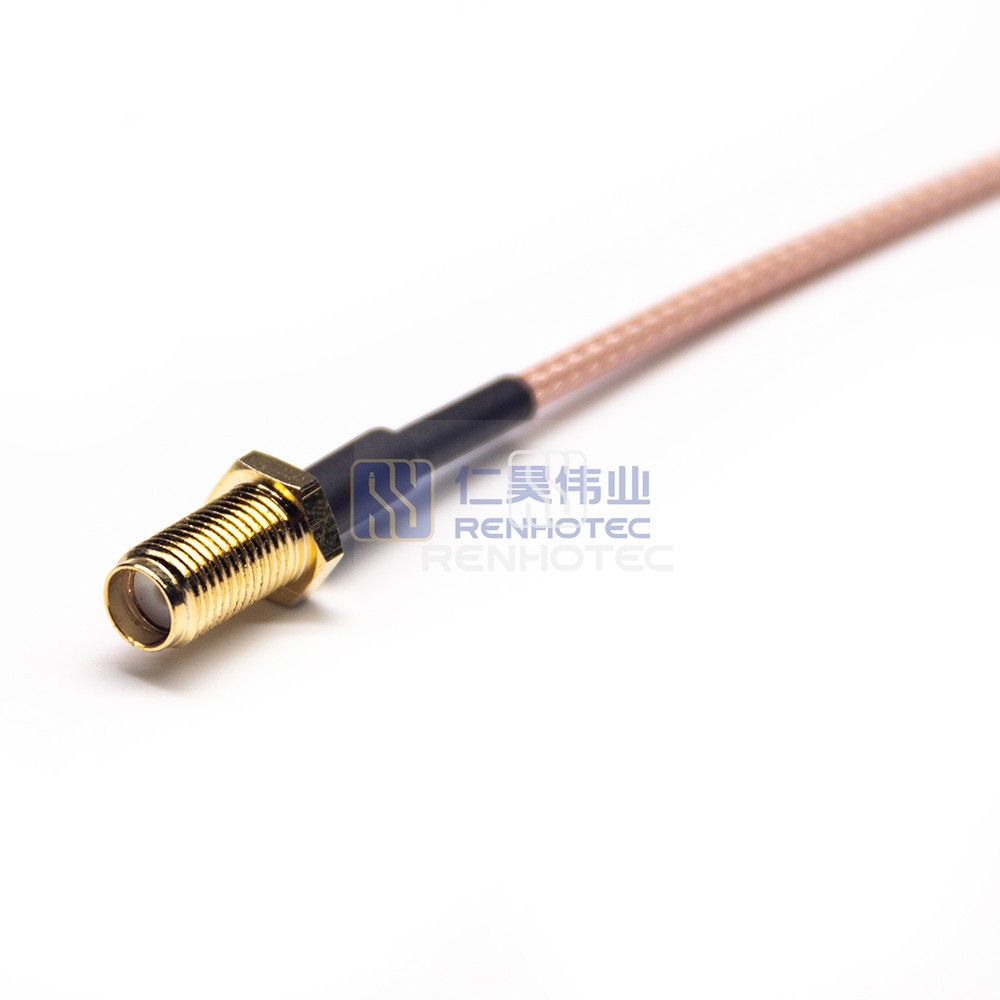

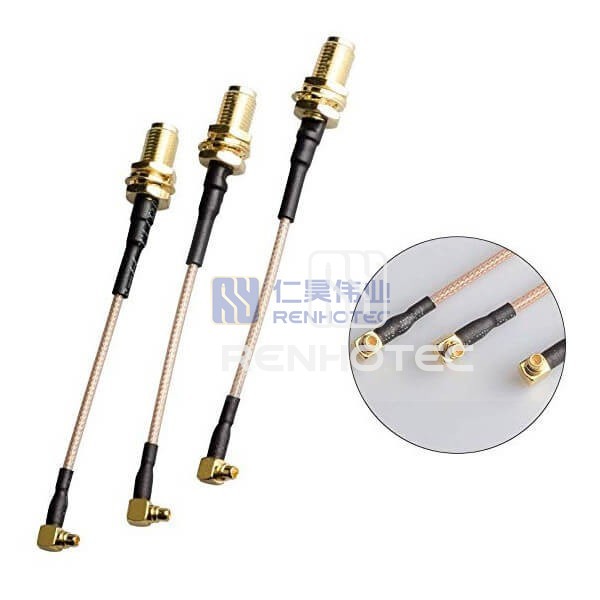

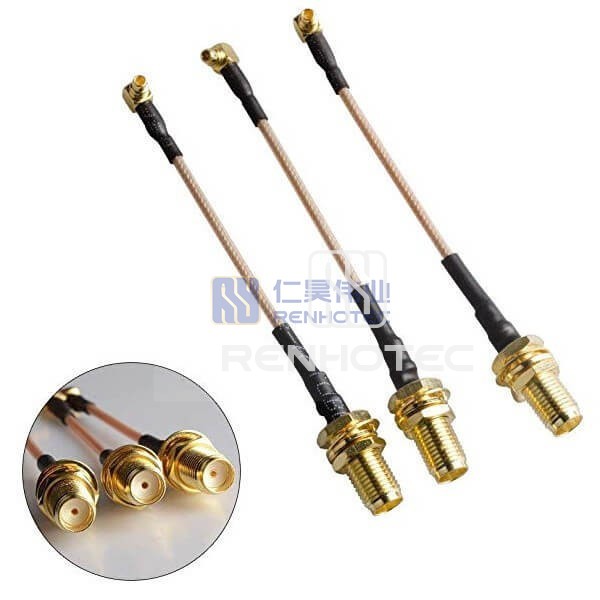

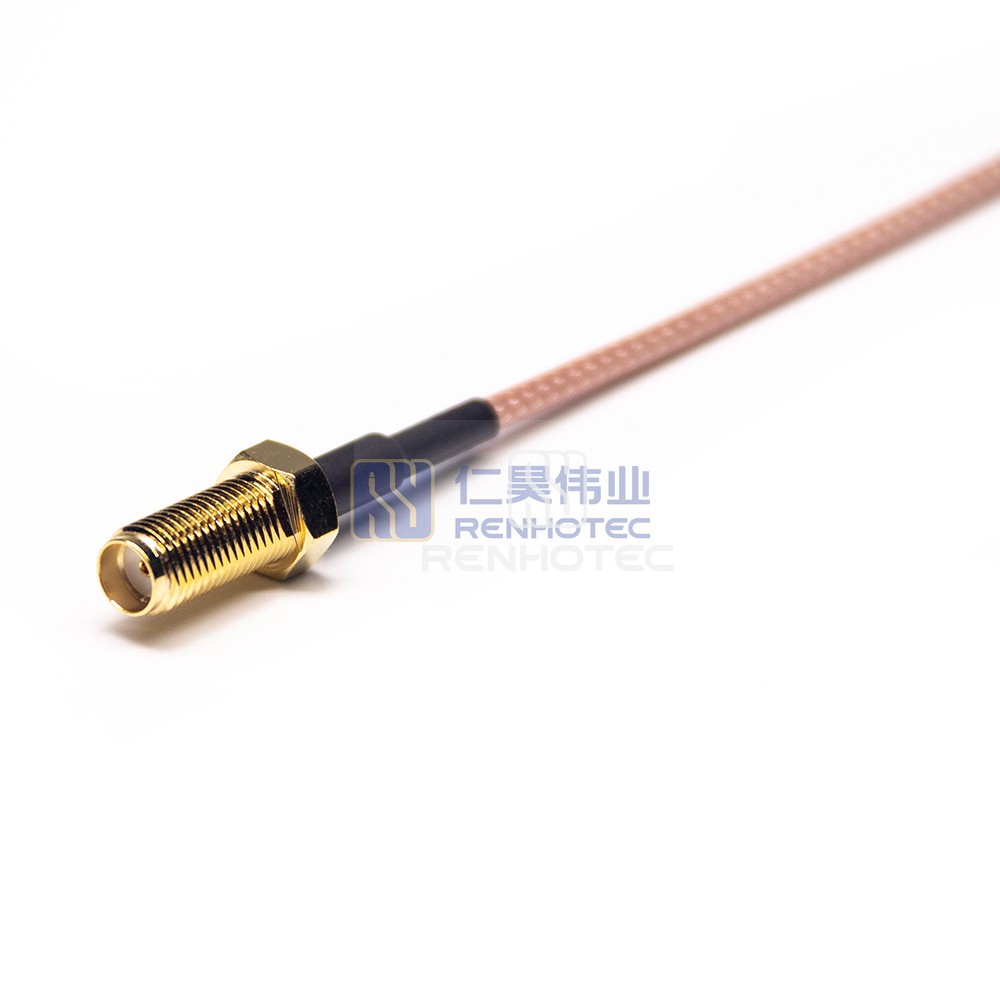

product image
product image
product image
product image
product image
product image
product image
product image

R02-S01-10071-20

SMA Jack to MMCX Right Angle Plug RF Cable Assemblies RG316 Cable 50ohm
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

This SMA Jack to MMCX Right Angle Plug RF Cable Assembly features RG316 Cable with 50ohm impedance. It is suitable for various RF applications and offers secure connections for reliable performance.
GeneralMechanicalEnvironmentalElectrical
Conversion Style
General
1st Connector SeriesSMA Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesMMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-6Ghz
