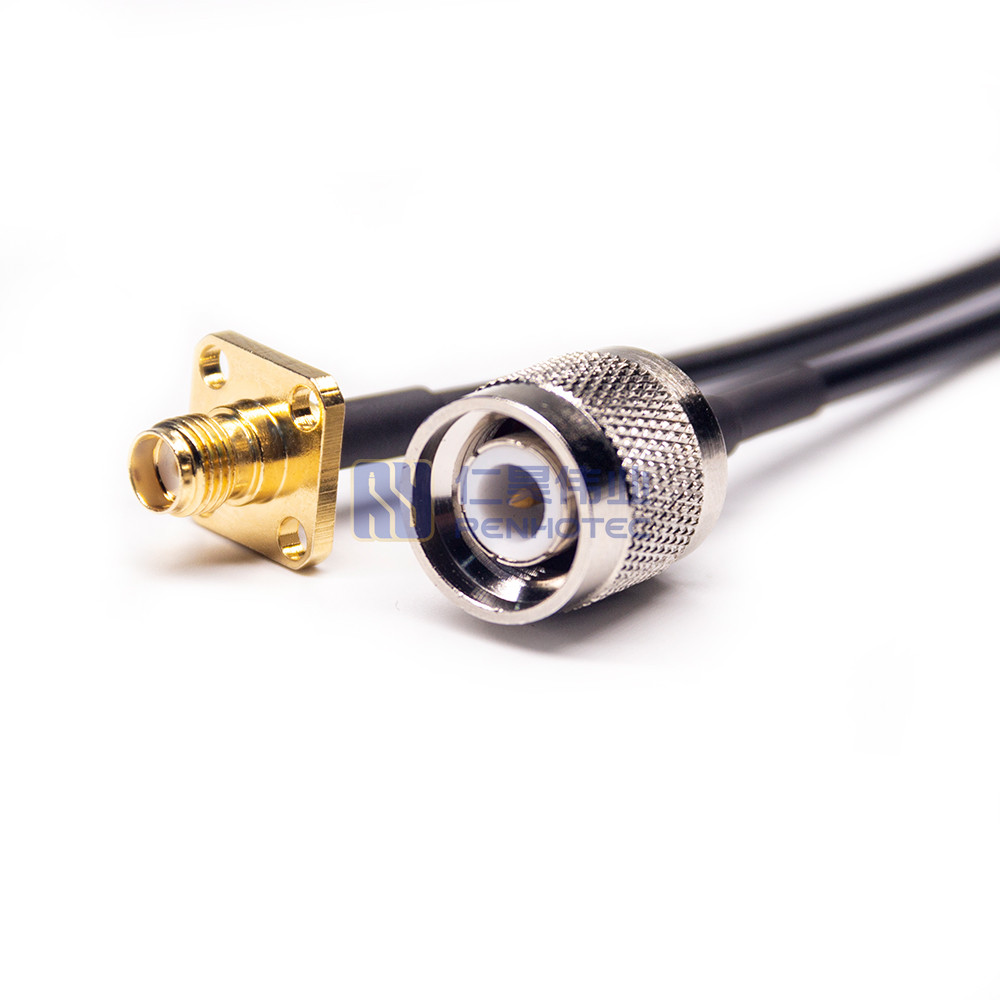

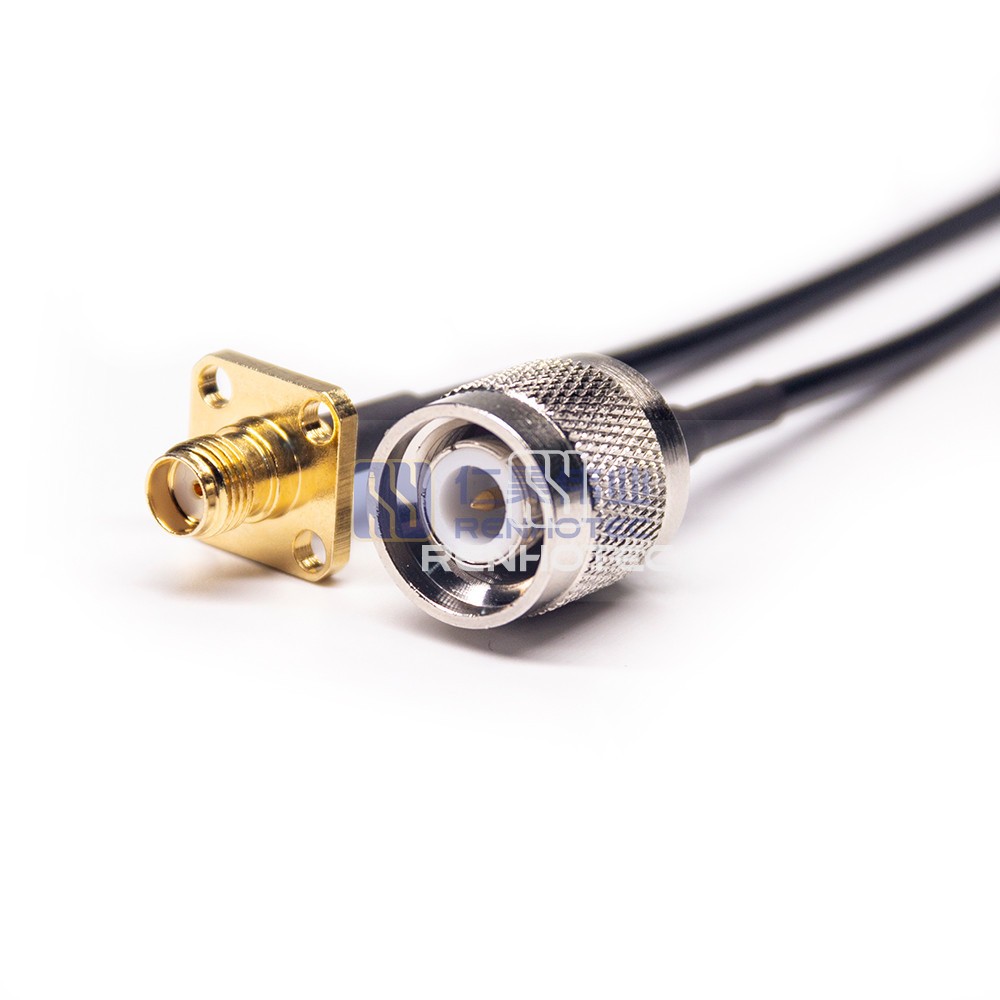

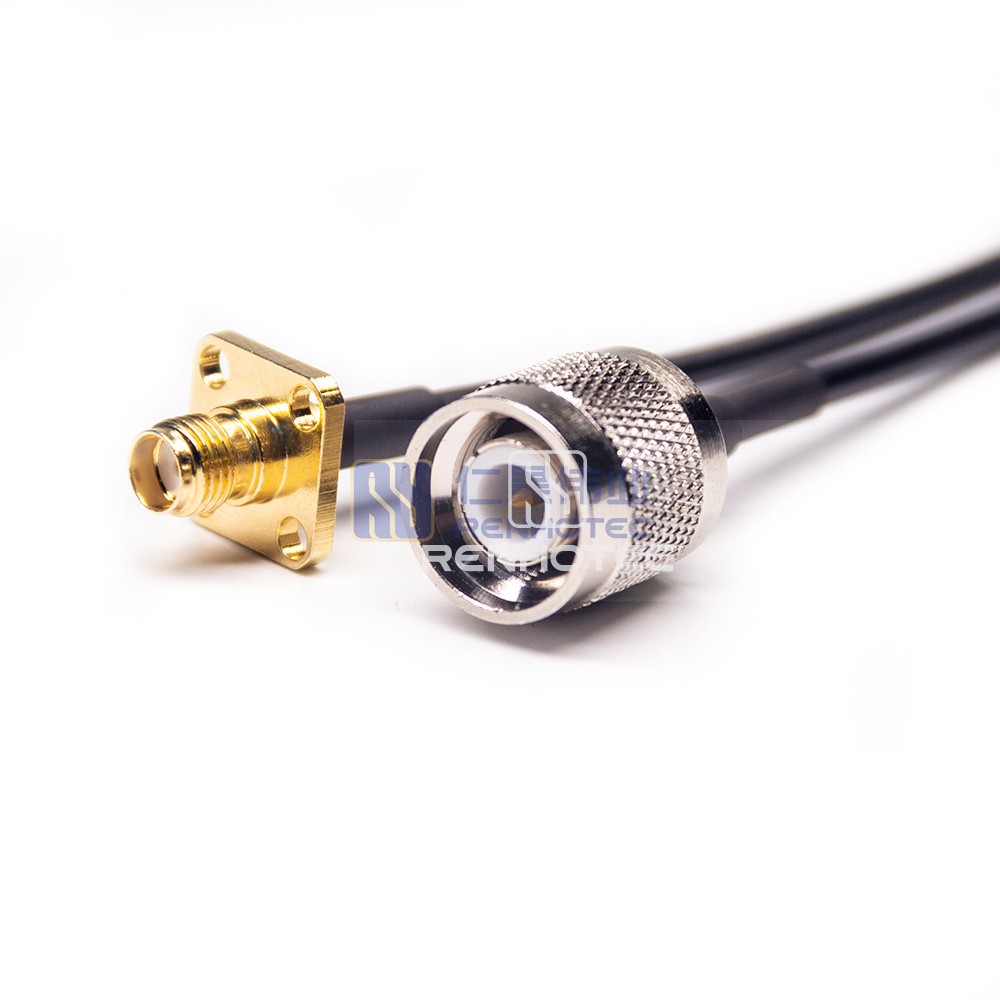

Products > RF Cable Assembly > SMA Female Flange to TNC Male RF Cable Assembly with 50 Ohm RG174 Coax
R02-S01-10124-50
SMA Female Flange to TNC Male RF Cable Assembly with 50 Ohm RG174 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality SMA Female to TNC Male RF Cable Assembly with 50 Ohm RG174 Coax for reliable signal transmission. Connect SMA and TNC connectors with ease for seamless communication.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | SMA Jack |
1st Contact Type | Female Pin |
1st Connector Orientation | Straight |
2nd Connector Series | TNC Plug |
2nd Contact Type | Male Pin |
2nd Connector Orientation | Straight |
Features | Flange |
Mechanical | |
---|---|
Suitable Cable | RG174 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
