Products > RF Cable Assembly > SMA Female Bulkhead to IPEX Female Cable Assembly with 50Ohm 1.13 Cable
product image
product image
product image

R02-S01-10189-20

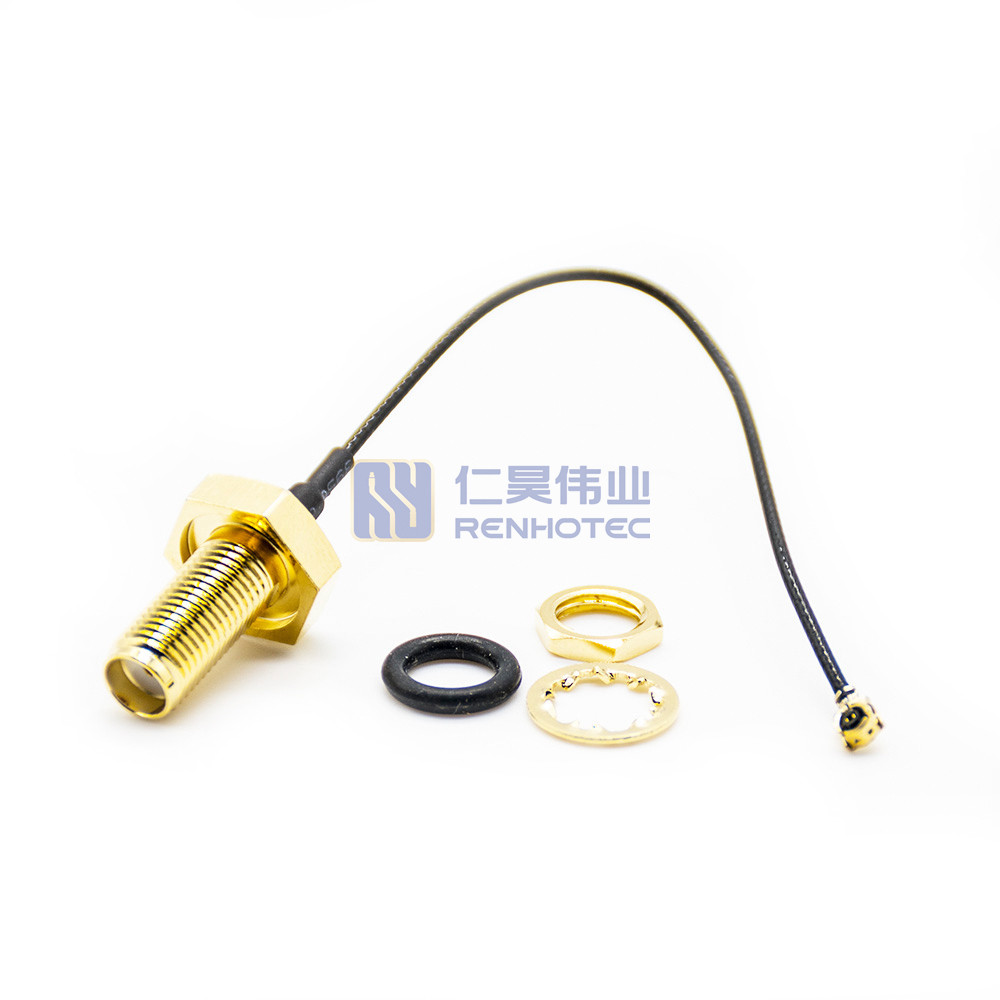

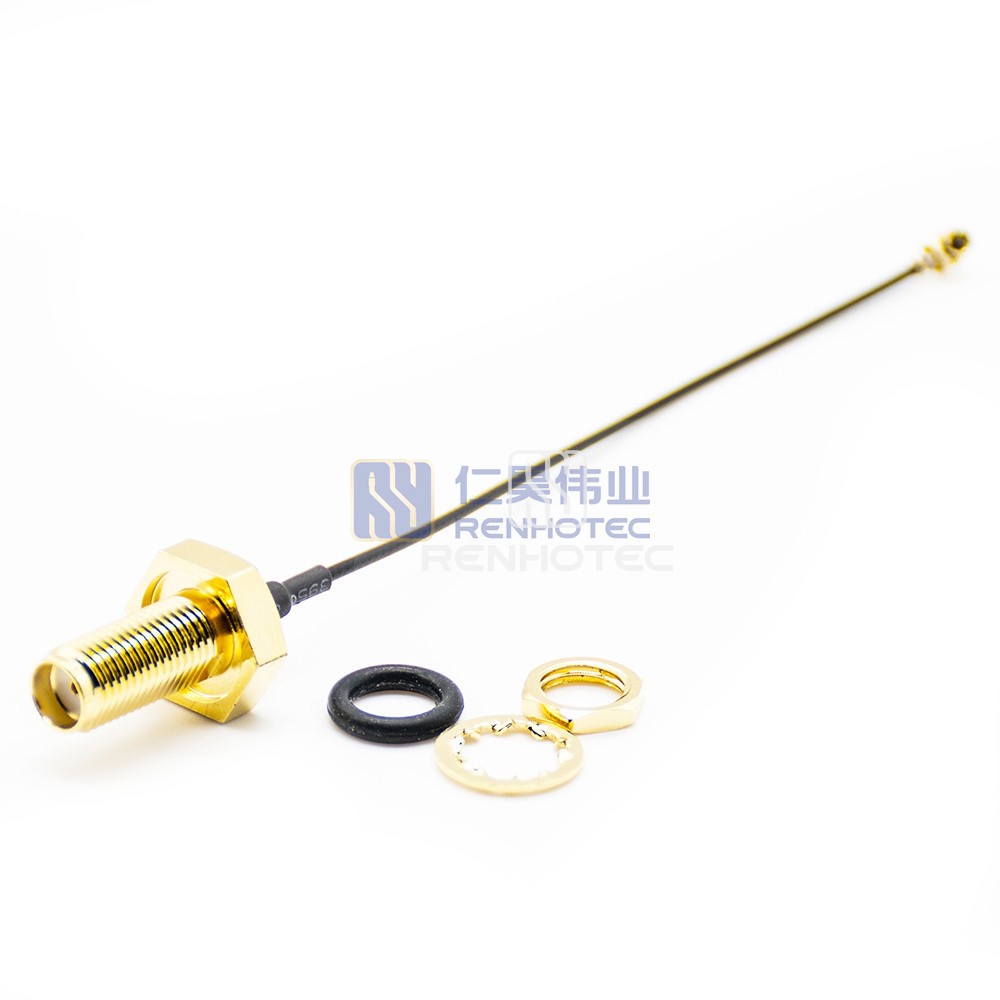

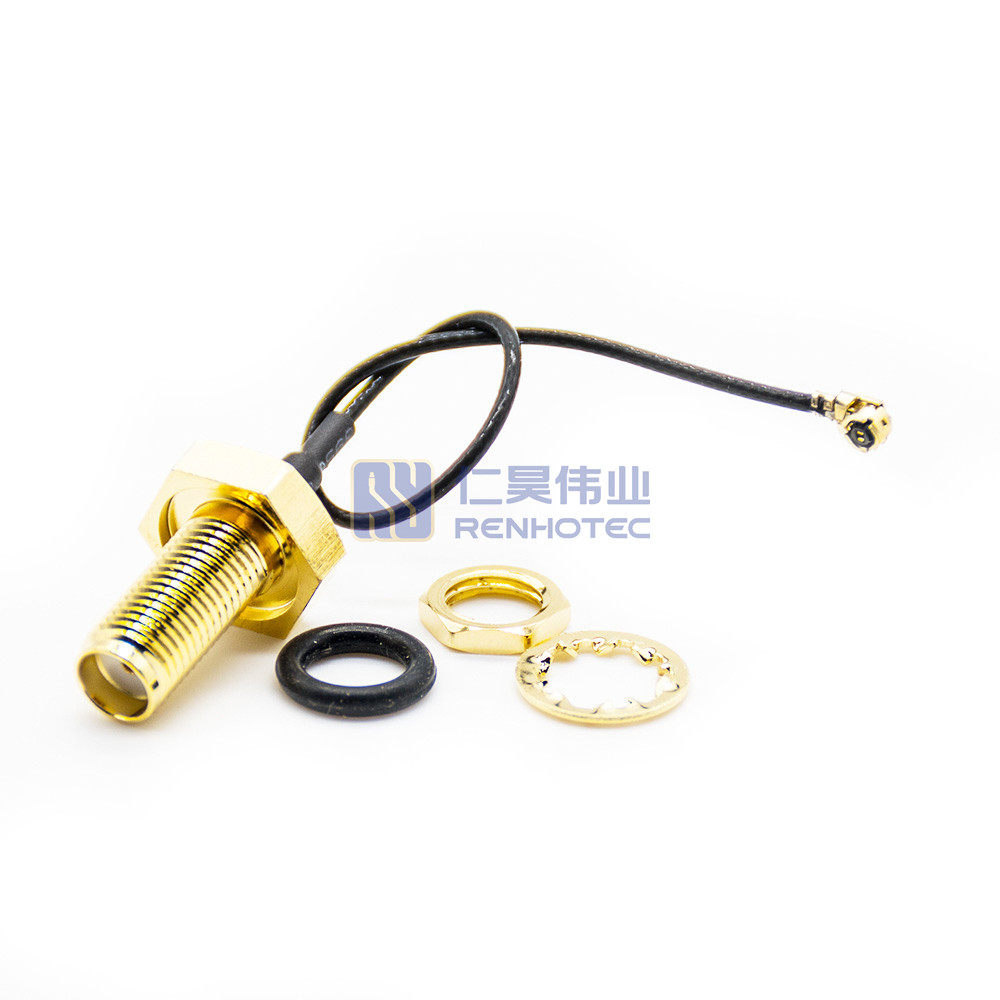

SMA Female Bulkhead to IPEX Female Cable Assembly with 50Ohm 1.13 Cable
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality SMA Female Bulkhead to IPEX Female Cable Assembly with 50Ohm 1.13 Cable. Perfect for seamless RF connections in electronic projects.
GeneralMechanicalEnvironmentalElectrical
Conversion Style
General
1st Connector SeriesSMA Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesIPEX Jack
2nd Contact TypeFemale Pin
2nd Connector OrientationRight Angle
FeaturesWaterproof/Hex
Mechanical
Suitable Cable1.13
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-6Ghz
