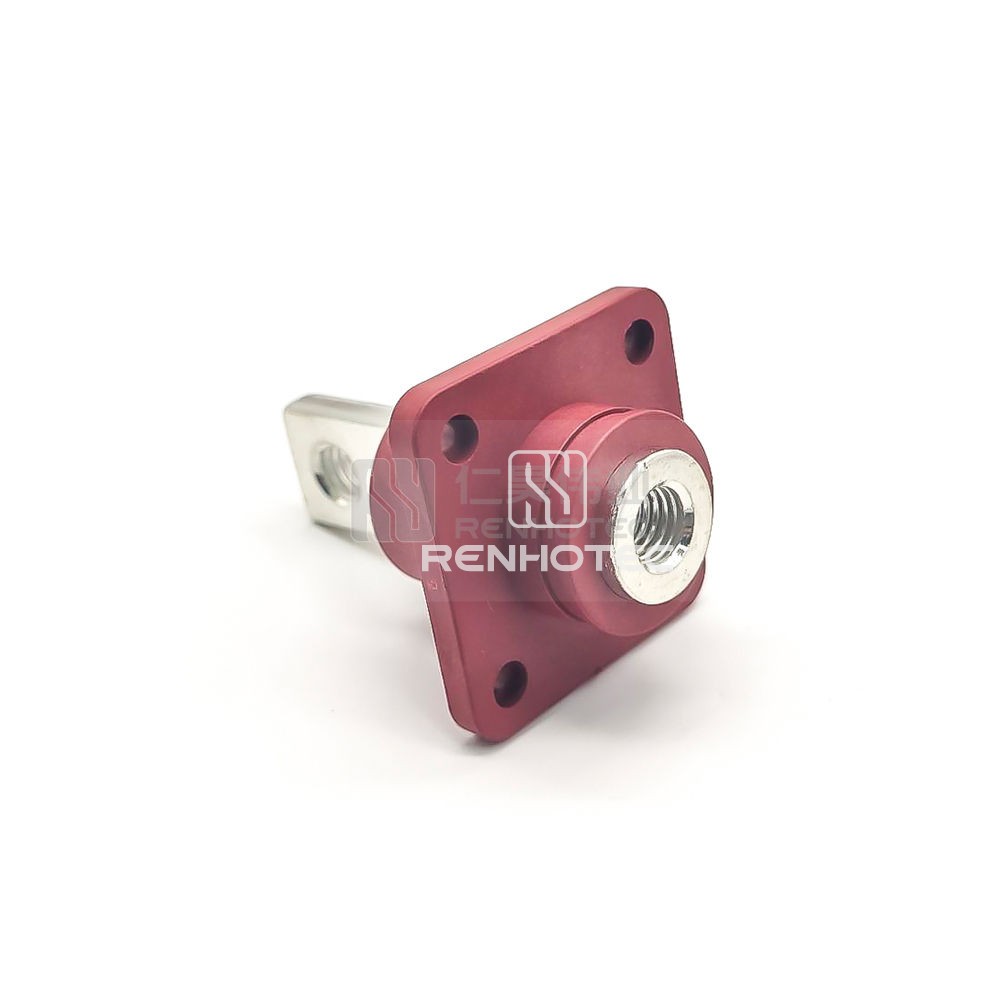

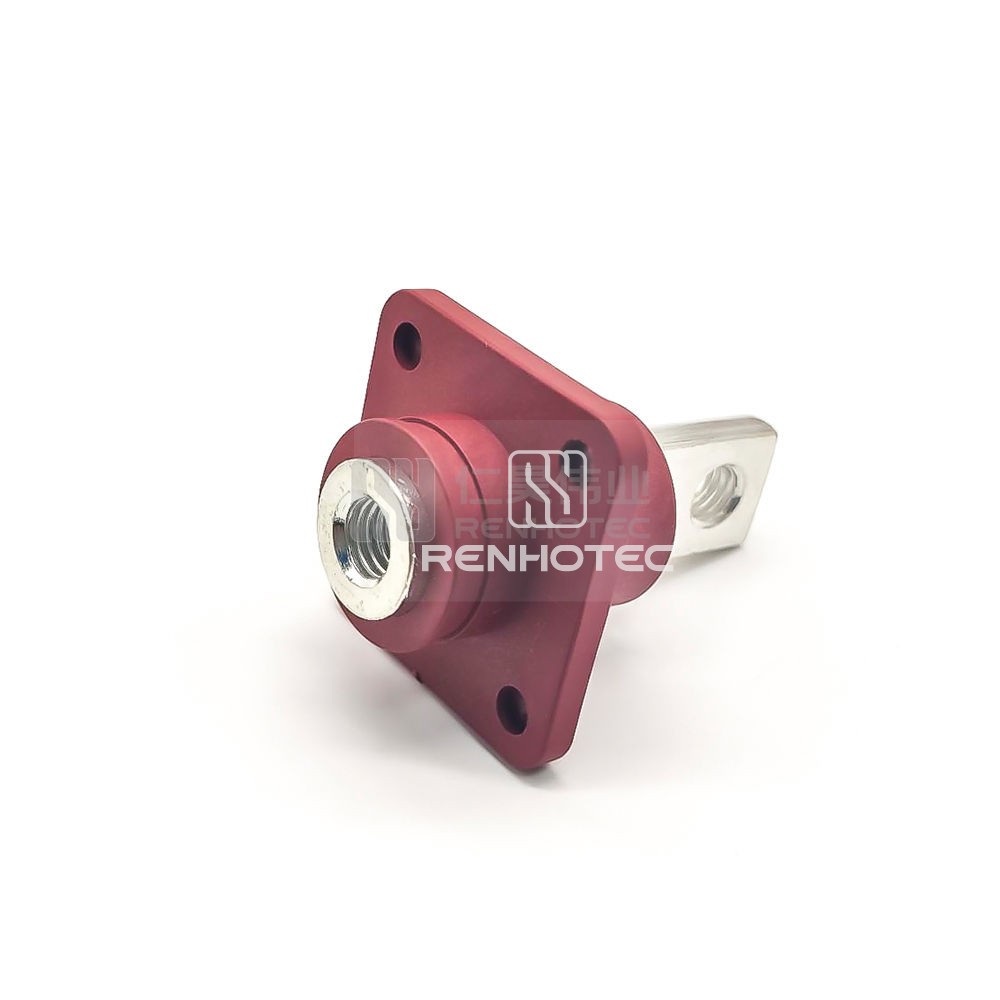

Products > Terminal Blocks > Single Stud Type Junction Blocks 500A Internal Screw (M10) Busbar with M10
Flange Mounting Red
IF-FM10-4970-500A-R
Single Stud Type Junction Blocks 500A Internal Screw (M10) Busbar with M10 Flange Mounting Red- Overview
- Technical data
- Certification
- Download
Product excerpt
Upgrade your electrical connections with this high-quality Single Stud Type Junction Block. Designed for 500A capacity, it features an internal screw (M10) for easy installation. The red color adds visibility and the M10 flange mounting ensures secure positioning. Perfect for industrial applications requiring reliable and efficient power distribution.
GeneralMechanicalElectricalMaterialEnvironmental
| General | |
|---|---|
| Body Style | Studded |
| Contact Termination | Busbar/Screw |
| Color | Red |
| Mechanical | |
|---|---|
| Termination Thread | M10 |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead |
| Electrical | |
|---|---|
| Rated Voltage | 600V |
| Rated Current | 500A |
| Material | |
|---|---|
| Contact Material | Brass |
| Contact Finish | Tin |
| Insulating Material | PBT |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
