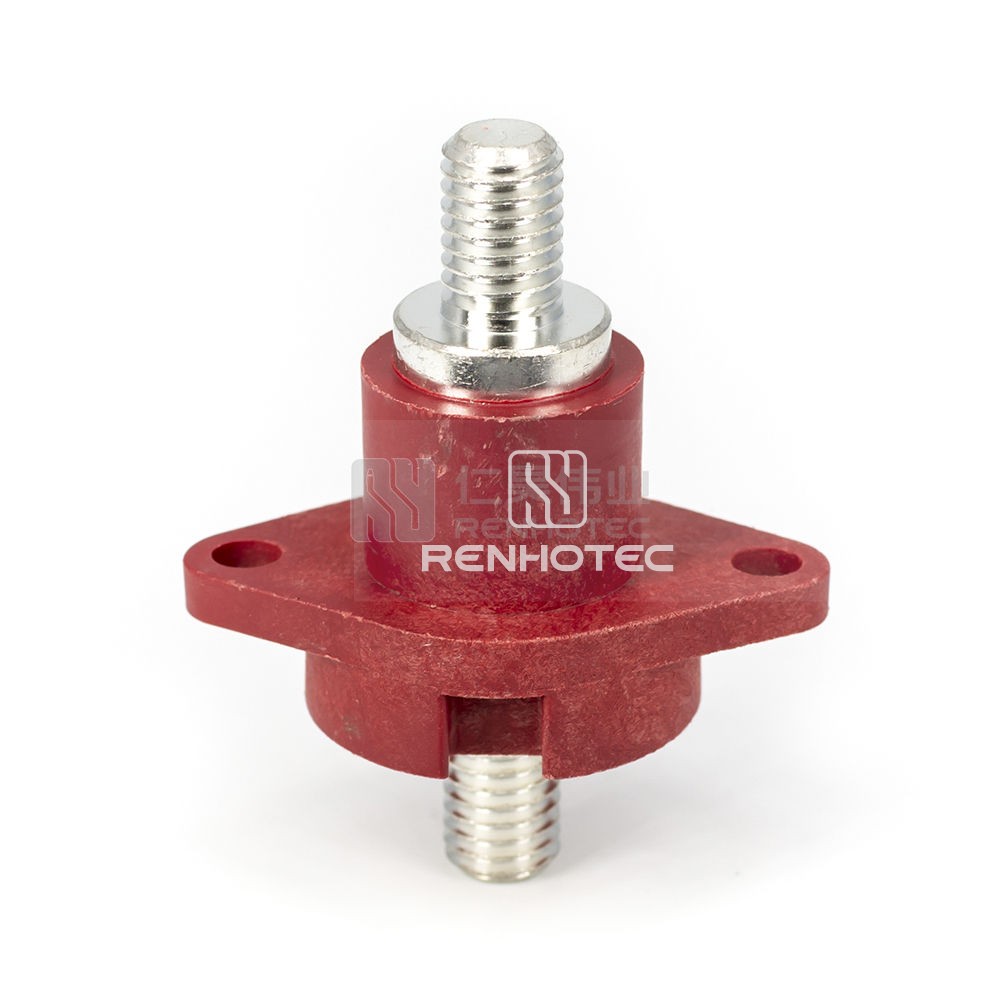

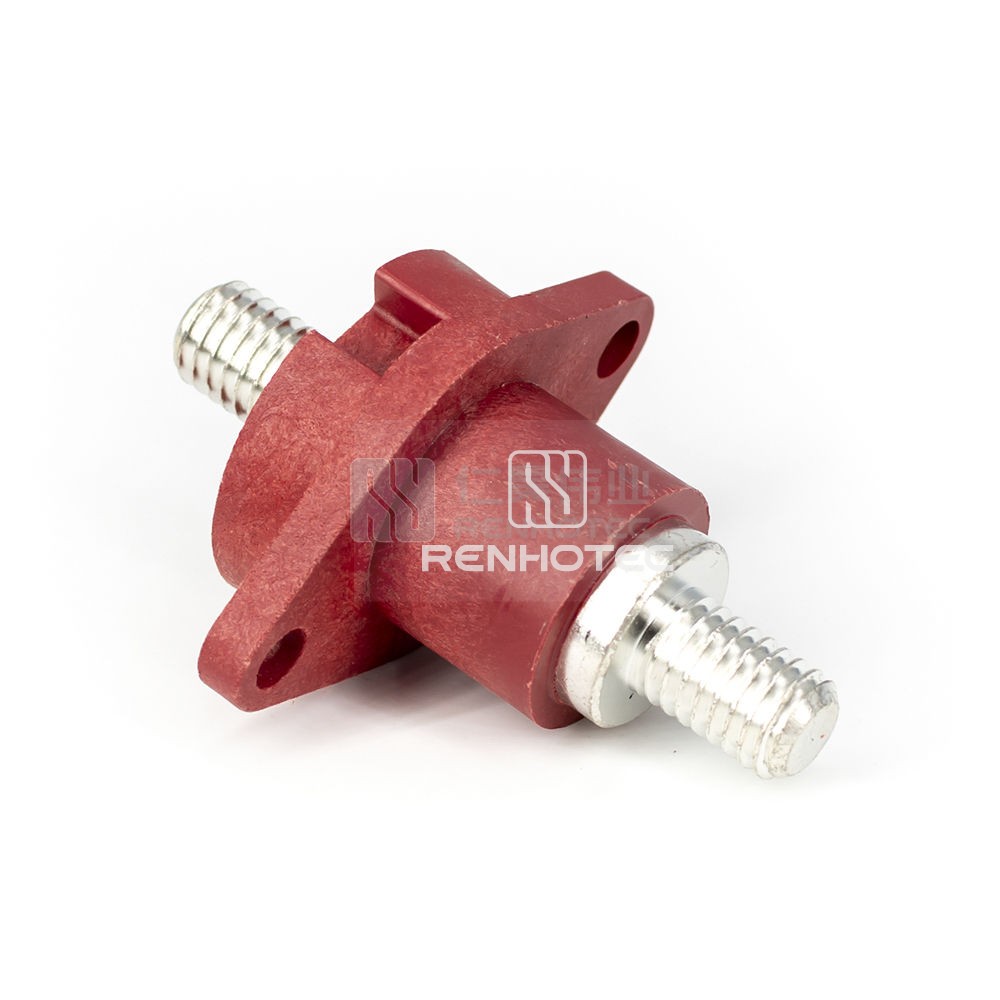

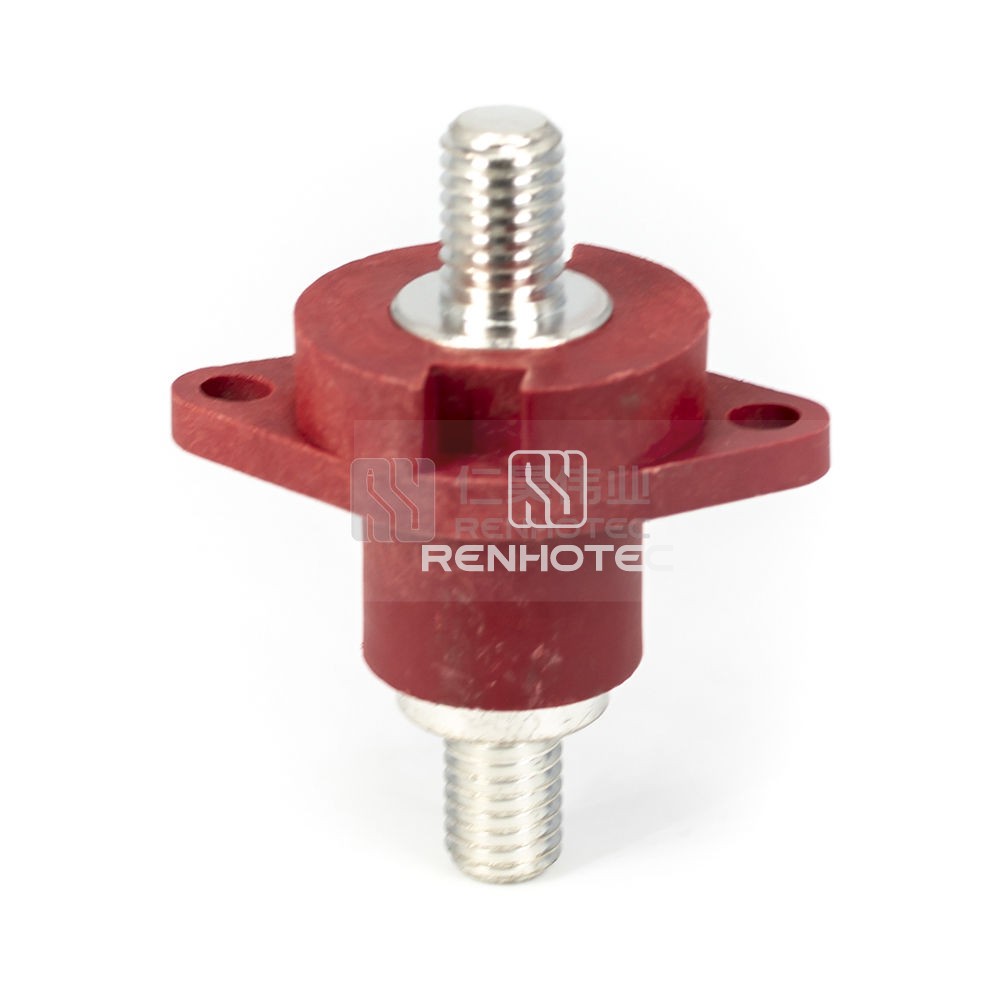

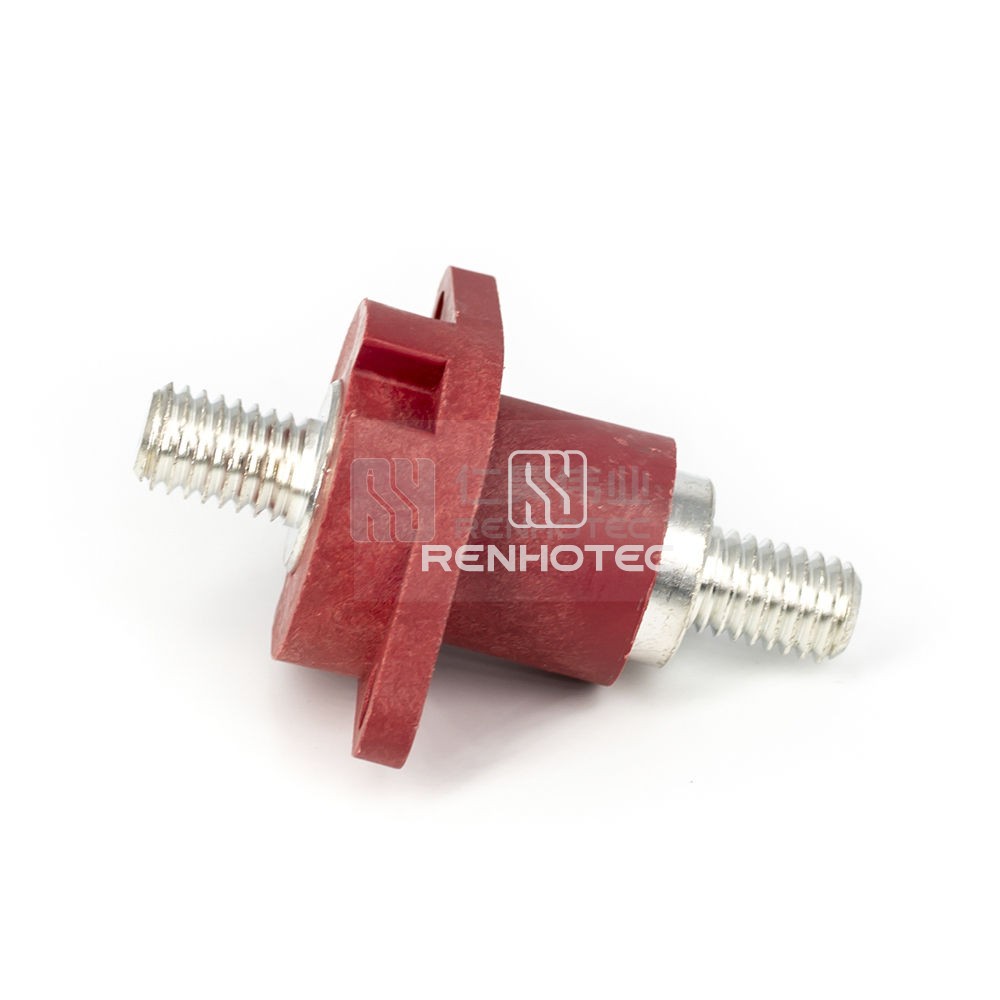

IF-FM8-4226-52-200A-R
Single Stud Type Junction Blocks 200A M8 Outer Screw(M8) Outer Screw(M8) Flange Mounting Red- Overview
- Technical data
- Certification
- Download
Product excerpt
Discover our Single Stud Type Junction Blocks with 200A capacity, featuring M8 Outer Screw and Flange Mounting in a vibrant red color. Ideal for secure electrical connections with easy installation. Perfect for applications requiring high amperage capabilities and reliable performance.
GeneralMechanicalElectricalMaterialEnvironmental
General | |
---|---|
Body Style | Studded |
Contact Termination | Screw |
Color | Red |
Mechanical | |
---|---|
Termination Thread | M8 |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 200A |
Material | |
---|---|
Contact Material | Brass |
Contact Finish | Tin |
Insulating Material | PA66 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
