Products > Terminal Blocks > Single Stud Type Junction Blocks 120A Internal Screw (M6) Busbar with M6
Flange Mounting Red
![](https://staging.renhotec.com/wp-content/uploads/2024/03/IF-FM6-3037-120A-R_6603934c437ca.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/IF-FM6-3037-120A-R_6603934c437ca.jpg)

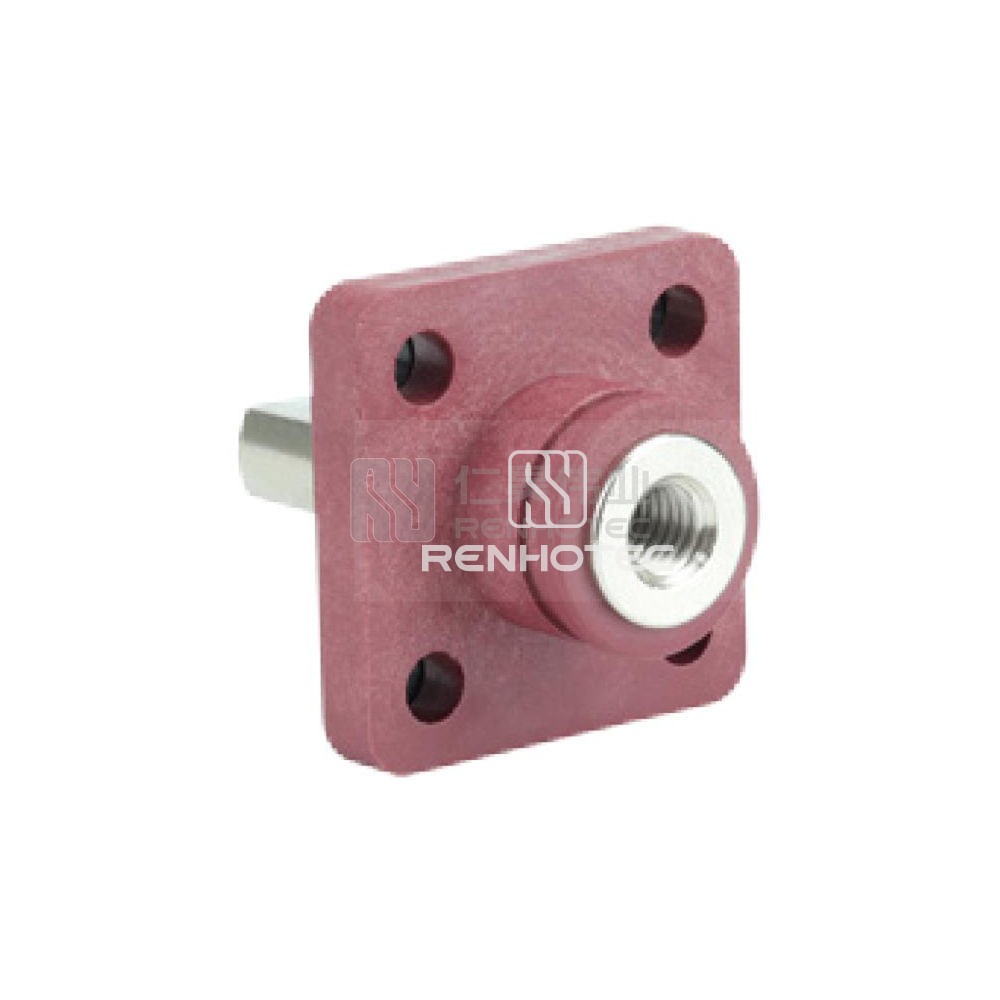

IF-FM6-3037-120A-R
Single Stud Type Junction Blocks 120A Internal Screw (M6) Busbar with M6 Flange Mounting Red- Overview
- Technical data
- Certification
- Download
Product excerpt
Discover the versatility of our Single Stud Type Junction Blocks featuring a robust 120A capacity, internal screw (M6) connection, and a sleek red finish. Ideal for various applications, these blocks ensure secure connections with their M6 flange mounting design.
GeneralMechanicalElectricalMaterialEnvironmental
General | |
---|---|
Body Style | Studded |
Contact Termination | Busbar/Screw |
Color | Red |
Mechanical | |
---|---|
Termination Thread | M6 |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 120A |
Material | |
---|---|
Contact Material | Brass |
Contact Finish | Nickel |
Insulating Material | PA66 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
