Products > RF Cable Assembly > Right Angle SMA Plug to Right Angle MMCX Plug RF Pigtail Cable 1.37mm Coaxial Cable 50ohm
R02-S01-10160-5

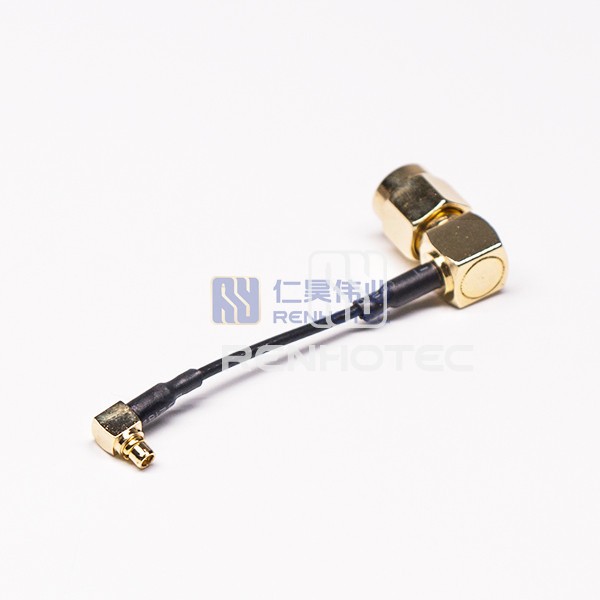

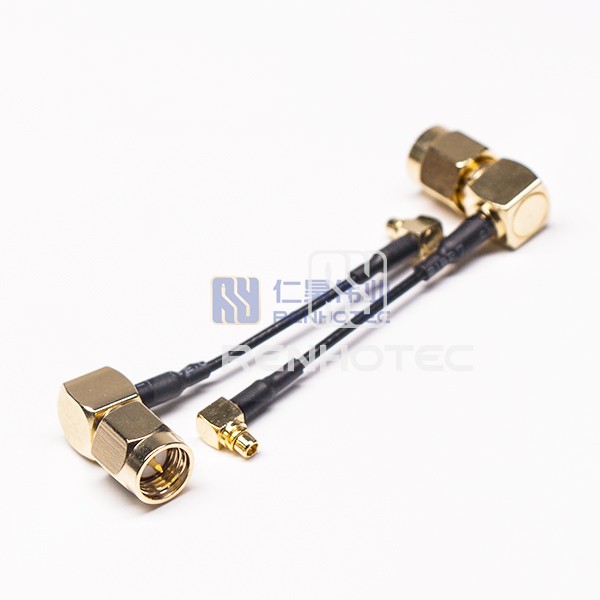

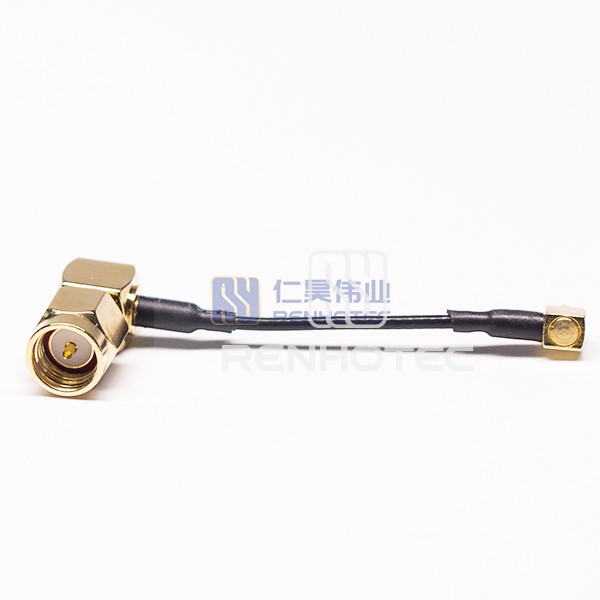

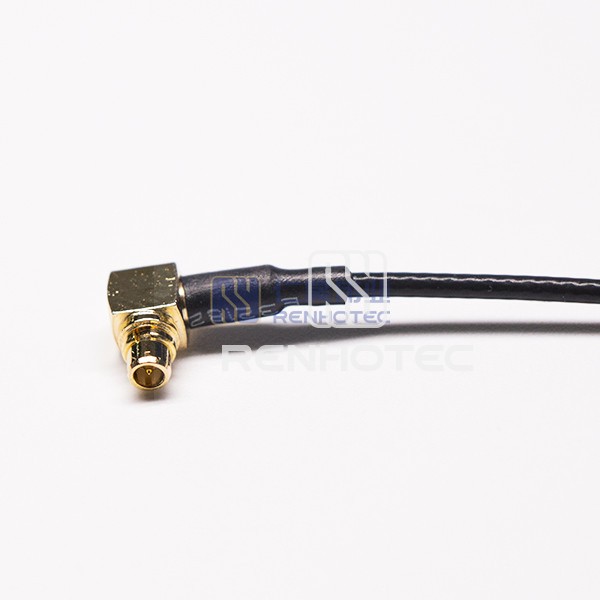

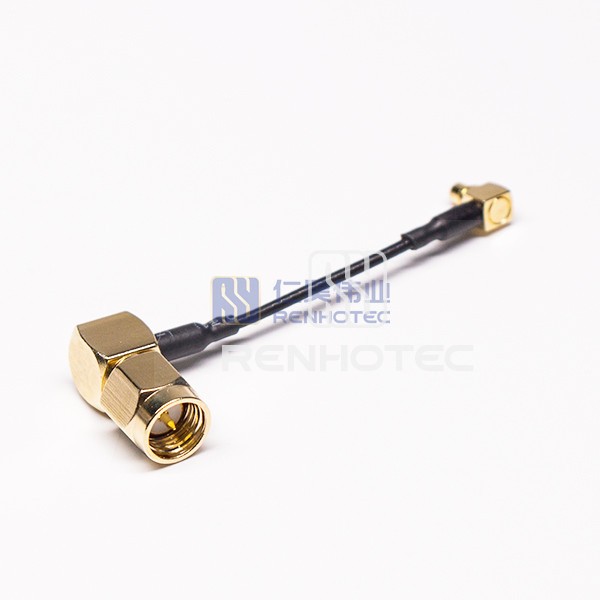

Right Angle SMA Plug to Right Angle MMCX Plug RF Pigtail Cable 1.37mm Coaxial Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
Connect your devices with ease using this high-quality 1.37mm coaxial cable. This RF pigtail cable features a right angle SMA plug to right angle MMCX plug, making it ideal for various applications. With a 50ohm impedance, this cable ensures reliable signal transmission.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | SMA Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Right Angle |
2nd Connector Series | MMCX Plug |
2nd Contact Type | Male Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | 1.37 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
