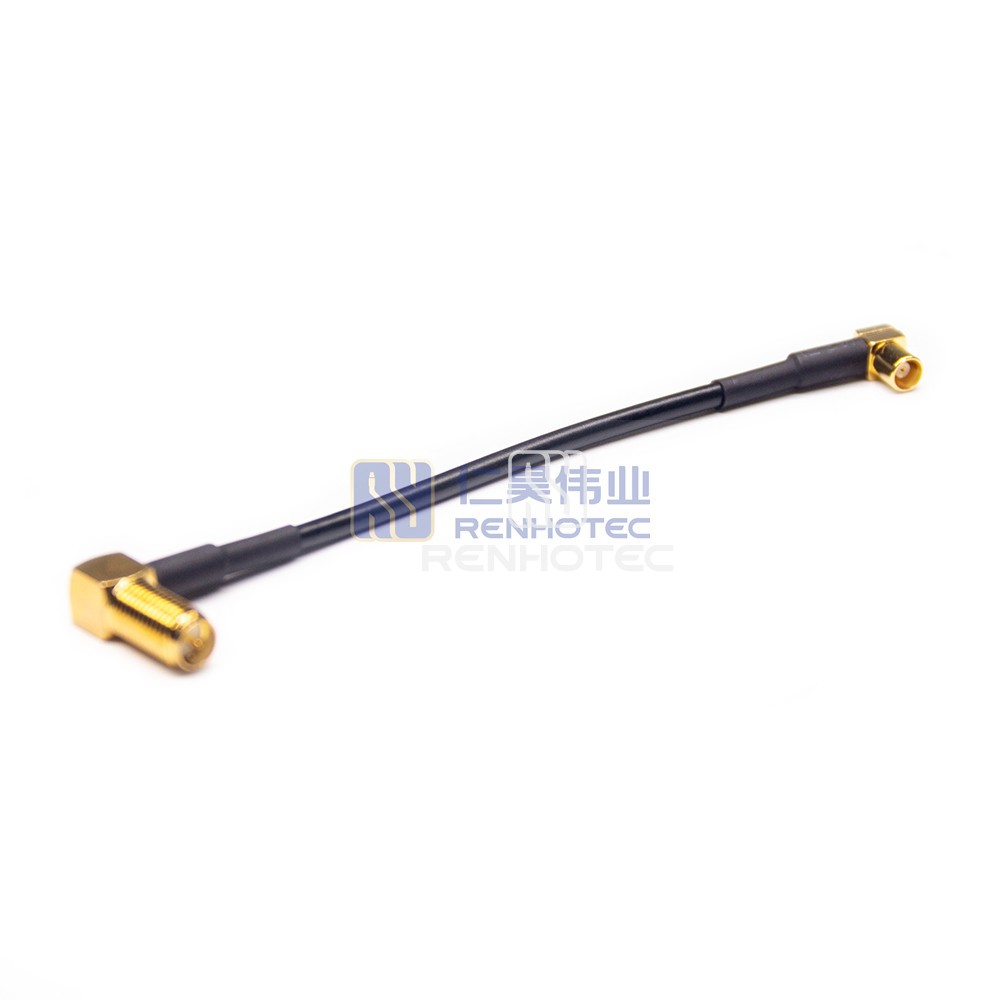

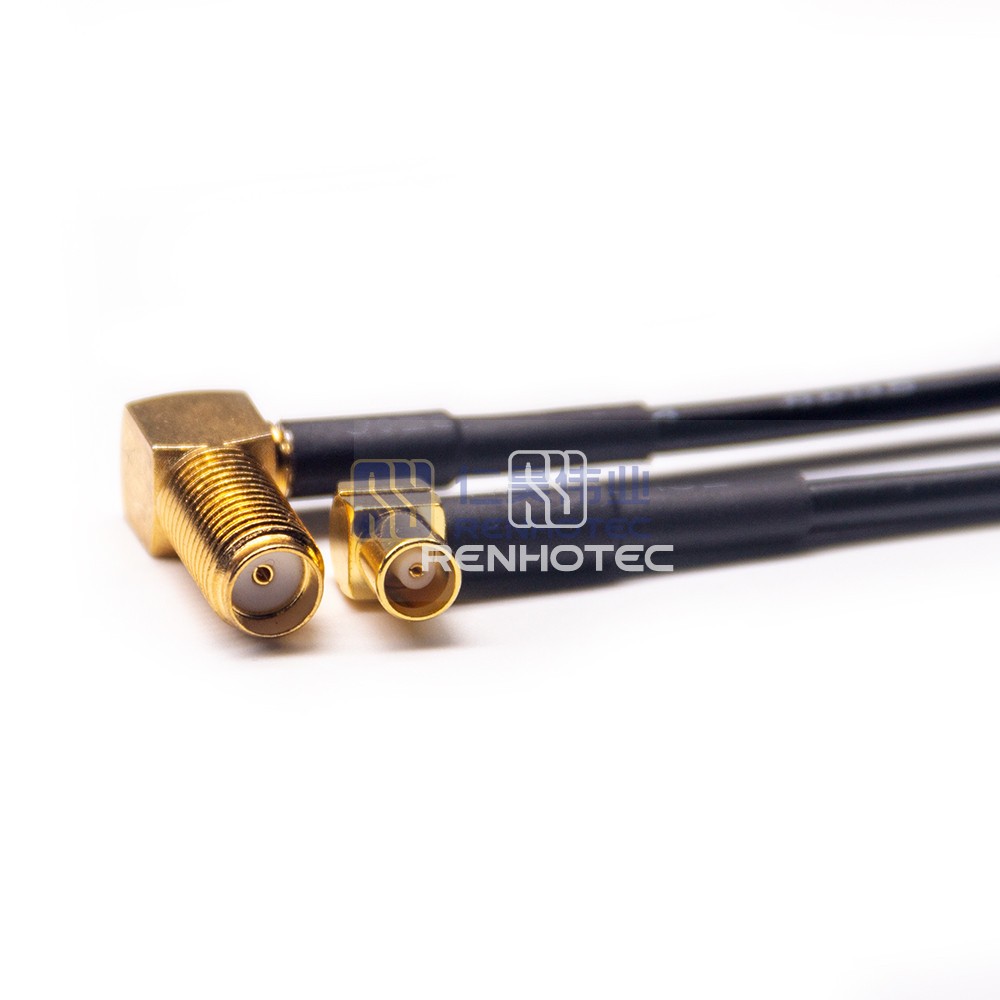

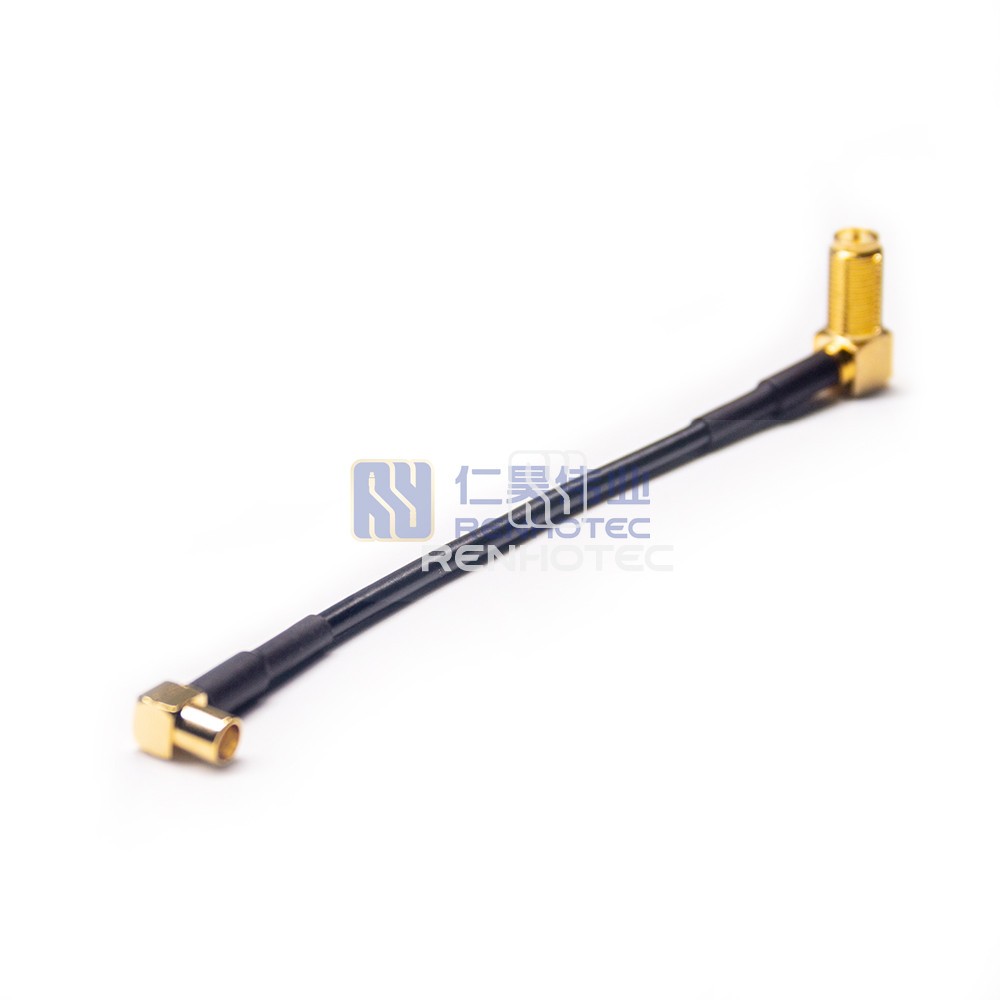

Products > RF Cable Assembly > Right Angle SMA Jack to Right Angle MCX Jack RF Pigtail Cable RG174 Cable 50ohm
R02-S01-10121-20
Right Angle SMA Jack to Right Angle MCX Jack RF Pigtail Cable RG174 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality right angle SMA jack to right angle MCX jack RF pigtail cable featuring RG174 cable with 50ohm impedance. Ideal for connecting RF components with precision and minimal signal loss.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | SMA Jack |
1st Contact Type | Female Pin |
1st Connector Orientation | Right Angle |
2nd Connector Series | MCX Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | RG174 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
