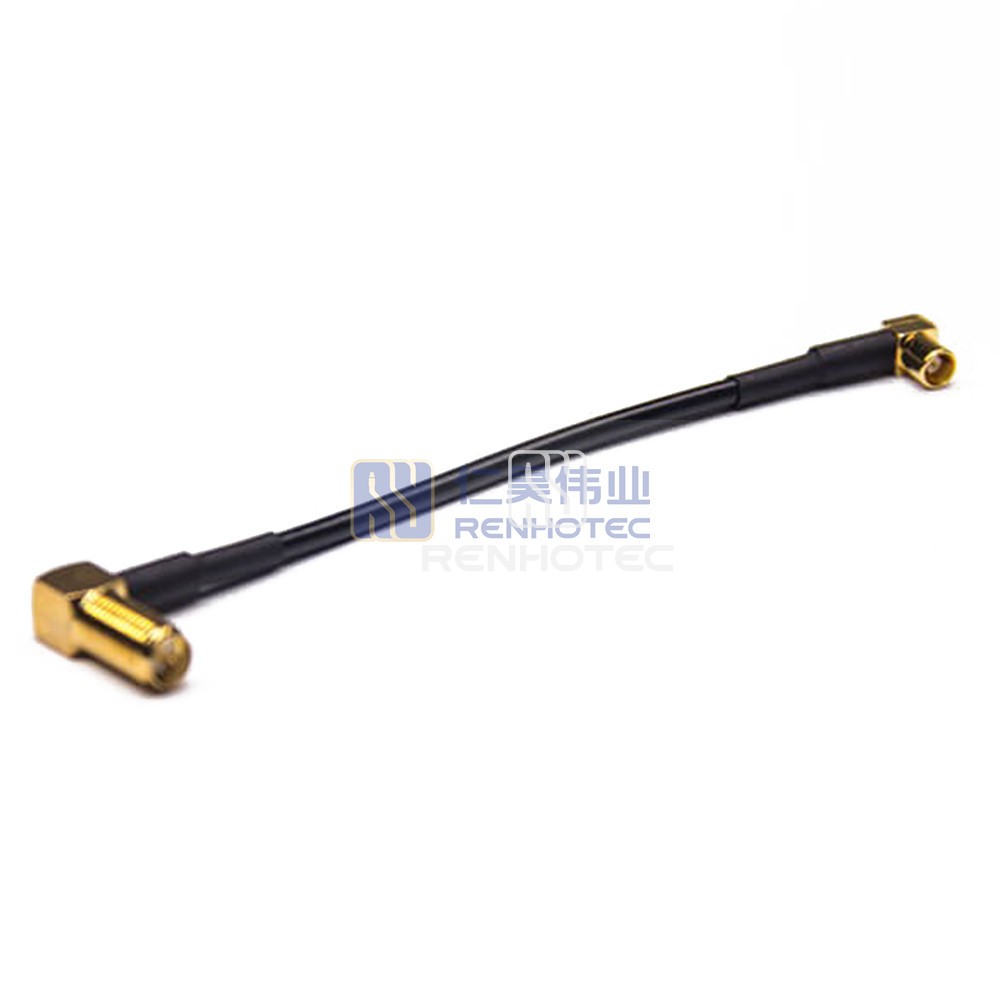

Products > RF Cable Assembly > Right Angle RP SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG174 Cable 50ohm
R02-S01-10110-10
Right Angle RP SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG174 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality Right Angle RP SMA Jack to Right Angle MCX Jack RF Cable Assemblies with RG174 Cable, ideal for reliable and efficient RF signal transmission. 50ohm impedance. SKU: R02-S01-10110-10.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |

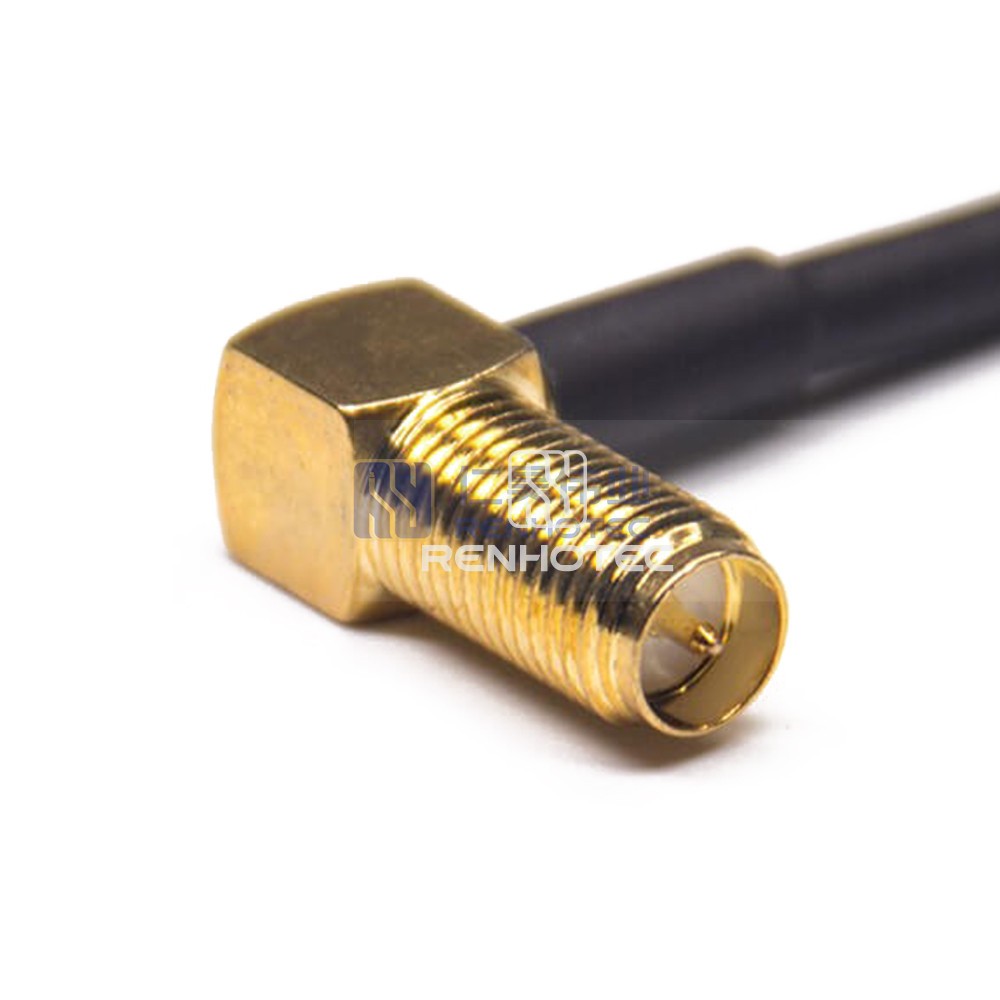

1st Connector Series | SMA Jack |
1st Contact Type | Male Pin |
1st Connector Orientation | Right Angle |

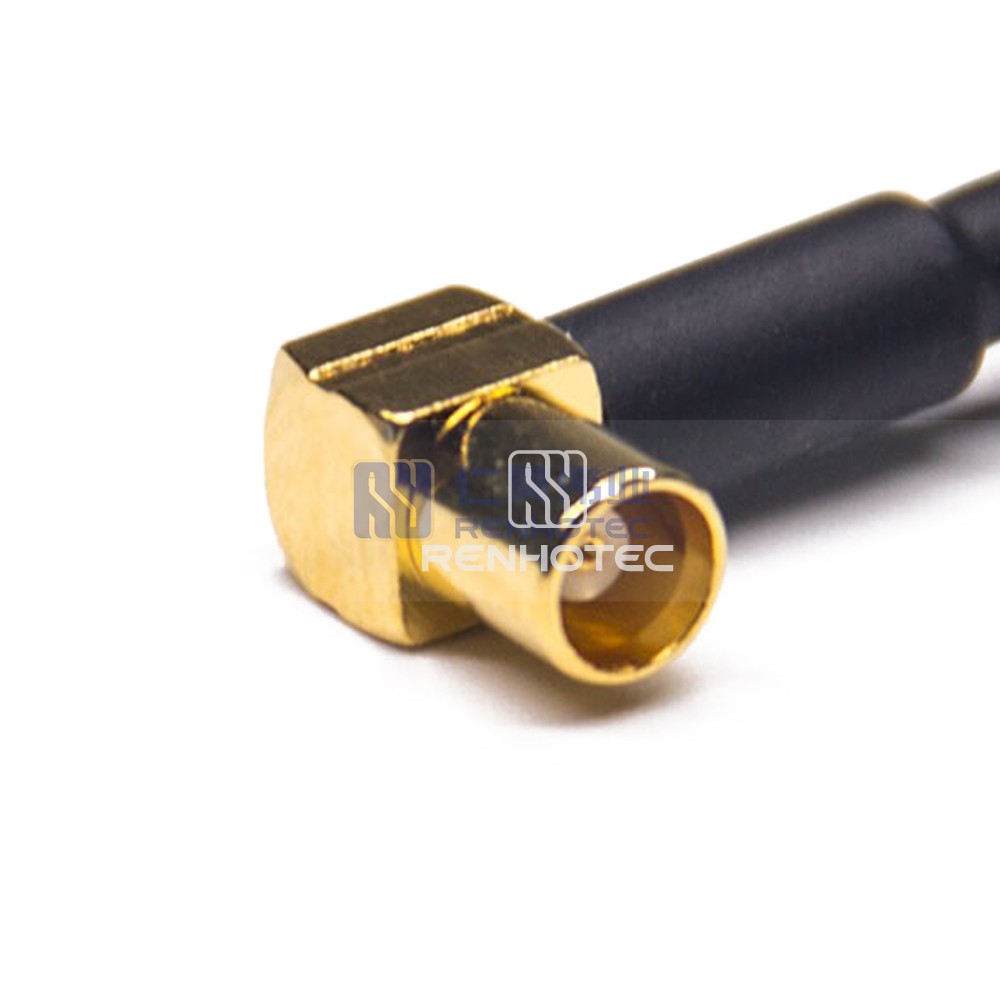

2nd Connector Series | MCX Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | RG174 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
