D38999/26WJ29SN

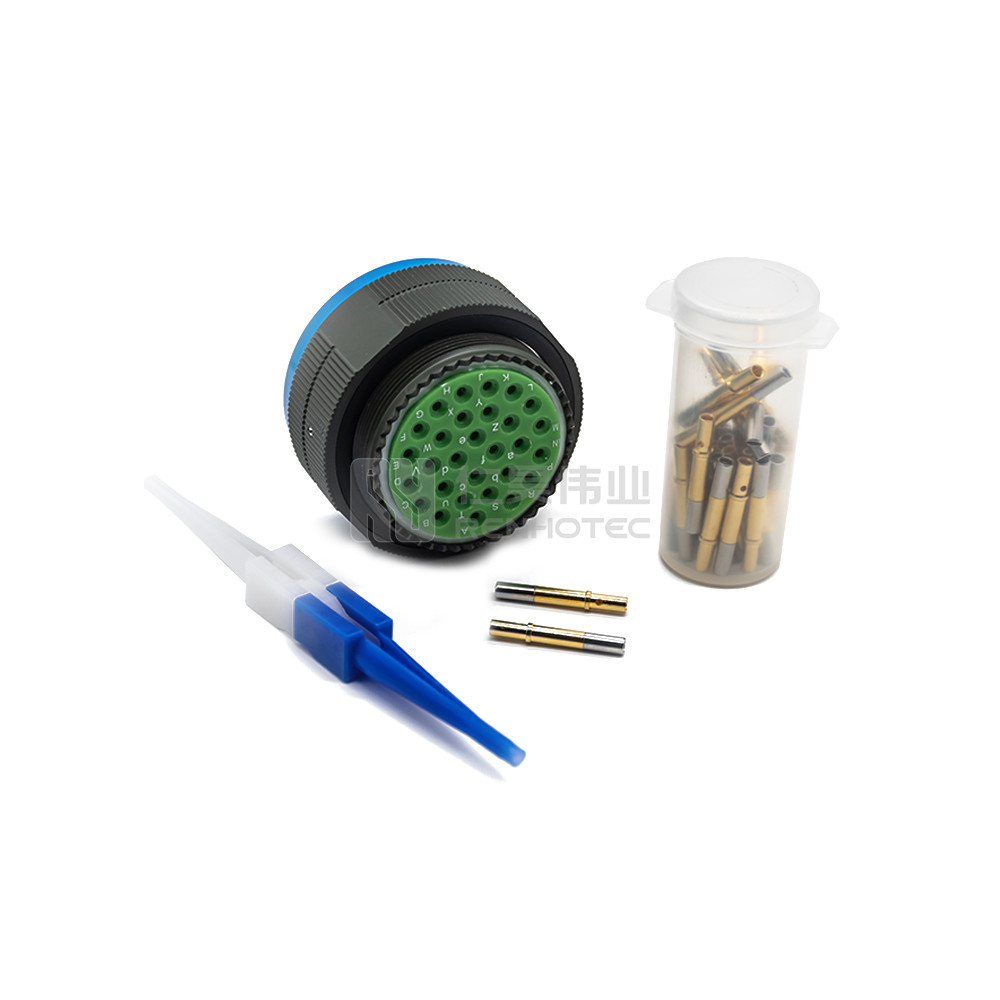

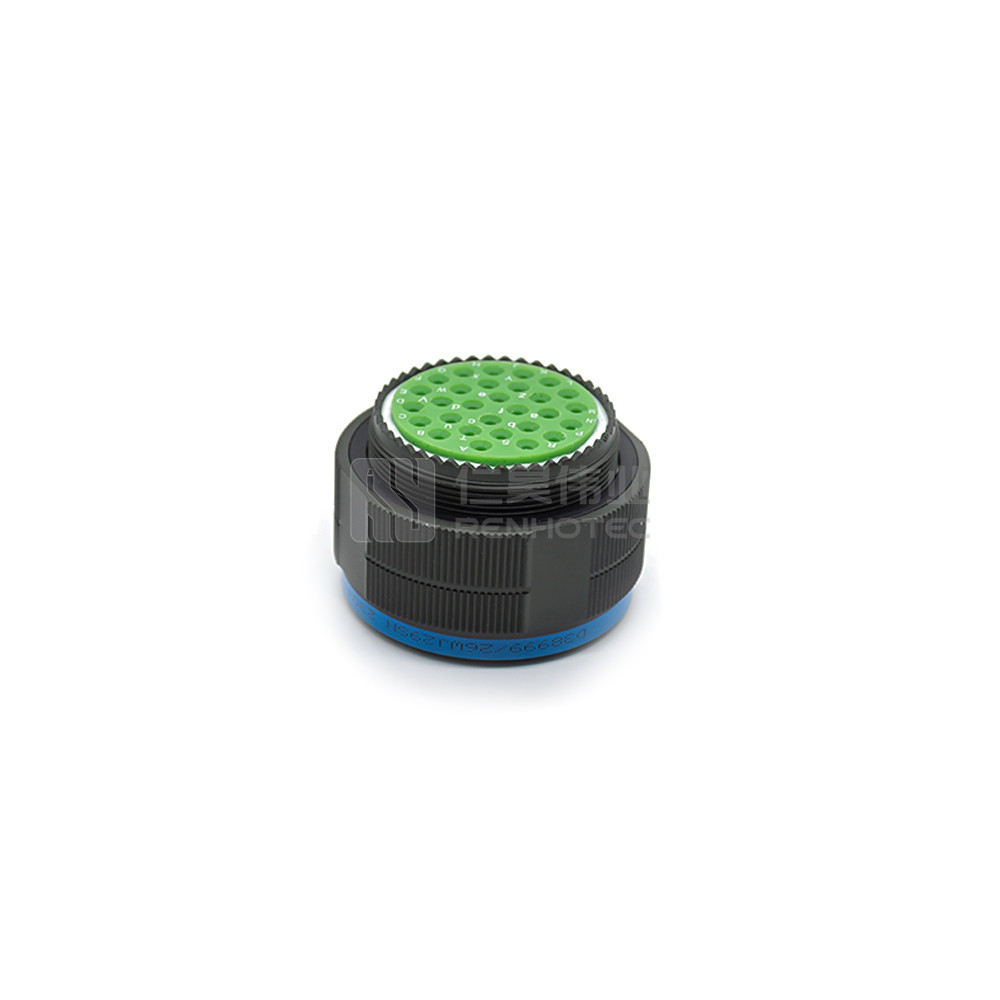

MIL-DTL-38999 Connector D38999/26WJ29SN Female EMI Shielding Plug 29Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MIL-DTL-38999 connector featuring a D38999/26WJ29SN female EMI shielding plug with 29 pins. Designed for reliable and secure connections in demanding environments.
GeneralShellMechanicalMaterialEnvironmentalElectrical
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 29 |
Contact Arrangements | 25-29 |
Contact Termination | Crimp |
Series | MIL-DTL-38999 Series Ⅲ |
Key | N |
Color | Olive Green |
Shell | |
---|---|
Shell Size | J |
Mechanical | |
---|---|
Fastening Type | Threaded |
Mounting Type | Cable Type |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Insulating Material | Thermoplastic |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -65°C ~ + 175°C |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 5A |
