Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/26WG16SN Female EMI Shielding Plug 16 Pin
D38999/26WG16SN

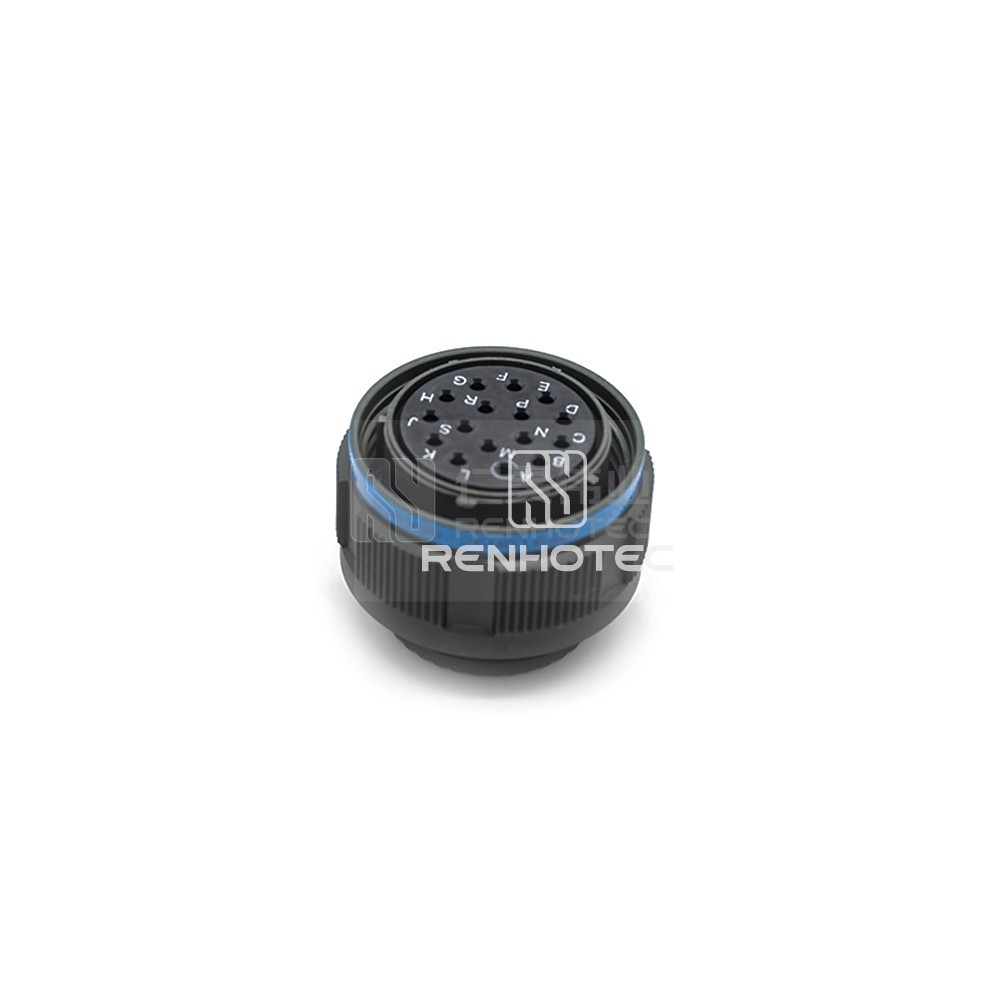

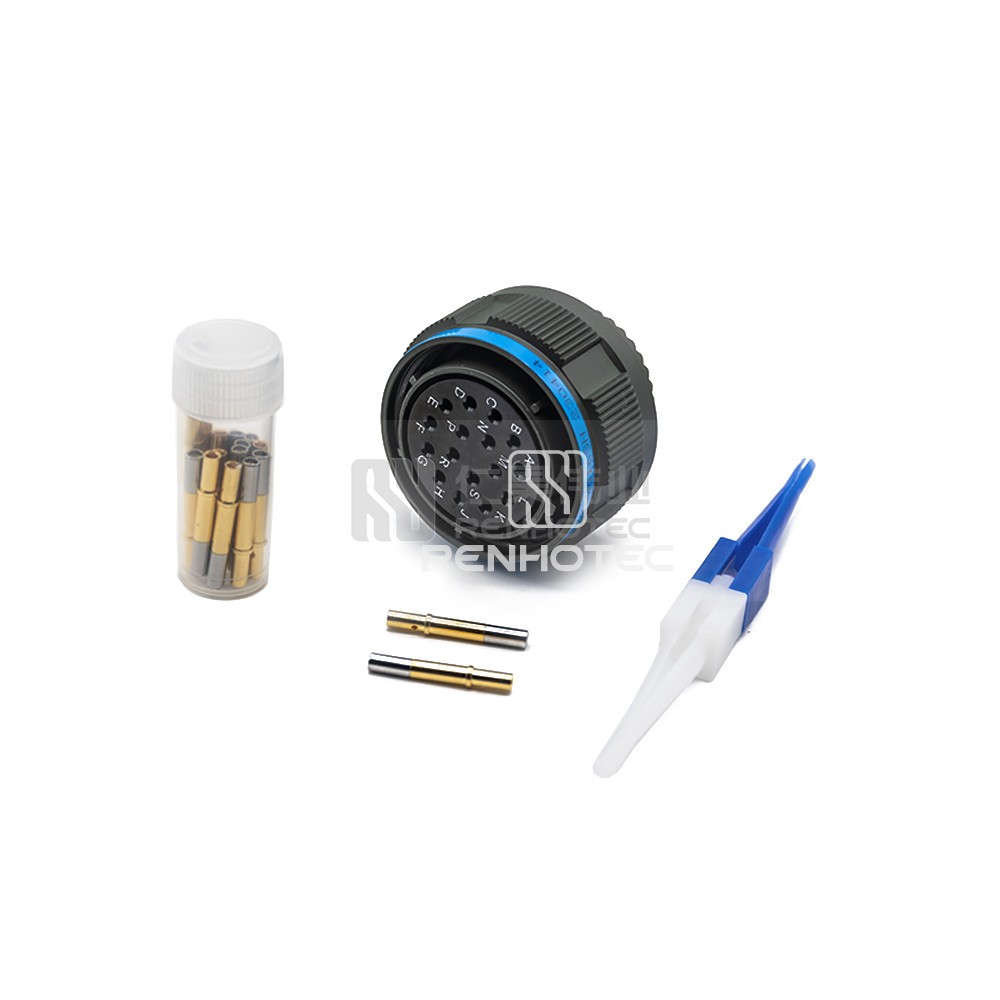

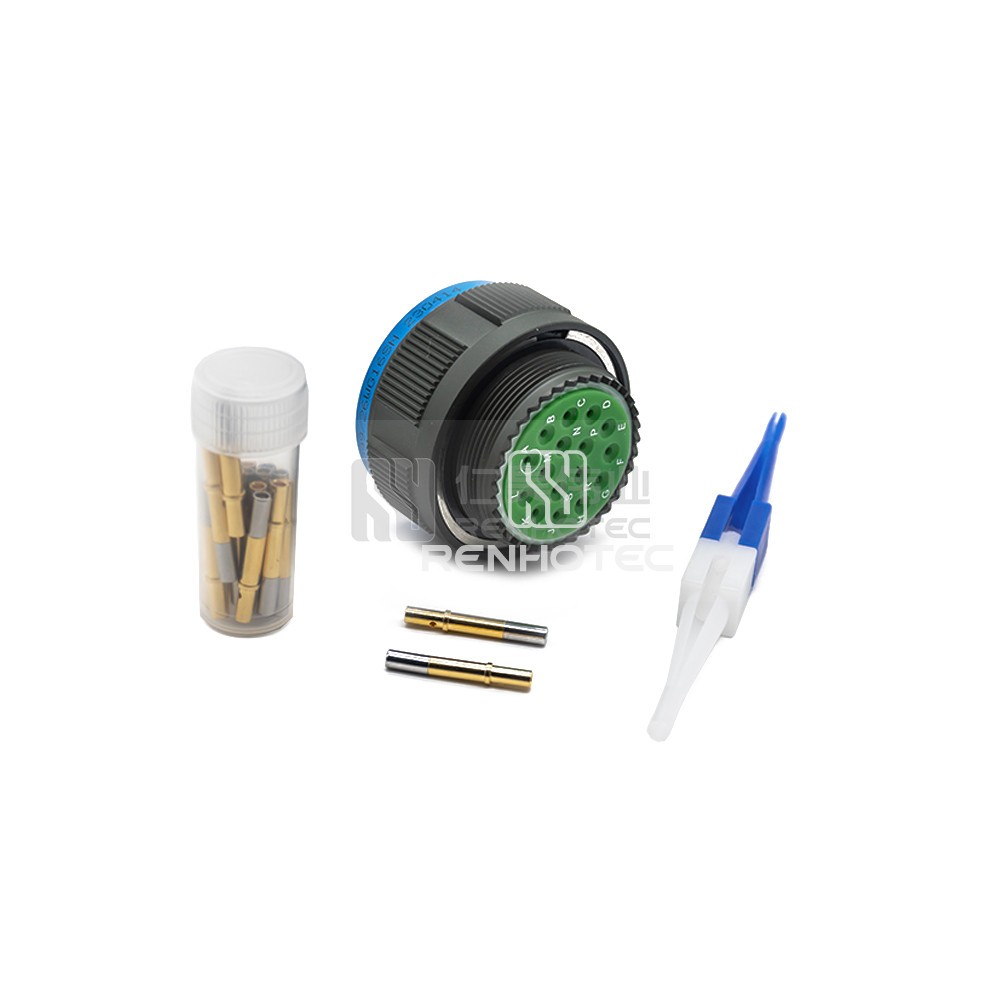

MIL-DTL-38999 Connector D38999/26WG16SN Female EMI Shielding Plug 16 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MIL-DTL-38999 connector D38999/26WG16SN female EMI shielding plug with 16 pins. Ensure secure and reliable connections for your electronic devices.
GeneralShellMechanicalMaterialEnvironmentalElectrical
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Positions | 16 |
| Contact Arrangements | 21-16 |
| Contact Termination | Crimp |
| Series | MIL-DTL-38999 Series Ⅲ |
| Key | N |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | G |
| Mechanical | |
|---|---|
| Fastening Type | Threaded |
| Mounting Type | Cable Type |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish | Gold |
| Insulating Material | Thermoplastic |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -65°C ~ + 175°C |
| Electrical | |
|---|---|
| Shielding | Shielded |
| Rated Current | 5A |
