D38999/20WD5PN

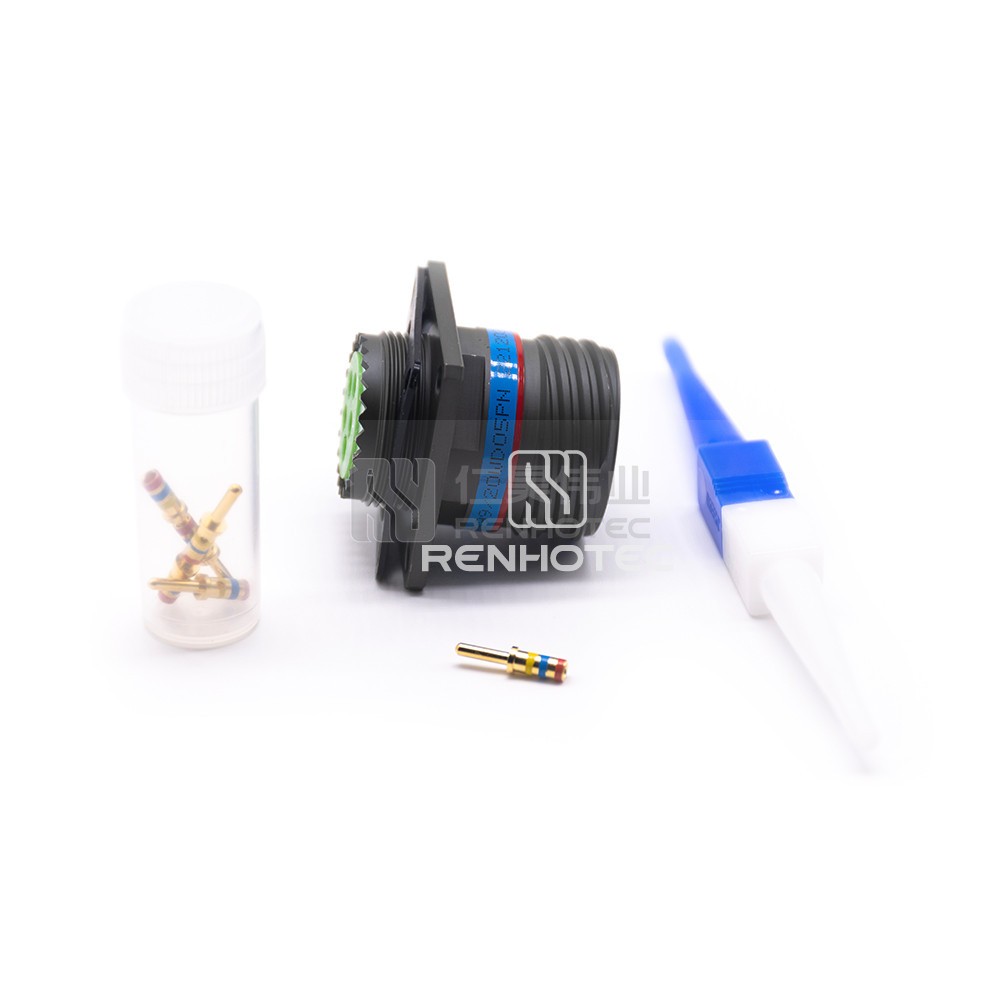

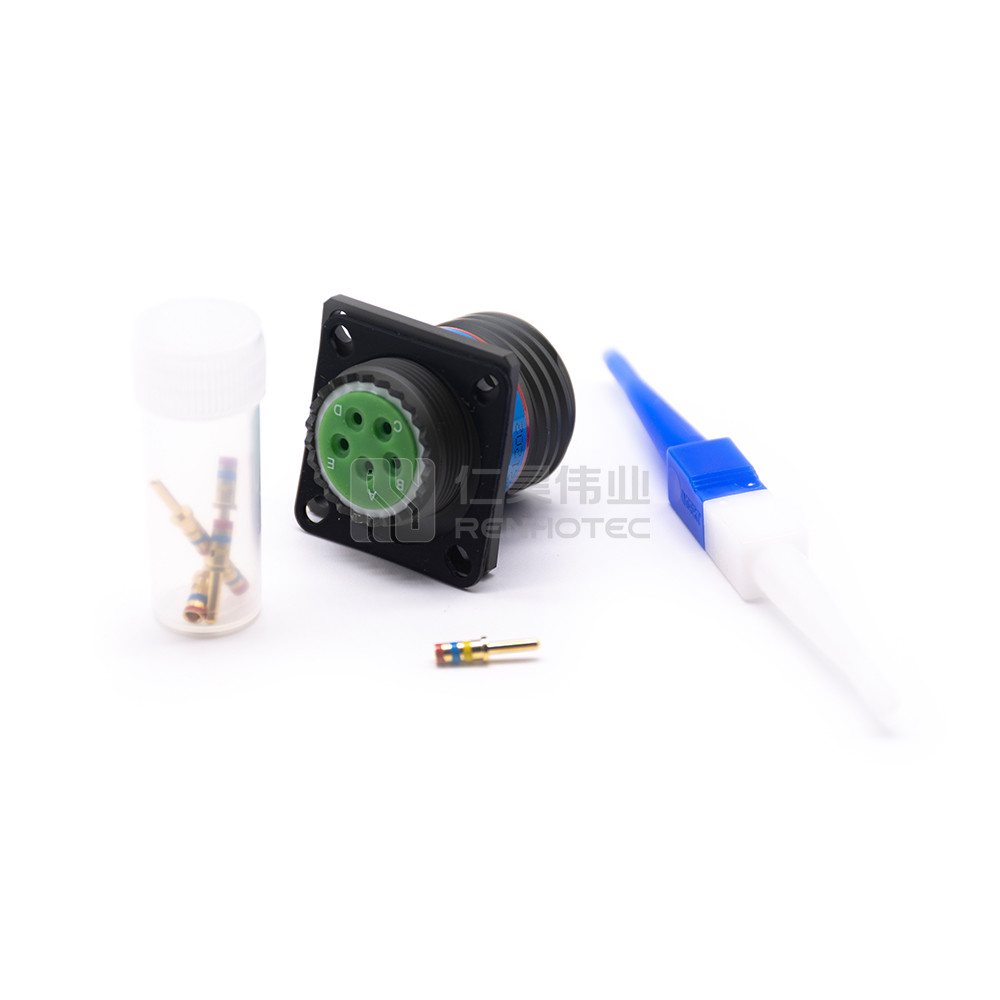

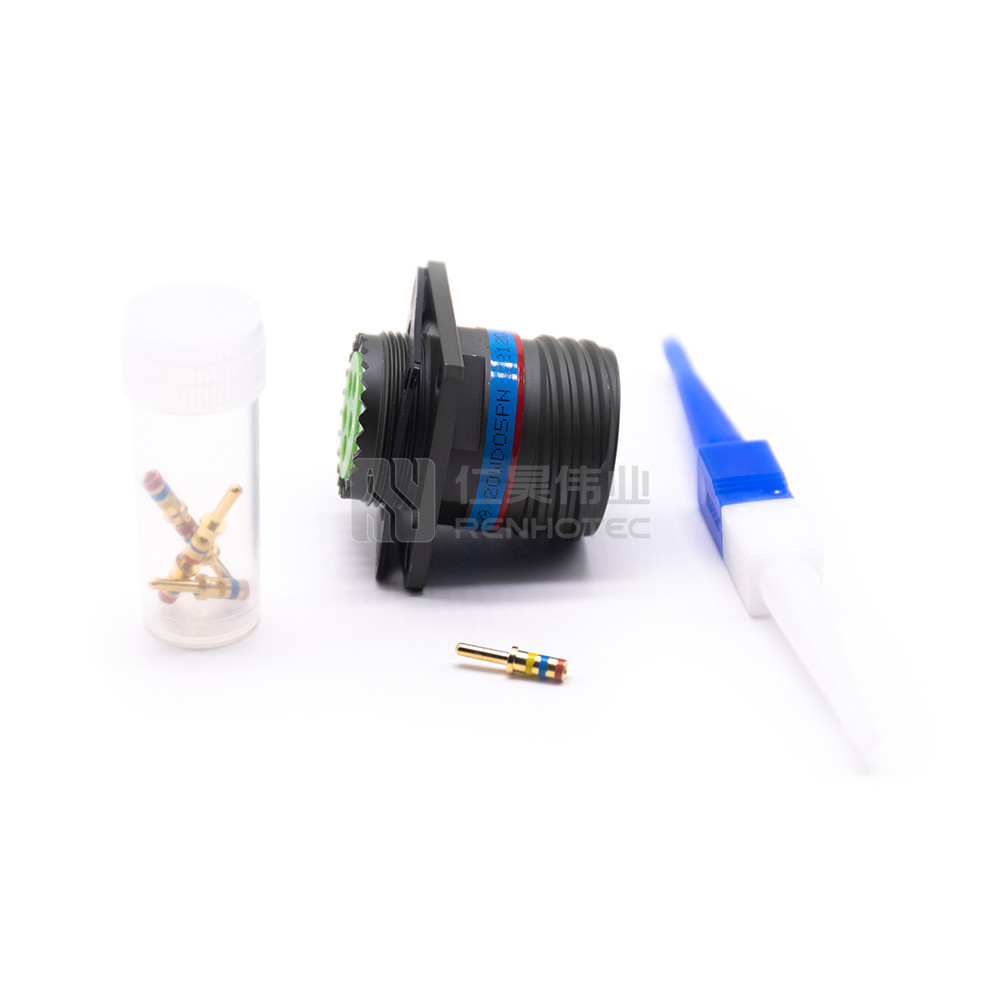

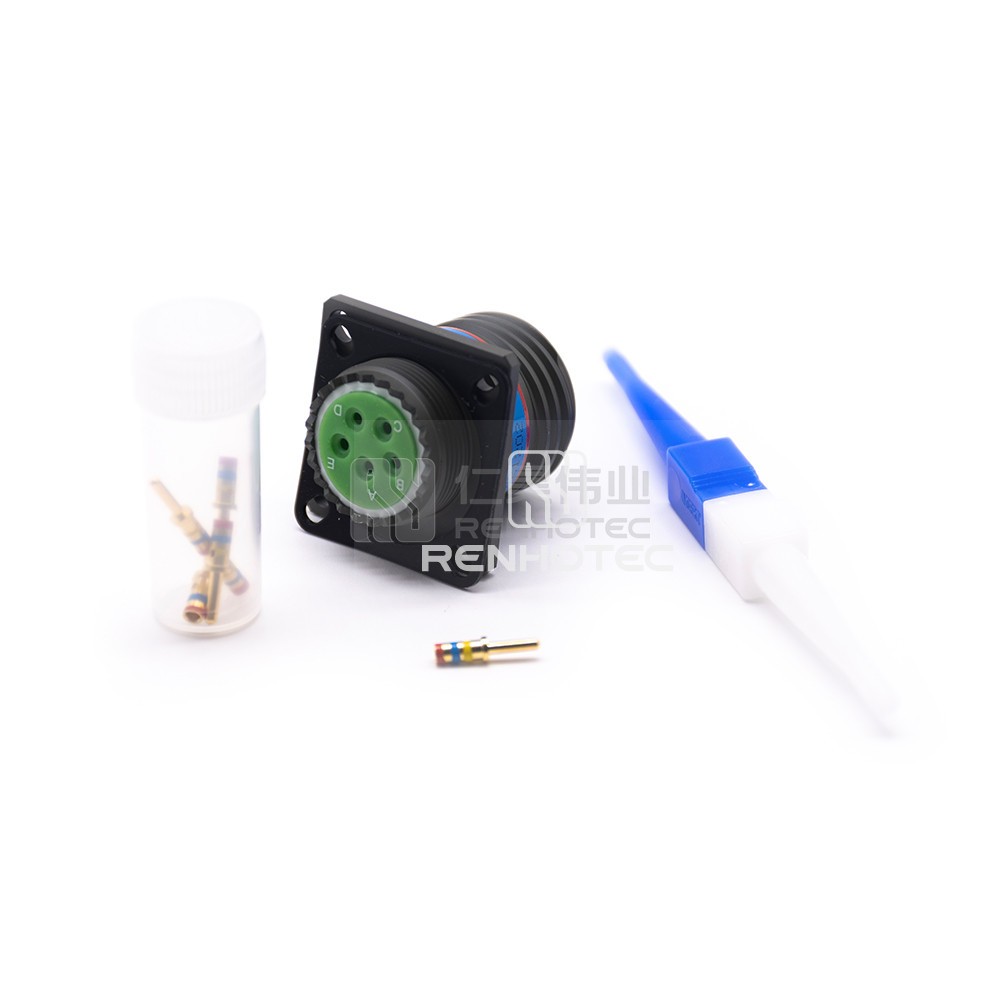

MIL-DTL-38999 Connector D38999/20WD5PN Male Square Flange Receptacle 5 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MIL-DTL-38999 connector with 5 pins, designed for durable and reliable performance. Male square flange receptacle for secure connections in various applications.
GeneralShellMechanicalMaterialEnvironmentalElectrical
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Positions | 5 |
| Contact Arrangements | 15-05 |
| Contact Termination | Crimp |
| Series | MIL-DTL-38999 Series Ⅲ |
| Key | N |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | D |
| Mechanical | |
|---|---|
| Fastening Type | Threaded |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish | Gold |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -65°C ~ + 175°C |
| Electrical | |
|---|---|
| Shielding | Shielded |
| Rated Current | 13A |
