MS3116F14-12P/PT06E-14-12P(SR)

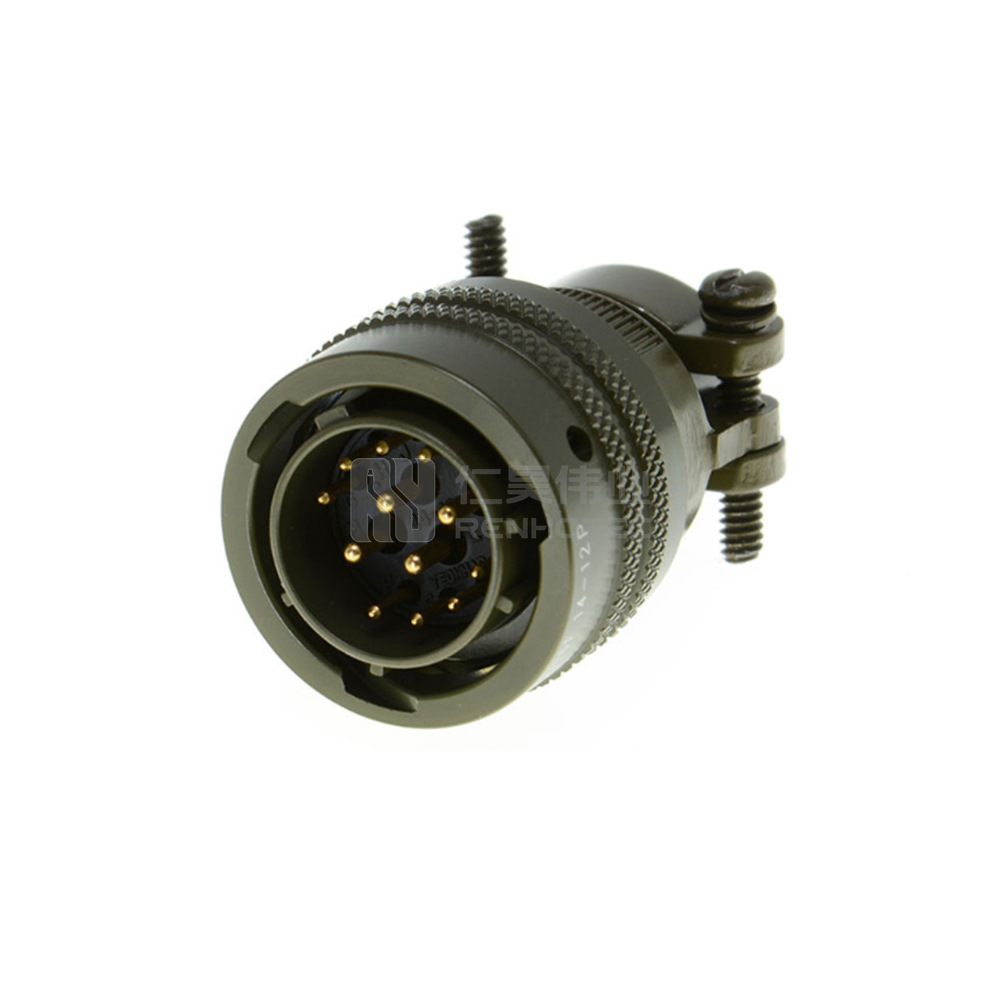

MIL-DTL-26482 Connector MS3116F14-12P Male Straight Plug 12 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MIL-DTL-26482 connector featuring MS3116F14-12P male straight plug with 12 pins. Ideal for secure and reliable electrical connections.
GeneralShellMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Positions | 12 |
| Contact Arrangements | 14-12 |
| Contact Termination | Solder Cup |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 14 |
| Mechanical | |
|---|---|
| Fastening Type | Bayonet |
| Mounting Type | Cable Type |
| Wire Gauge or Range | 8*AWG24，22，20/4*AWG20，18，16 |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Contact Finish | Gold |
| Insulating Material | Synthetic Rubber |
| Contact Material | Copper Alloy |
| Electrical | |
|---|---|
| Shielding | Unshielded |
| Rated Current | 4*22A/8*7.5A |
| Rated Voltage | 600V |
| Environmental | |
|---|---|
| Operating Temperature | -55°C ~ + 125°C |
