R02-M02-10020-20

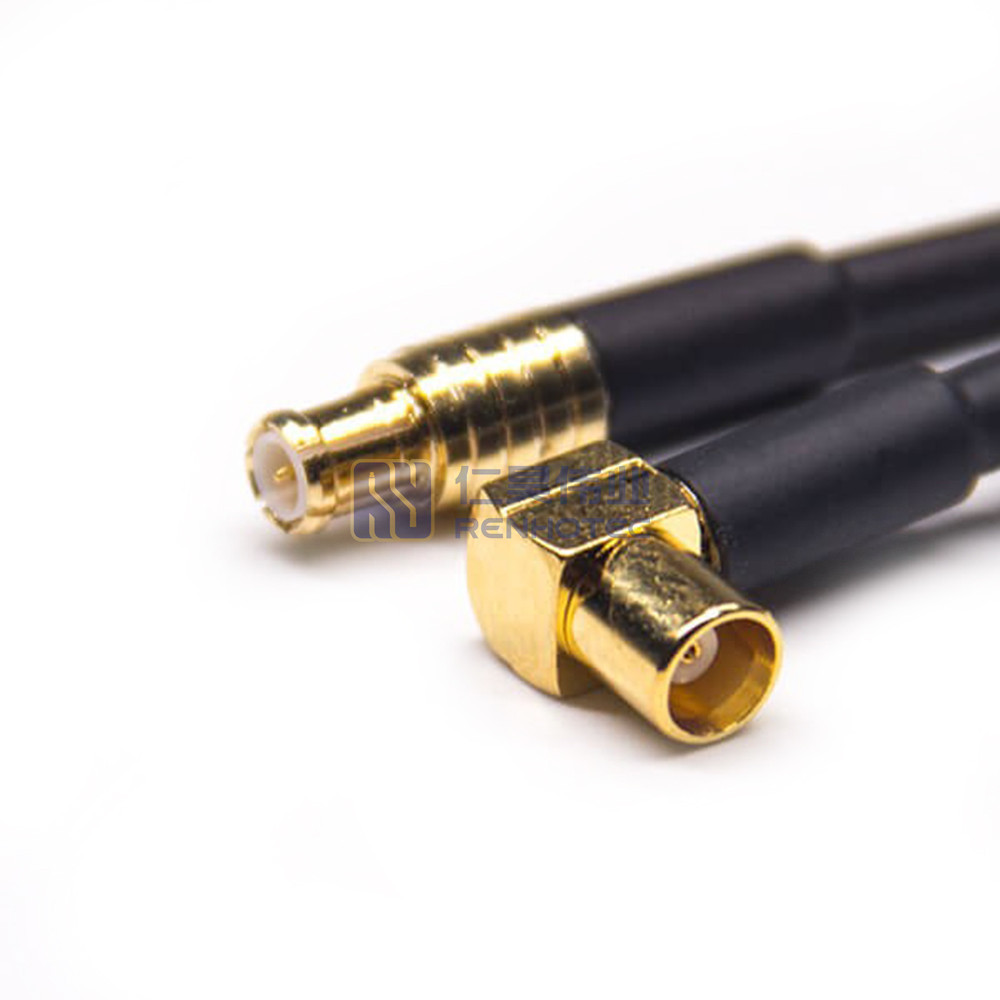

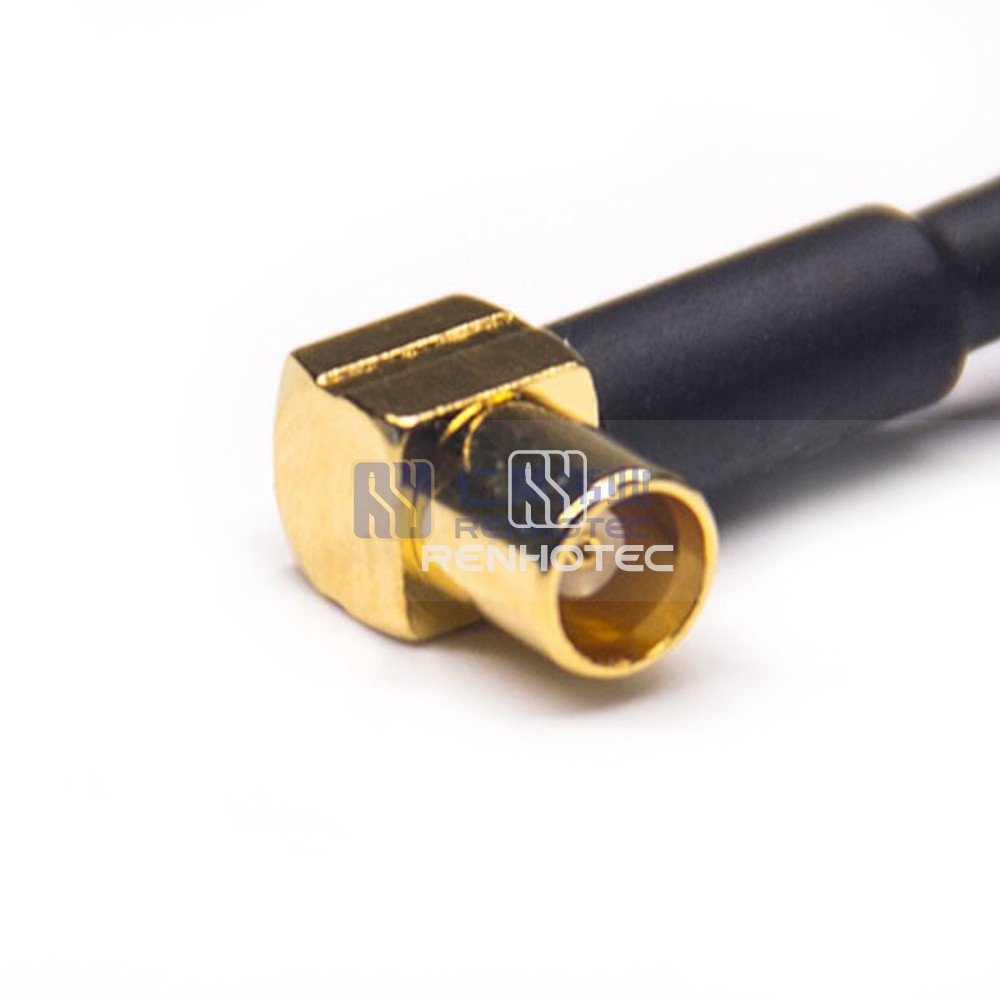

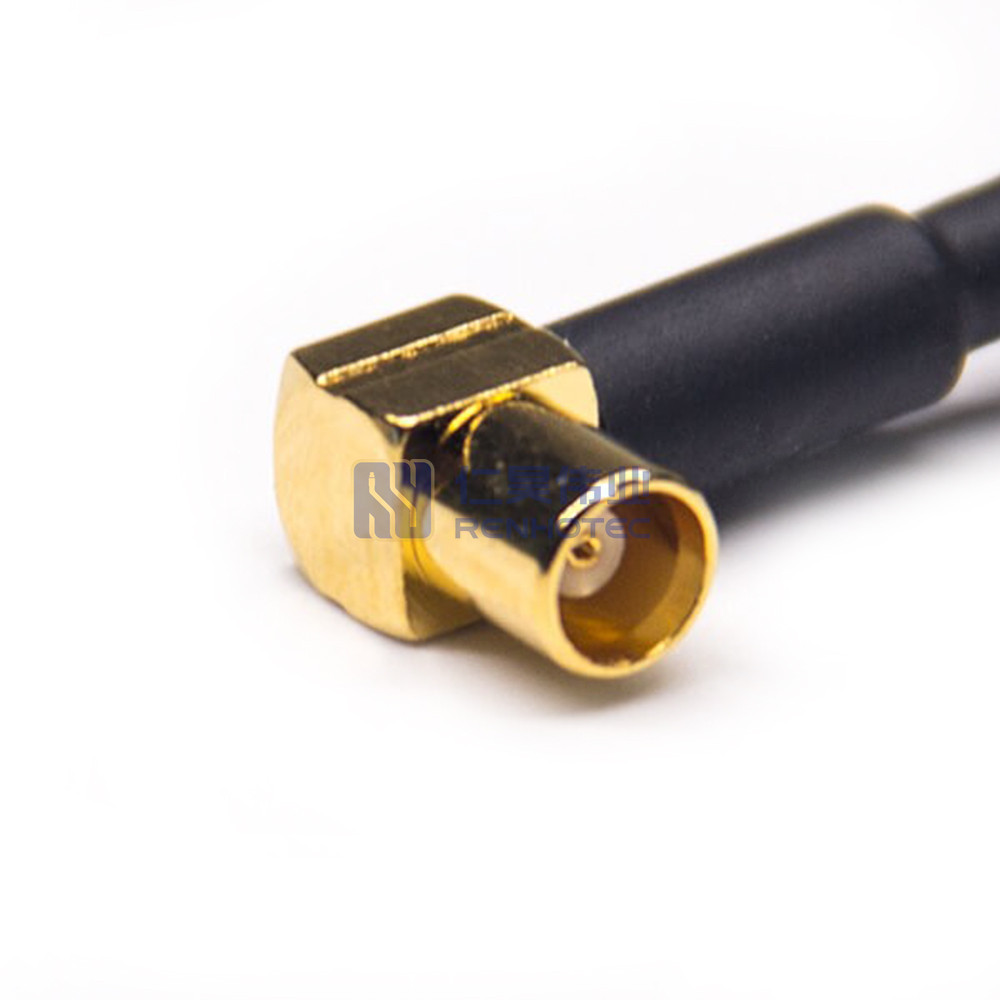

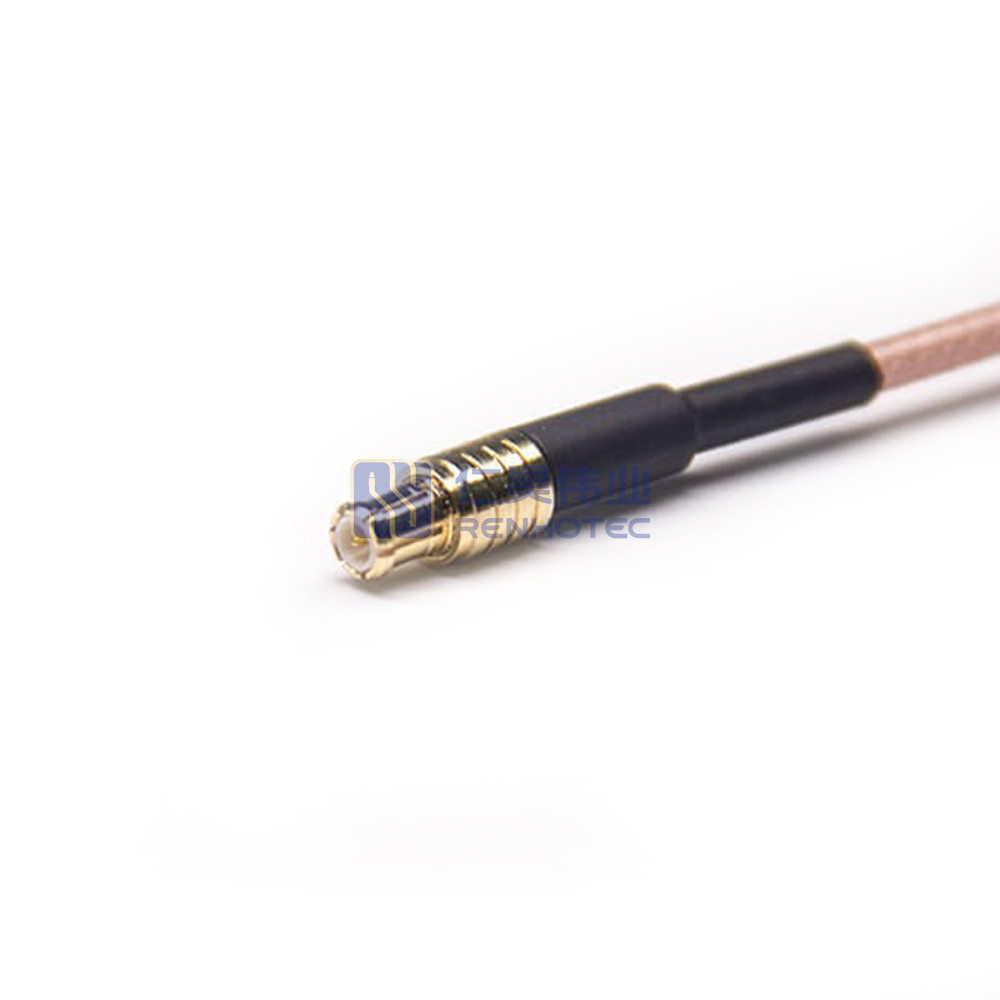

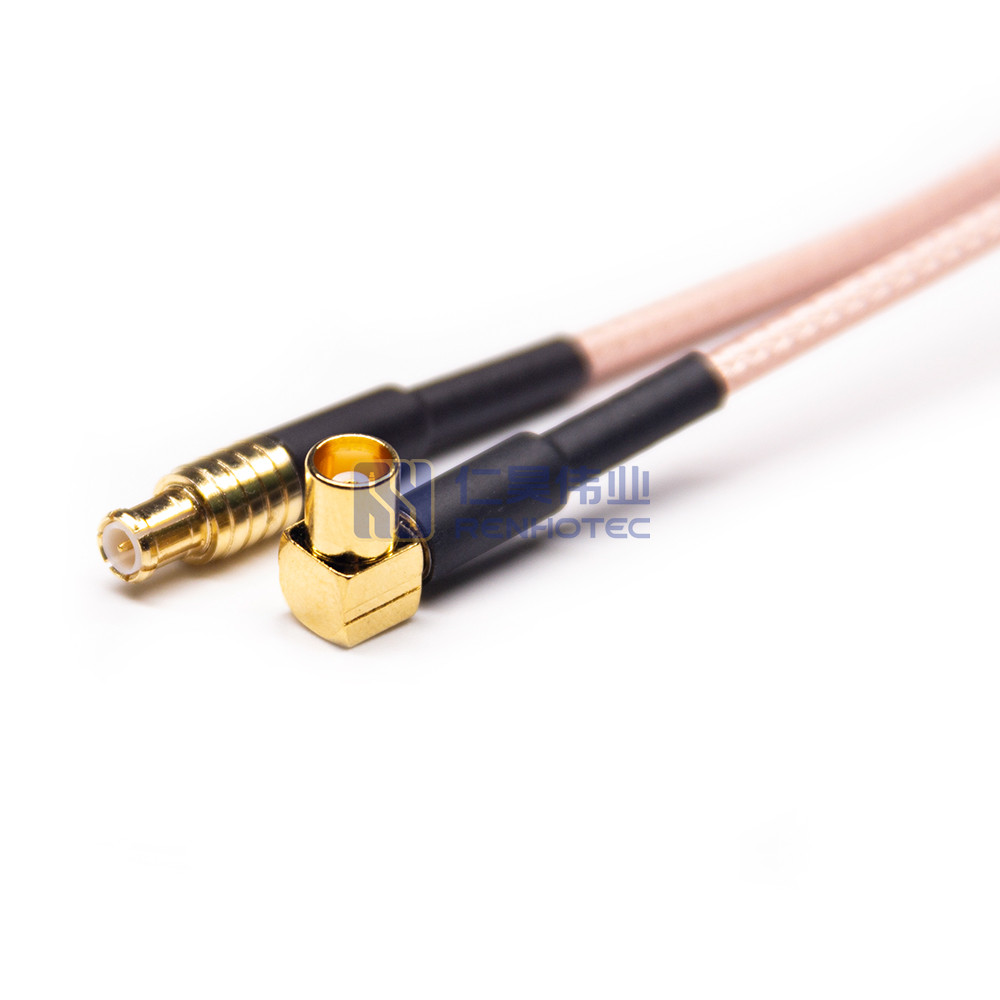

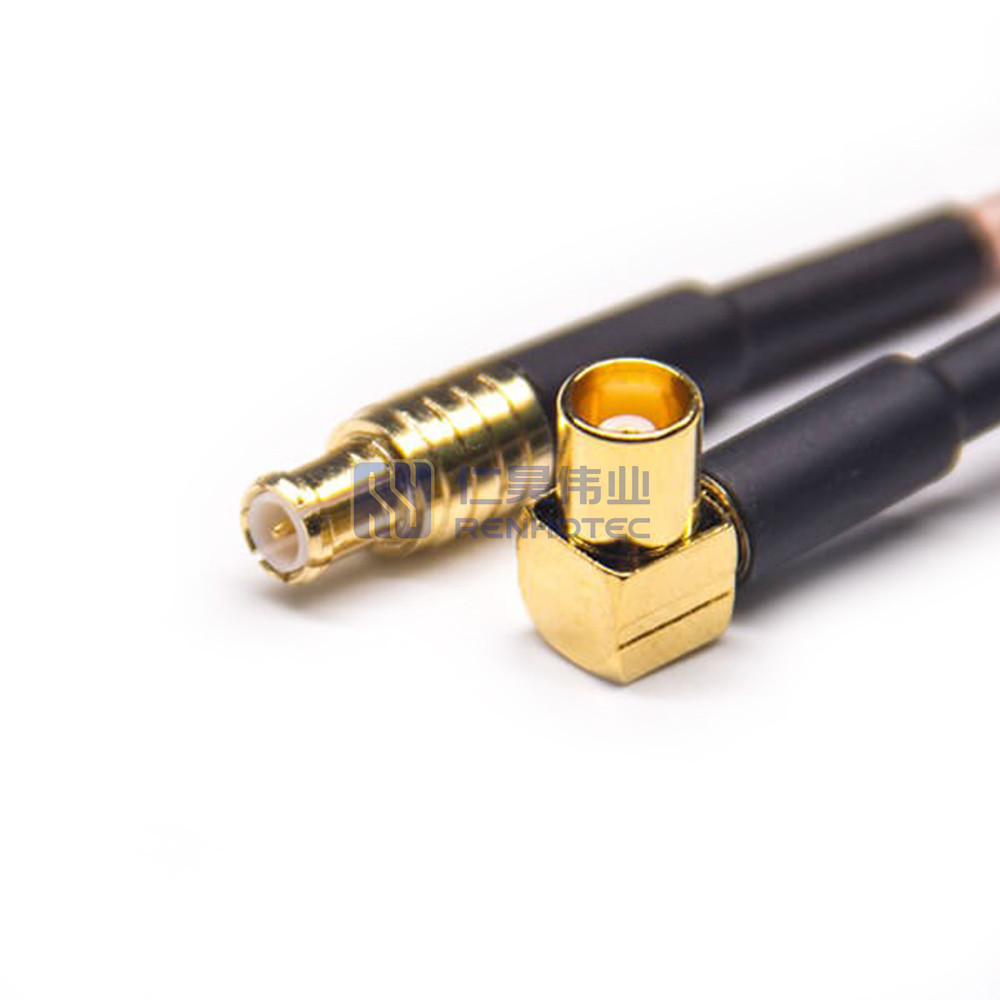

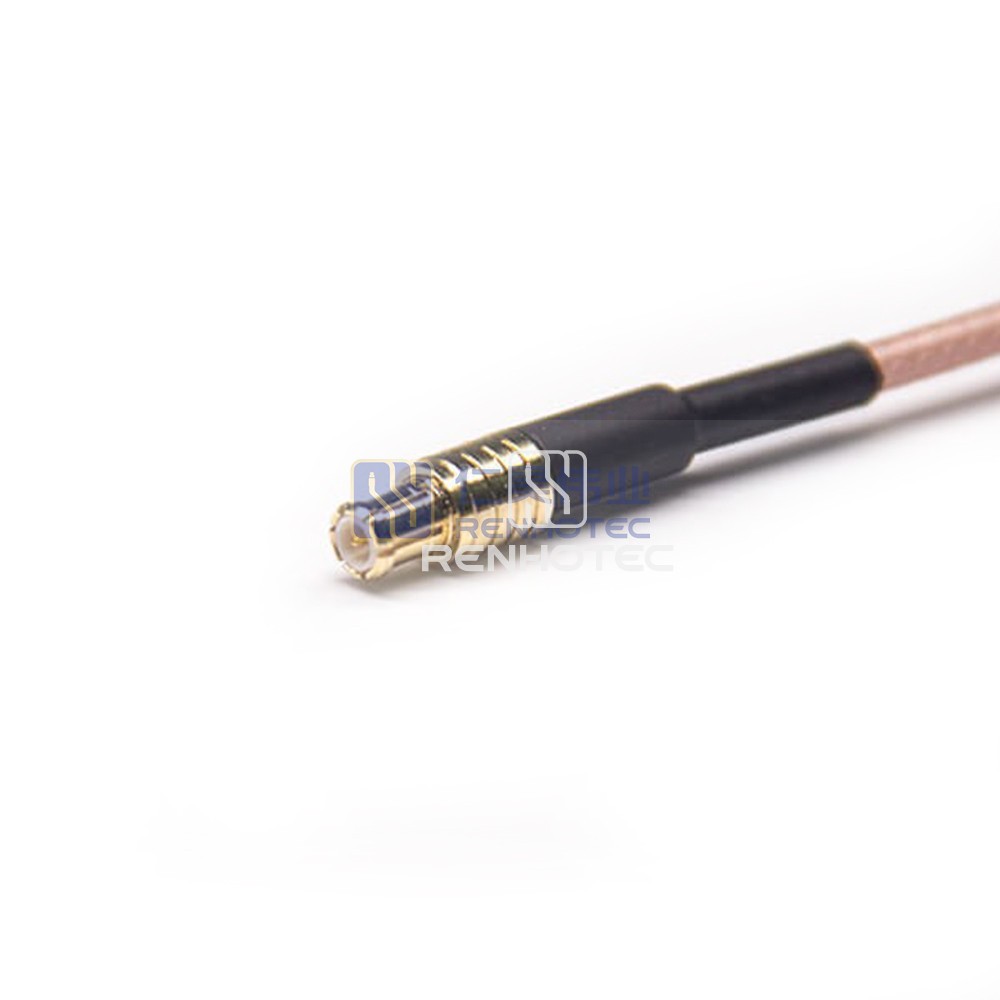

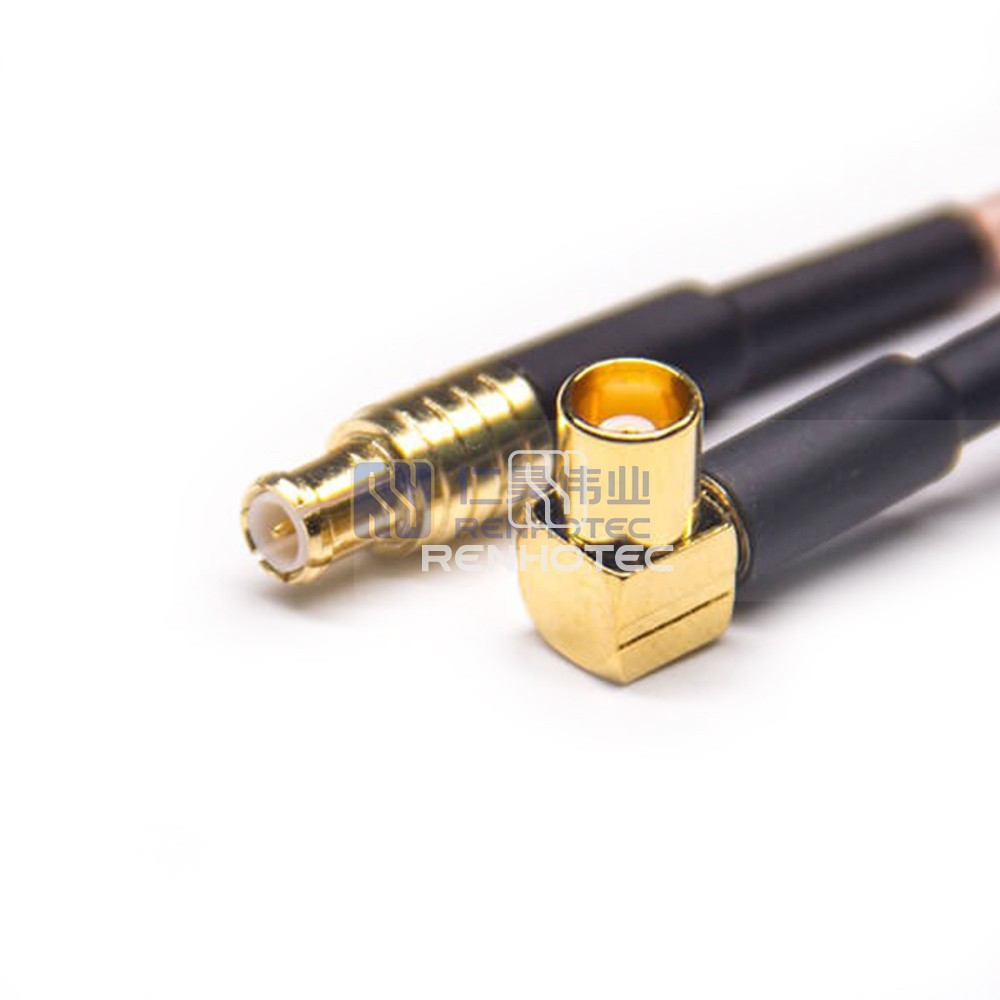

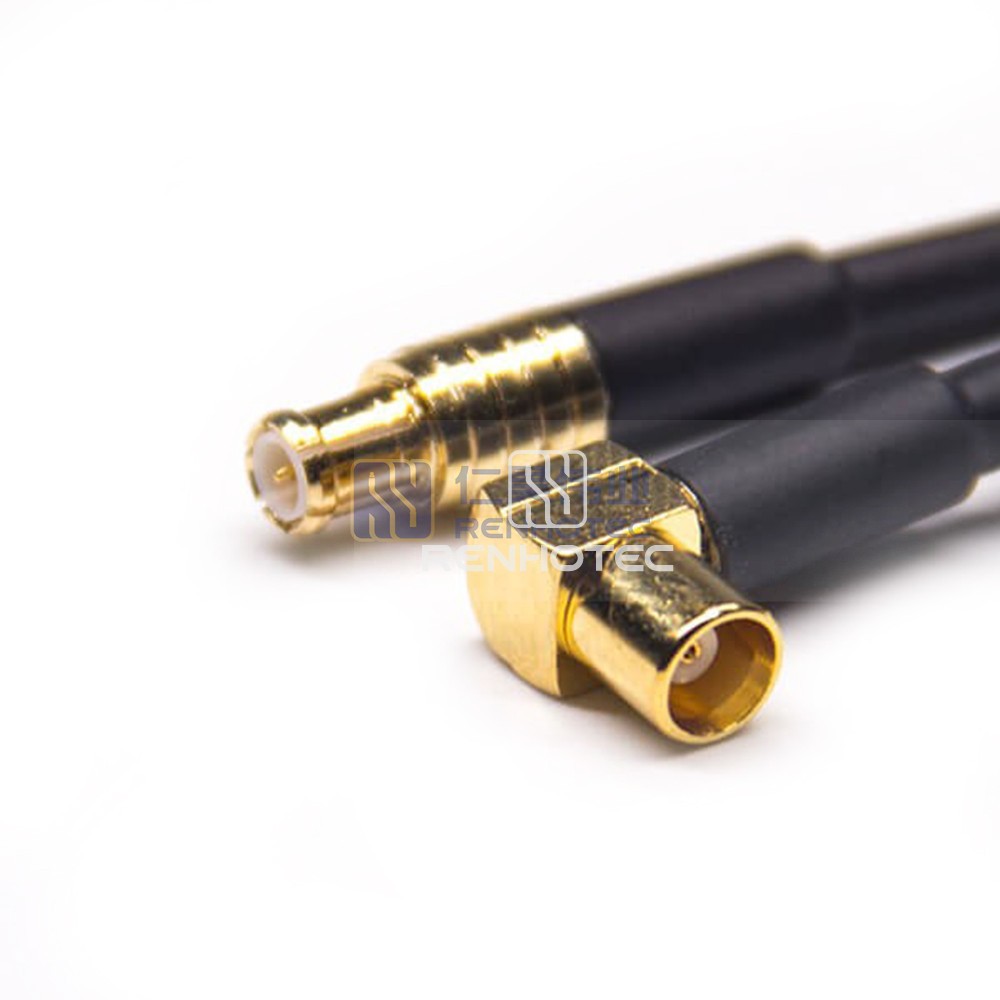

MCX Male to MCX Female Right Angle Cable Assembly with 50Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Extend your connectivity with this MCX Male to MCX Female Right Angle Cable Assembly featuring 50Ohm RG316 Coax, ideal for efficient signal transmission in various applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesMCX Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Jack
2nd Contact TypeFemale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
