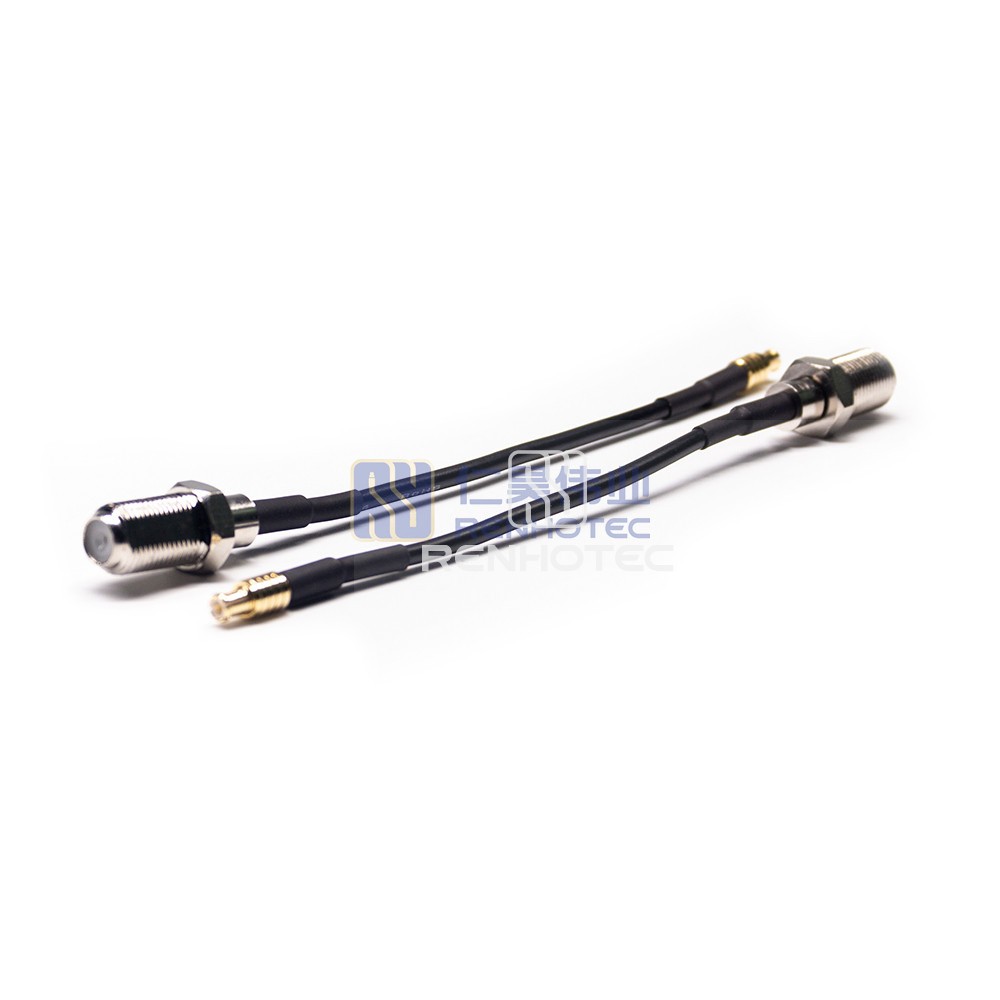

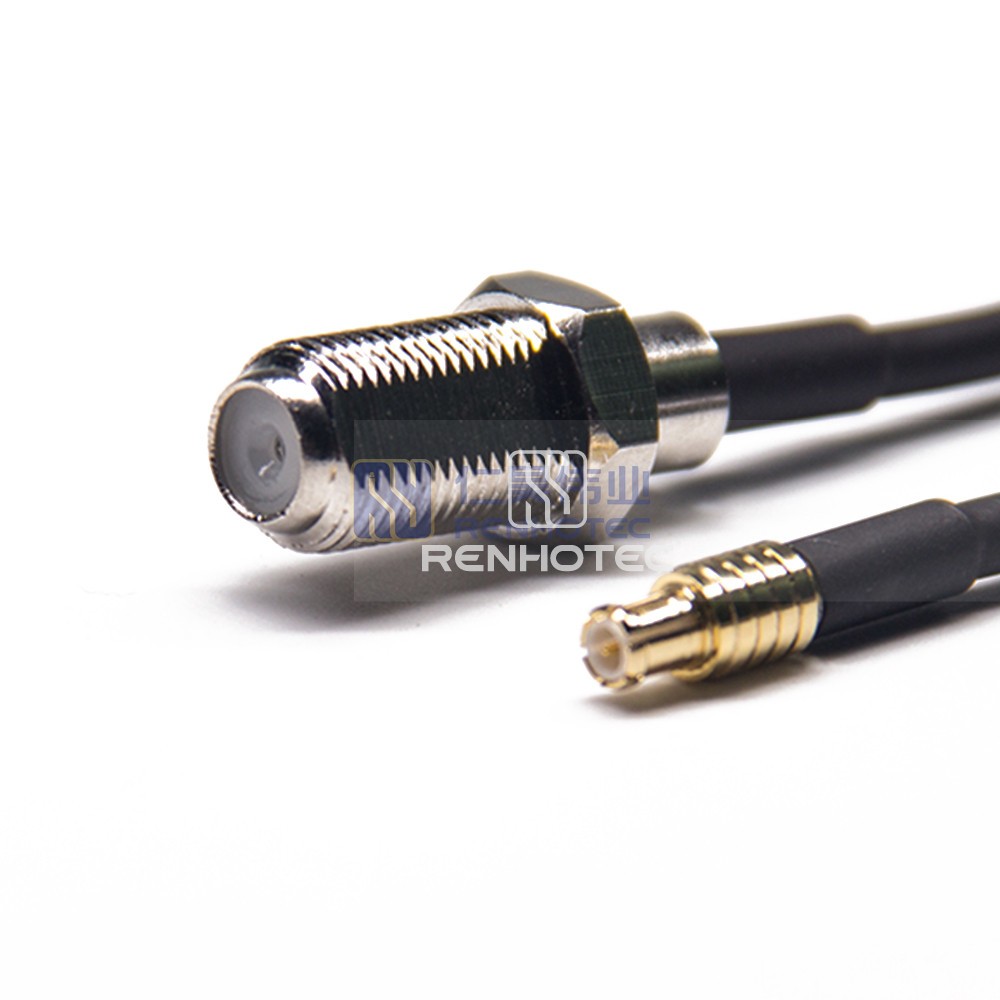

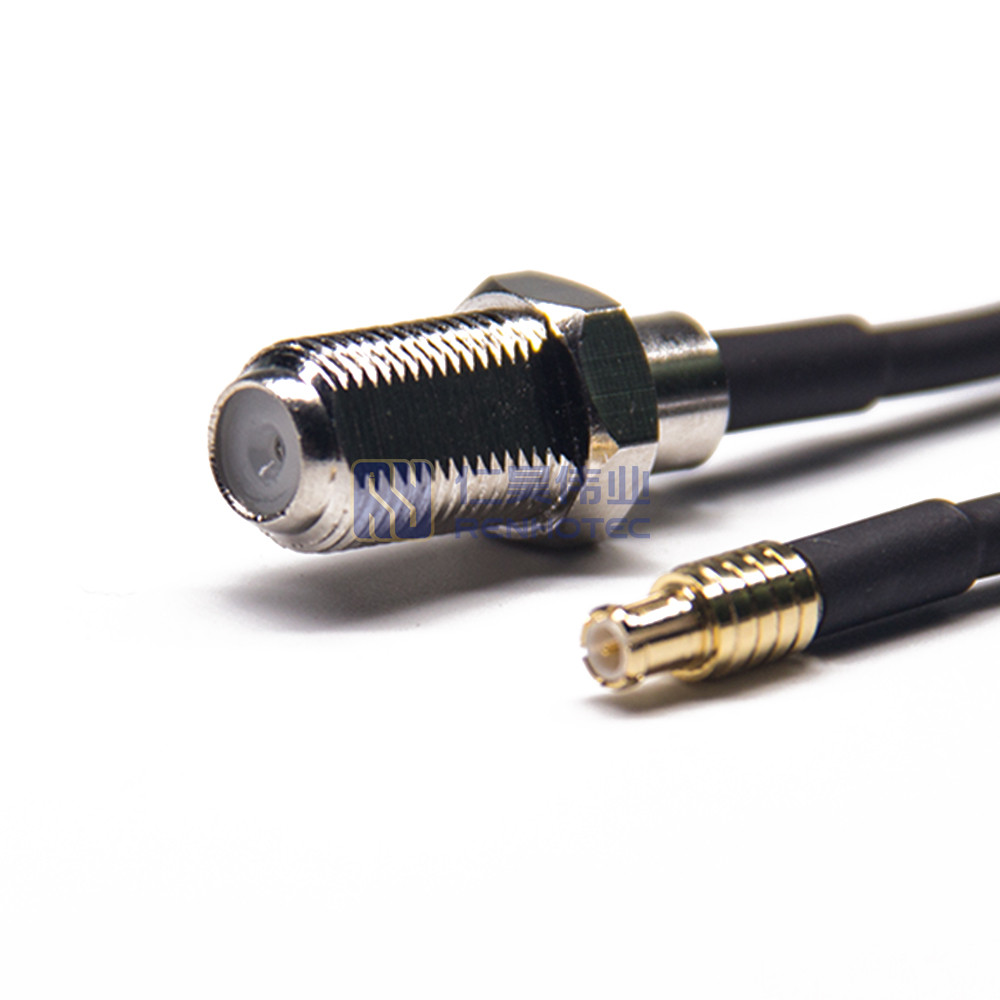

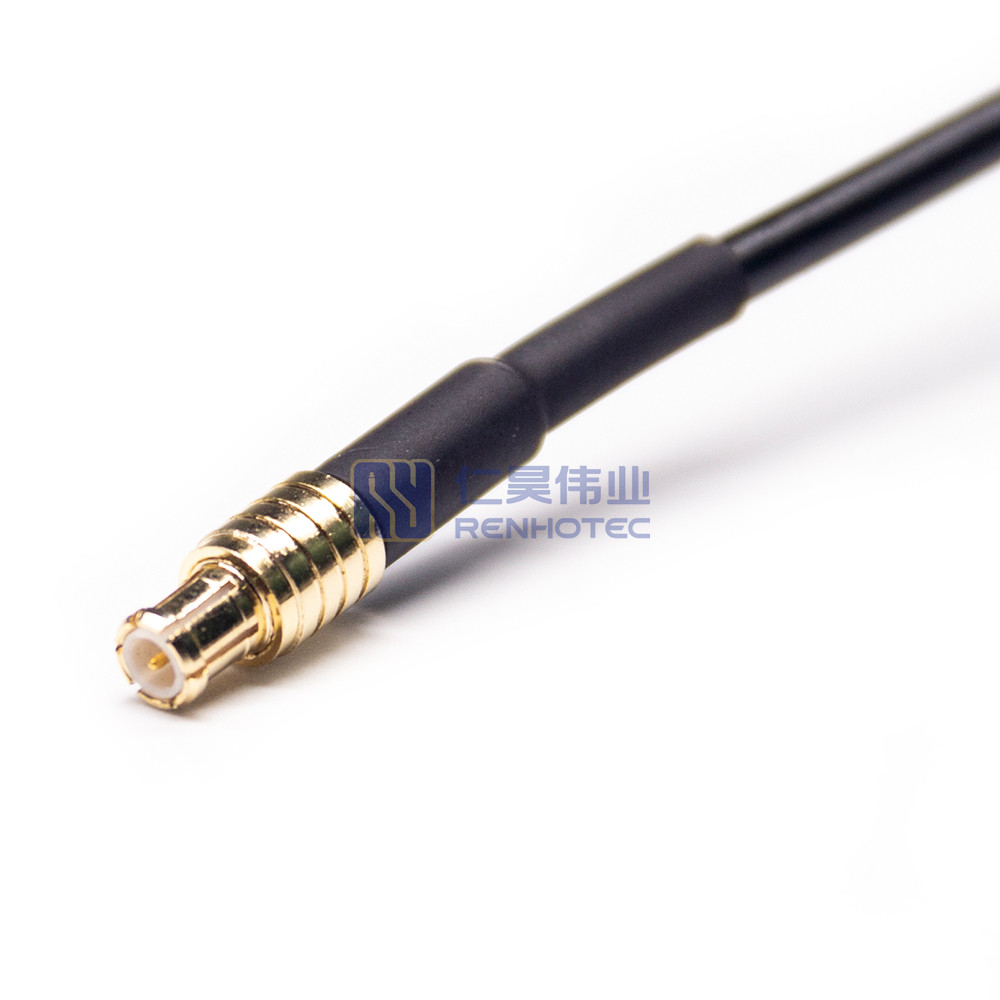

Products > RF Cable Assembly > MCX Male to F Female Bulkhead RF Cable Assembly with 50Ohm RG174 Coax
R02-M02-10022-20
MCX Male to F Female Bulkhead RF Cable Assembly with 50Ohm RG174 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MCX male to F female bulkhead RF cable assembly with 50-ohm RG174 coax, ideal for reliable RF signal transmission. SKU: R02-M02-10022-20.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |

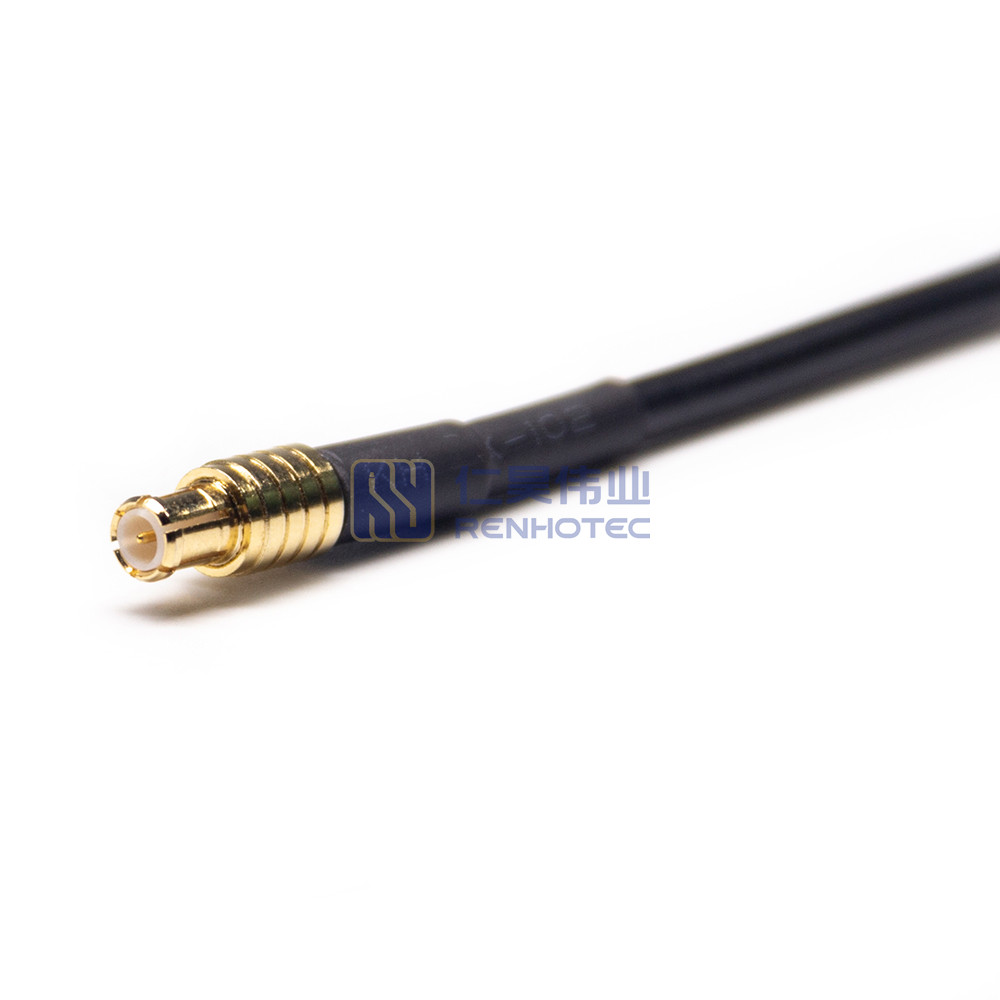

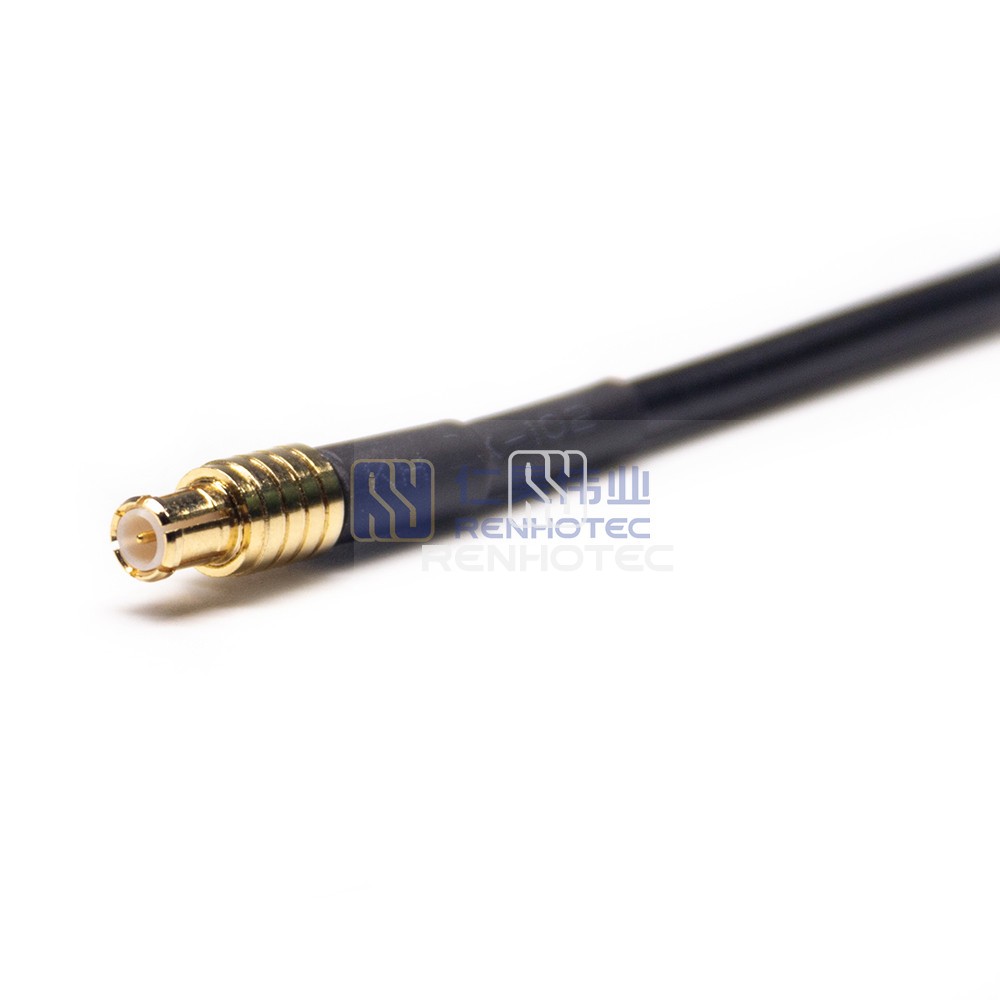

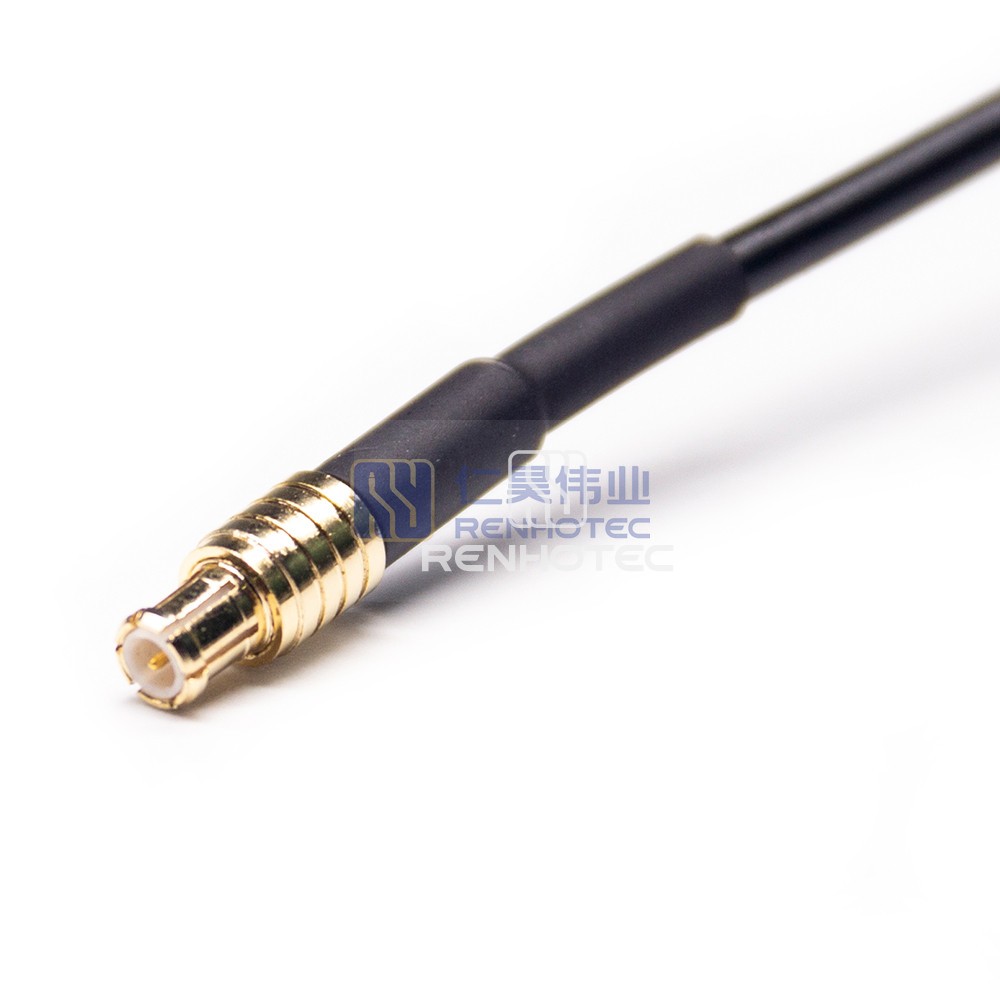

1st Connector Series | MCX Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Straight |

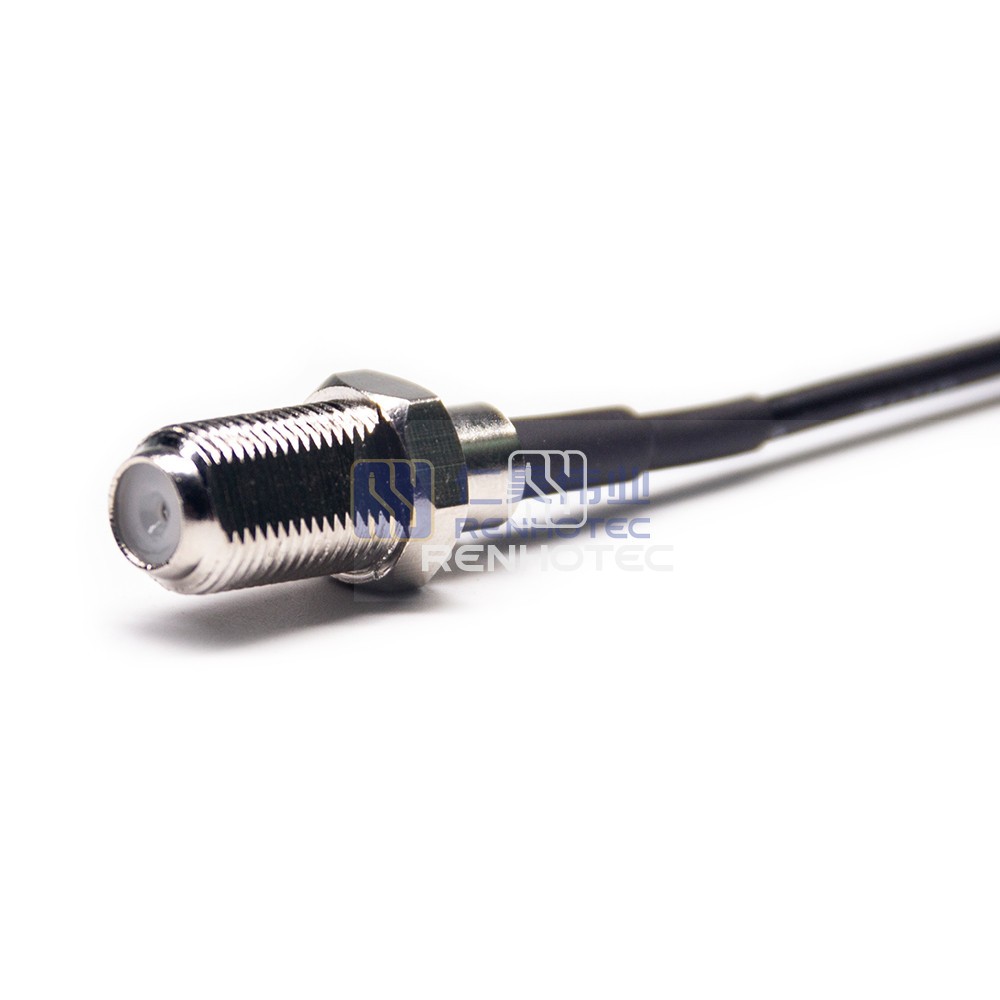

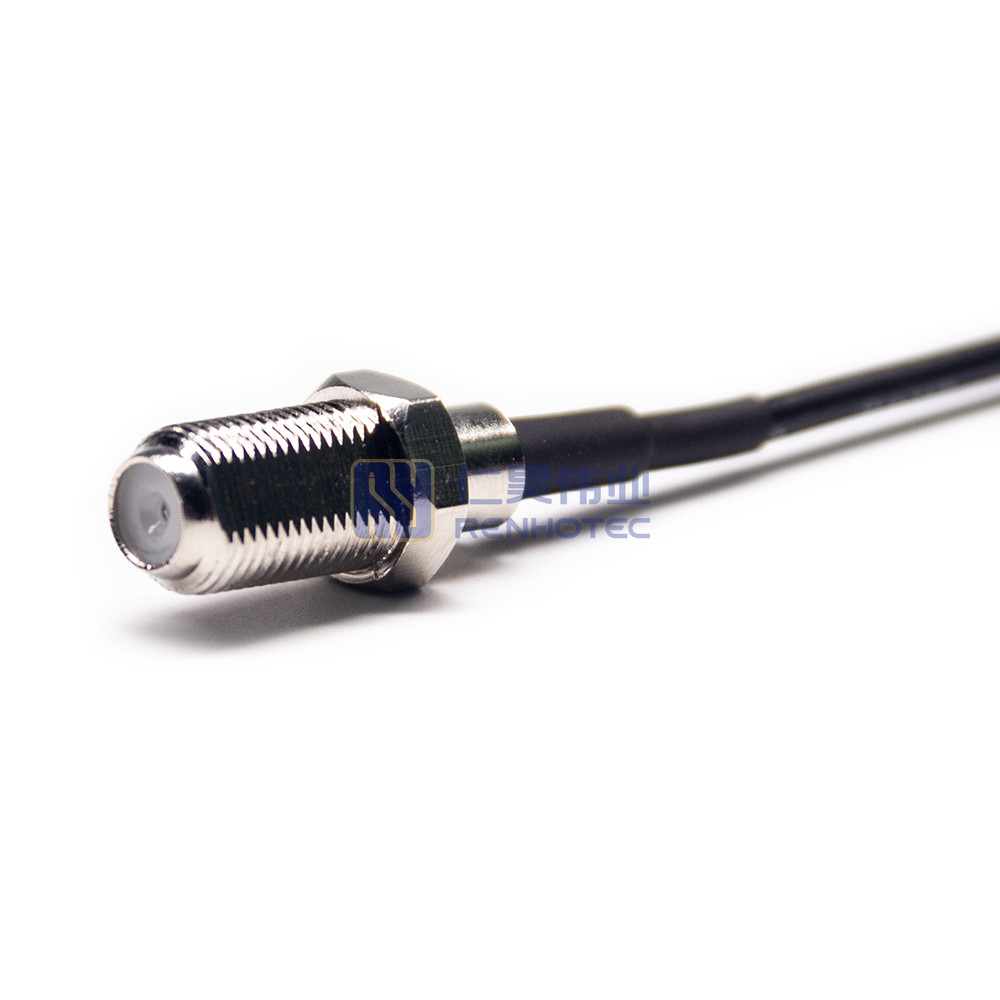

2nd Connector Series | F Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Straight |
Features | Hex |
Mechanical | |
---|---|
Suitable Cable | RG174 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
