R02-S02-10013-20

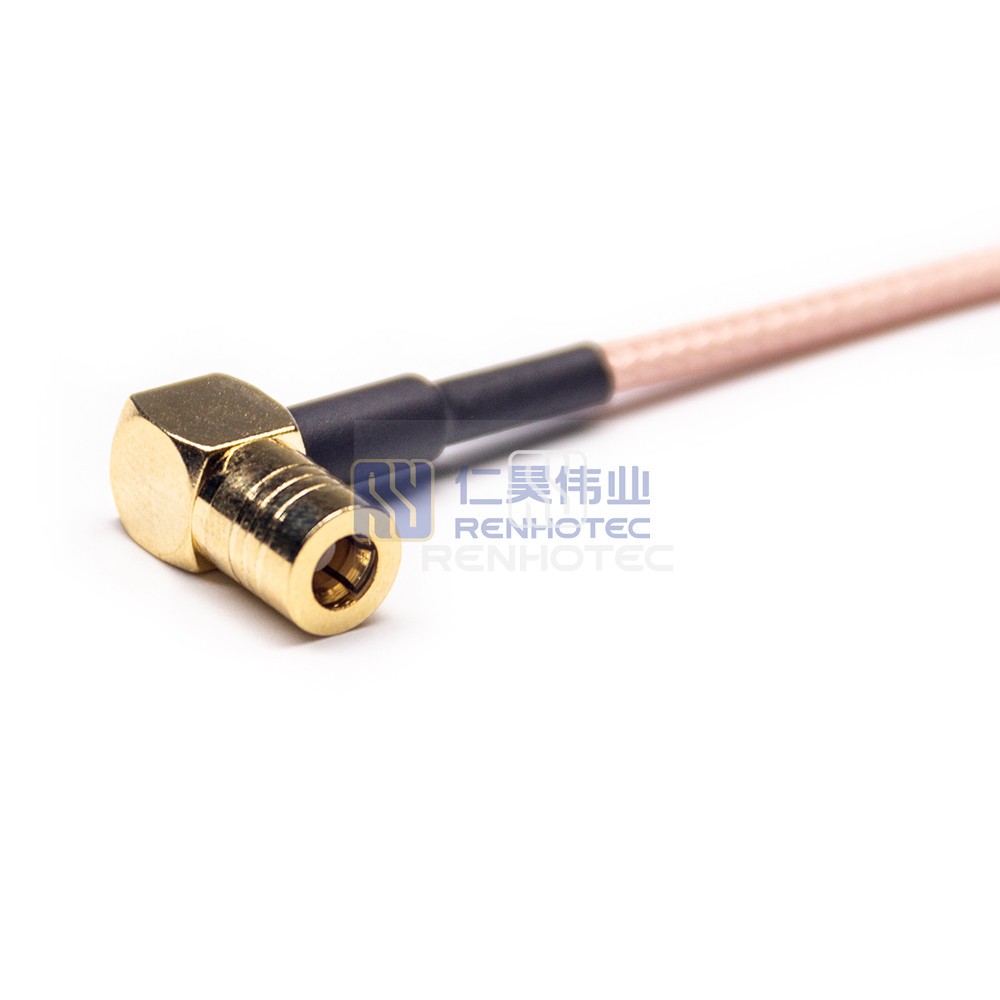

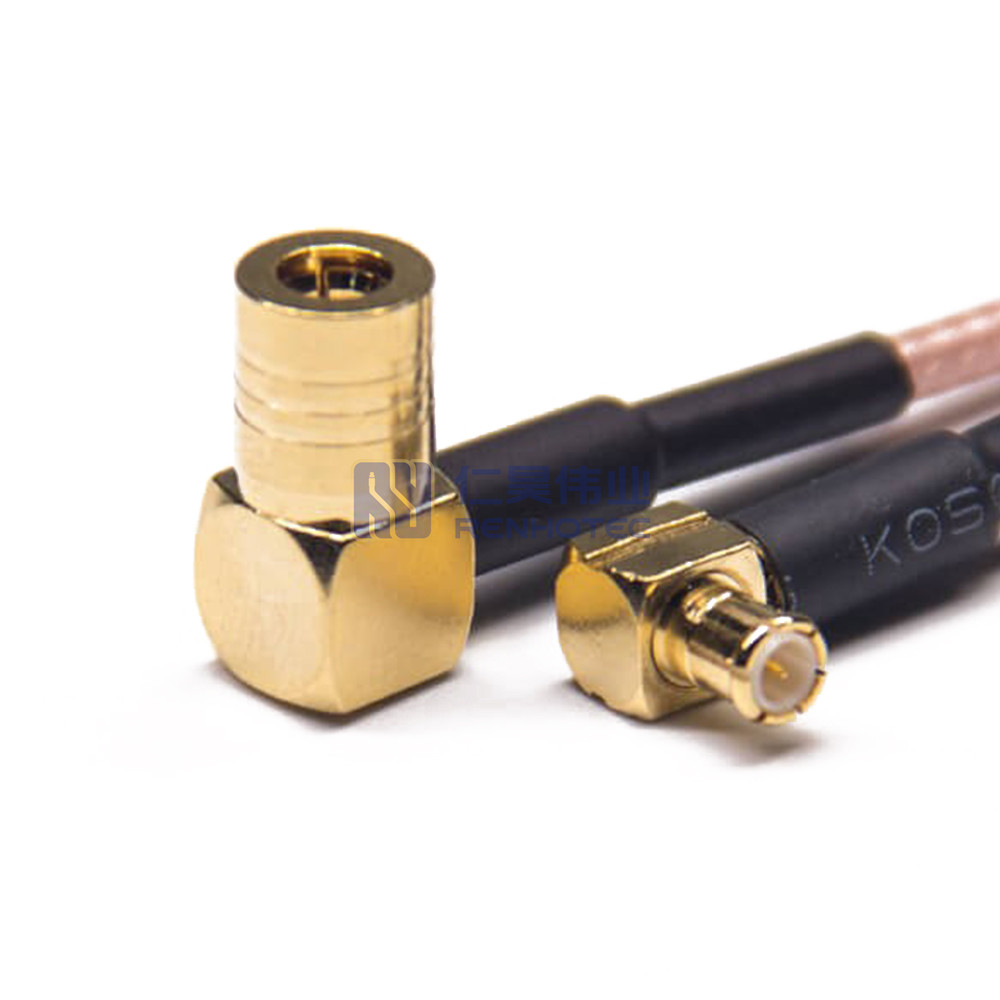

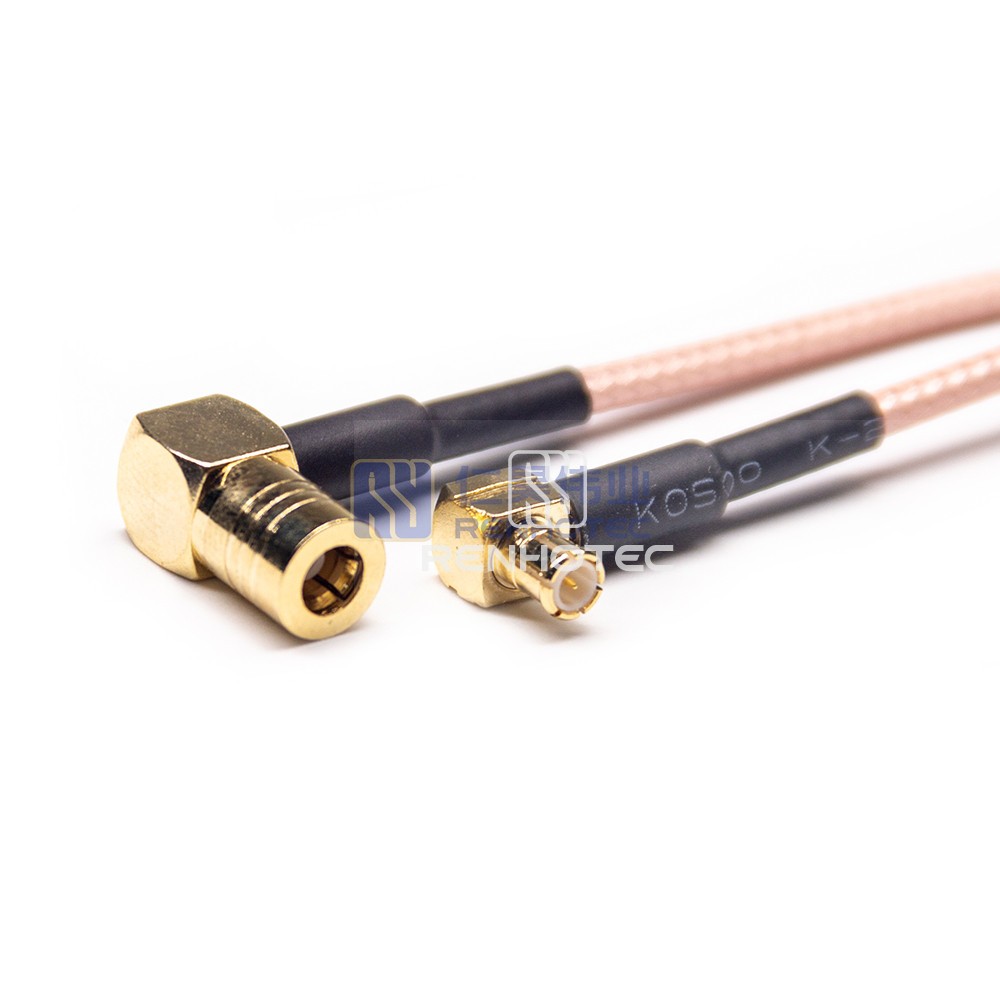

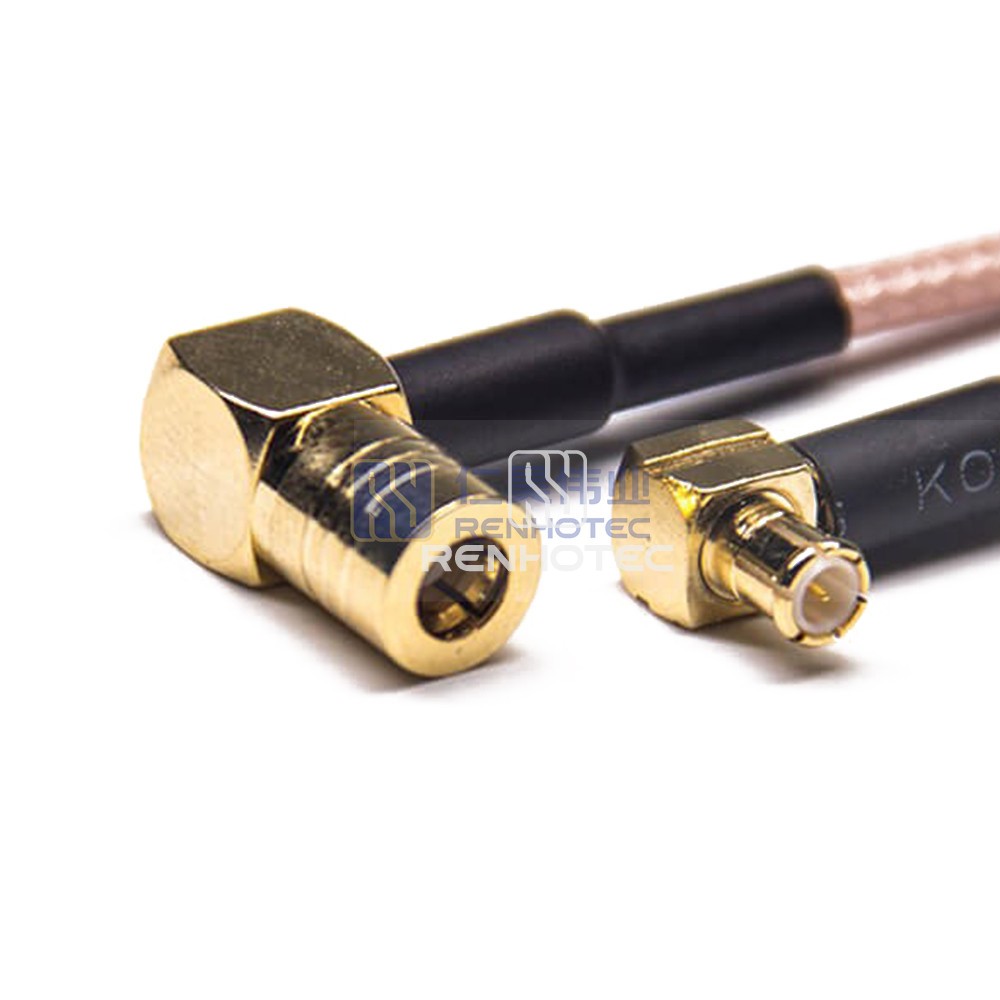

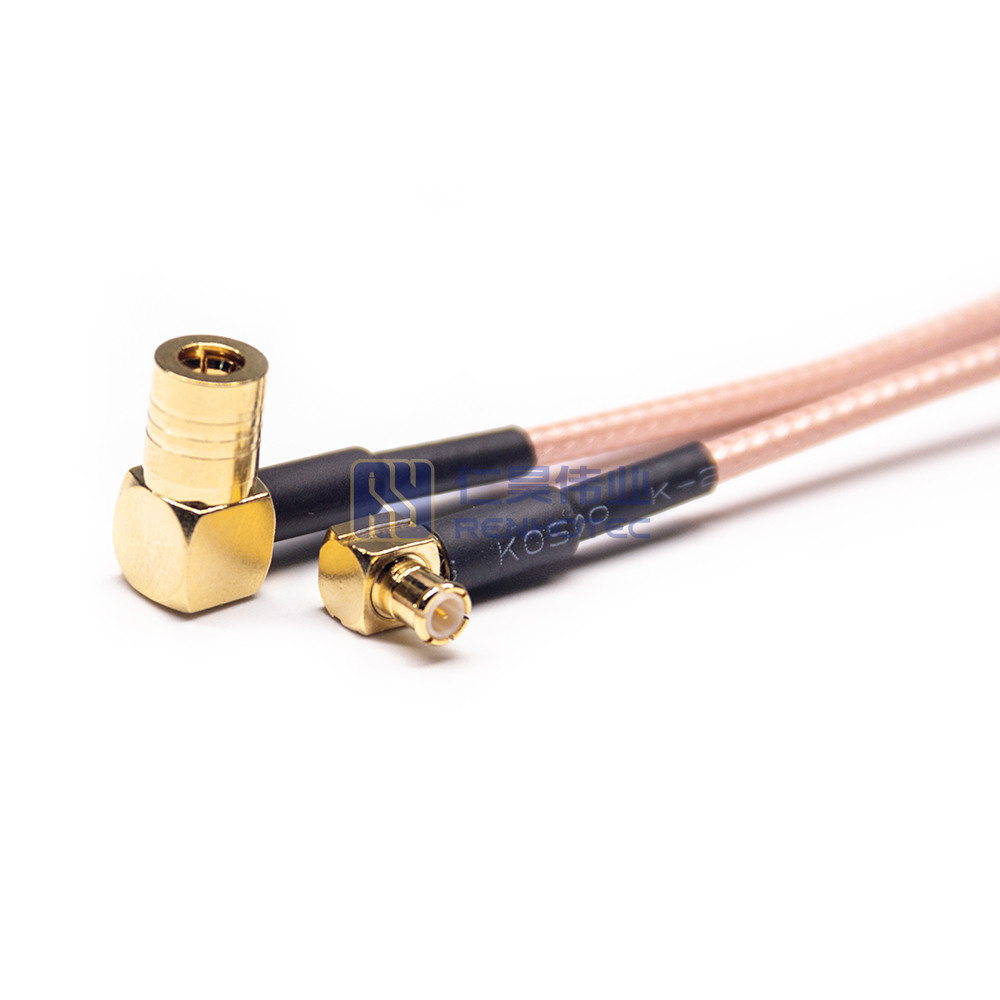

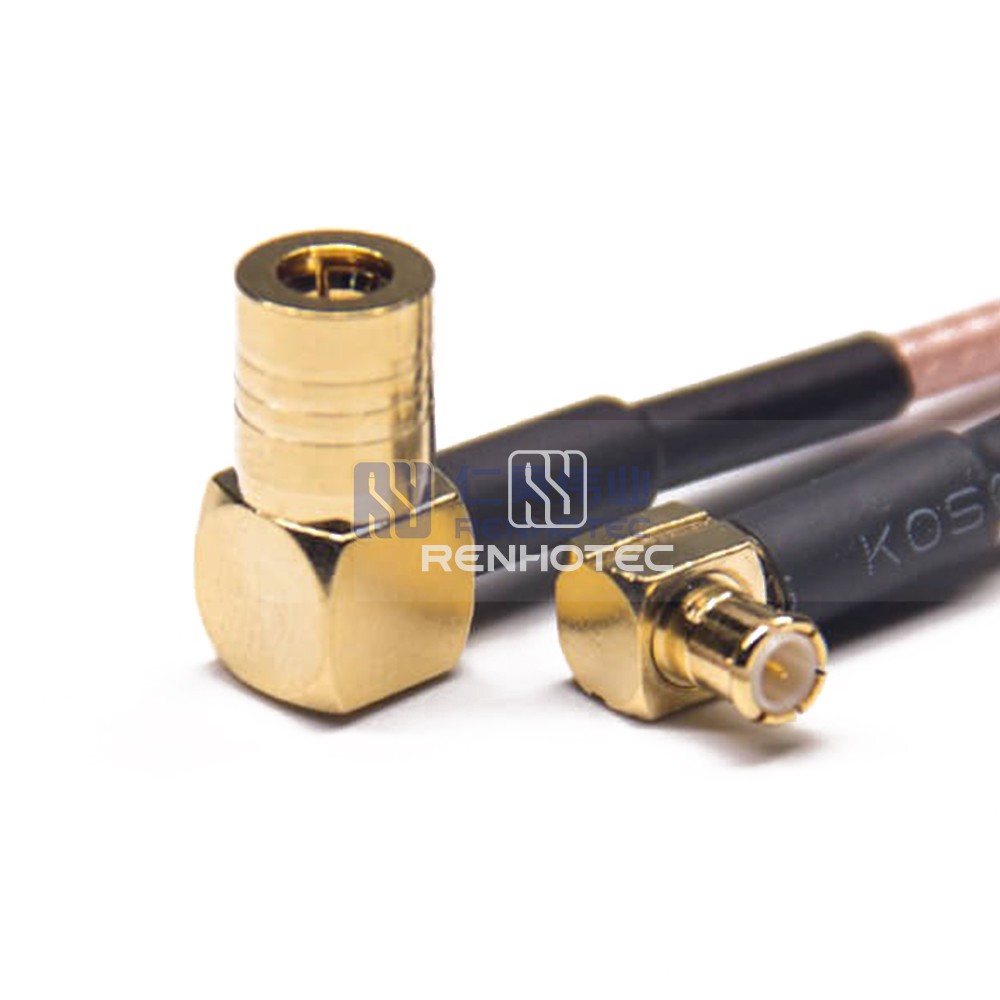

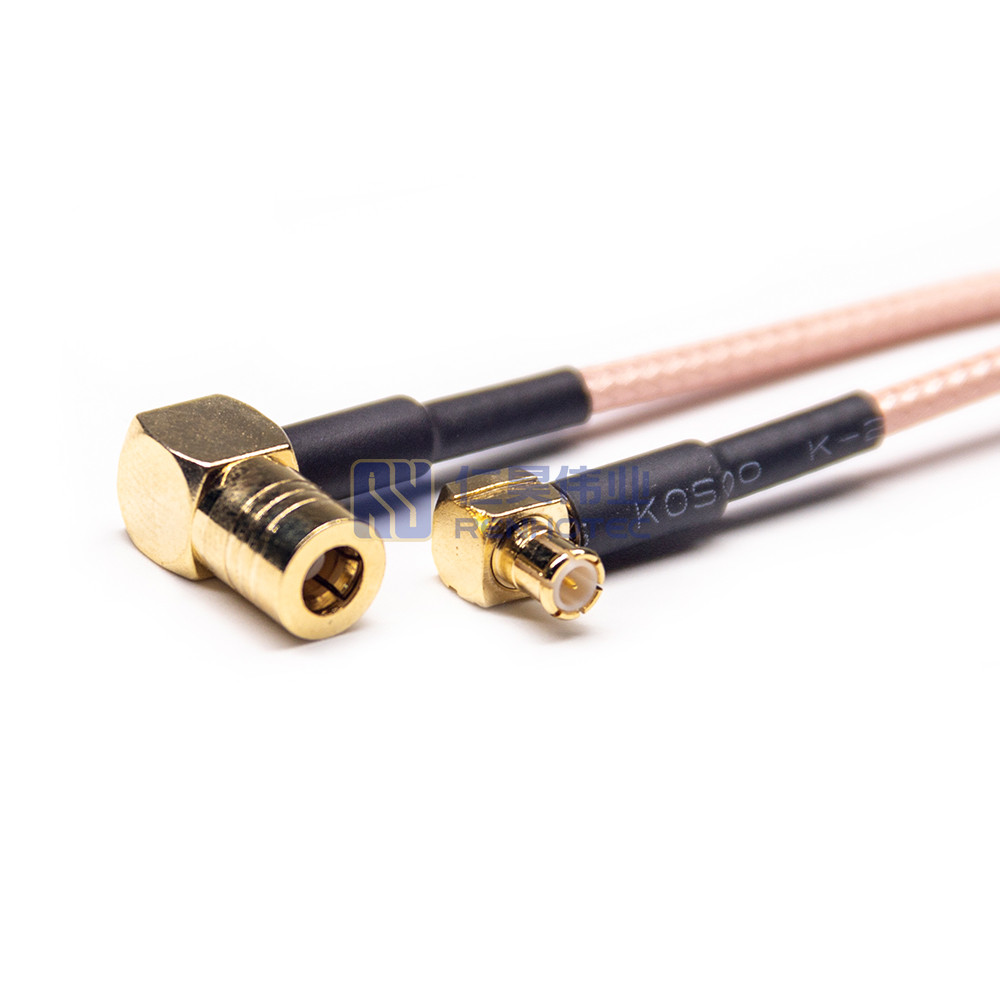

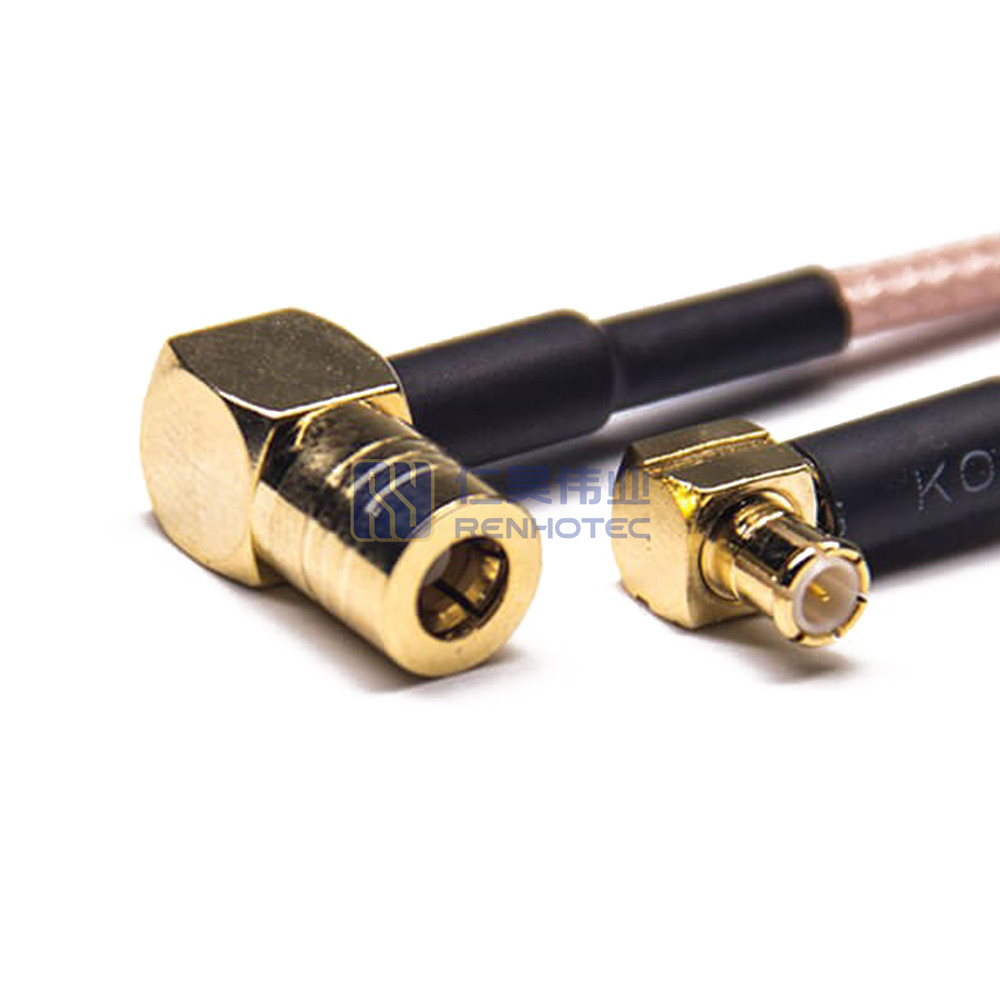

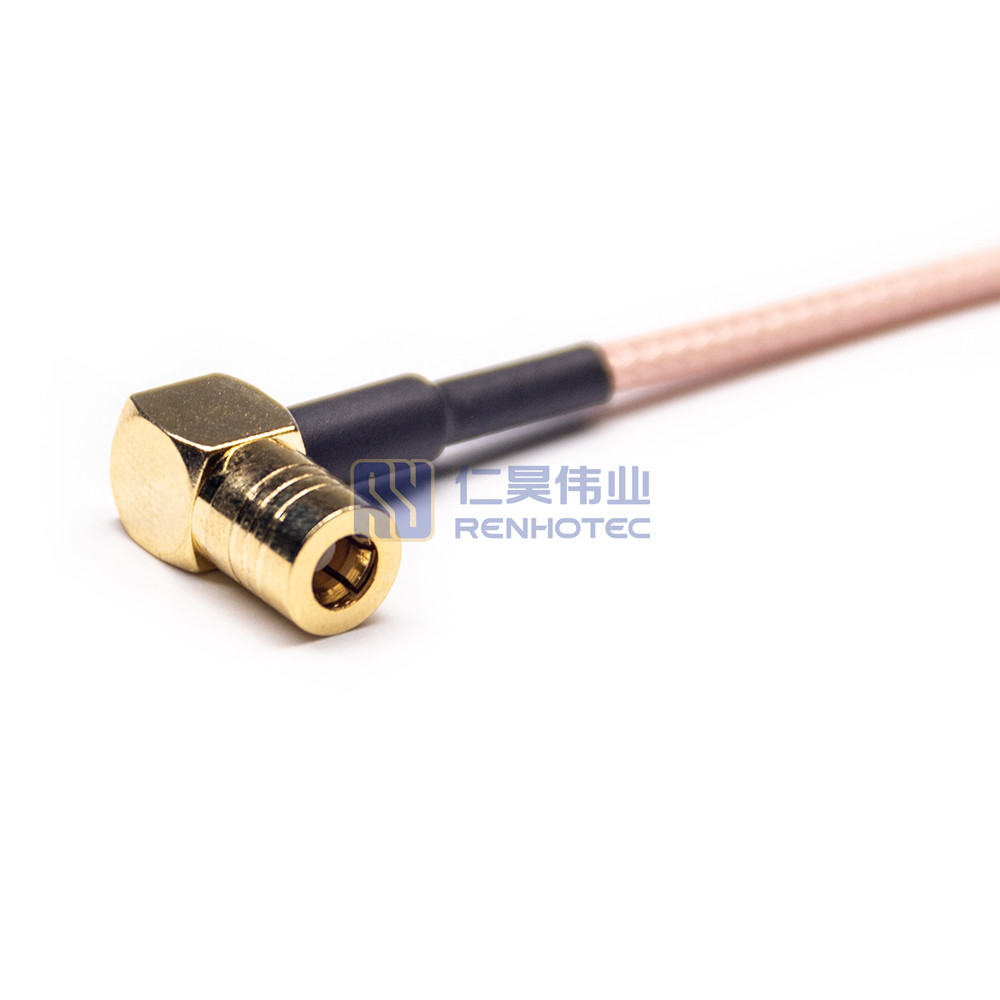

MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly featuring 50Ohm RG316 Coax. Ideal for RF signal transmission with precision and durability. SKU: R02-S02-10013-20.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesMCX Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesSMB Plug
2nd Contact TypeFemale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
