Products > RF Cable Assembly > MCX Male Right Angle to SMB Male RF Cable Assembly with 50Ohm RG174 Coax
R02-S02-10017-10
MCX Male Right Angle to SMB Male RF Cable Assembly with 50Ohm RG174 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
Get reliable RF signal transmission with the MCX Male Right Angle to SMB Male RF Cable Assembly. This 50Ohm RG174 Coax cable ensures seamless connectivity and high-quality performance.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | MCX Plug |
1st Contact Type | Male Pin |

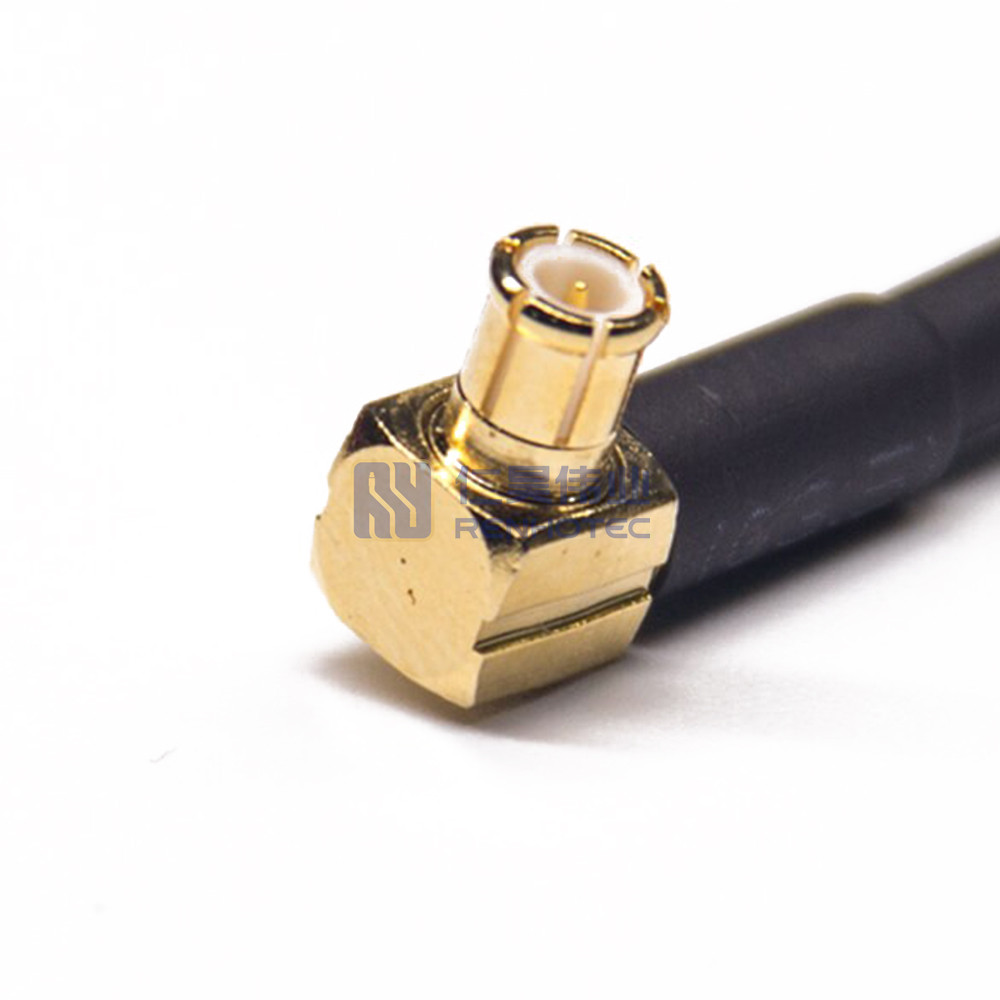

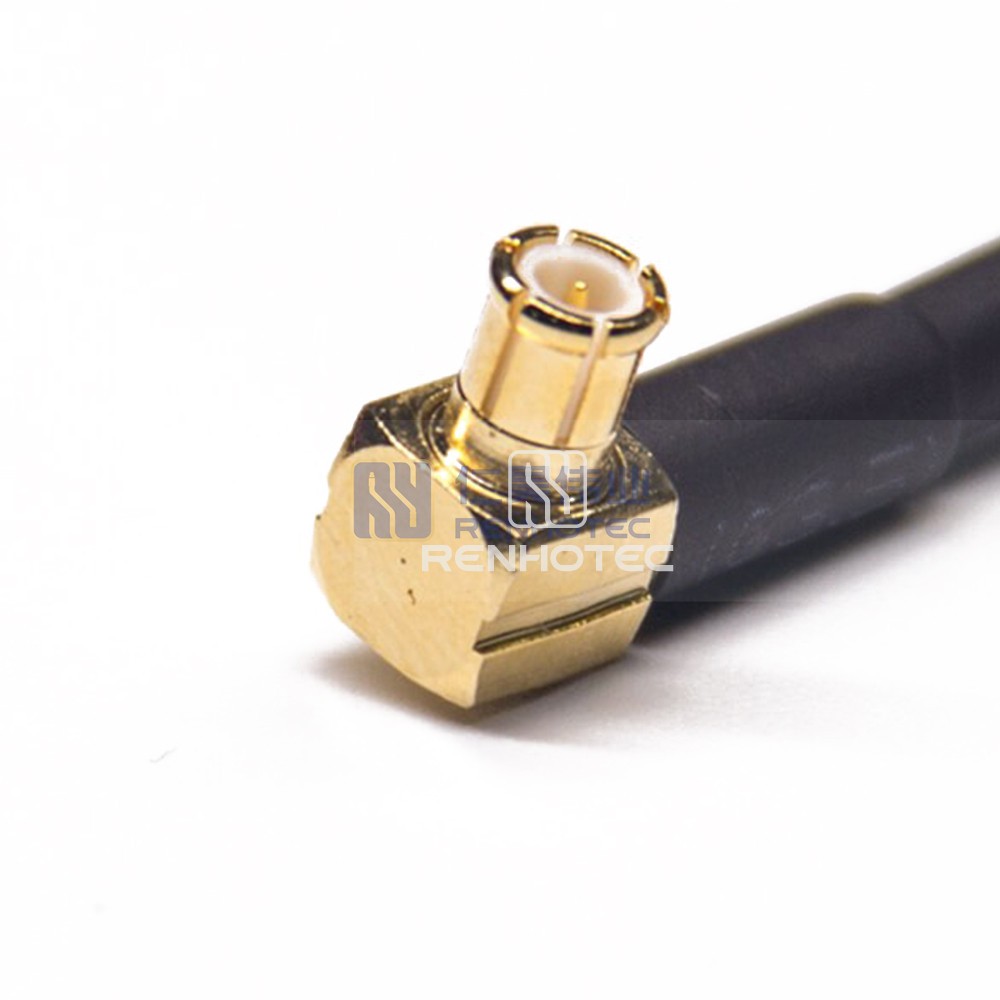

1st Connector Orientation | Right Angle |

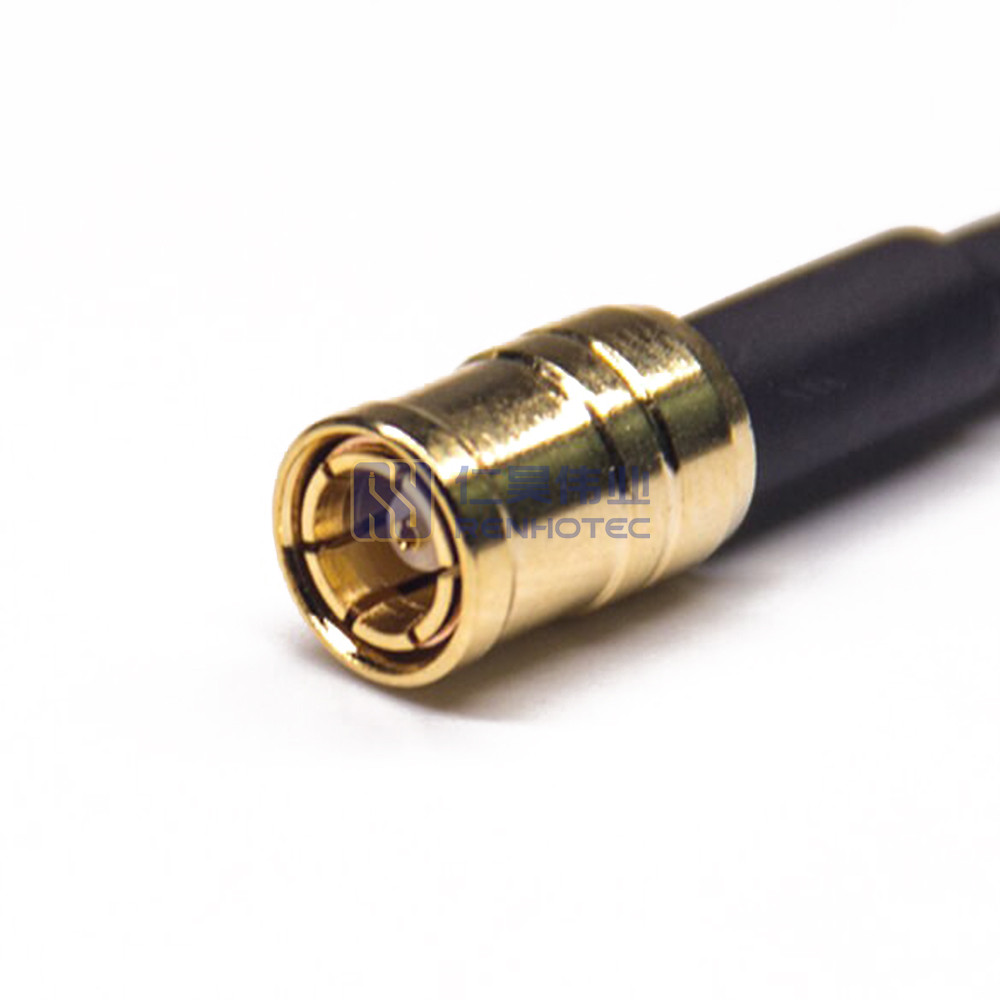

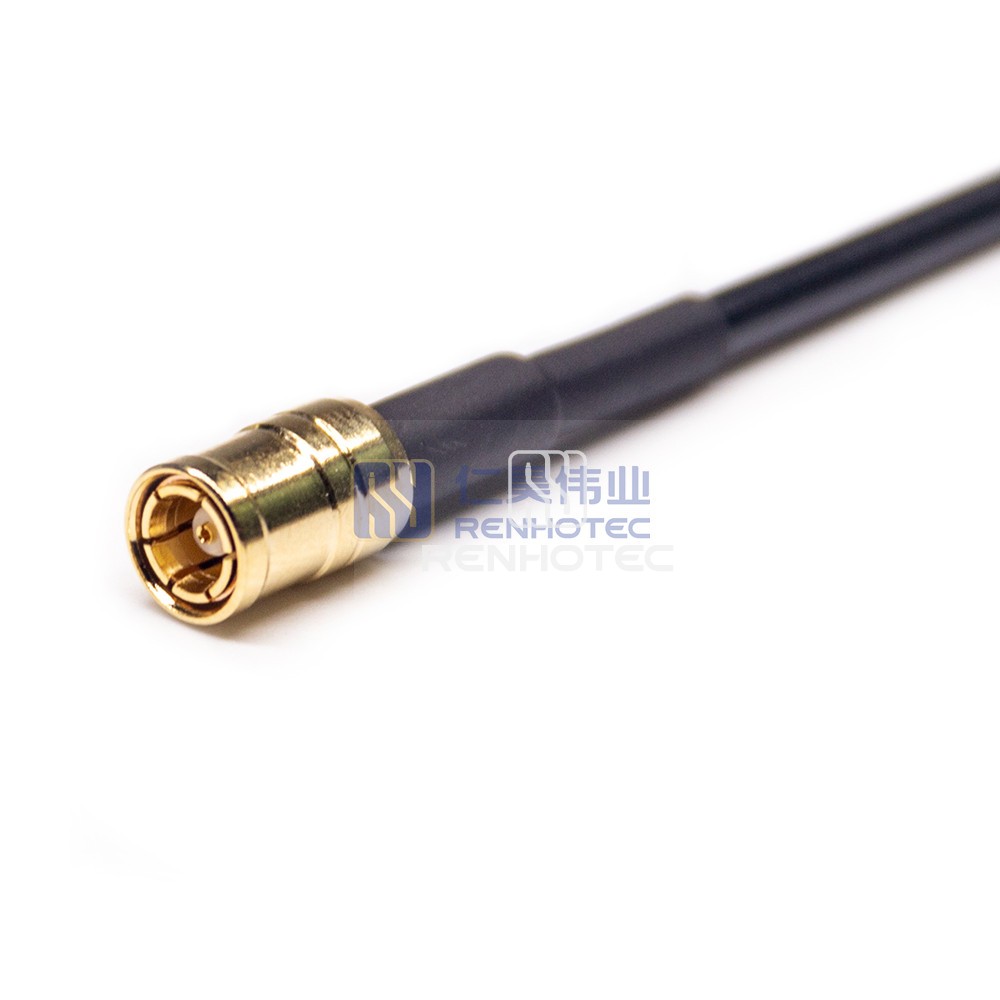

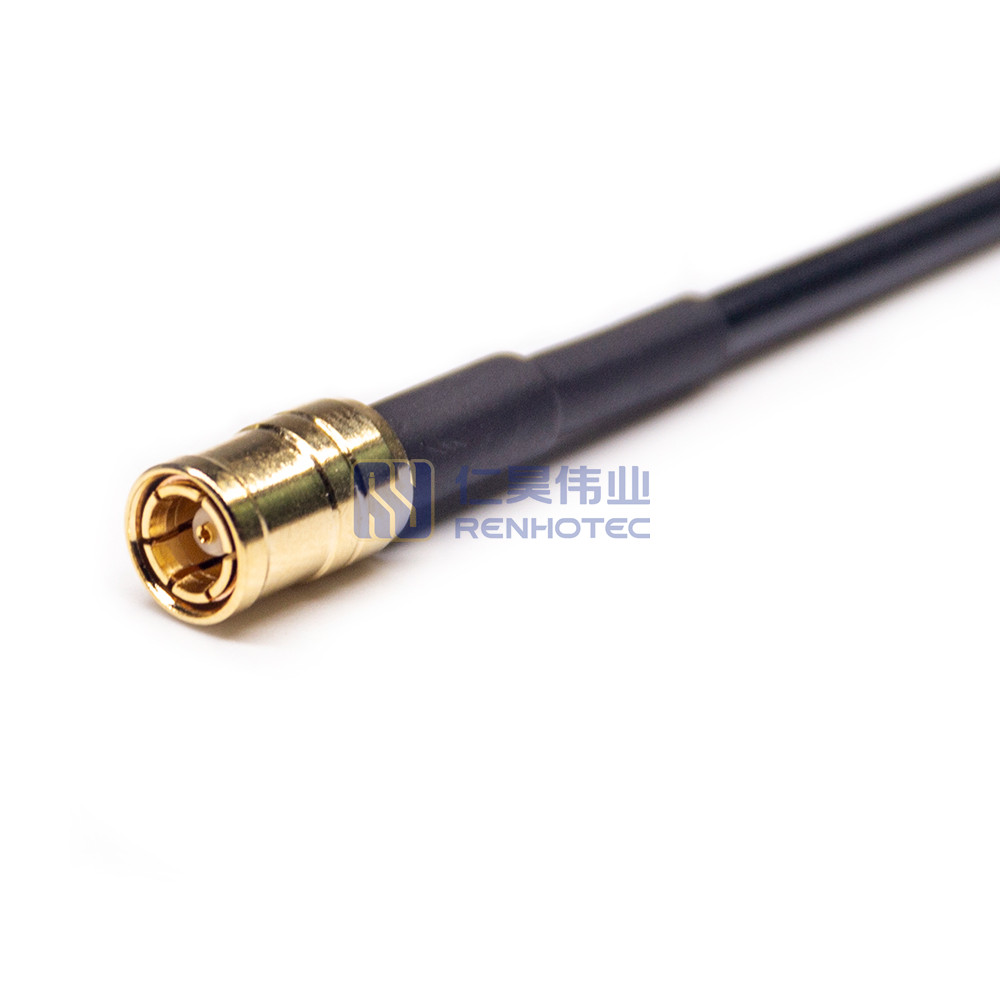

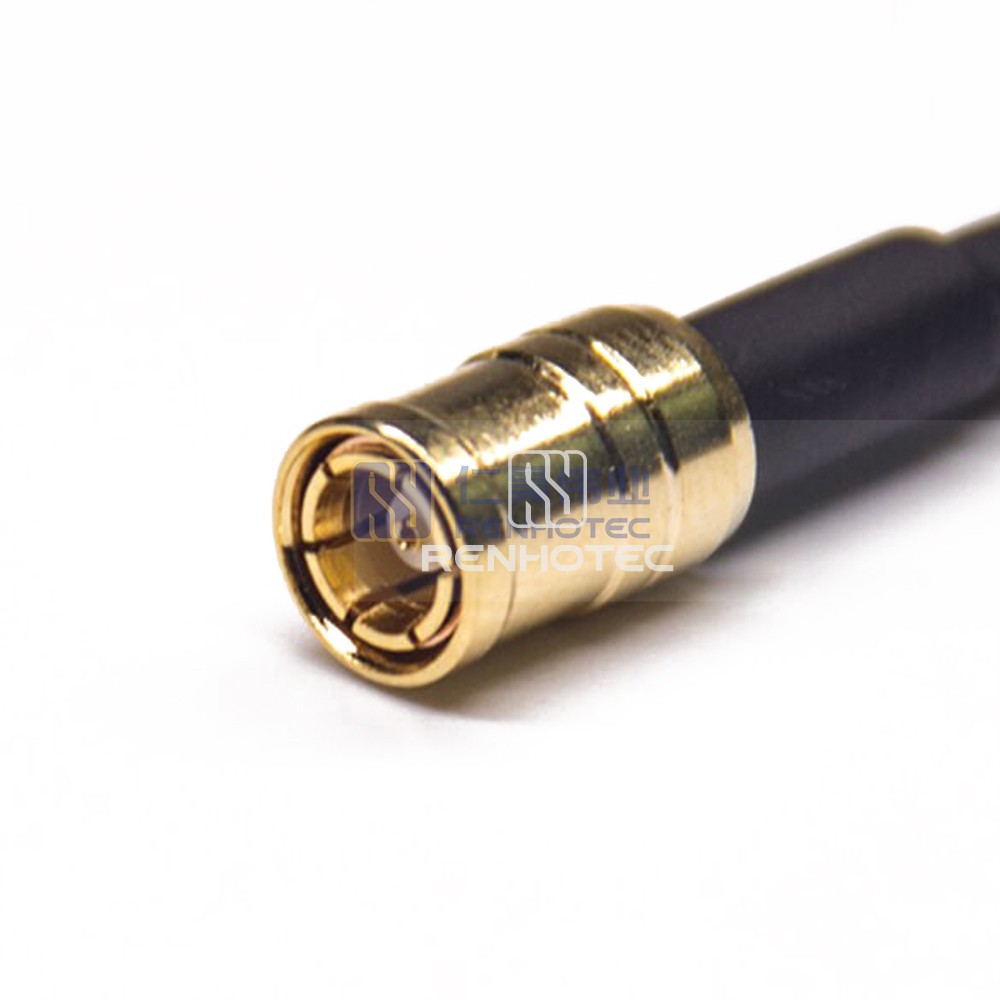

2nd Connector Series | SMB Plug |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Straight |
Mechanical | |
---|---|
Suitable Cable | RG174 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
