R02-M02-10010-100

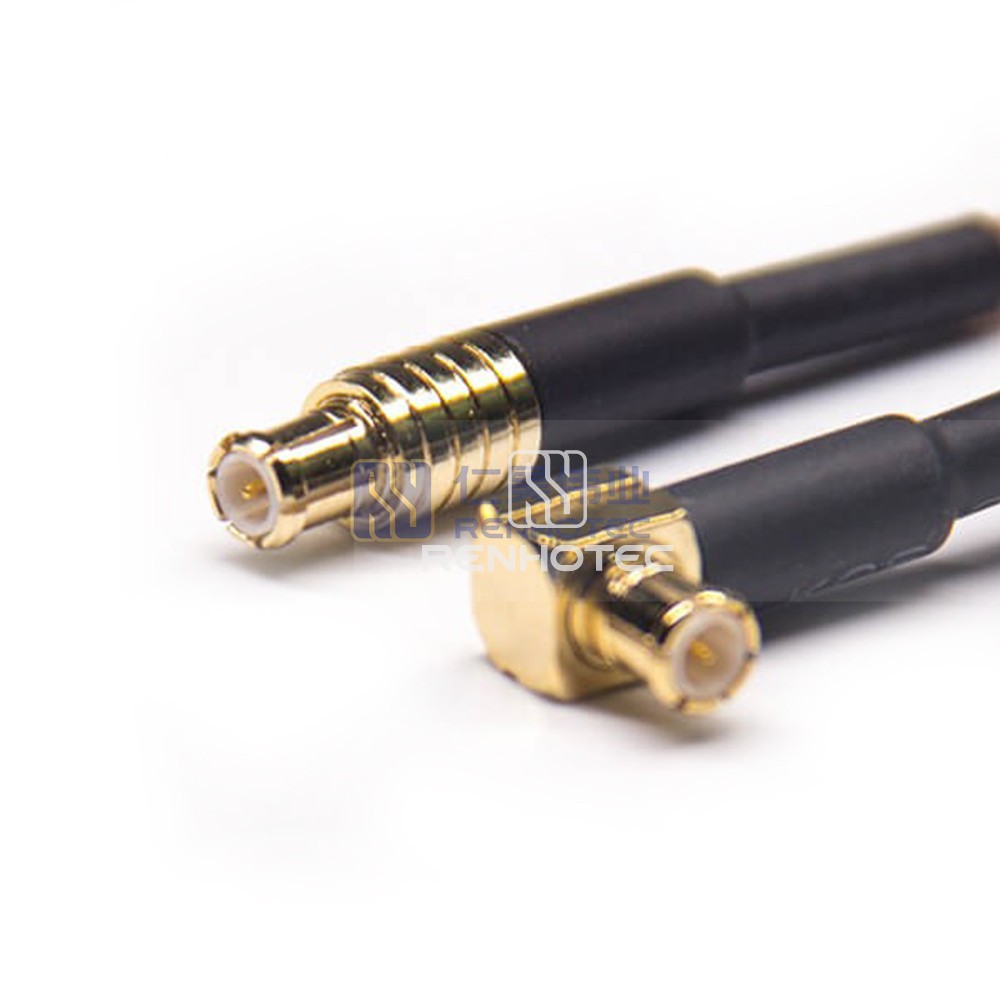

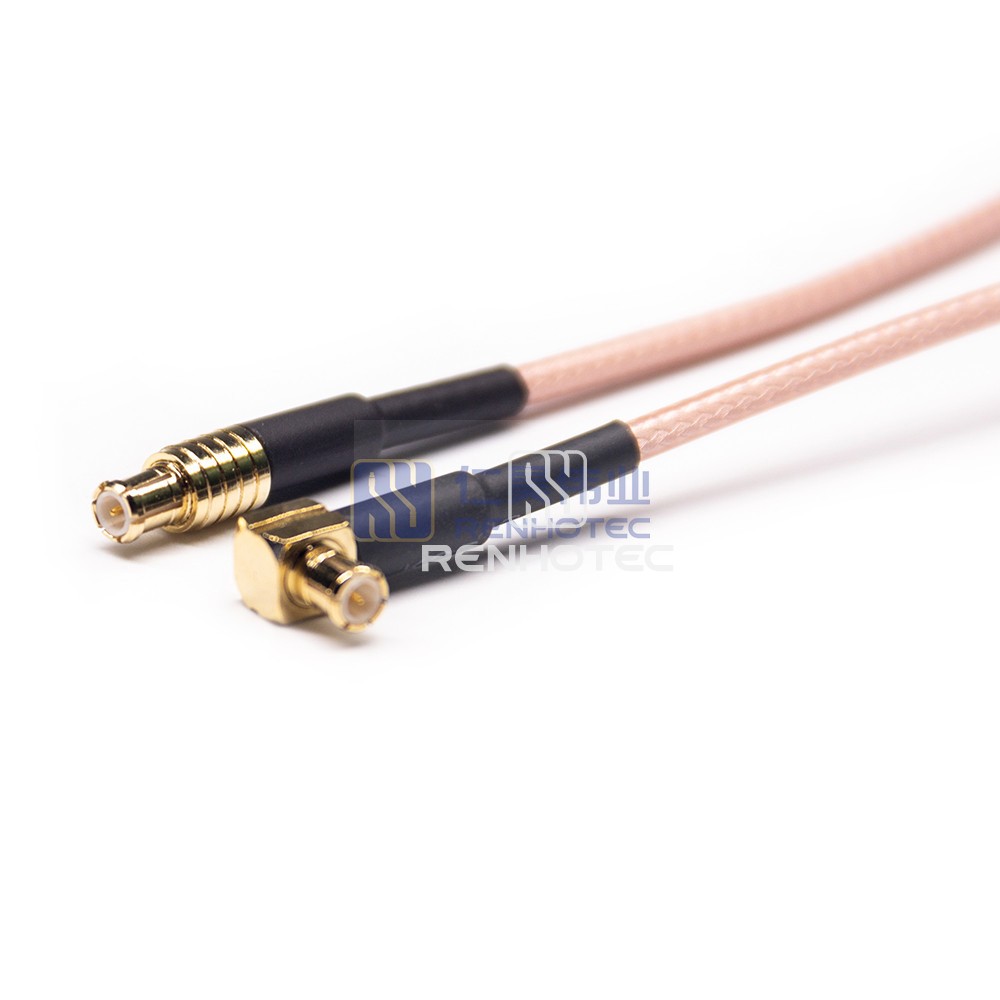

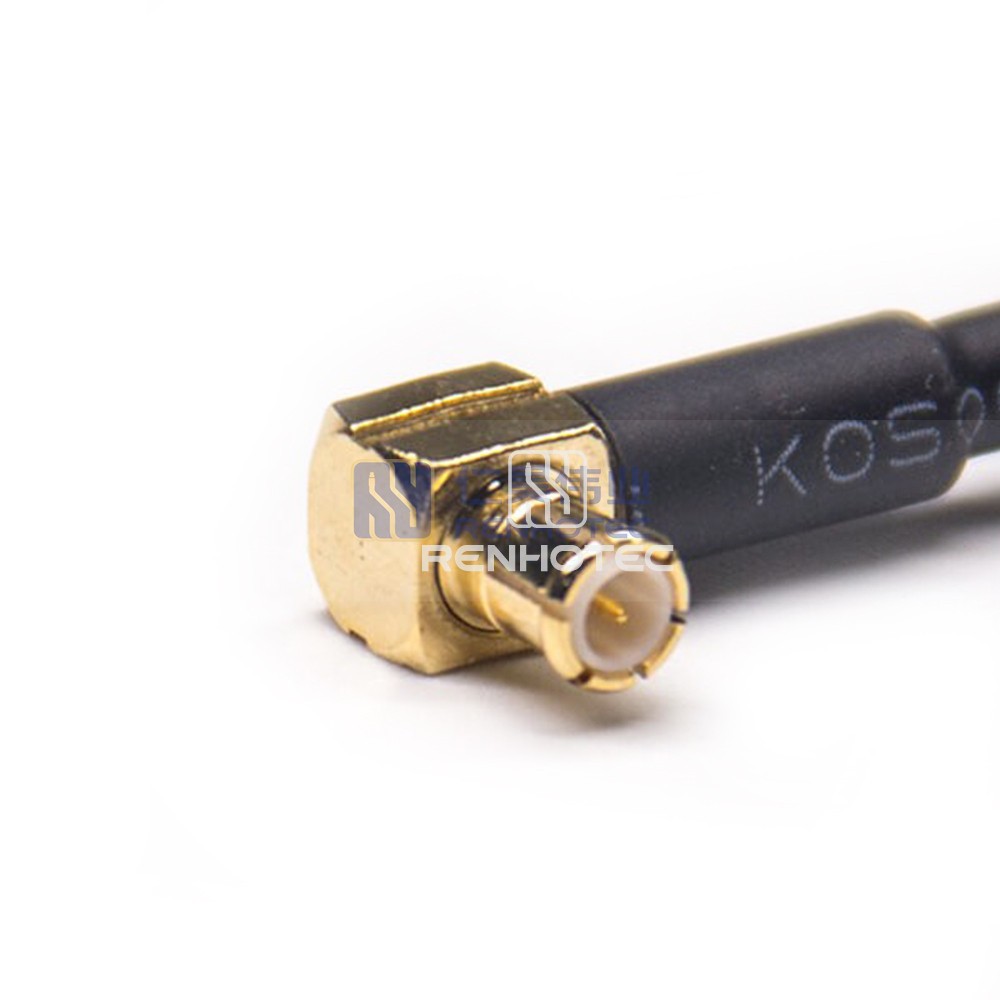

MCX Male Right Angle to MCX Male Cable Assembly with 50Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

This MCX Male Right Angle to MCX Male Cable Assembly is designed with 50Ohm RG316 Coax for optimal signal transfer.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesMCX Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
