Products > RF Cable Assembly > MCX Male Right Angle to MCX Female Right Angle Cable Assembly with 50Ohm RG316 Coax
R02-M02-10019-20

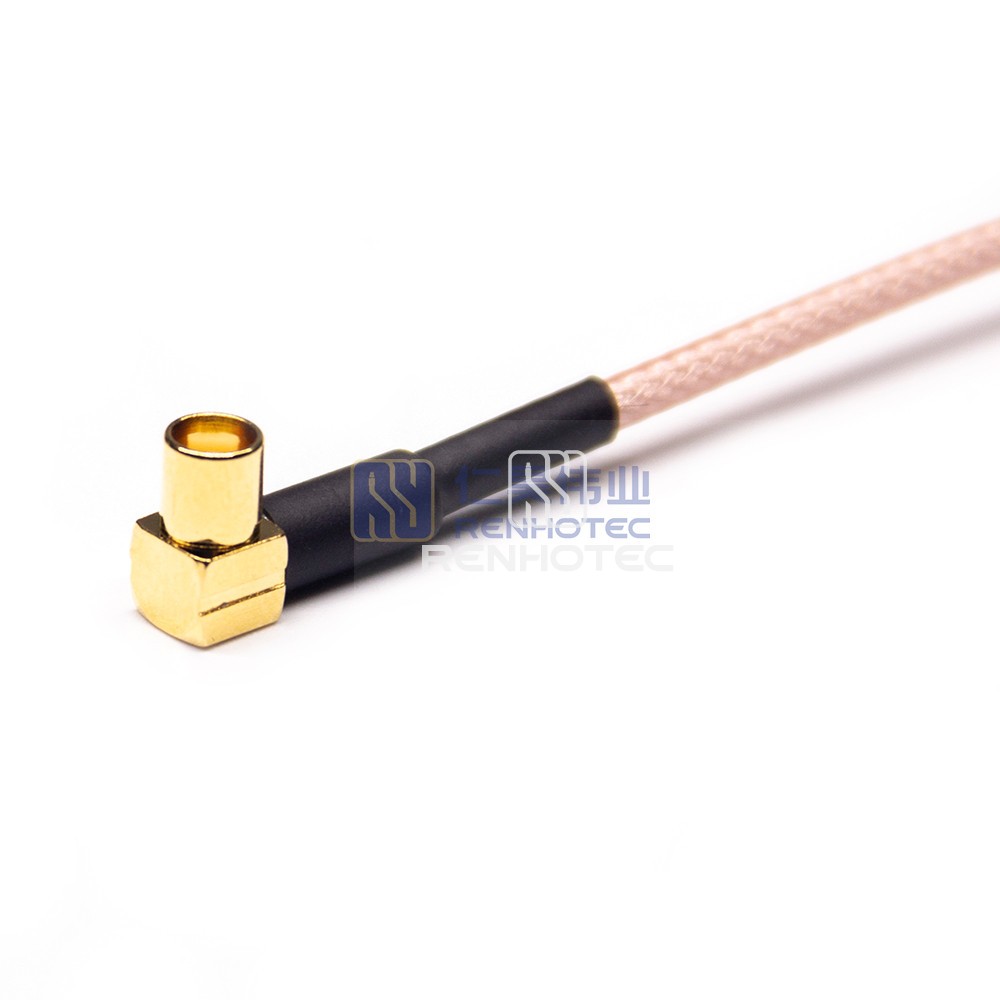

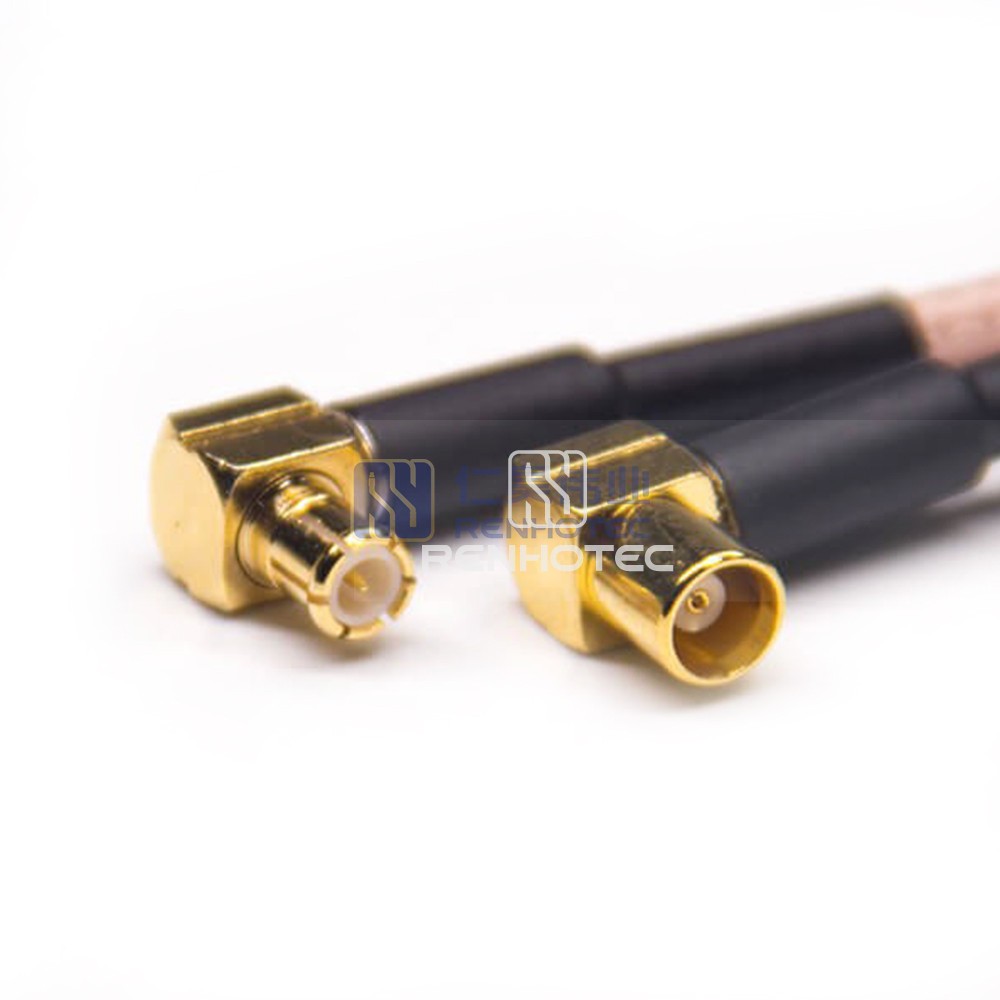

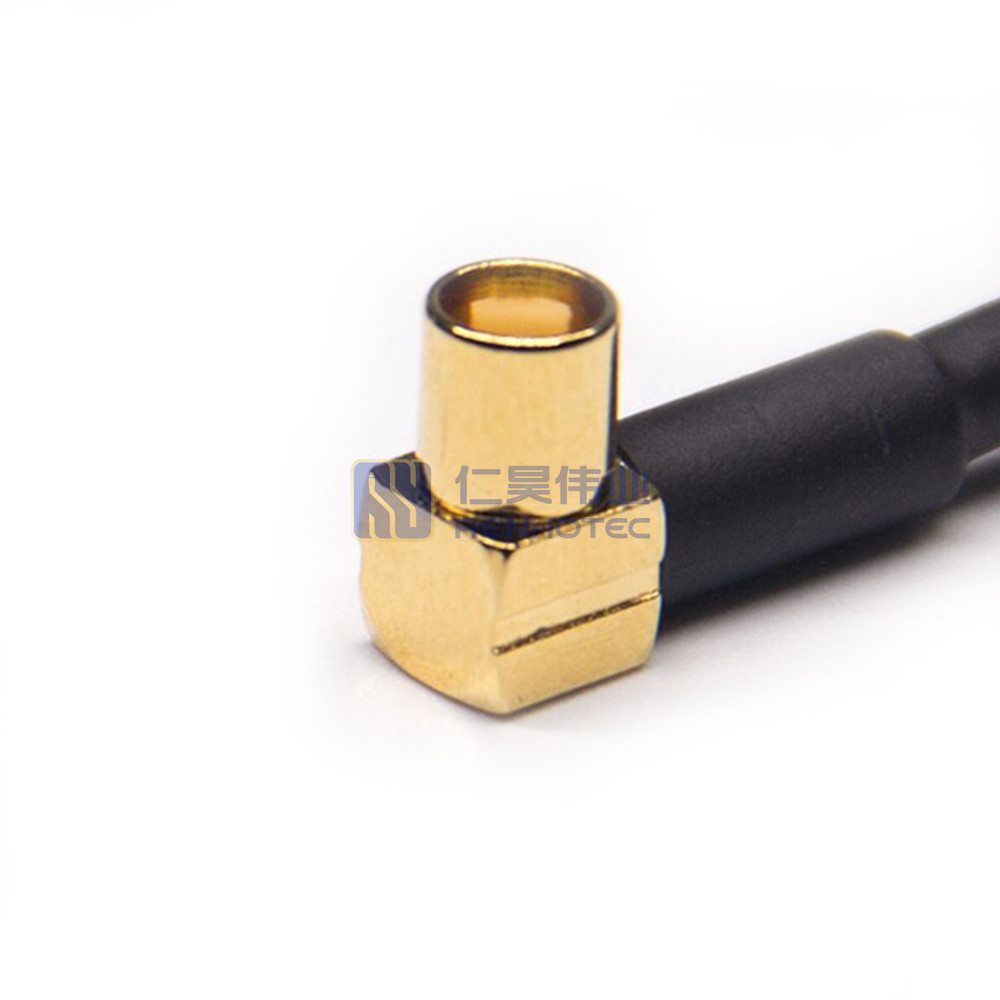

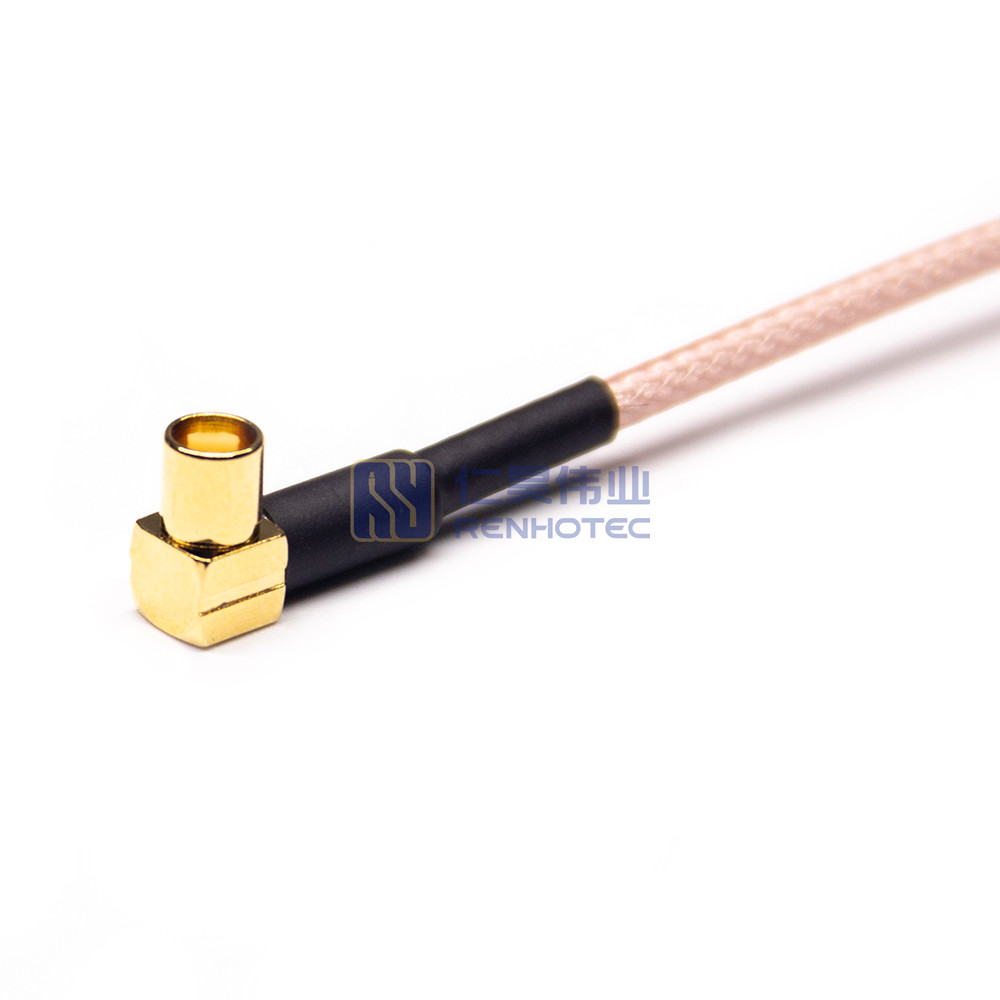

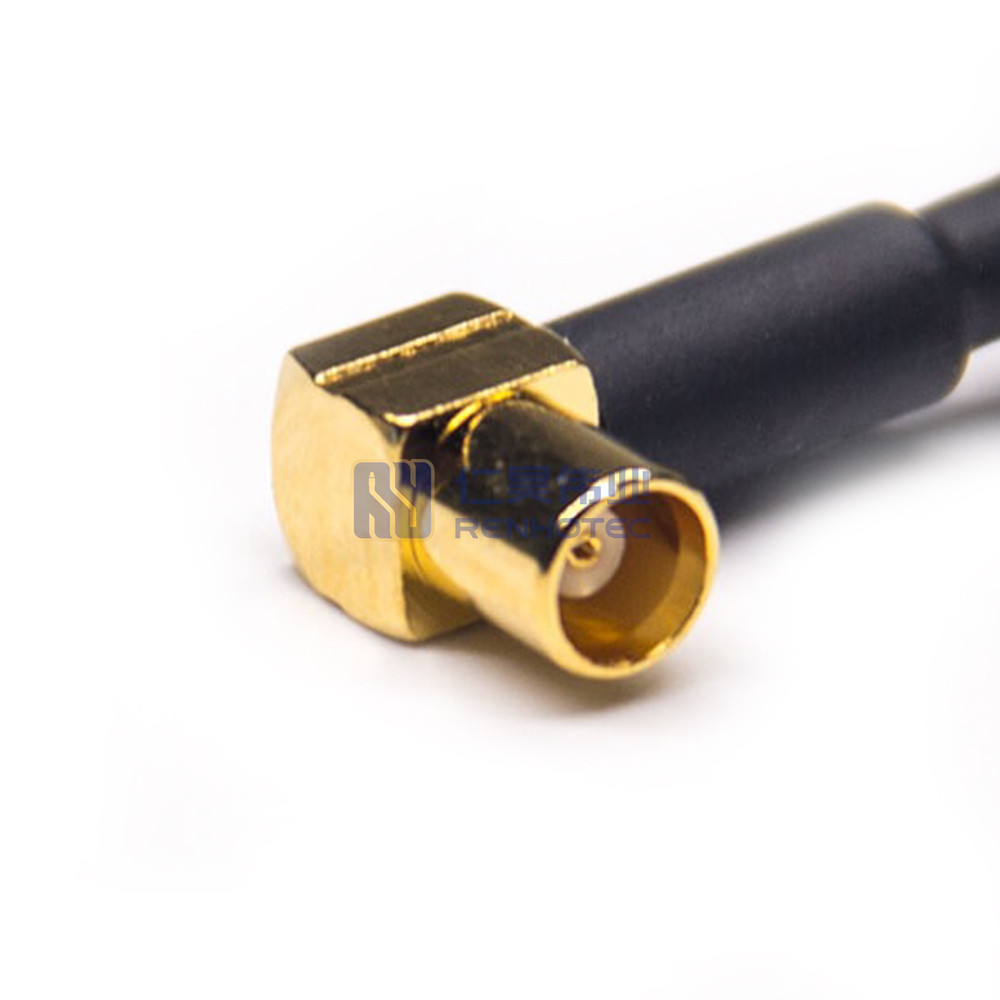

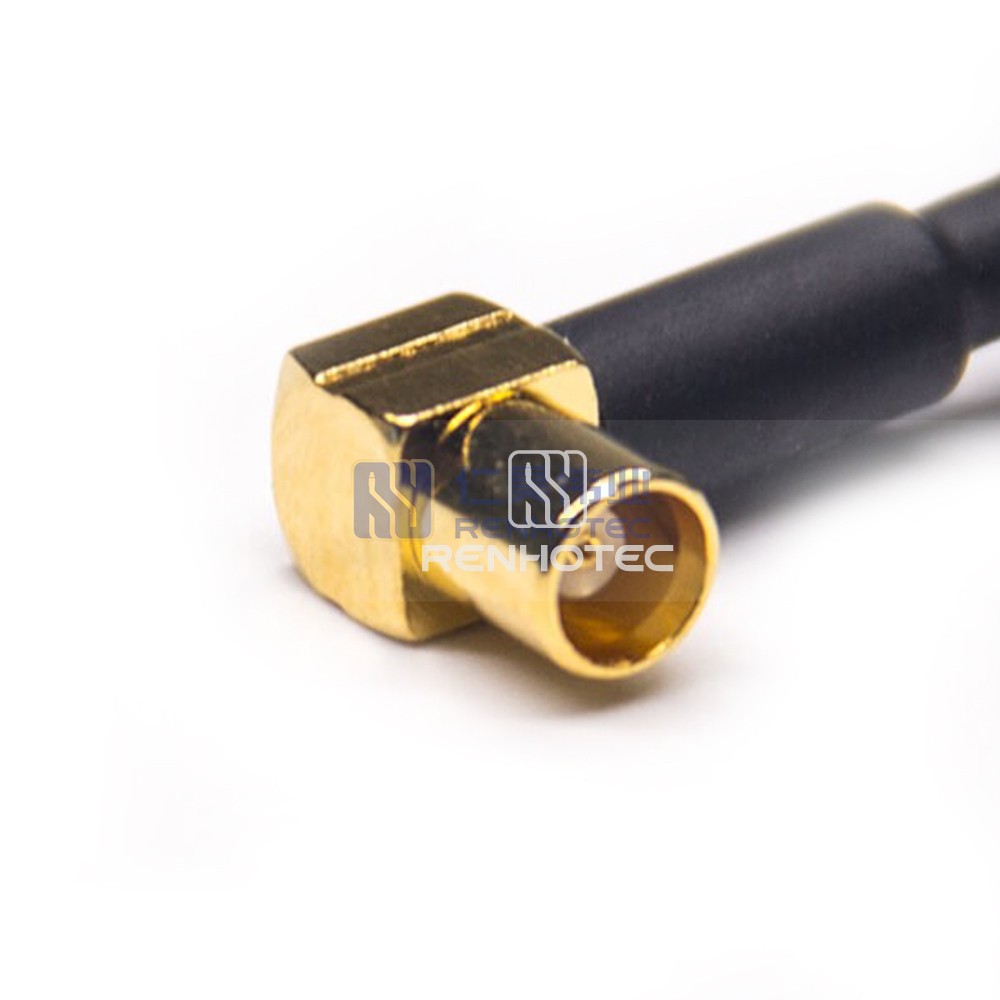

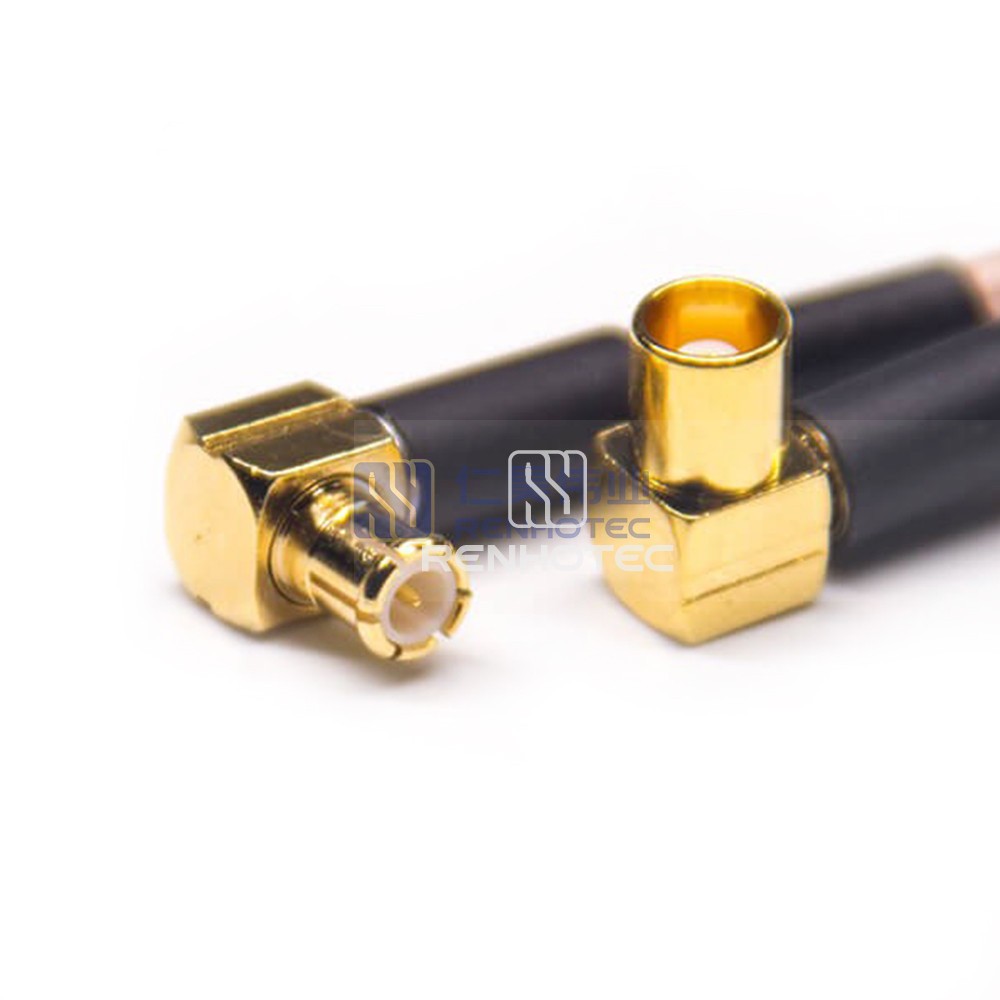

MCX Male Right Angle to MCX Female Right Angle Cable Assembly with 50Ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure reliable RF signal transmission with this MCX Male Right Angle to MCX Female Right Angle Cable Assembly featuring 50Ohm RG316 Coax. Ideal for connecting antennas, radios, and other RF devices with precision and durability.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | MCX Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Right Angle |
2nd Connector Series | MCX Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
