Products > Push-Pull Connector > K Series Push Pull Self-locking Connector Plug Male Straight FGG 0K 305 CLA
FGG.0K.305.CLA

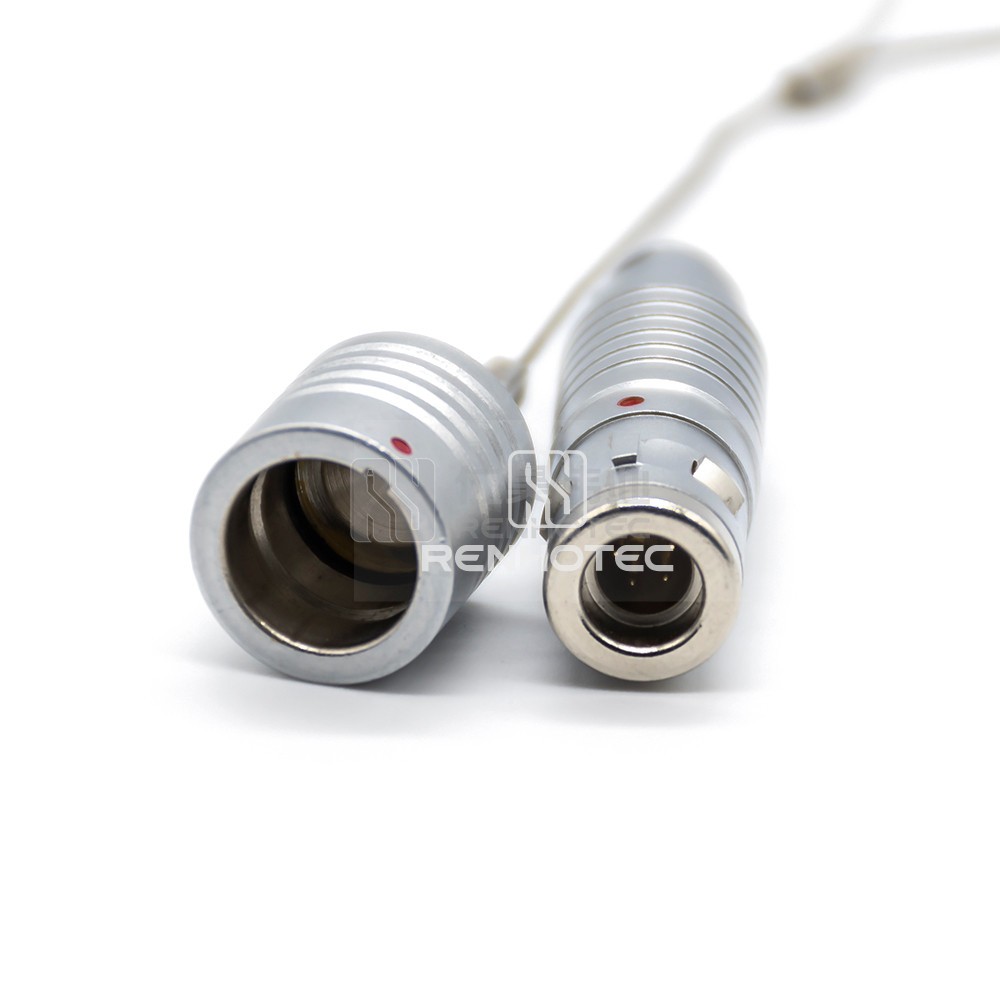

K Series Push Pull Self-locking Connector Plug Male Straight FGG 0K 305 CLA- Overview
- Technical data
- Certification
- Download
Product excerpt
Buy the K Series Push Pull Self-locking Connector Plug Male Straight FGG 0K 305 CLA for secure and reliable connections. This connector is designed for easy use and durability.
GeneralShellMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Positions | 5 |
| Contact Termination | Solder |
| Shell | |
|---|---|
| Shell Size | M9 |
| Mechanical | |
|---|---|
| Fastening Type | Snap on |
| Mounting Type | Cable Type |
| Wire Gauge or Range | 30-22AWG |
| Material | |
|---|---|
| Shell Material | Copper Alloy |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Insulating Material | PPS |
| Electrical | |
|---|---|
| Shielding | Shielded |
| Rated Current | 6.5A |
| Environmental | |
|---|---|
| Operating Temperature | -55°C ~ + 150°C |
Catelog
| RENHOTEC Push-Pull Self-Locking Connetor [EN] | Download |
