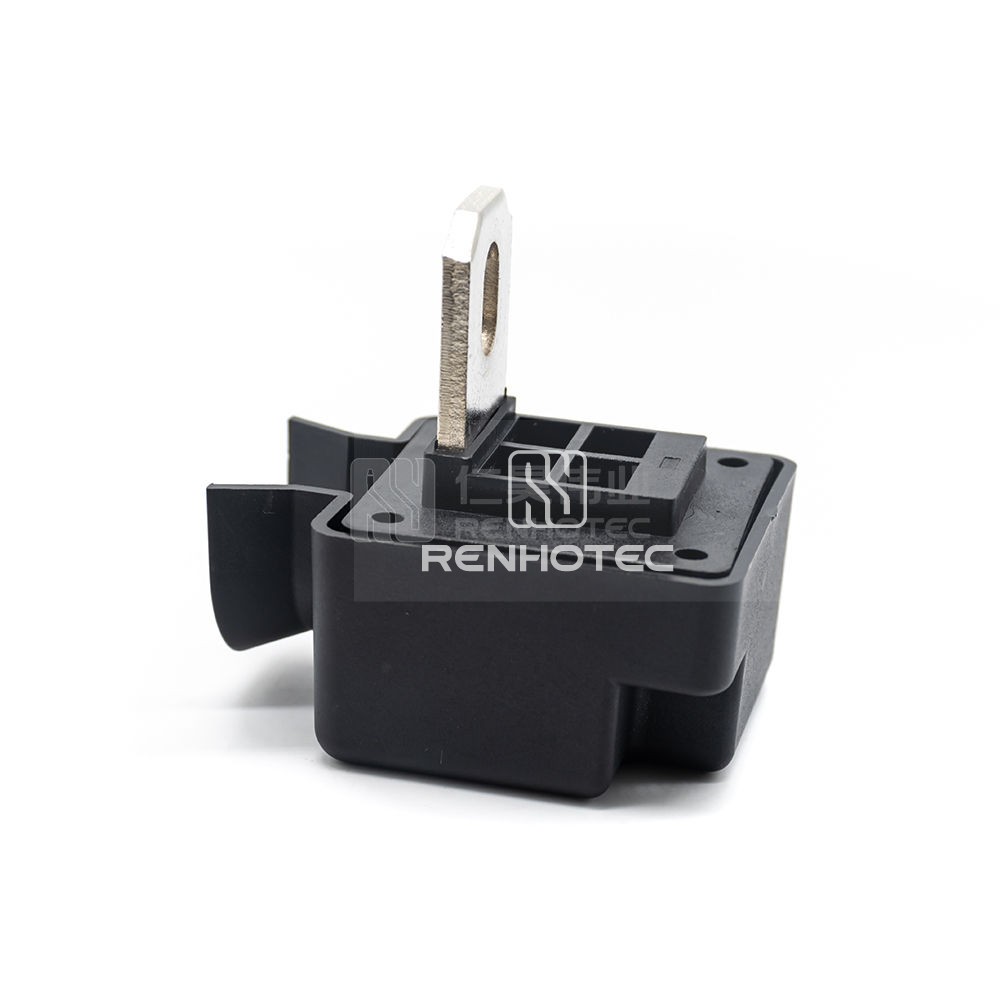

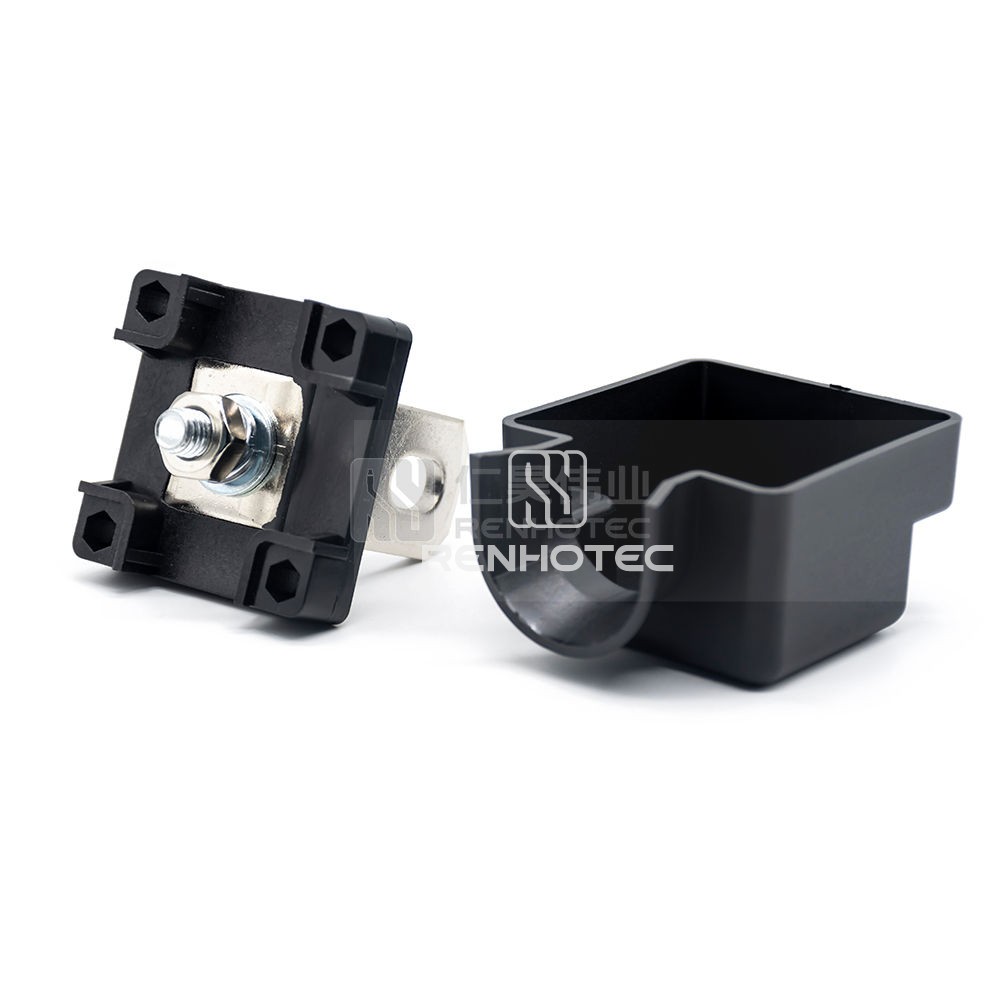

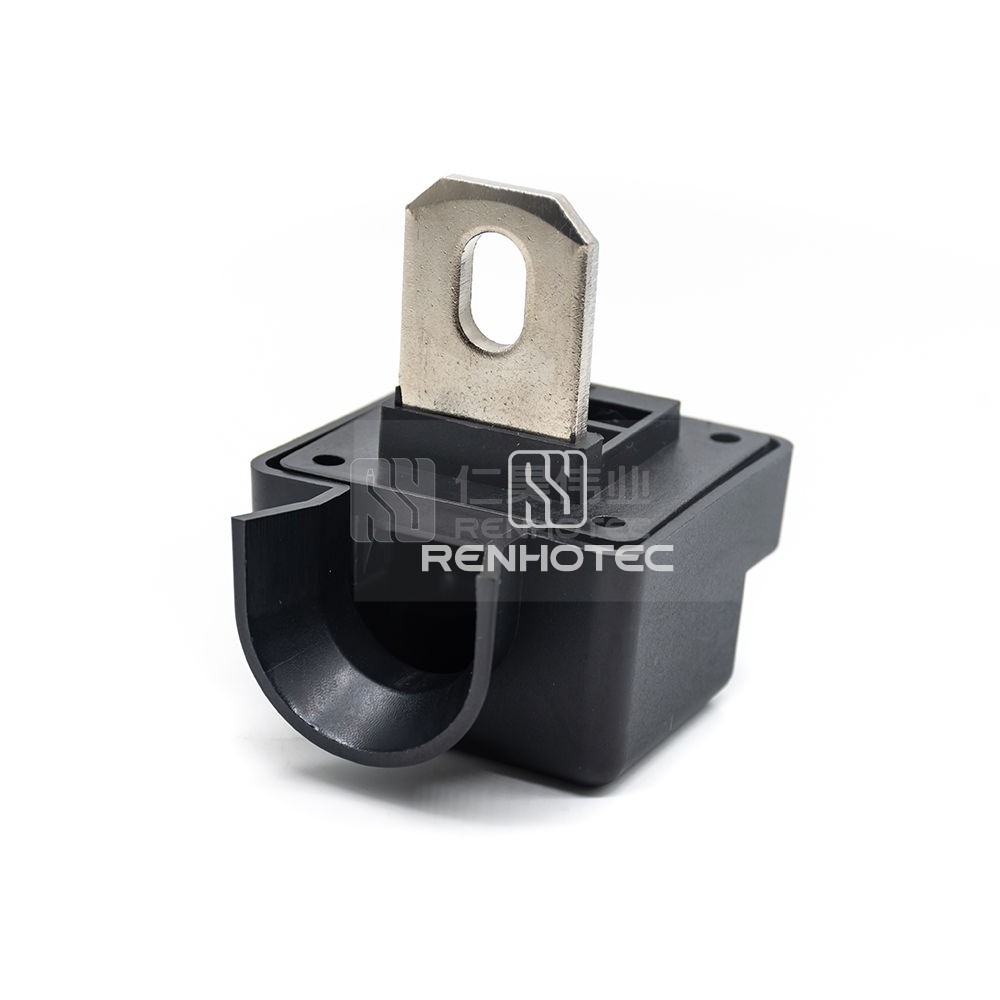

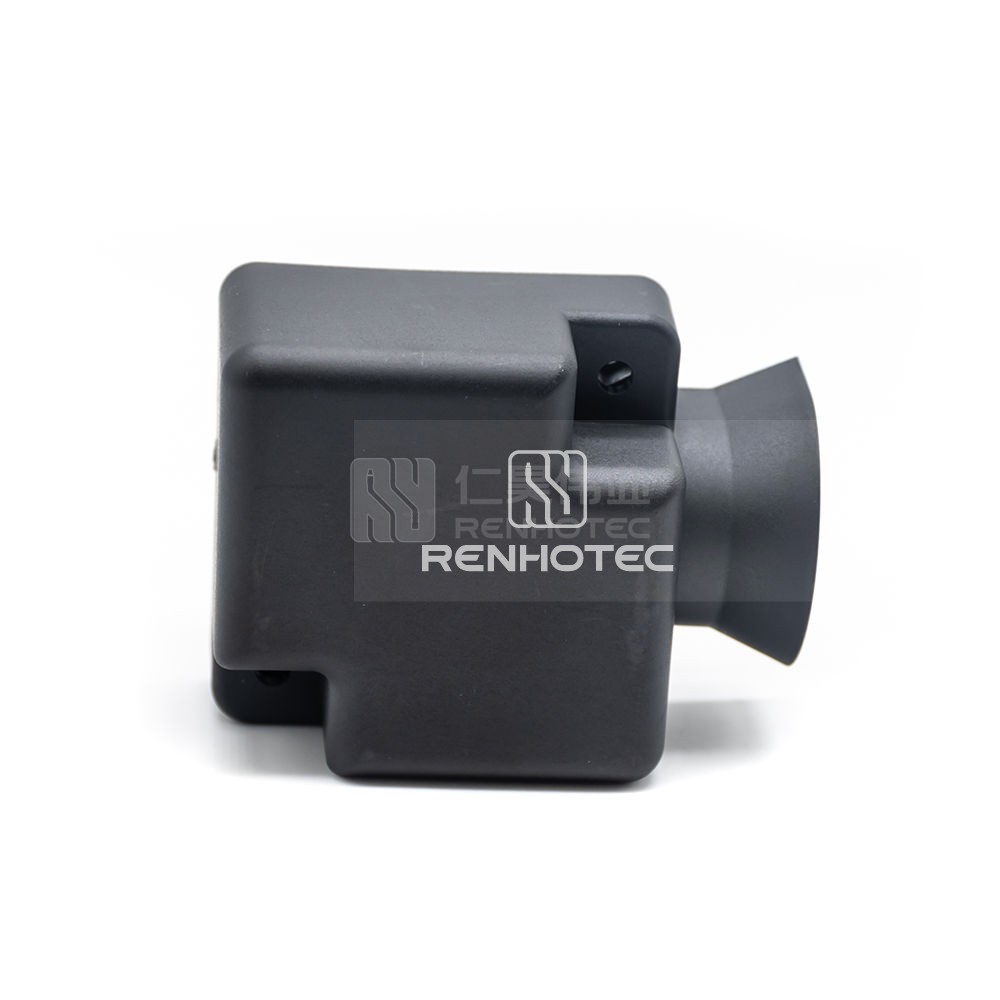

IF-FM8-56-4M-B
Feed Through Junction Blocks 200A Outer Screw(M8) Black- Overview
- Technical data
- Certification
- Download
Product excerpt
Efficiently manage and connect electrical wires with this 200A Feed Through Junction Block featuring an Outer Screw design ideal for M8 connections. These blocks are reliable, durable, and color-coded in Black for easy identification. Perfect for various electrical applications.
GeneralMechanicalElectricalMaterialEnvironmental
| General | |
|---|---|
| Body Style | Square |
| Contact Termination | Busbar/Screw |
| Color | Black |
| Mechanical | |
|---|---|
| Termination Thread | M8 |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead |
| Electrical | |
|---|---|
| Rated Voltage | 600V |
| Rated Current | 200A |
| Material | |
|---|---|
| Contact Material | Brass |
| Contact Finish | Nickel |
| Insulating Material | PBT |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
