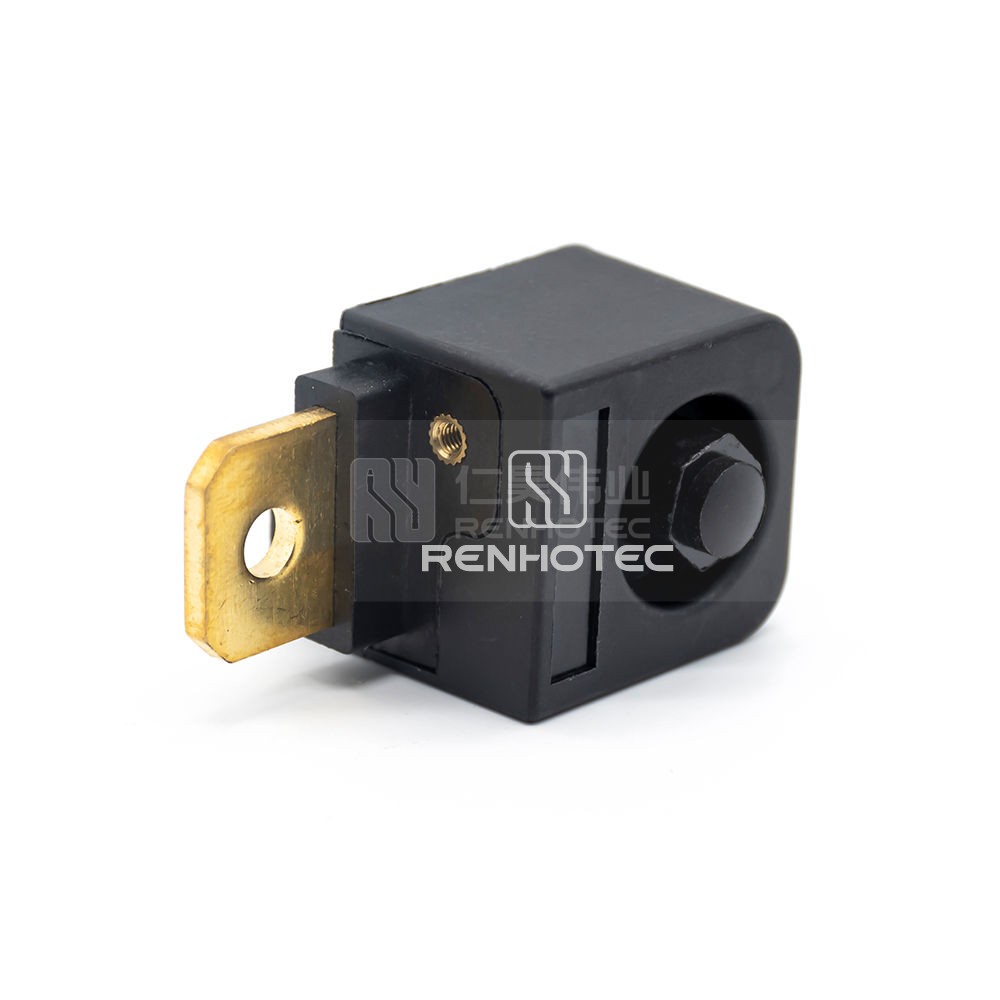

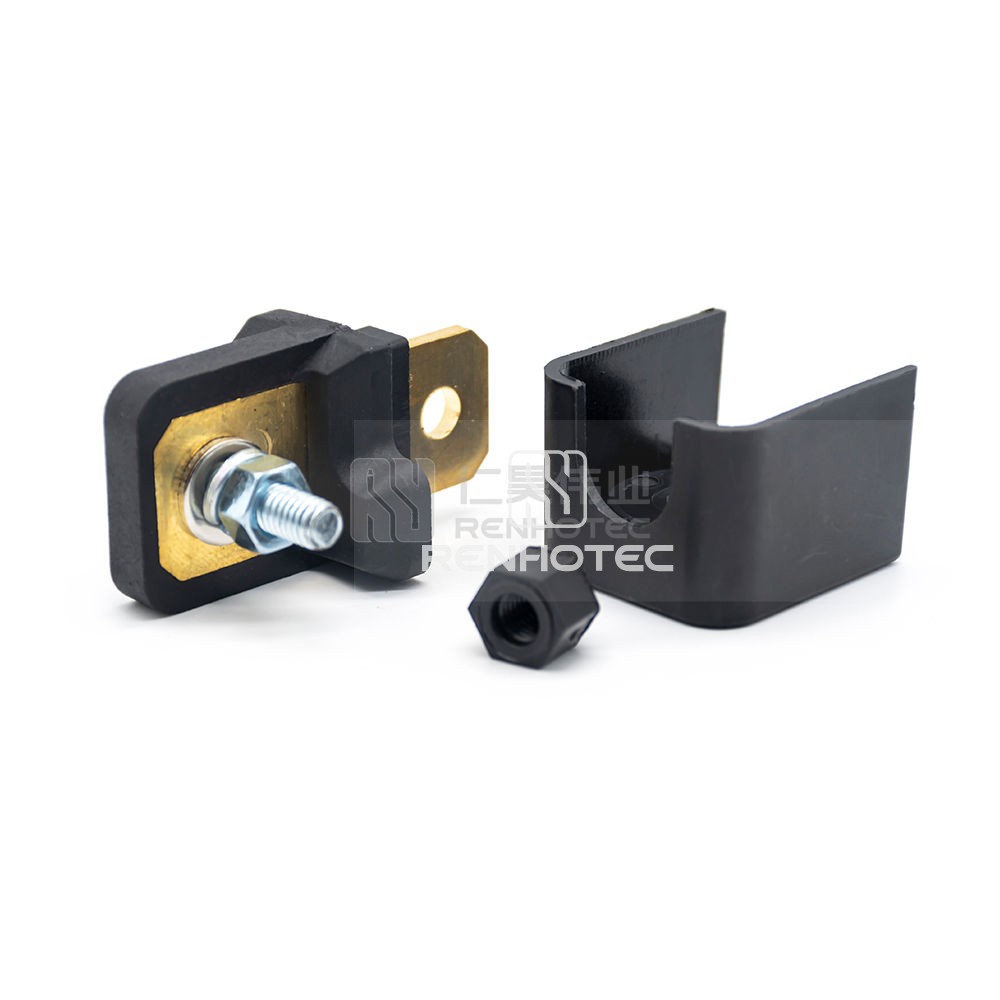

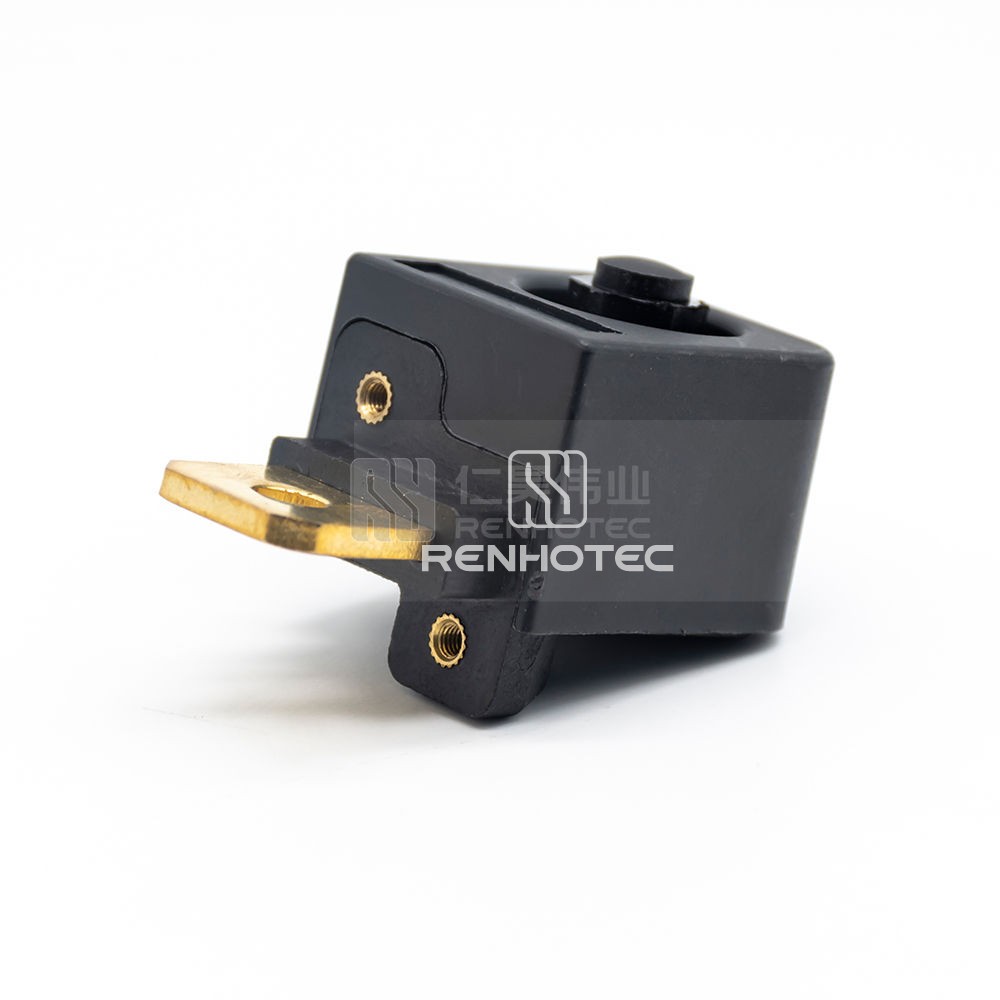

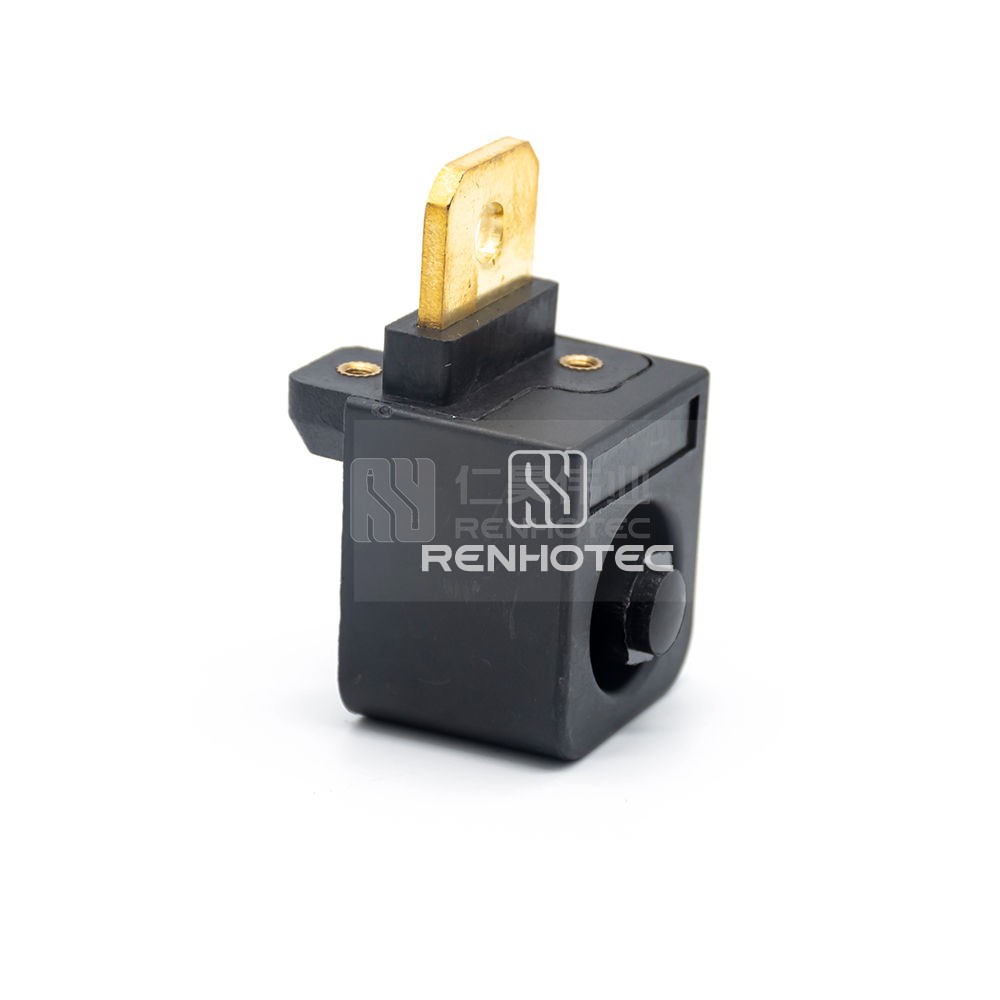

IF-FM8-3533-B
Feed Through Junction Blocks 130A Outer Screw(M8) Black- Overview
- Technical data
- Certification
- Download
Product excerpt
The Feed Through Junction Blocks 130A with an outer screw design in black color are ideal for securely connecting electrical wires. These blocks provide reliable connections and are perfect for various applications in the electrical industry.
GeneralMechanicalElectricalMaterialEnvironmental
General | |
---|---|
Body Style | Square |
Contact Termination | Busbar/Screw |
Color | Black |
Mechanical | |
---|---|
Termination Thread | M8 |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 130A |
Material | |
---|---|
Contact Material | Brass |
Contact Finish | Nickel |
Insulating Material | PBT |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
